Cable Grommet (for 16-24mm thick)

Download free STL file Cable Grommet (for 16-24mm thick)  • Design to 3D print, victor_arnaizDownload free STL file Cable Grommet (for 16-24mm thick)  • Design to 3D print, victor_arnaizDownload free STL file Cable Grommet (for 16-24mm thick)  • Design to 3D print, victor_arnaiz

Did you 3D print this model?

3D model description

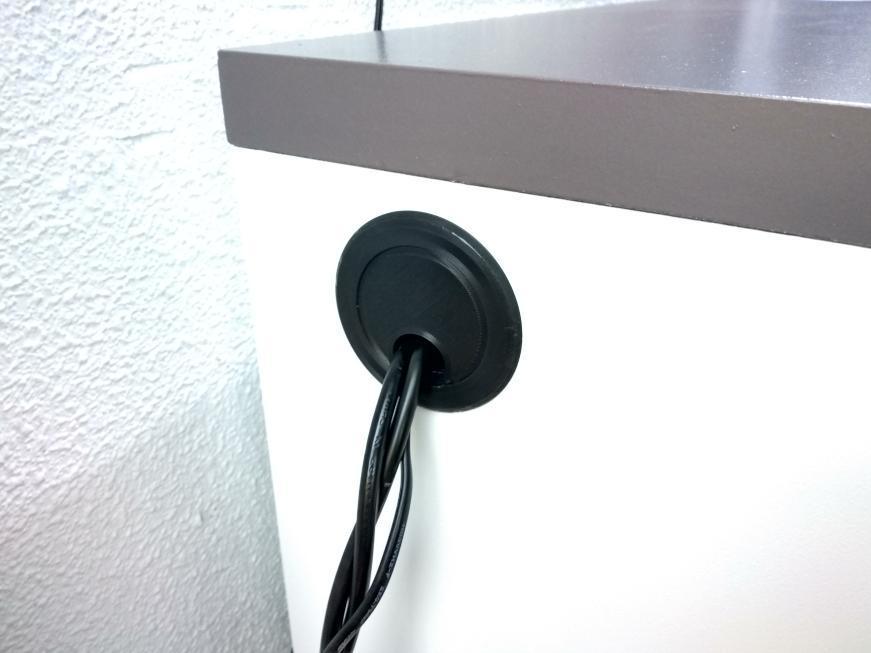

A grommet for passing wires through a table. Designed for EU plugs, UK plugs are probably too big to fit, US plugs should be fine.

Specifications:

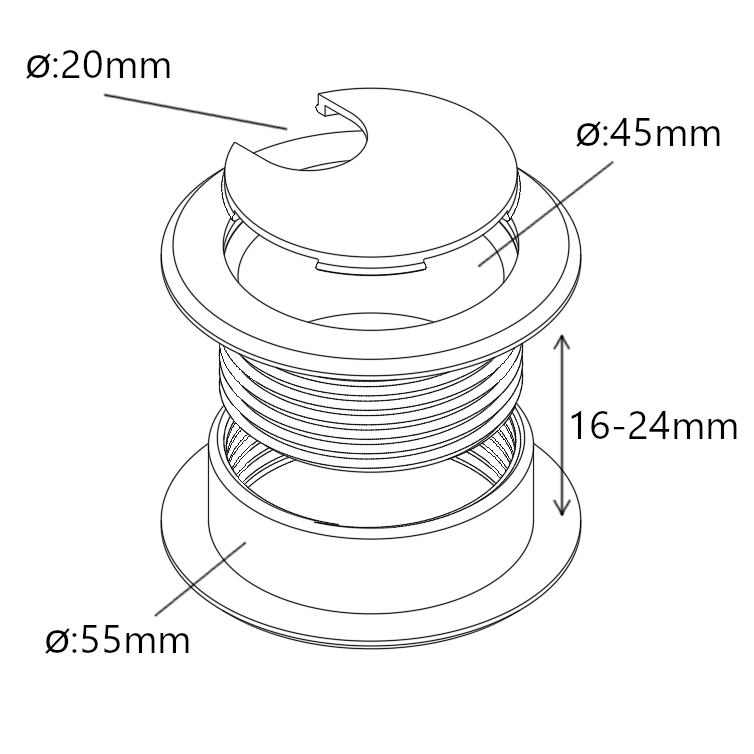

· A 55mm hole is needed to install it (one or two mm larger is ok)
· Fits all boards between 16 and 24mm thick. If your table is 24mm or thicker, check out this other model.
· The final diameter is 45mm, enough to fit most common plugs.
· The flange diameter is 71mm.
· Total weight: 30 grams. About 0.75$ cost to print.

Instructions:
1. Print the male and female pieces with the wide side down, no supports are required, typical printer tolerances have been accounted for.
2. With a hole saw, drill a 55mm hole in the preferred location.
3. Fit the male and female pieces through either side and screw them together, put the male piece on the most visible side.
4. Pass the plugs through one by one, when you're done, put the lid on. If the lid is a bit tight, try bending it a bit as you insert it. If there are too many cables for the lid to fit, there's a second version called LidXL with a bigger hole.

Please post your makes and comments to improve the designs. If you need some minor modifications I can do that for you.

Consider donating if this has been useful to you. Thanks!

3D printing settings

Material: PLA
Layer Height: 0.2mm
Nozzle: 0.4mm
Printer: Ender 3 Pro

  • 3D file format: STL

Tags

Creator

Designs 19
Downloads 968
Followers

I'm a student and a maker. My passion is electronics.
Paid designs go free after a couple months, make sure to follow me if you see something you like!

License

CC BY SA
