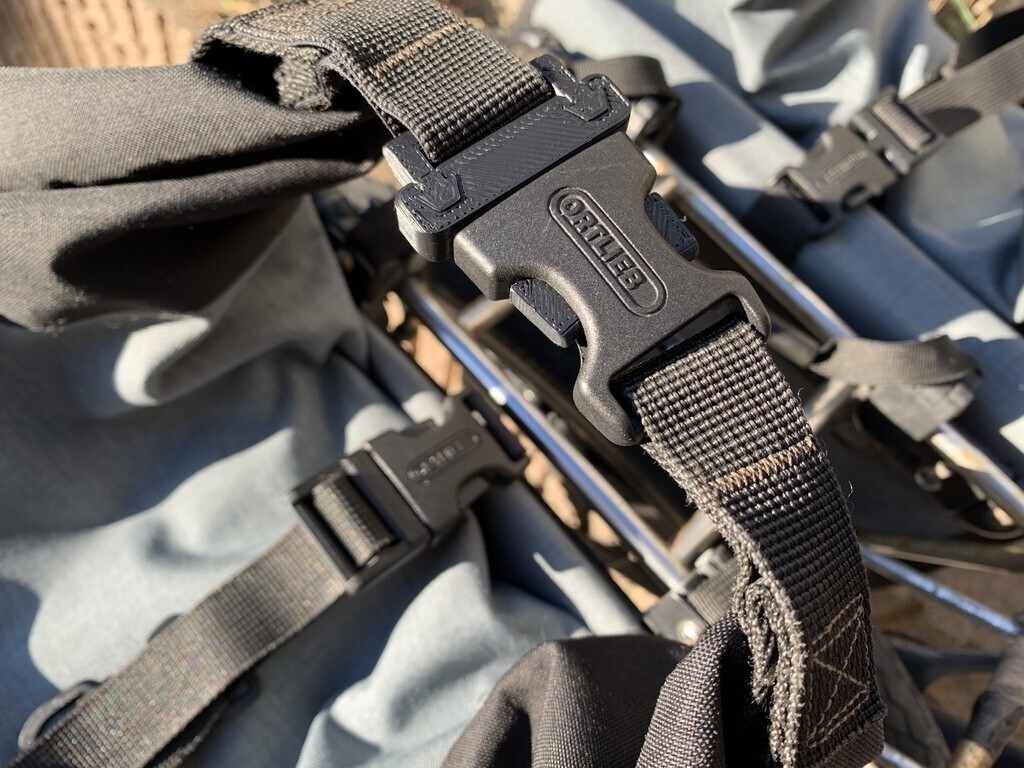

Buckle replacement for Ortlieb bag Remix

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 8 likes
  • 74 downloads

3D model description

This is a remix of bustamania's https://www.thingiverse.com/thing:276409 .
- Assemble without screws, snap-fit + instant glue ( including tight-fit pin and loose-fit pin )

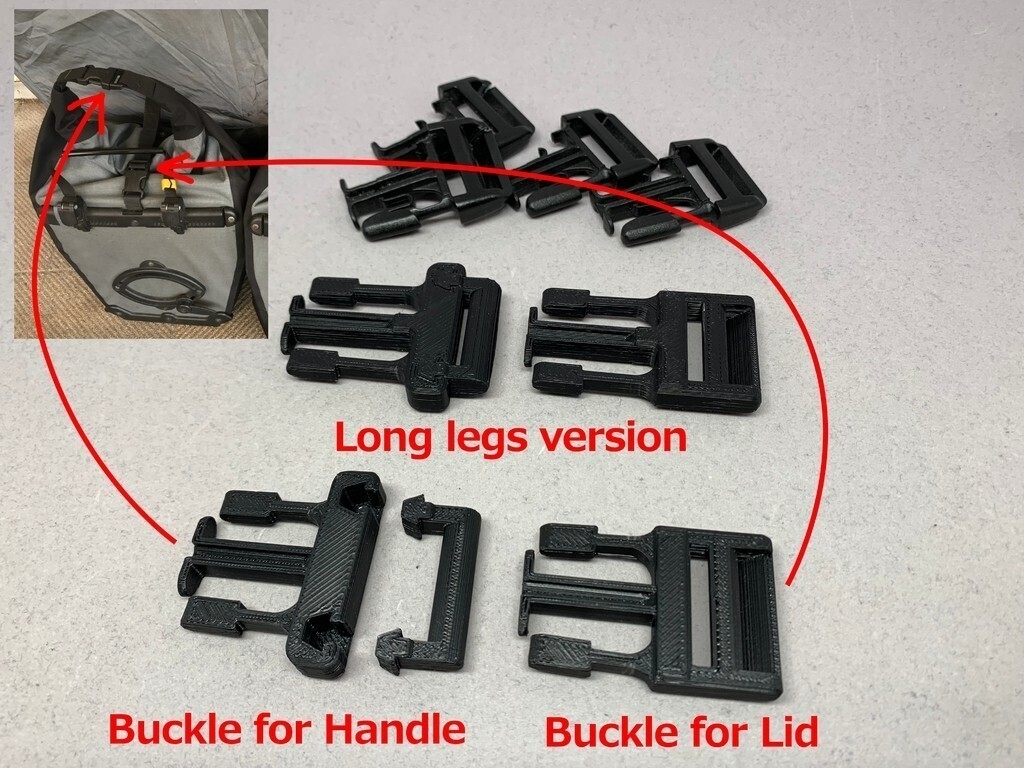

- Buckles for bag handle ( two parts ) and bag rid ( one part )

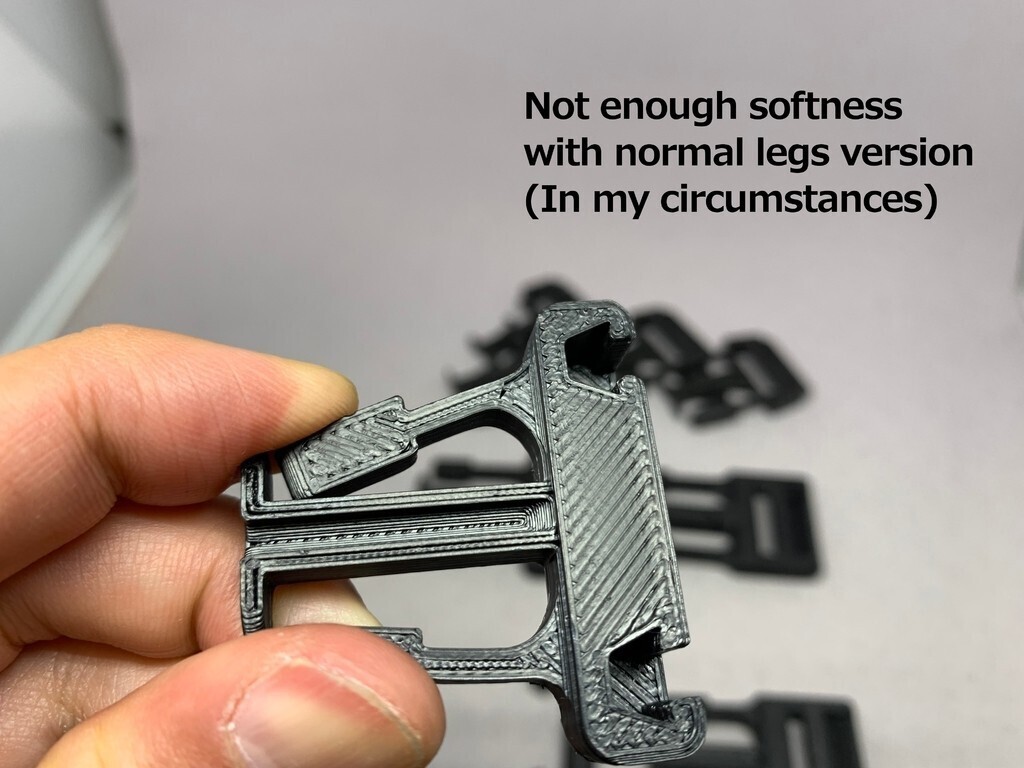

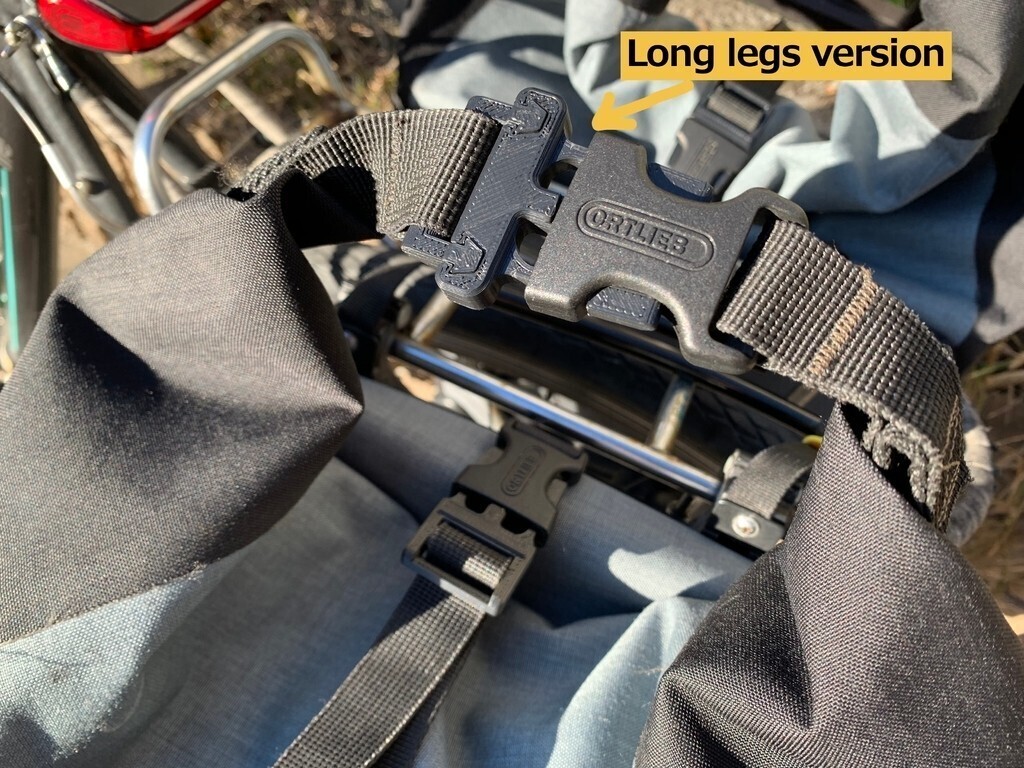

- Long legs version for more softness, because normal version has broken in my circumstances ( Pxmalion ABS black )

replacement instrution:
https://youtu.be/Ws3cMYhs-3Y

[Japanese]
オルトリーブのバックルの爪が折れたので、bustamaniaさんのデータから爪部分をお借りして設計しました。
ベルトの縫製をやり直すことなく交換できます。

・ネジを使う代わりにパチ組み式(鎌継ぎ)+接着剤に変更 (2つのピンはキツめとゆるめ)
・両サイドから締めるバックルに加えて、フタを閉める部分のバックルも追加(純正品は両用設計になってる)
・元データを手持ちのABS(Pxmalion黒)で印刷すると爪の根元部分が折れやすかったので、ロングバージョンを追加

ロングバージョンは半挿しのような見た目ですが、強度に支障はないと思います。

  • 3D file format: STL

Tags

Creator

License

CC BY SA
