Valve knob for radiator

3D model description

3D Model Description

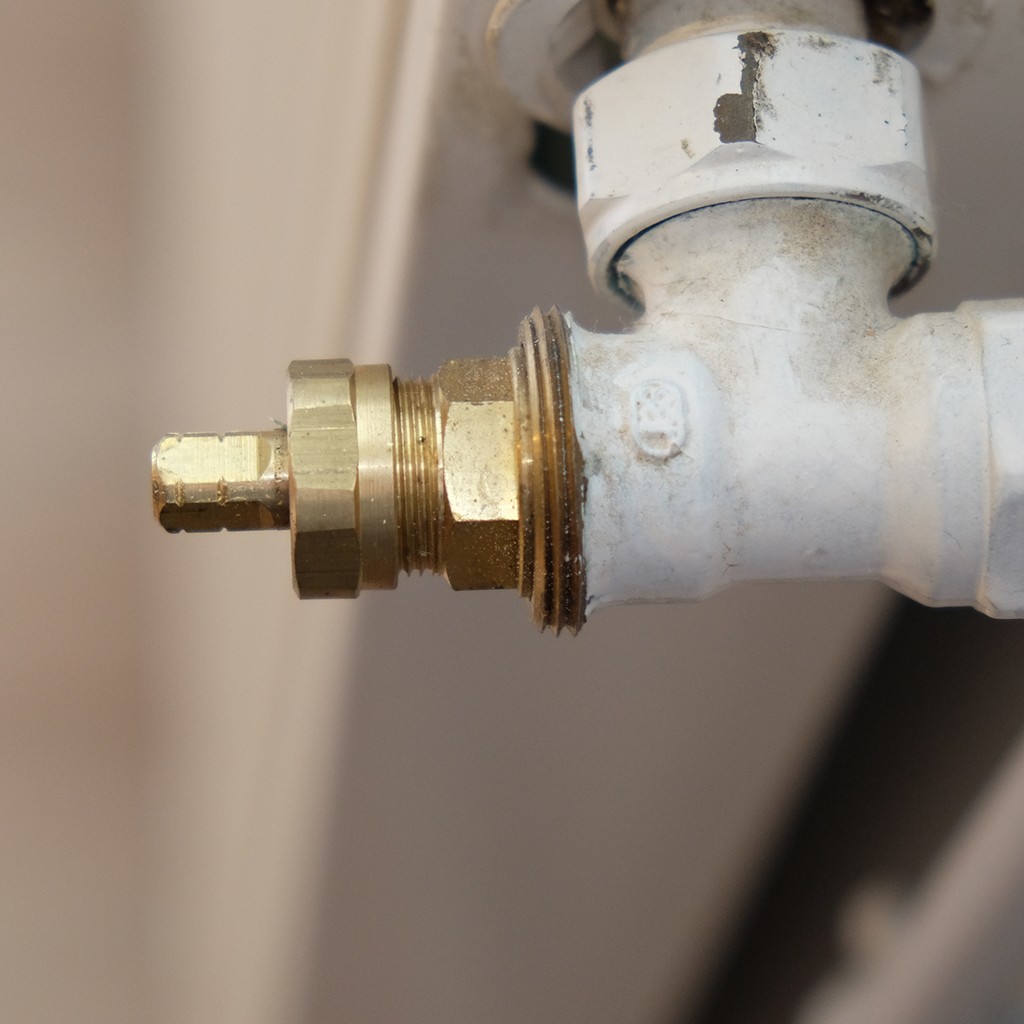

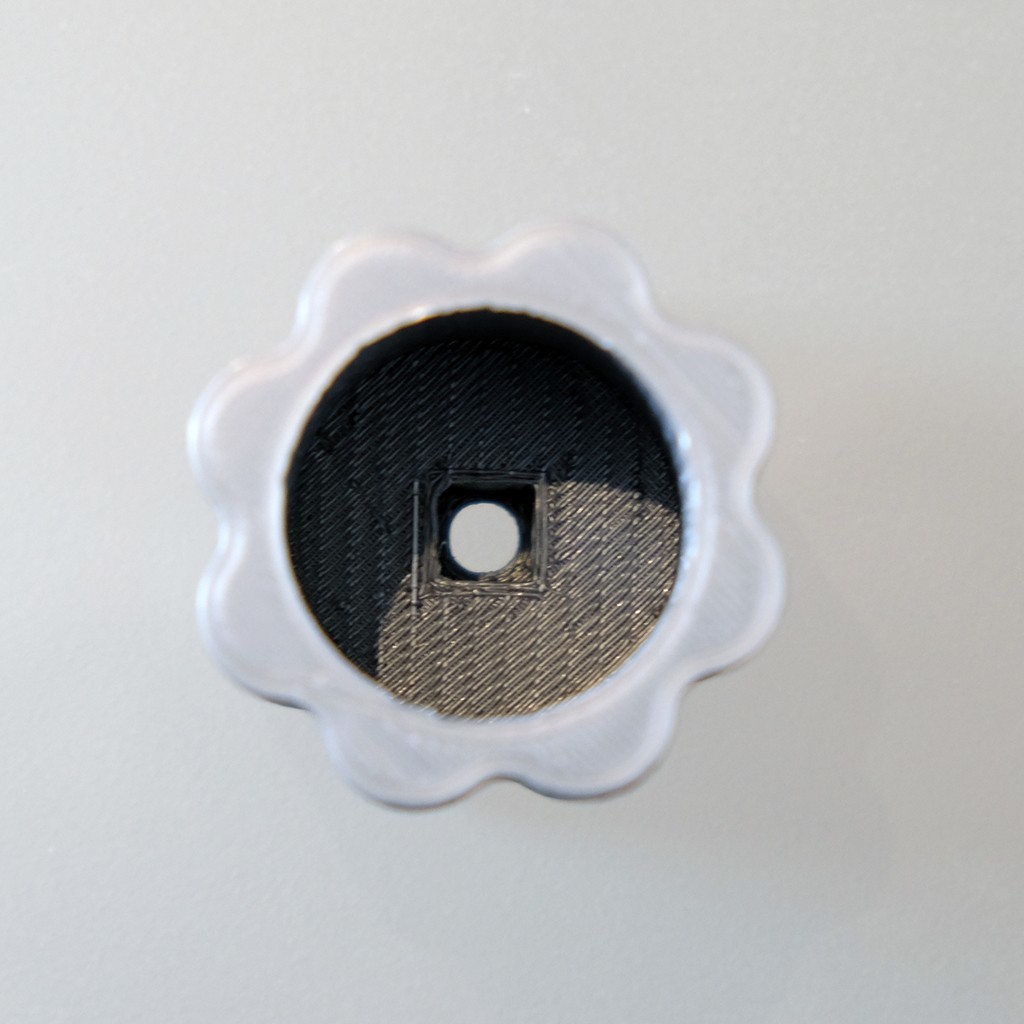

Button intended to replace the plastic button which equips certain models of radiators without thermostatic valve. The inside of the knob is equipped with the control square of the valve.

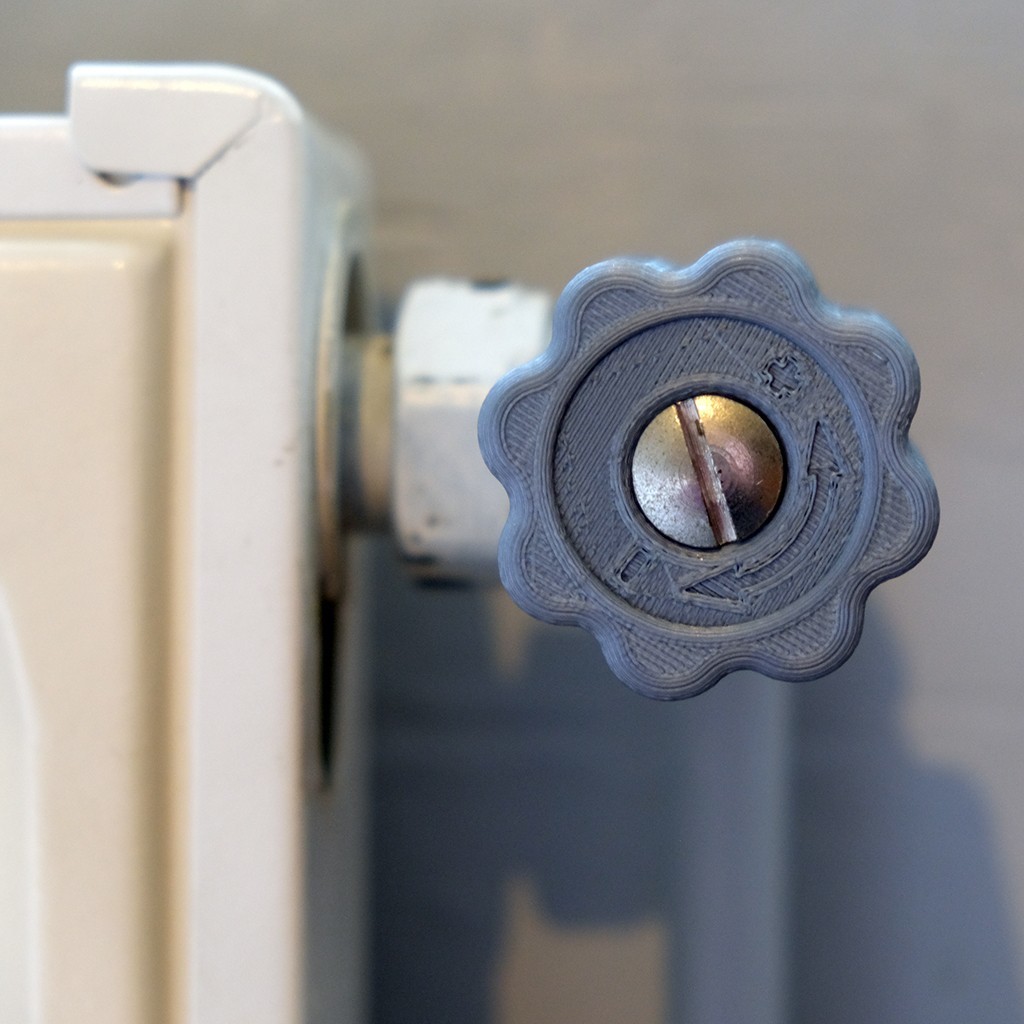

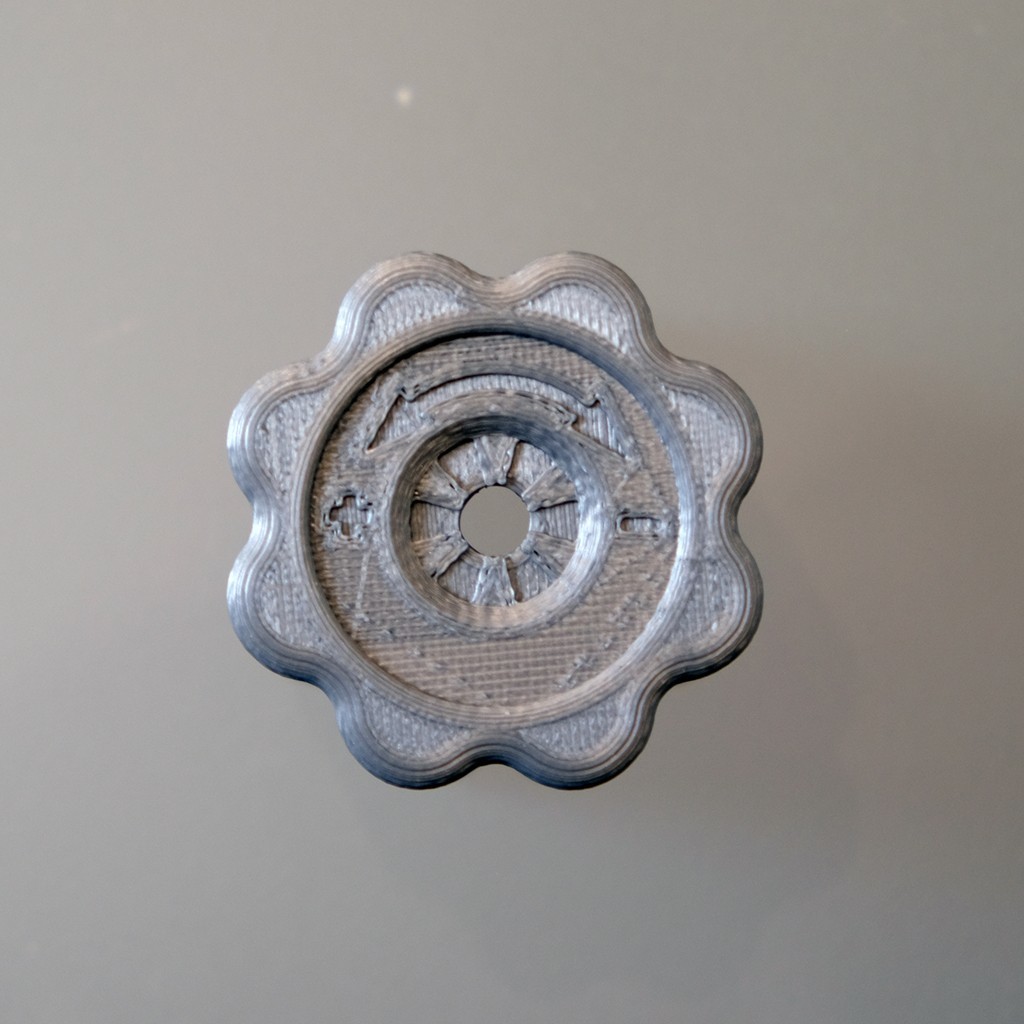

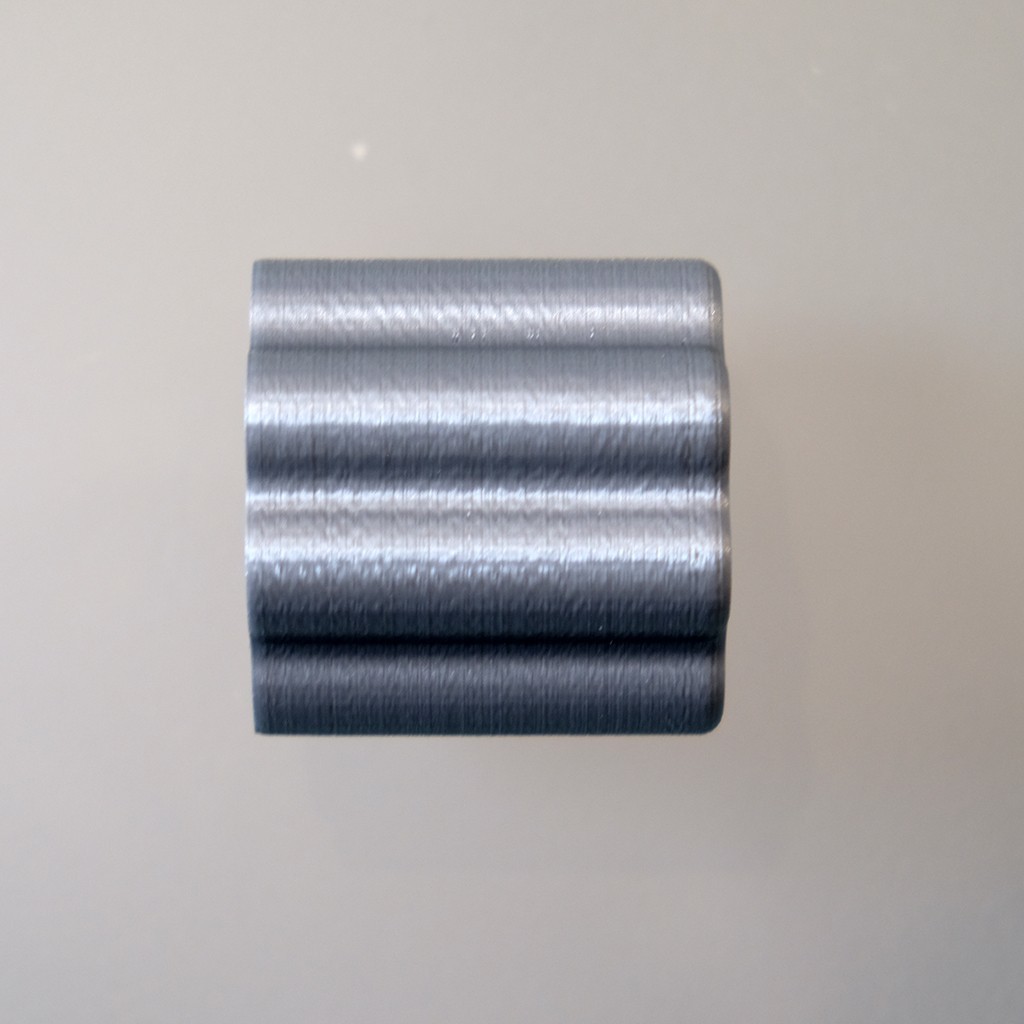

(The photos are those of the prototype printed in low resolution)

3D printing settings

0.1mm layer

Wall thickness 1.05mm

20% grid filling

Essential supports for the recess on the underside

Diameter 42mm Length 40 mm

2m80 of thread in 2.85, 22g

  • 3D model format: STL
