Old cast iron radiator valve knob

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.9k views
  • 12 likes
  • 133 downloads

3D model description

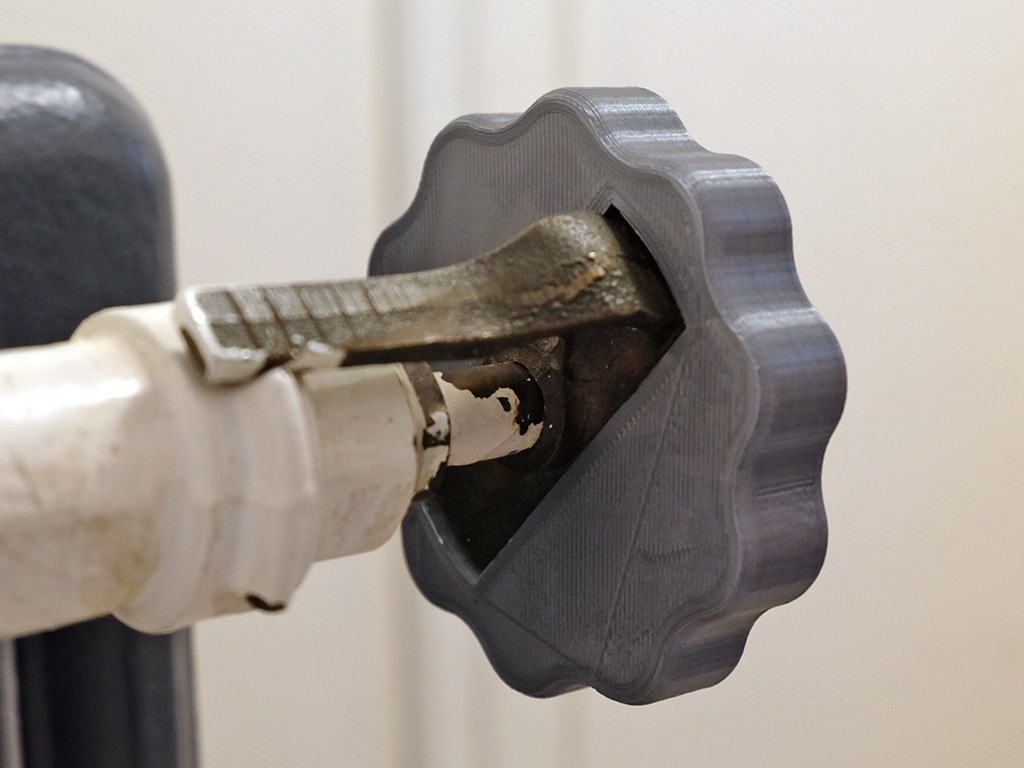

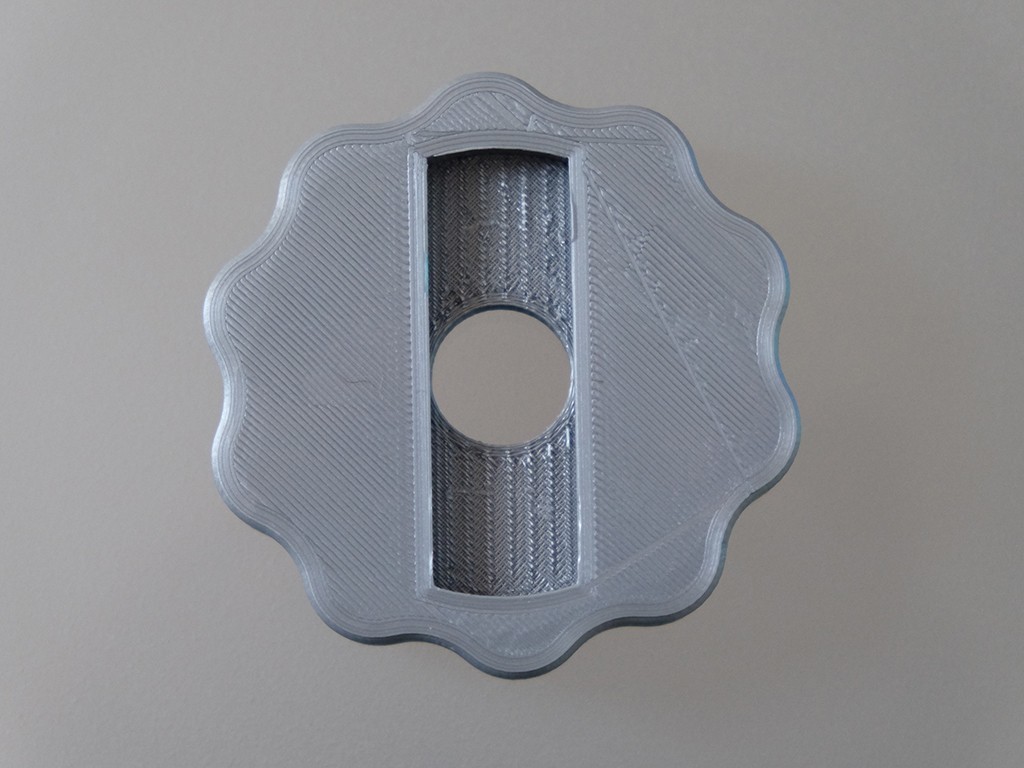

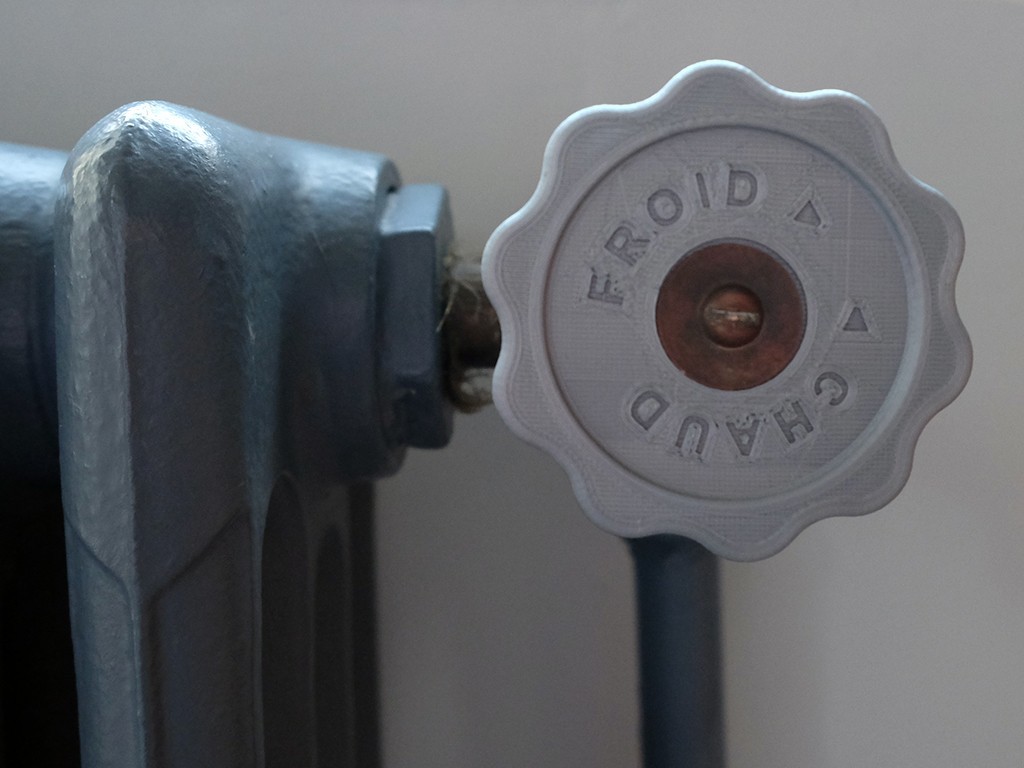

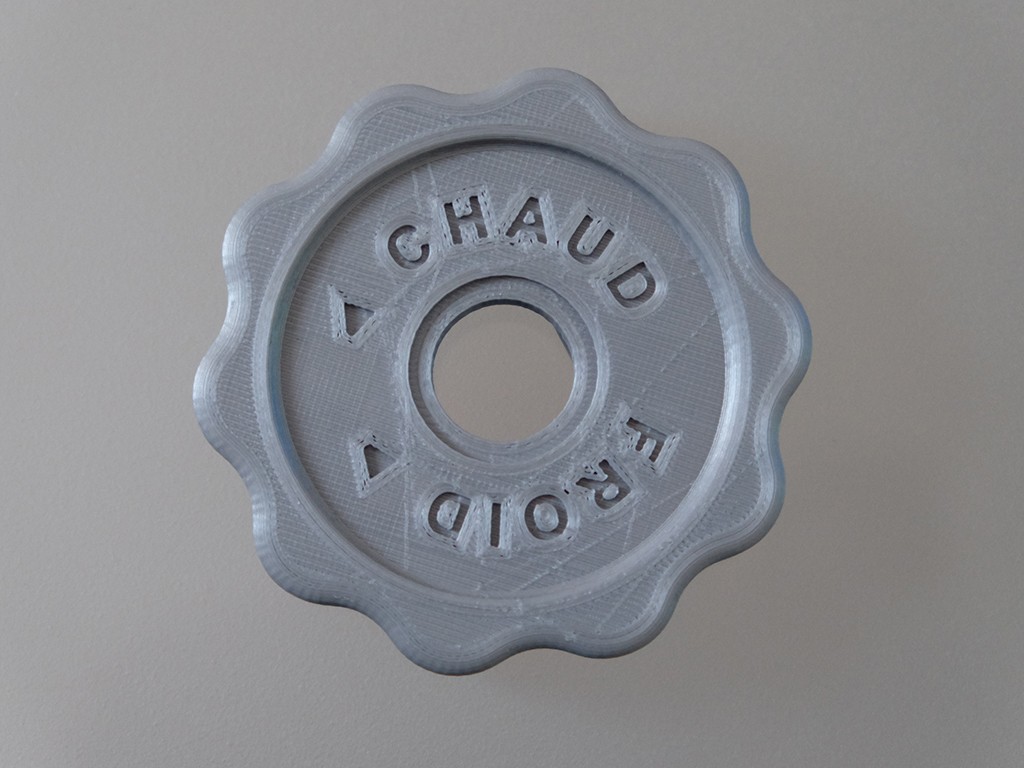

Button to replace the bakelite button which equipped certain models of old cast iron radiators. The lower part of the button is equipped with a recess which allows the brass stop to be passed through.


3D printing settings

0.1mm layer

Wall thickness 1.05mm

20% grid filling

Essential supports for the recess on the underside

Diameter 69mm Thickness 13mm

2m30 of thread in 2.85, 19g

3D printer file information

  • 3D design format: STL Folder details Close
    • bouton_radiateur_01a.STL

    Learn more about the formats

  • Last update: 2018/04/30 at 19:04
  • Publication date: 2018/04/18 at 21:21

License

CC BY NC SA
