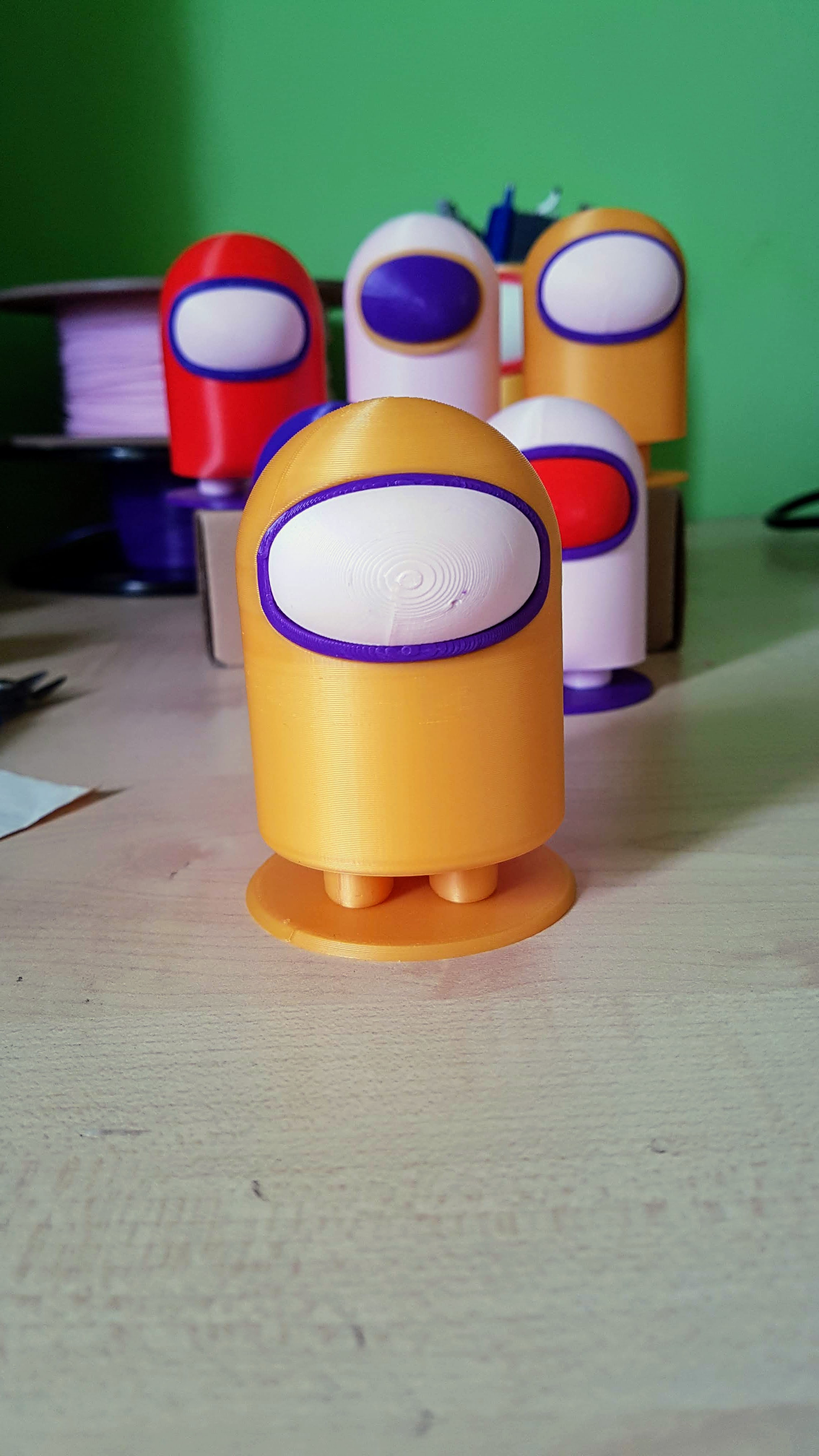

Bobblehead Among Us - completely 3d printed

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

3D model description

Inspired by Paige Russell's work on the 3D printed bobblehead
https://www.instructables.com/3D-Printed-Bobblehead/

I modeled these from scratch in fusion 360 but i also referred to Walrit's among us design from thingiverse because his model looks really nice. The model is fully printable including the spring.


3D printing settings

https://youtu.be/9tIHjkKoxog

Supports: not required
Infil: 10-20%
Walls: 3 perimeters
Bridging: MUST be turned on
Filament: ABS for the spring! If to be placed in the car, at least the Feet and the body should also be printed in ABS or any heat resistant material.

Mainbody:

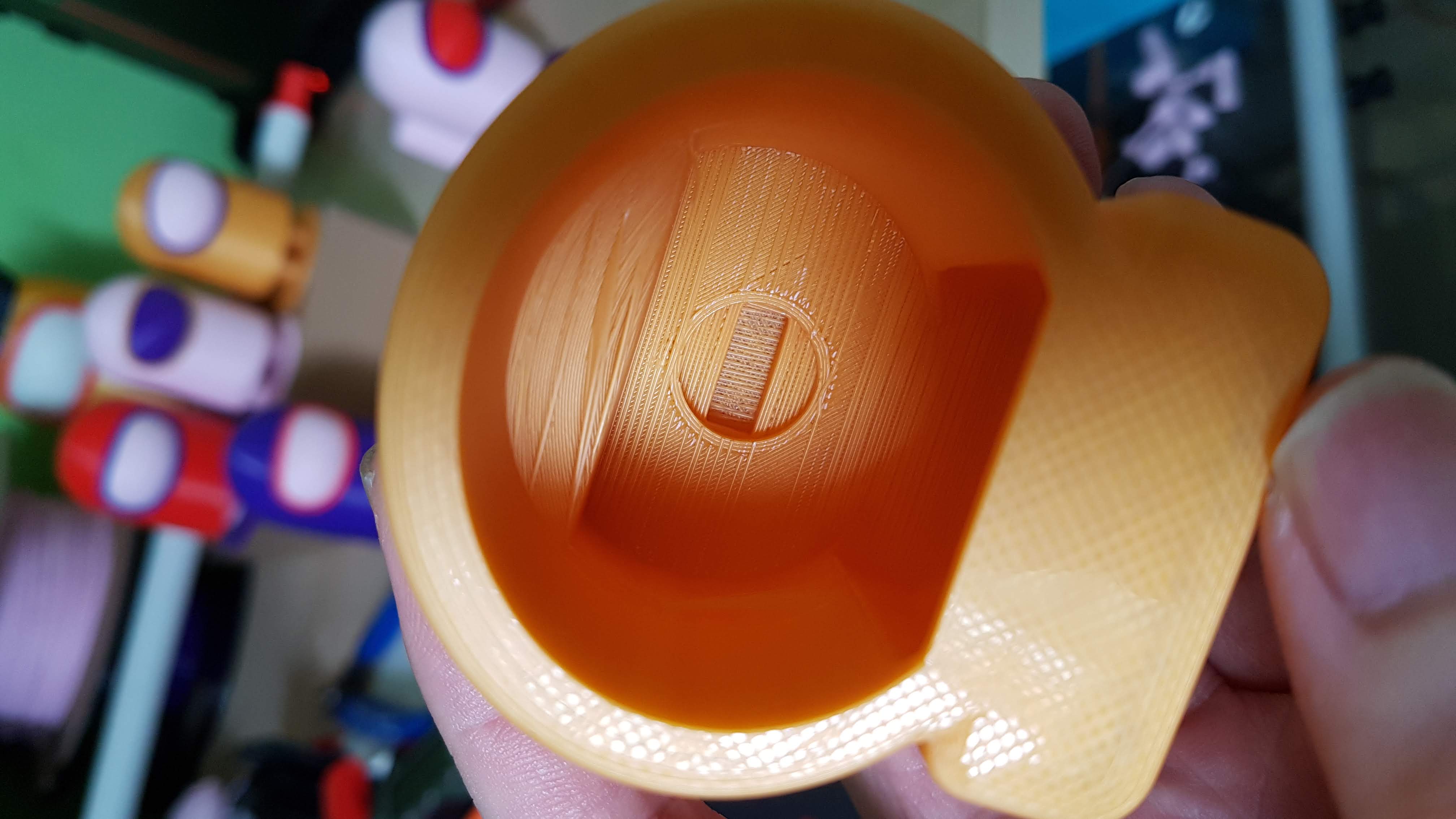

There are 2 sacrificial layers (refer to image) that need to be removed. I use a long nose plier to pull clean the layer. These recess will be sitting on to the spring later.

Spring:

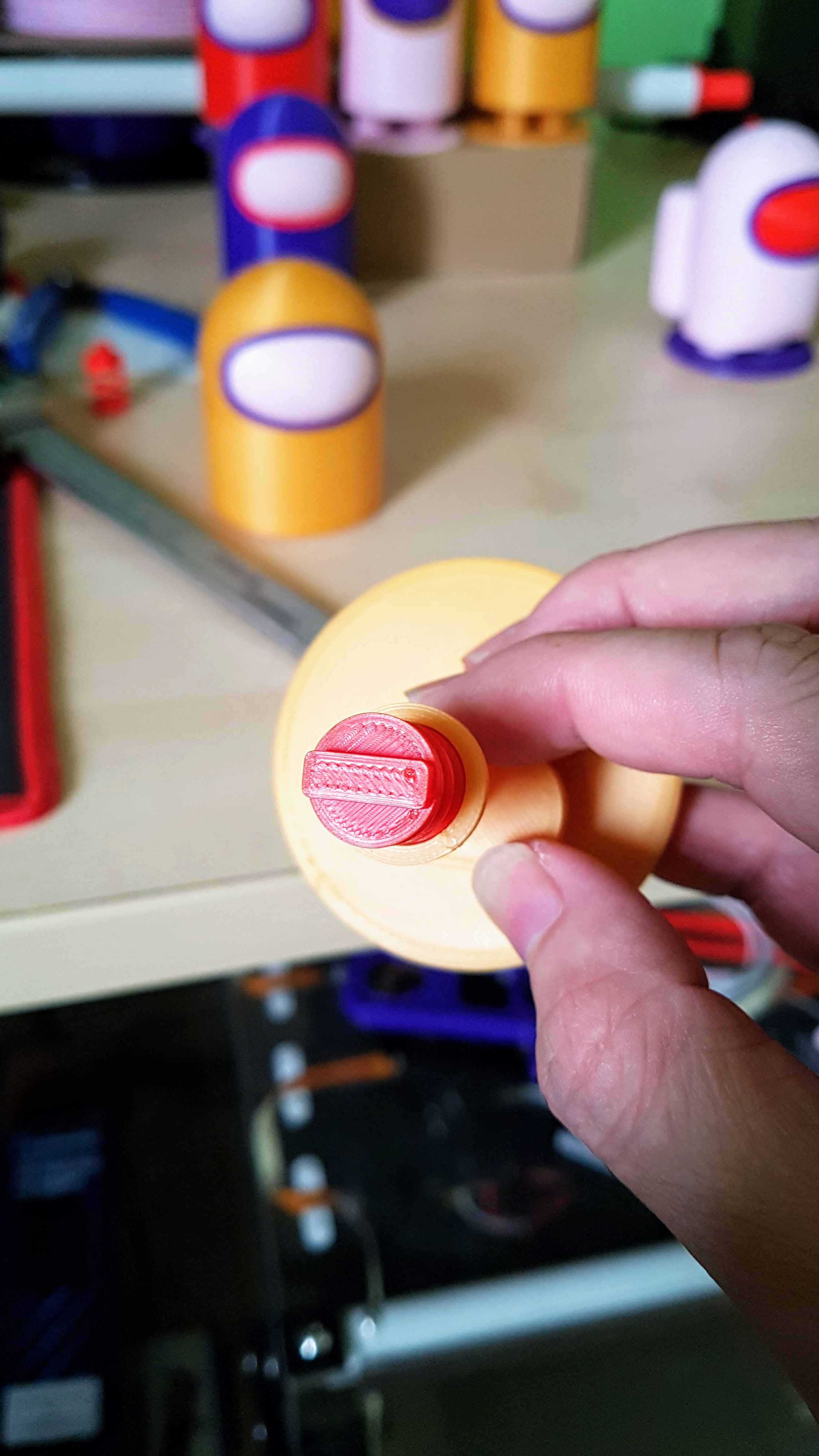

The spring already has built-in supports and can be easily removed with a small plier. I strongly suggest to print the spring in ABS as it retains the spring property better compared to PLA. Turn off cooling for better layer adhesion. When inserting the spring onto the feet, ensure the notch on top is perpendicular to the mainbody's recess. This is to prevent the mainbody from spinning around.

3D printer file information

  • 3D design format: STL Folder details Close
    • Feet.stl
    • Mainbody.stl
    • Rim.stl
    • Spring.stl
    • Visor.stl

    Learn more about the formats

  • Publication date: 2021-05-22 at 08:55

License

CULTS - Private Use
