Bestway Pool Wasserfall

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

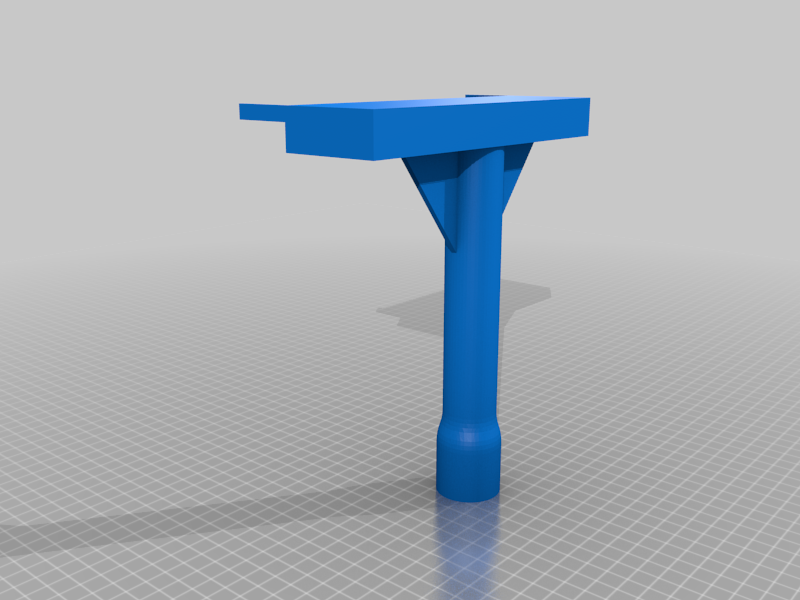

The waterfall element should be printed upside down to save support (e.g. tree support). Support is only required on the build plate, there are already support structures inside the waterfall element.

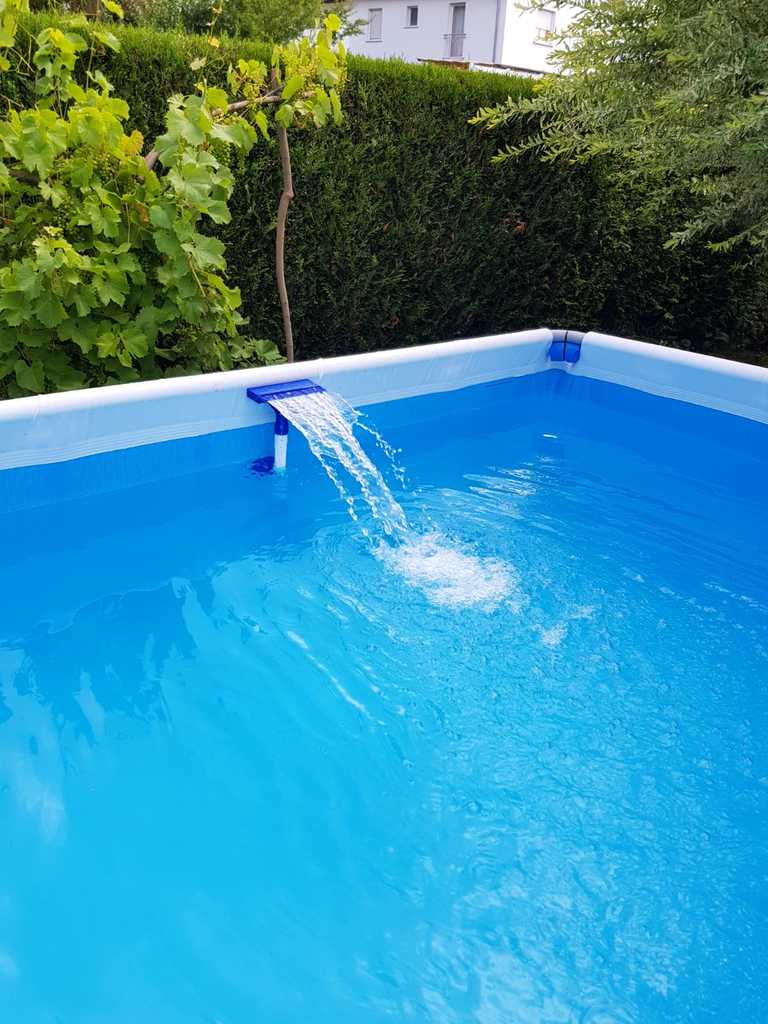

Waterfall V1 does not need any support, has already been tested and worked quite well for me with a sand filter 4600l / h.

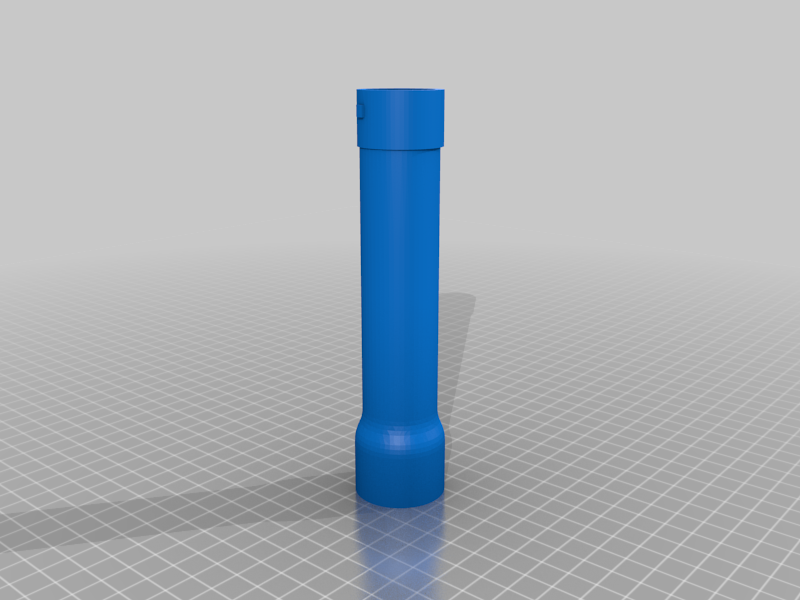

The extension tube does not seal completly - which also prevents overpressure (up to a certain point)

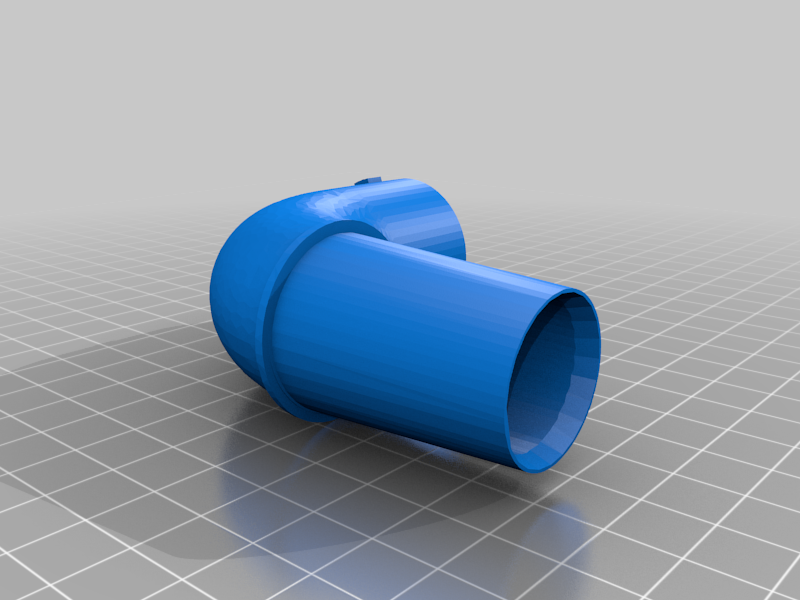

To use the screwable version, some pools do need a fine thread adapter (attached here) instead the big thread (find in the orignal thing). My Bestway pool for example need the fine thread version. If you like to use the screwable version please check the origninal file, you need also from there:
Intex_Curved_Outlet_QC_Tube.stl
Intex_Curved_Outlet_QC_Nut.stl

--
Remix of https://www.thingiverse.com/thing:4443955
You can use the connection adapters also from the source file to connect it to your outlet.
No warrenty at all for this thing - not free for commercial use.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • Bestway_Quickconnect.stl
    • Verlaengerung.stl
    • Wasserfall_V1.stl
    • Wasserfall_V2.stl
    • fine_thread.stl

    Learn more about the formats

  • Publication date: 2021-05-14 at 01:08
    ?
    Published to Thingiverse on: 2020-07-15 at 18:19

License

CC BY
