BEEBOX (#DAGOMERLIN multipurpose box set)

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.4k views
  • 6 likes
  • 10 downloads

3D model description

BEEBOX SET...( #DAGOMERLIN)

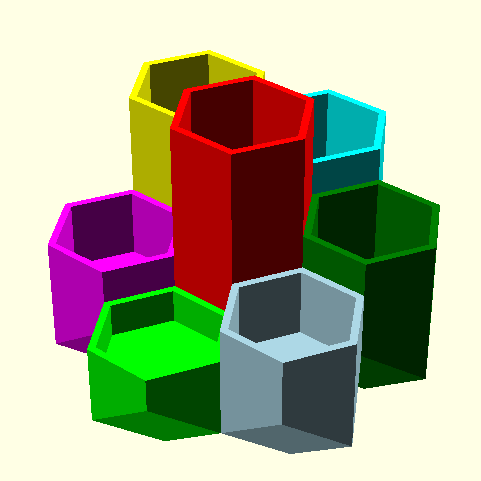

Last minute: (29/11/2017) By general request (from myself and some others) I add some boxes whose opening is truncated (see the last picture...) These boxes must be assembled by 2, 3 or more and glued (the super strong Scotch glue does the job....)

At the origin of the project is the idea of modelling a honeycomb. The cells (or cells) of a honeycomb are tubes of hexagonal cross-section whose bottom is not flat, but rather resembles a roof made up of 4 diamonds. These cells can be interlocked, hence the idea of this set of boxes. The diamonds have become squares for balance.

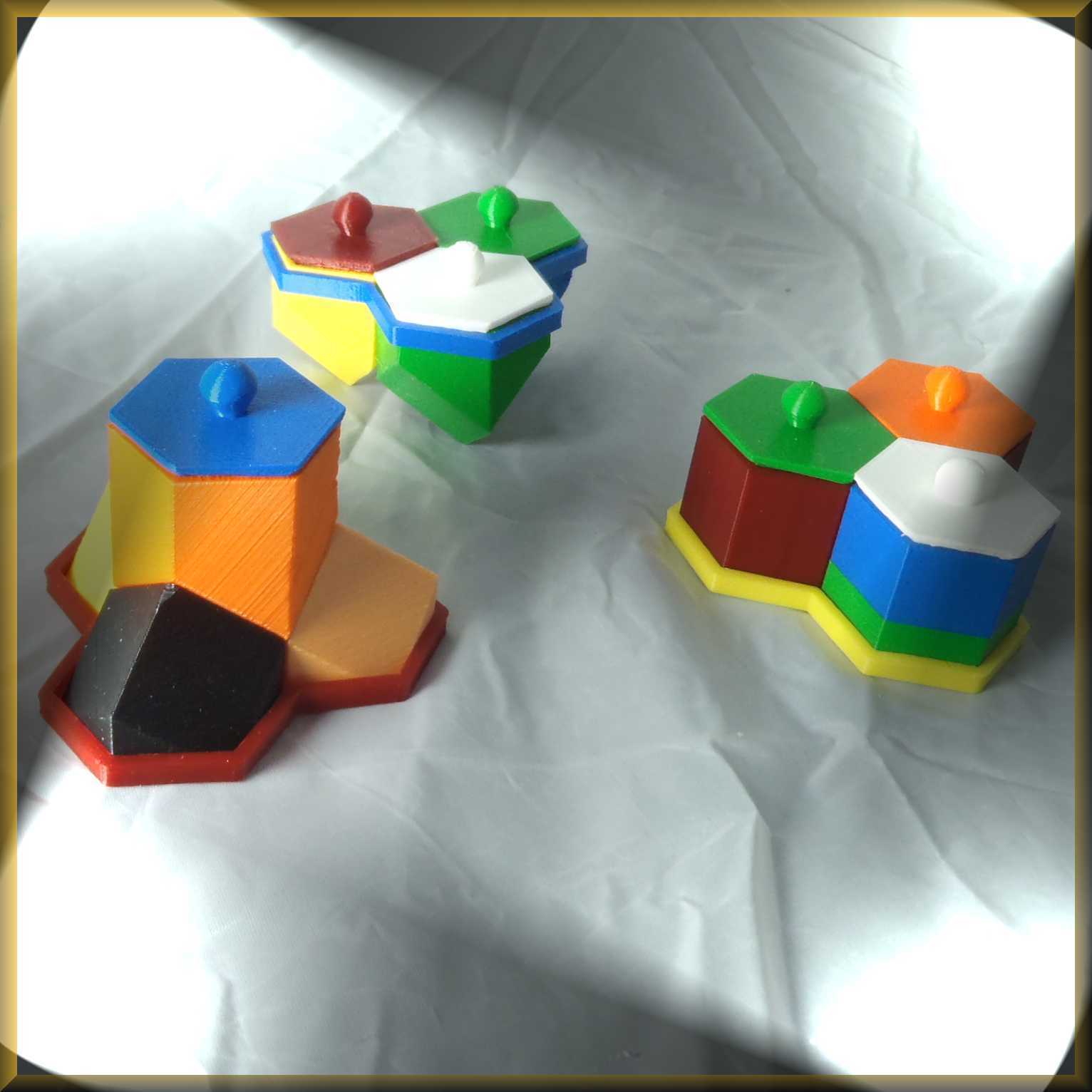

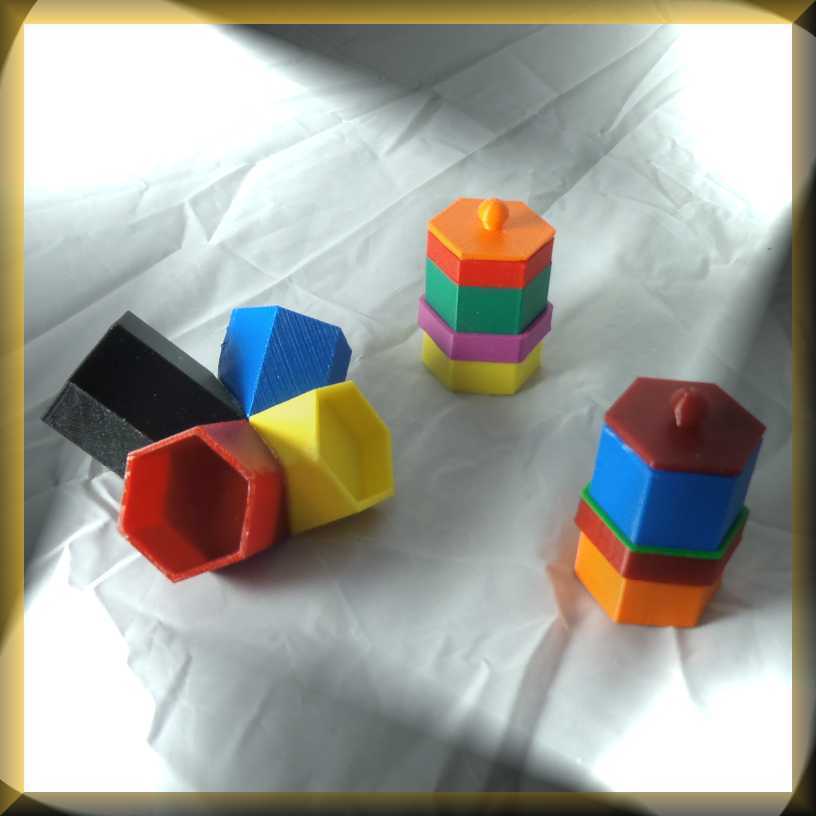

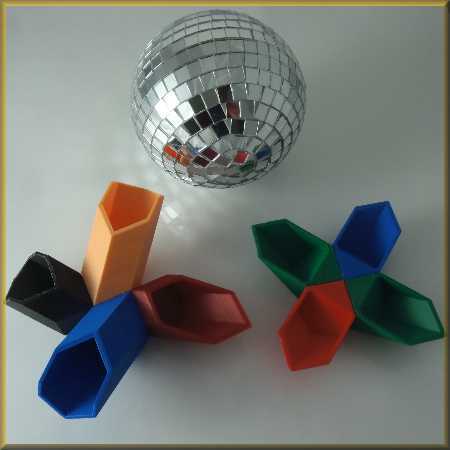

The possible assemblies are multiple: the limit is that of your imagination! The collars allow the boxes to be combined without any glue (except for the last assembly proposed as an example).


Set composition: cellular bottom boxes of several heights, extensions, assembly collars, cover, and flat bottom boxes.

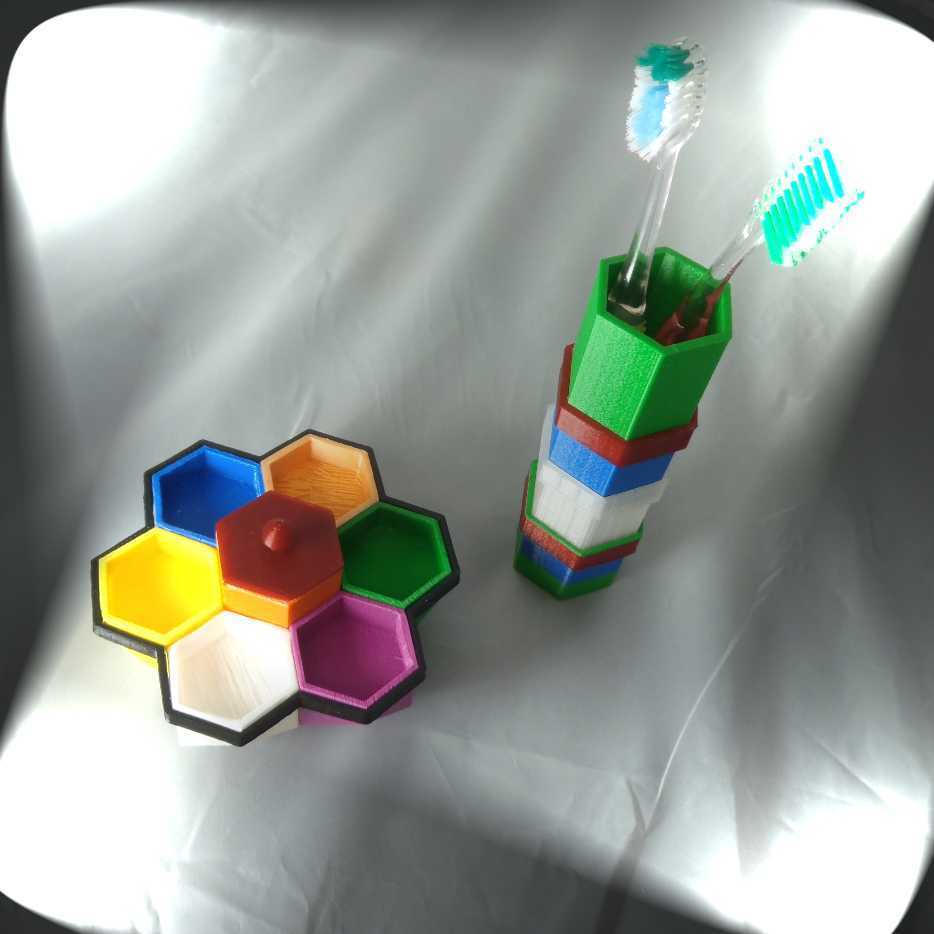

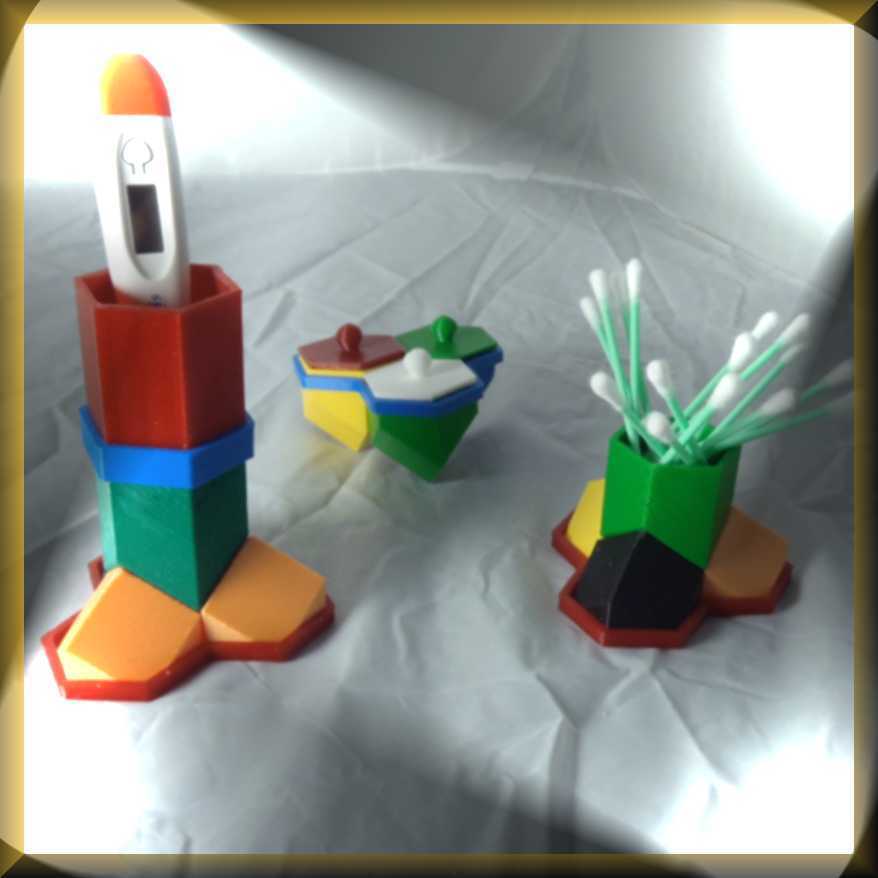

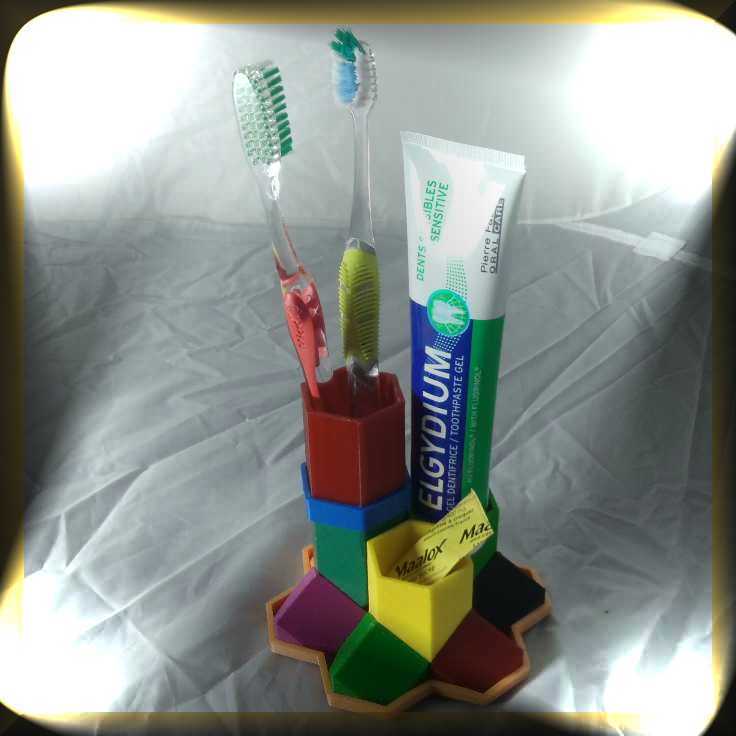

Use: see pictures! You can even consider assembling a pill dispenser using the 7-element collar!

3D printing settings

The photographed makes were made with PLA (Chromatik). Outside the cover no support (or raft or raft) is necessary (just sometimes an improvement of the tray).

The filling is 17% and the quality is standard ( 0.15mm layer thickness).

3D printer file information

  • 3D design format: STL Folder details Close
    • Boite-a-fond-plat _(h_2.0).stl
    • Boite-a-fond-plat _(h_3.0).stl
    • Boite-a-fond-plat _(h_4.0).stl
    • Boite-alveole_(h_0.0).stl
    • Boite-alveole_(h_1.5).stl
    • Boite-alveole_(h_2.0).stl
    • Boite-alveole_(h_3.0).stl
    • Boite-alveole_(h_4.0).stl
    • Boite-alveole_tronque(h_10.0).stl
    • Boite-alveole_tronque(h_5.0).stl
    • Boite-alveole_tronque(h_8.0).stl
    • Boite-alveole_tronque(h_8.0-bis).stl
    • Collier_1 element(h-1.0).stl
    • Collier_3 elements(h-0.5).stl
    • Collier_3 elements(h-1.0).stl
    • Collier_7 elements(h-0.5).stl
    • Collier_7 elements(h-1.0).stl
    • Couvercle.stl
    • Rallonge(h-2).stl
    • Rallonge(h-3).stl
    • Rallonge(h-4).stl

    Learn more about the formats

  • Last update: 2017/11/29 at 17:44
  • Publication date: 2017/11/15 at 17:48

License

CC BY
