Bedside Lamp (Tube), LED 12V 2.5W

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.6k views
  • 13 likes
  • 101 downloads

3D model description

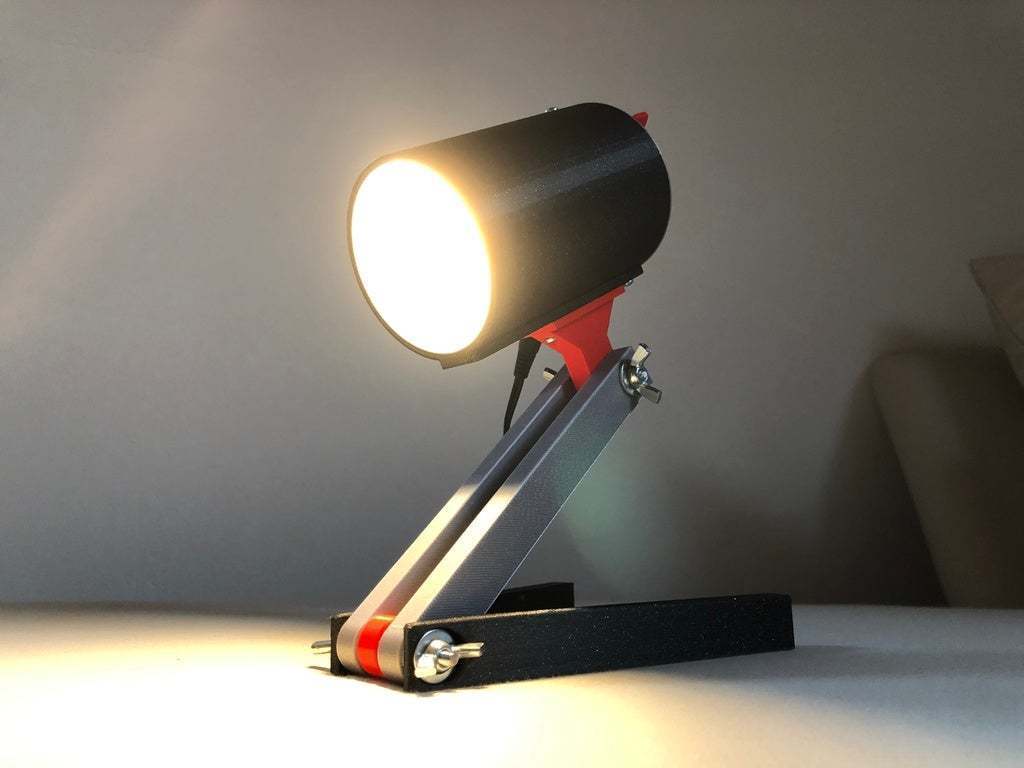

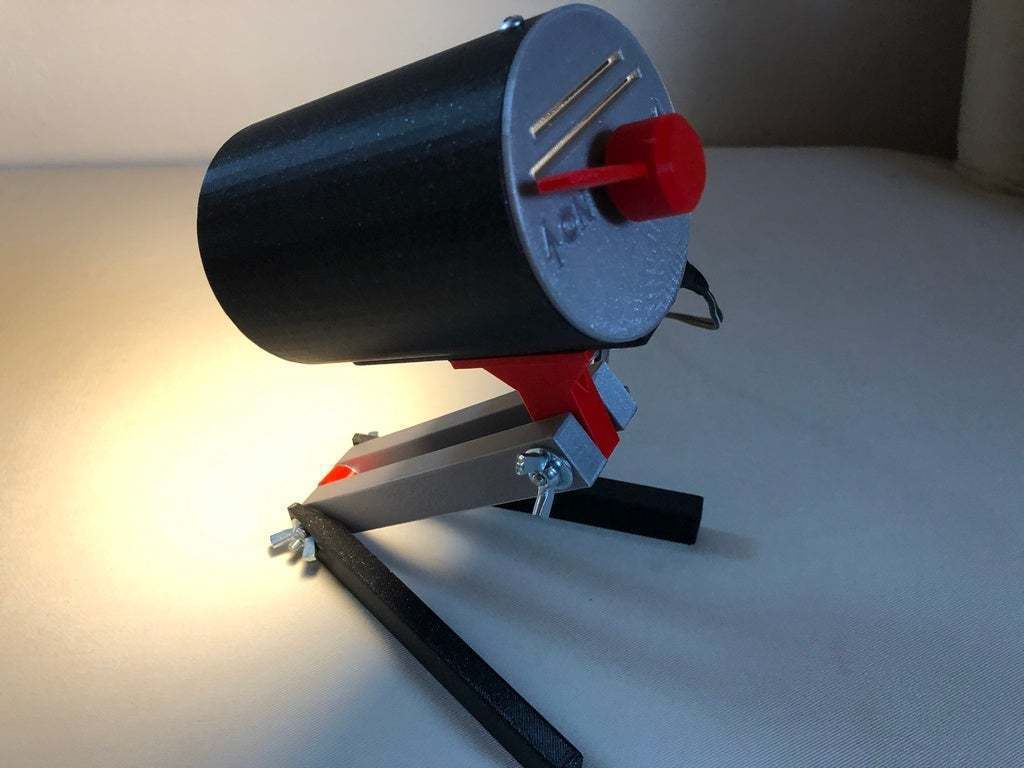

This is a further development of the bedside lamp with the box shape (https://cults3d.com/en/3d-model/tool/bedside-lamp-box-led-12v-2-5w). Now this lamp had become a tube shape and you can print the backside as switch or dimmer version. Whereby I have to say that my dimmable version dims only partially. But at least two brightness levels are available.

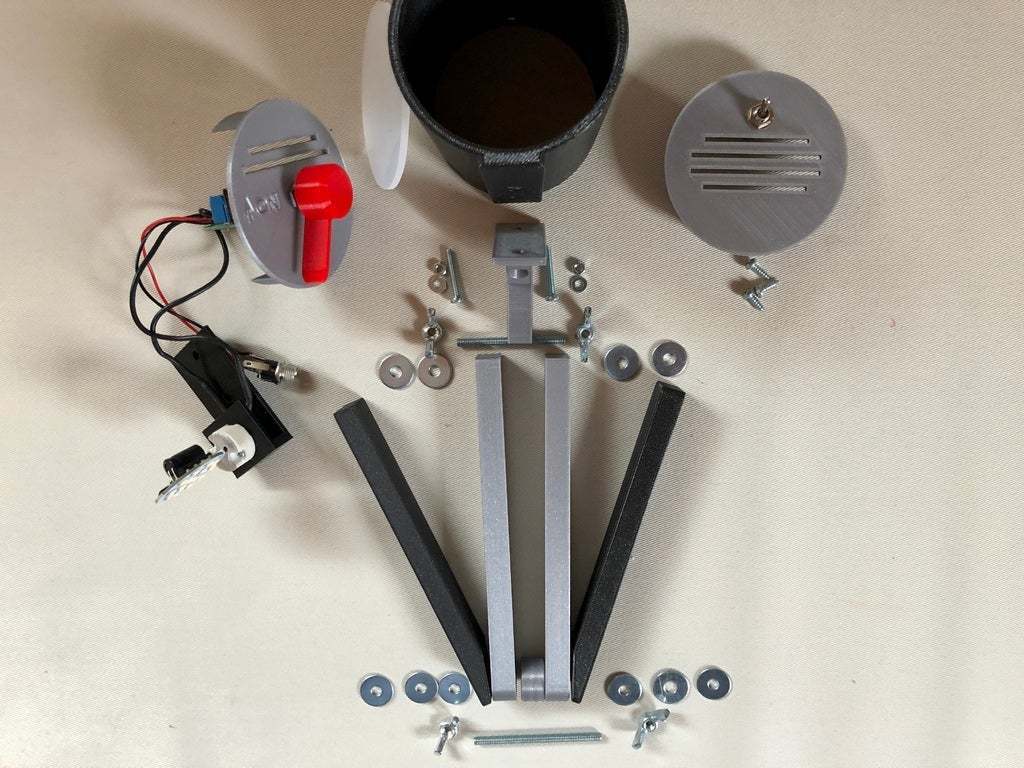

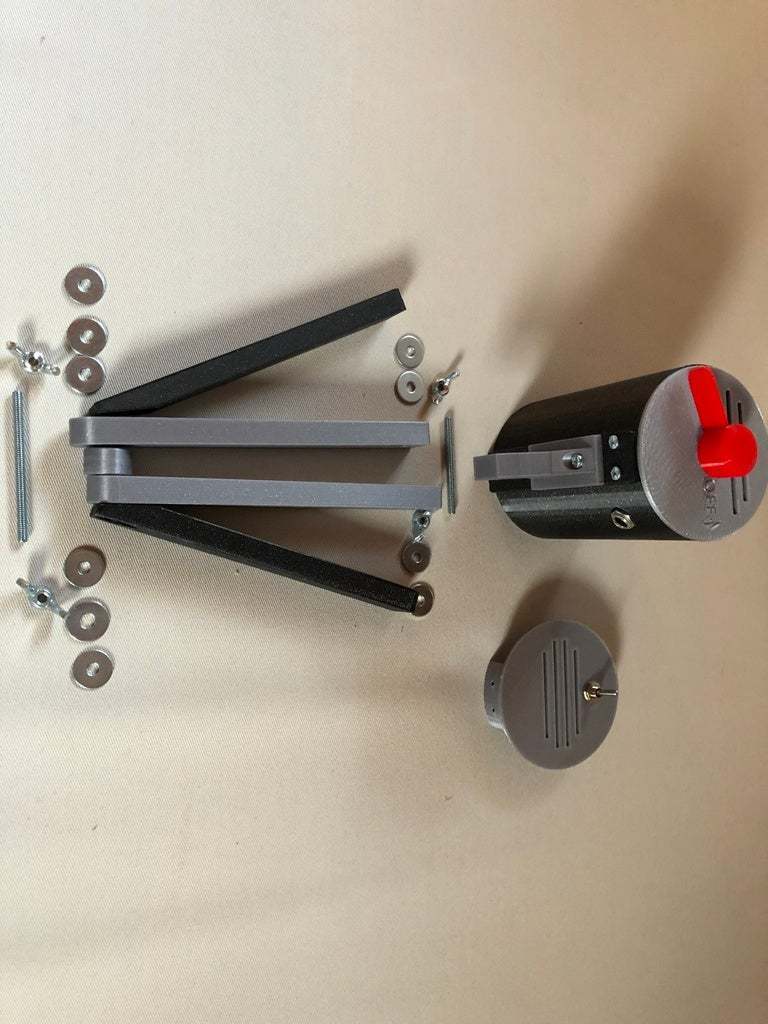

I have tried to capture the working steps and the assembly in photos. The assembly is in most parts identical with "Bedside Lamp (Box)". A look at the photo gallery there might help additionally.

You can find suggestions for colours of your lamp here:
https://youtu.be/WrCz14wmYyA

For this project you will need:

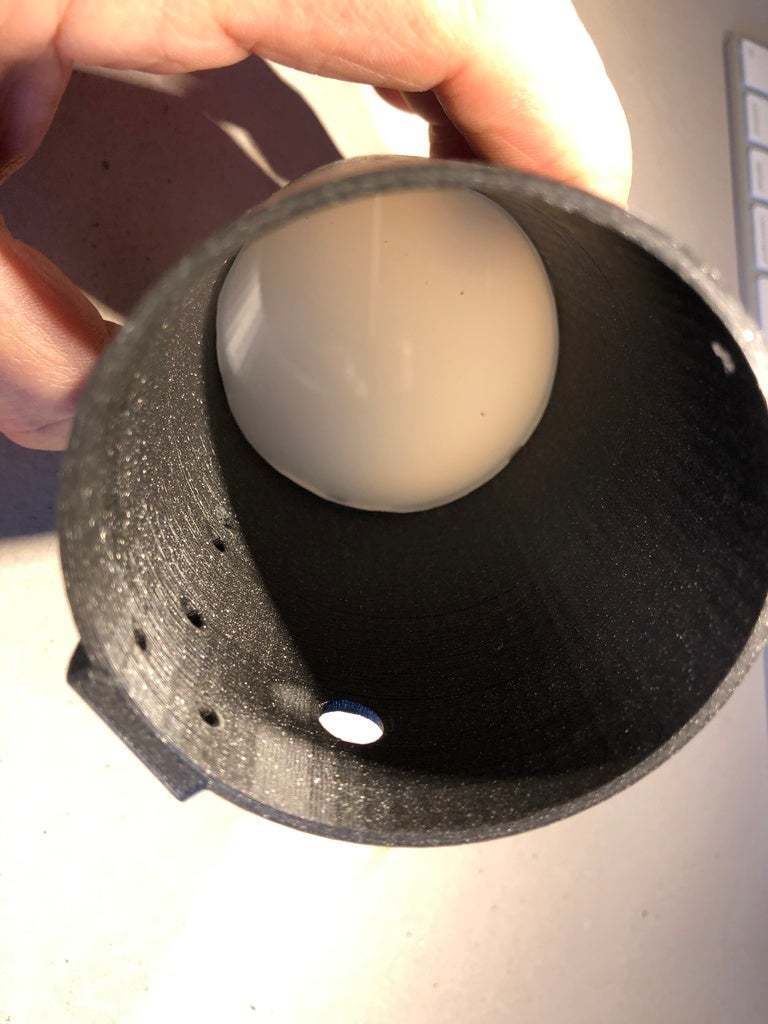

1x … Ø 55mmwhite polycarbonate glass 3mm thick, 70% translucency
1x … Ø 4x55mm from a threaded rod (or screw Ø m4 x 60 and saw of the screw head)
1x … Ø 4x45mm from a threaded rod (or screw Ø m4 x 50 and saw of the screw head)
2x … Ø M3x20mm + plus 2 matching washers (to connect head, neck and light base)
4x … wing nuts Ø 4mm
10x … washers Ø 15x4,5mm
5x … self-tapping screws Ø 2,2x 2,9mm
(4x … self-adhesive rubber pads Ø 8x1,6mm)

AC/DC Socket 5,5/2,5 mm
4G bulb socket
2 Position Mini Toggle Switch
4G bulb 2,5W/250Lm (IMPORTANT!: I do not advise the installation of a higher wattage bulb, because of too much heat development!)
12 V AC/DC power adapter

Light:
Trango 3er Pack LED Leuchtmittel für G4 Fassung, 12V AC/DC, 2.5 Watt, 250 Lumen mit 3000K, Power SMDs, warmweiß
https://www.amazon.de/dp/B00LC0DSEC/ref=cm_sw_em_r_mt_dp_U_tShMEbSZ0YETV

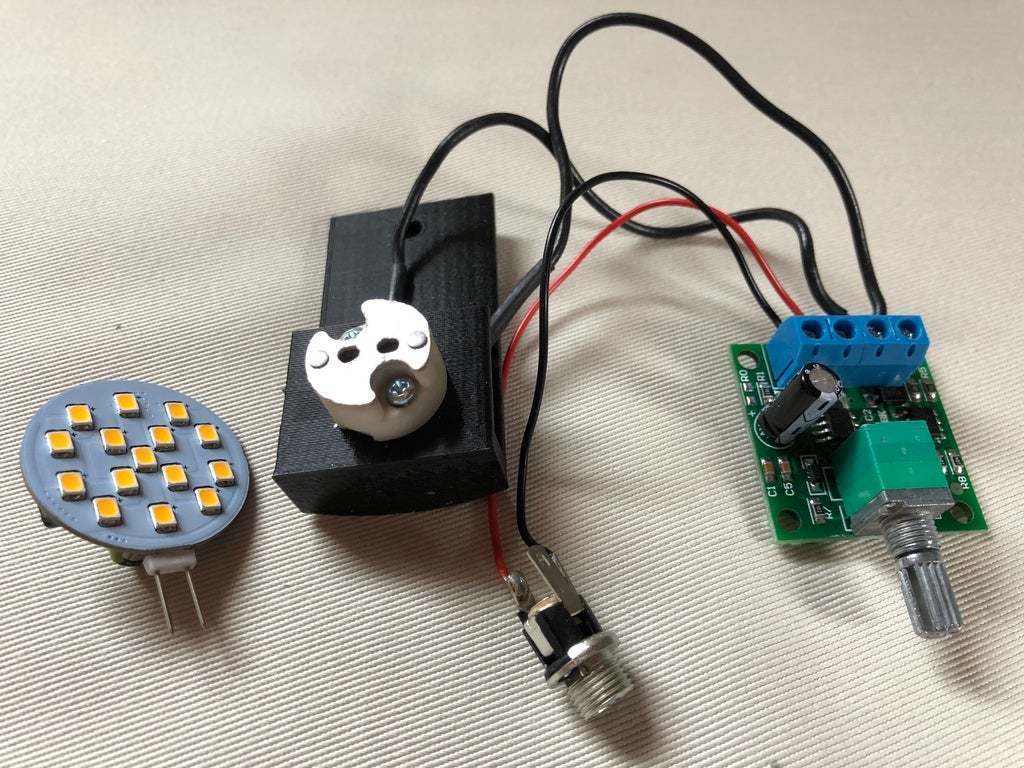

Dimmer:
ANGEEK PWM Motor Drehzahlsteller Modul Niederspannung DC 1,8V - 12V 2A
https://www.amazon.de/dp/B07RM6LYC3/ref=cm_sw_em_r_mt_dp_U_Z.6tEbQC3FKCX

Power adapter :
LEICKE Netzteil 12V 2A | 12V 2000mA | Ladegerät 24W für LCD, LED-Streifen
https://www.amazon.de/dp/B01I4YDJZG/ref=cm_sw_em_r_mt_dp_U_Lc7tEbZ60H55E

Soldering Iron
Solder

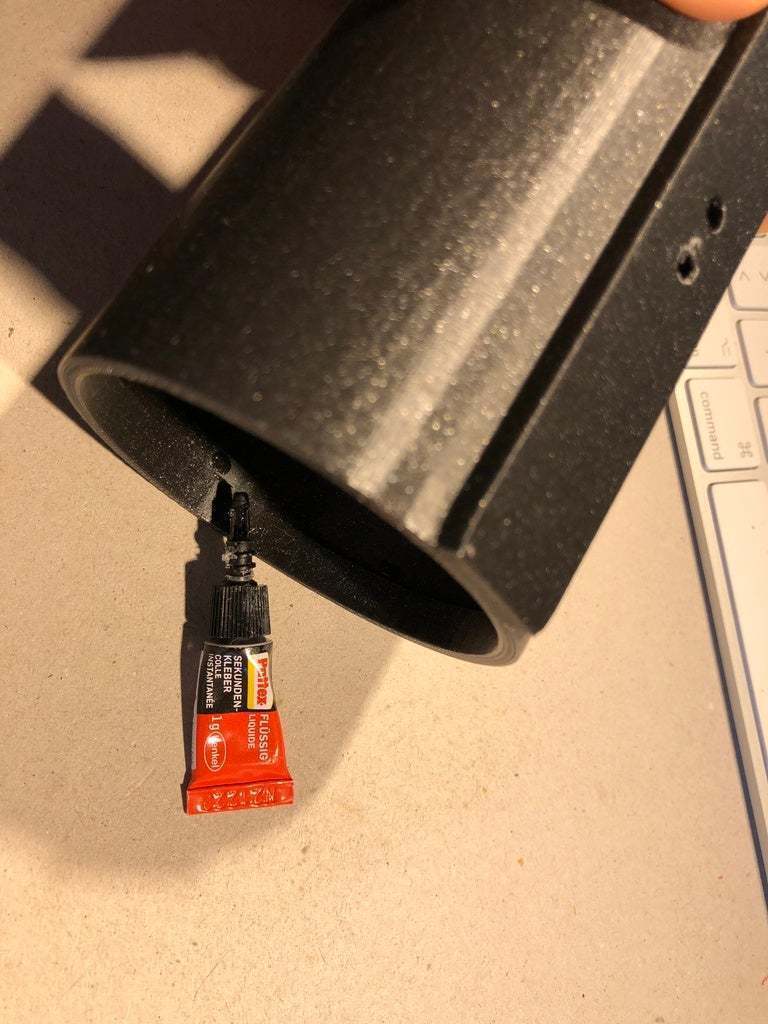

Superglue

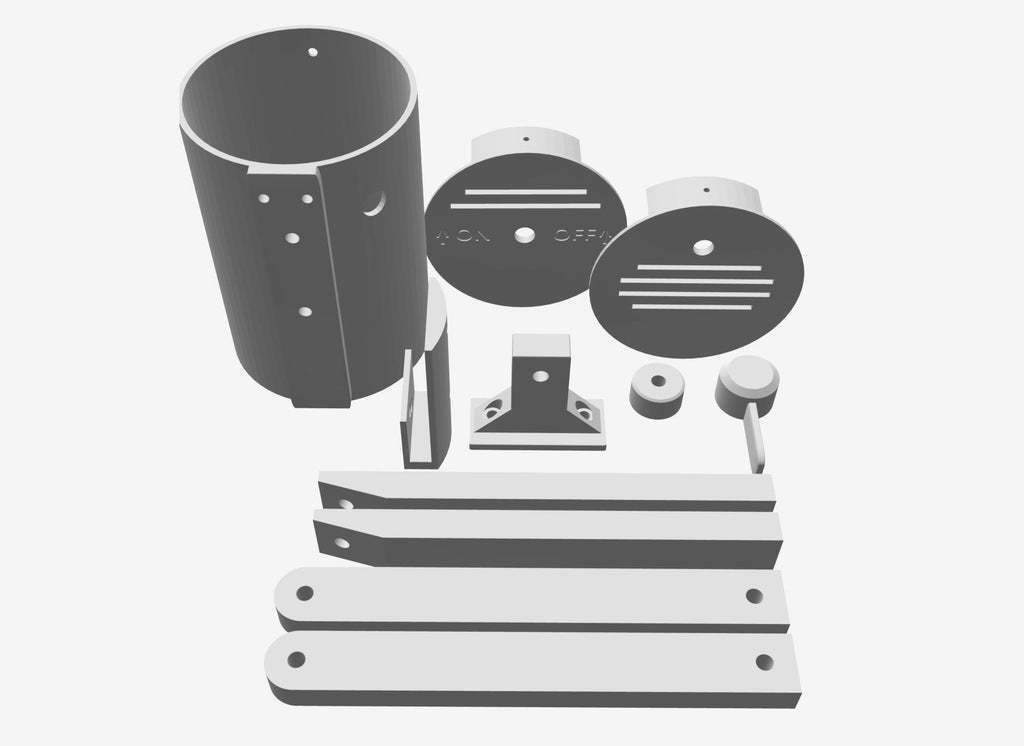

The files must be printed in the following number of copies:

1x BSL_Tube_head.stl
1x BSL_Tube_light_socket.stl
1x BSL_Tube_neck.stl
1x BSL_Tube_back_dimm.stl

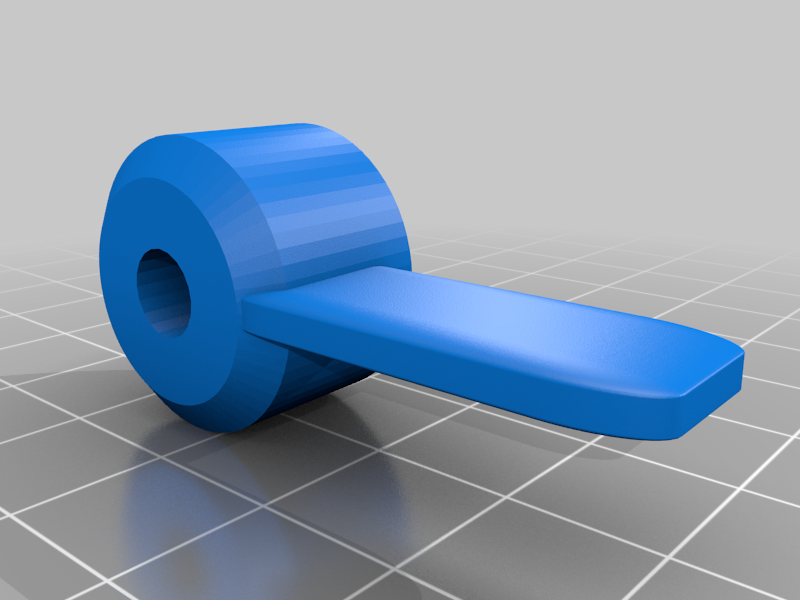

1x BSL_Tube_dimmswitch.stl
or

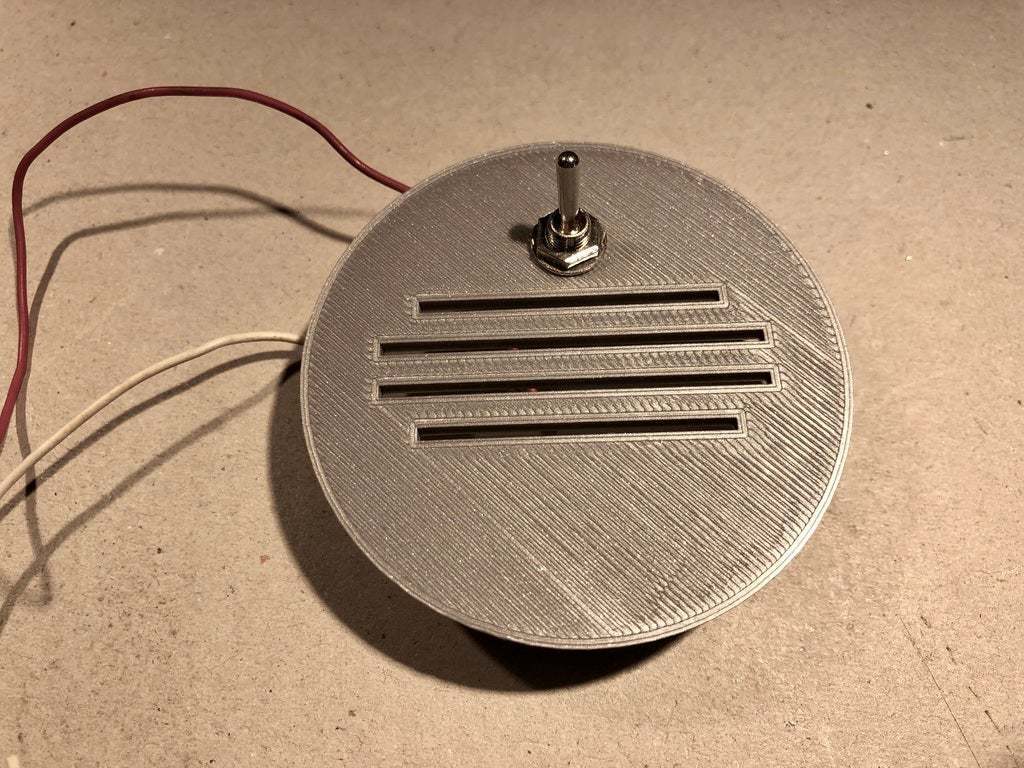

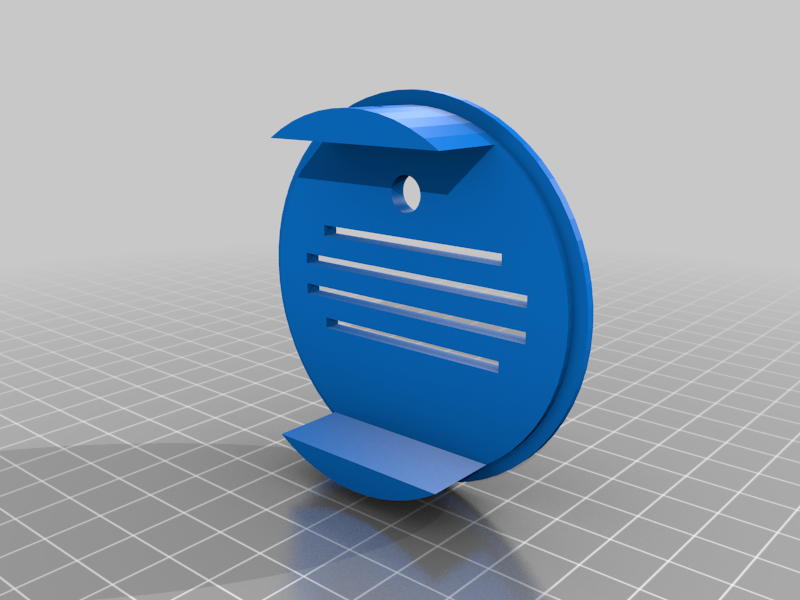

1x BSL_Tube_back_switch.stl
2x BSL_Tube_foot.stl

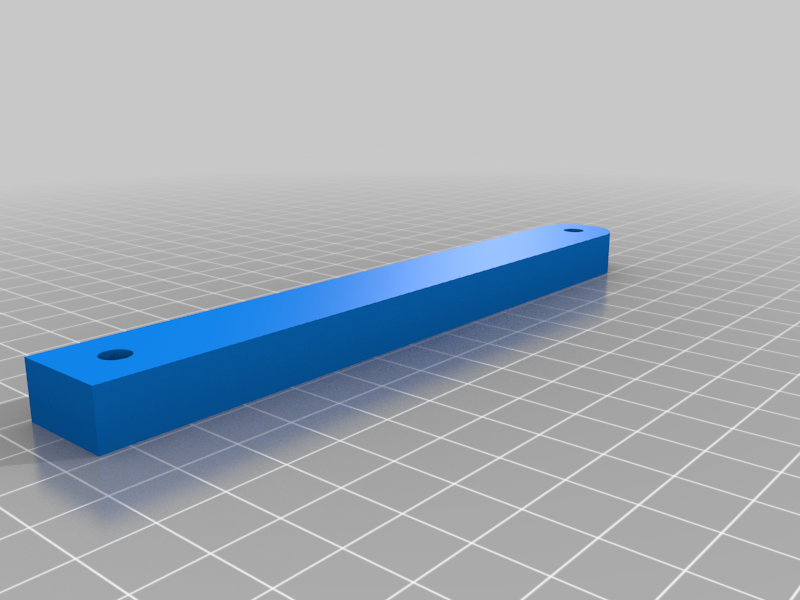

2x BSL_Tube_leg.stl
1x BSL_Tube_spacerwasher.stl

After completion of the assembly I recommend - to improve the slip resistance - to attach small self-adhesive rubber pads to the bottom of the lamp feet (4x rubber pads Ø 8x1,6mm).
