Beam Table

Creation's quality: 4.3/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Stop 3D printing toys,
Start 3D printing furniture!

The Beam Table is a dining room table you can build for yourself using your 3D printer and some basic materials from your local hardware store. The leg brackets were designed taking into consideration the strengths and weaknesses of FDM 3D-printing, which means no overhangs or raft needed! And the legs slide on and off making Beam Table perfect for pop-up restaurants, beaches, and backyards.

3D printing settings

Printer Settings:
RAFT - Optional

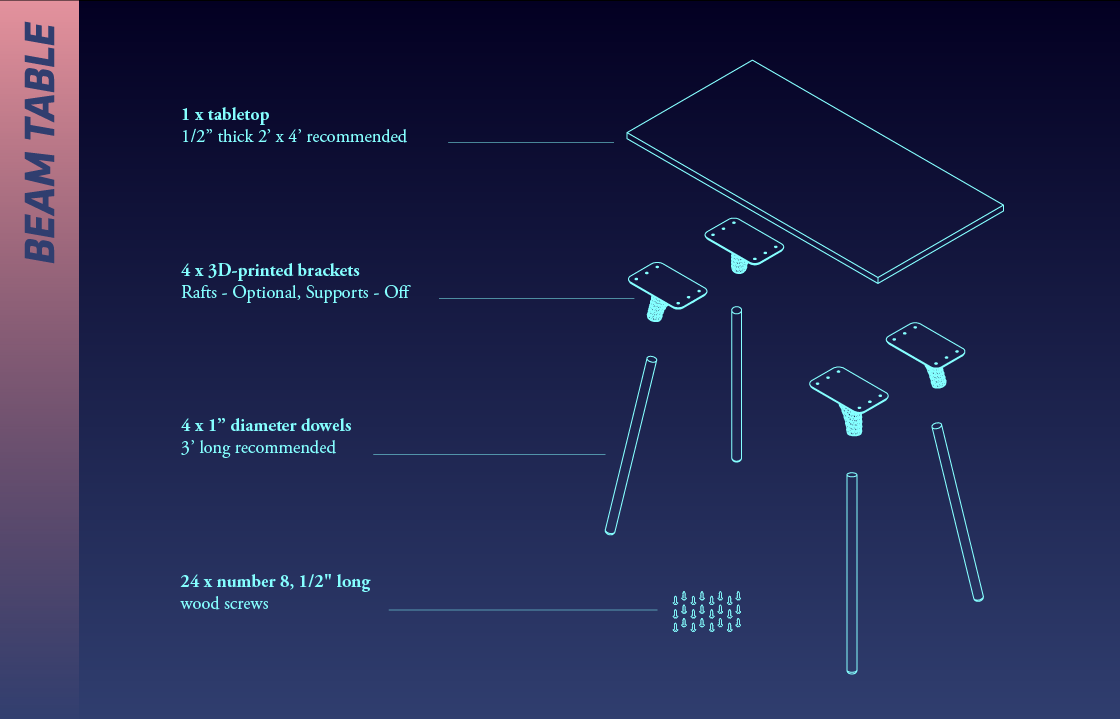

Material List:
1 x tabletop (1/2" thick 2' x 4' piece of wood recommended)
2 x "Left Bracket" printed
2 x "Right Bracket" printed
4 x 1" diameter dowels (3' long recommended)
36 x number 8, 1/2" long wood screws

3D printer file information

  • 3D design format: STL Folder details Close
    • Left_Bracket.STL
    • Right_Bracket.STL
  • Last update: 2015/10/11 at 19:21
  • Publication date: 2015/08/25 at 05:04
