Baby Chick Waterer for Mason Jars Safety Drown Resistant

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

UPDATED BOWL 08/28/2018
I updated the bowl to allow the Water Insert (dispenser) to lock together. This will make it easier to lift the waterer out of the brooder without having to hold both items together at the same time. Now you can fill the mason jar, lock the bowl in place, then invert the waterer as a whole, avoiding a mess. See: Chick Water Bowl_Revised.stl

We have some new chicks on the way, and I needed some quick feeders and waterers.
We happen to have a lot of Mason and Ball Canning jars lying around, so I thought I would put them to good use. I looked online for some commercial solutions, but didn't really find any that were drown resistant. So I designed this from the ground up.

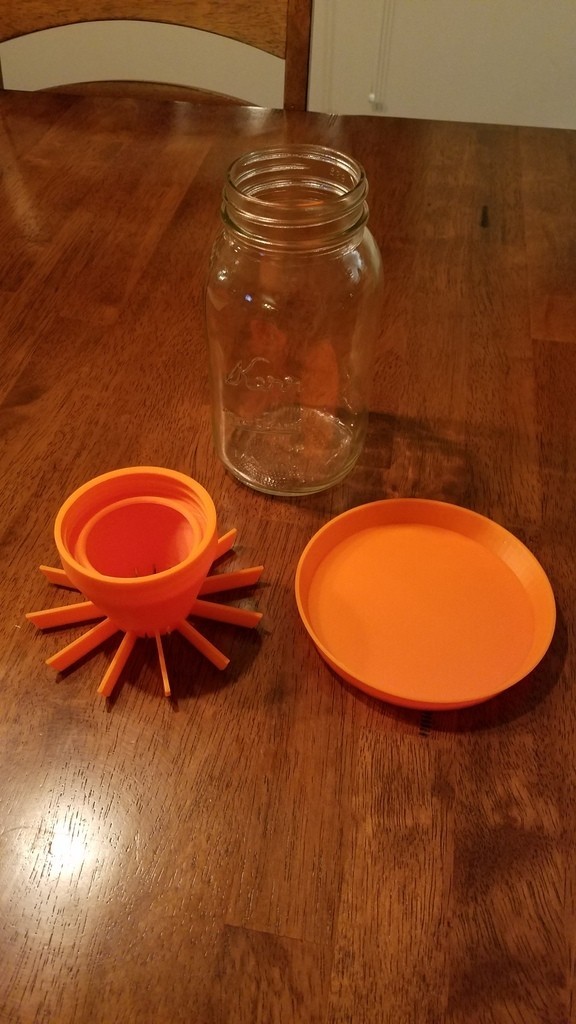

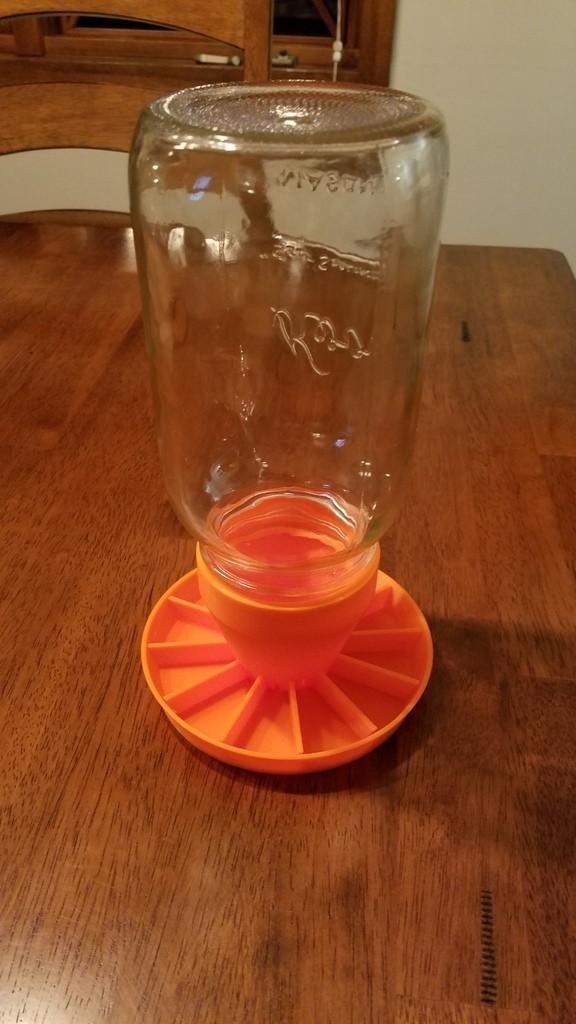

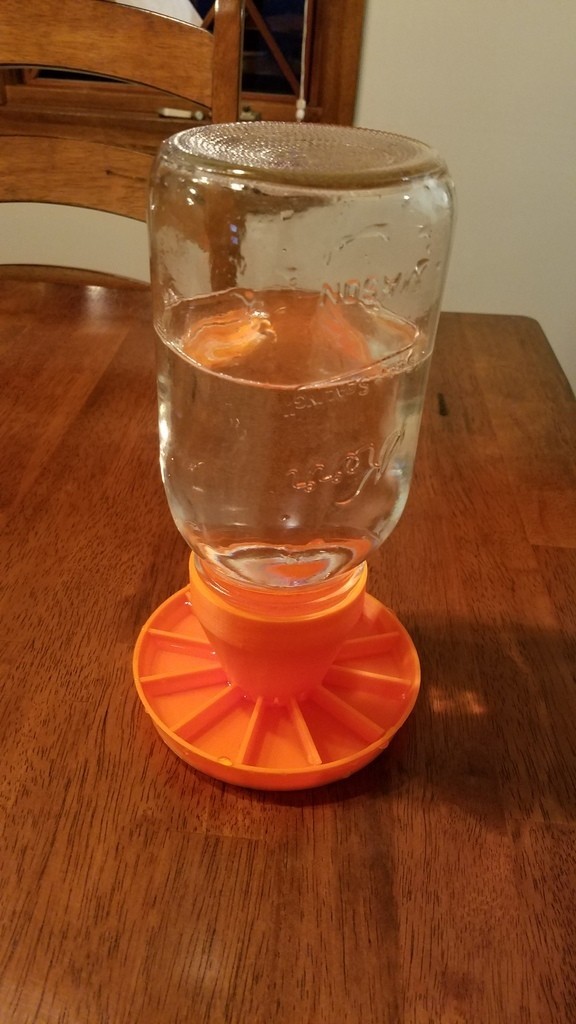

Here is the Chicken watering device that is drown resistant. The Chicks can't plop in and fall asleep below the water level. It comes in 2 pieces. The insert that accepts any size standard mouth mason jars, and the water bowl it sets in. You can use 4 oz, Quart or Pint size jars. But for Cockerels and Pullets, it will also work fine. Clean and sanitize it with a mild bleach solution often.
I recommend a canning gasket inside the insert to make sure you have no air leaks that would cause the mason jar to empty over the threads. Mine did not need it, so if your's keeps dripping, then use a little silicone (let it dry) or use a small gasket.

Any size Standard Mouth Mason jar will do to complete this safety waterer.

3D printer file information

  • 3D design format: OBJ and STL Folder details Close
    • Chick_Water_Bowl_Revised.stl
    • Dont_Print_This_Chick_Waterer_Assembled.stl
    • Mason_Jar_Chick_Water_Bowl.stl
    • Mason_Jar_Chick_Water_Bowl_OBJ.obj
    • Mason_Jar_Chick_Water_Insert.stl
    • Mason_Jar_Chick_Water_Insert_OBJ.obj

    Learn more about the formats

  • Publication date: 2018-10-10 at 15:28
    Published to Thingiverse on: 2018-08-21 at 04:37
