3D model description

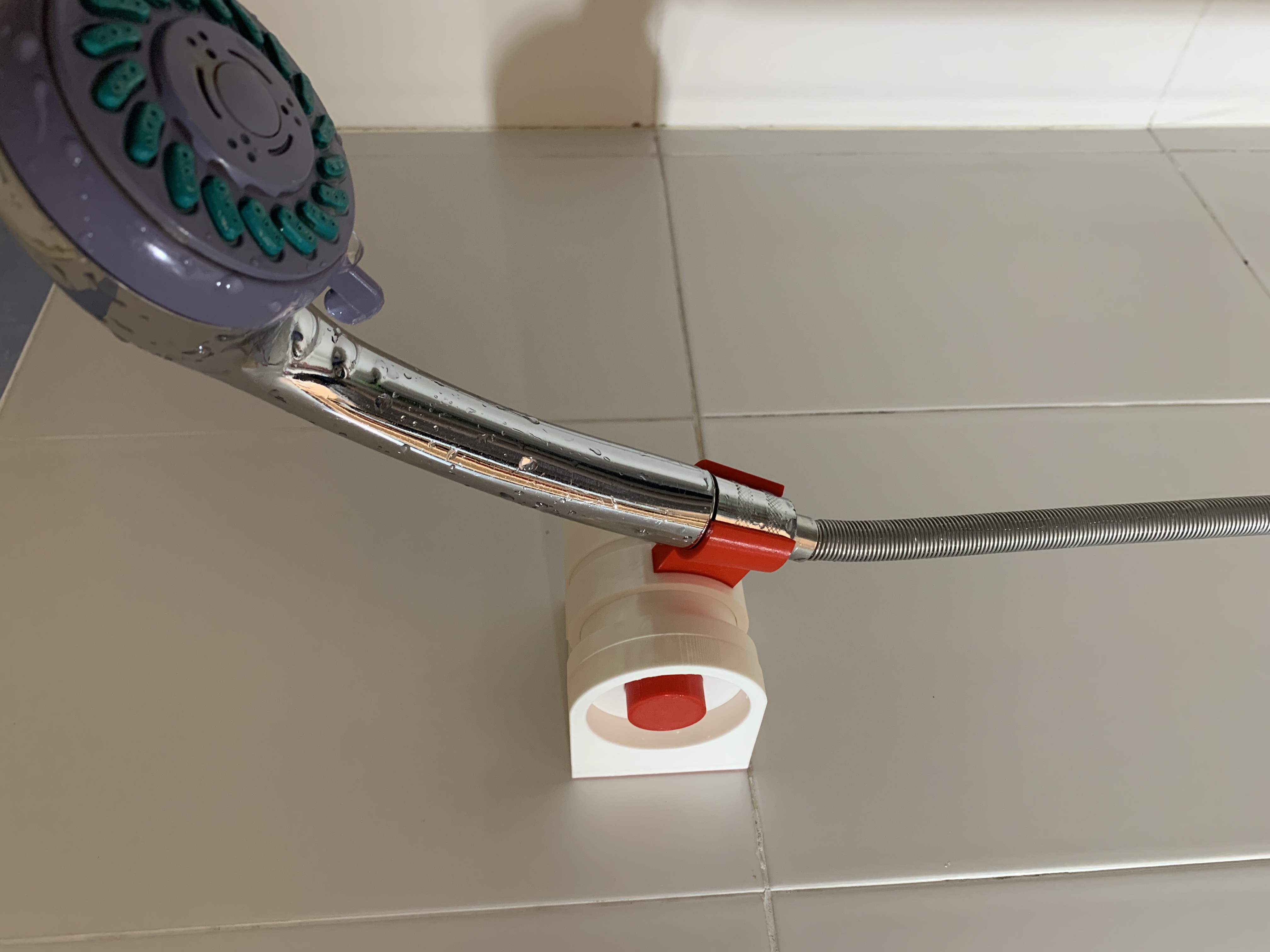

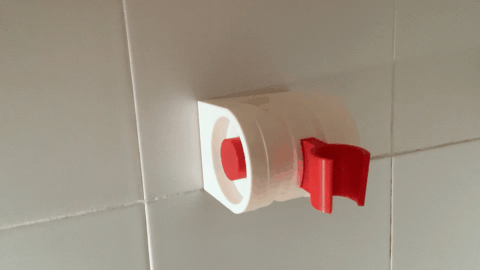

Shower support created by means of a simple gear and a spring. It allows you to release the joint with a button to be able to adjust the inclination of the shower.
Parts:
1.- Fixed part screwed to the wall: Distance between screws 20.4 mm (standard distance).
2.- Left gear
3.- Right gear
4.- Central gear
5.- Throat that holds the shower.
6.- Spring: It is a simple compression spring of 60mm x 11,5 of diameter and 1,1 of thread thickness. They can be found at any hardware store or corner shop.
A video has been posted on Youtube for the assembly of the gear and spring: https://youtu.be/1aFjOsqjjh4
First screw the fixed part to the wall and then insert the gear by inserting the four pins.

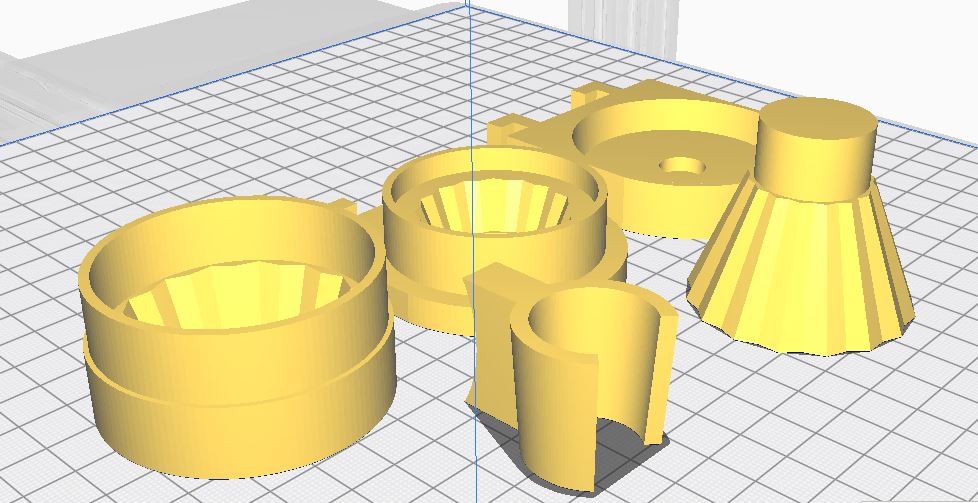

3D printing settings
Layer 0,2 mm and speed 40 mm/s. No media except the file "WALL SUPPORT.stl".
3D printer file information
-
3D design format: RAR and STL Folder details Close
- BOTON.stl
- GARGANTA.stl
- PIEZA CENTRAL.stl
- PIEZA DERECHA.stl
- PIEZA IZQUIERDA.stl
- SOPORTE PARED.stl
- STL DUCHA.rar
- Publication date: 2021/10/26 at 12:24
