alien abduction lamp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.1k views
  • 32 likes
  • 190 downloads

3D model description

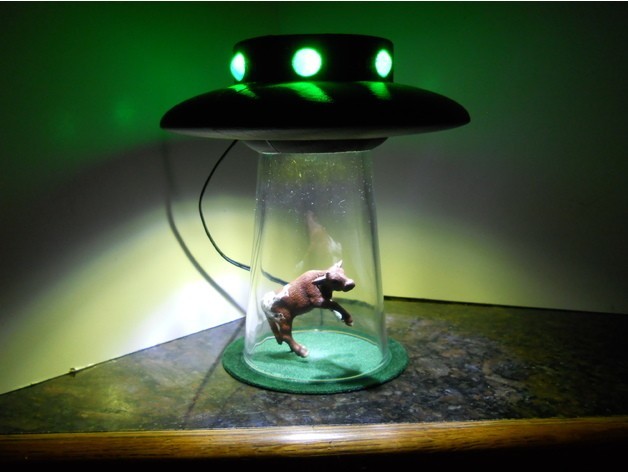

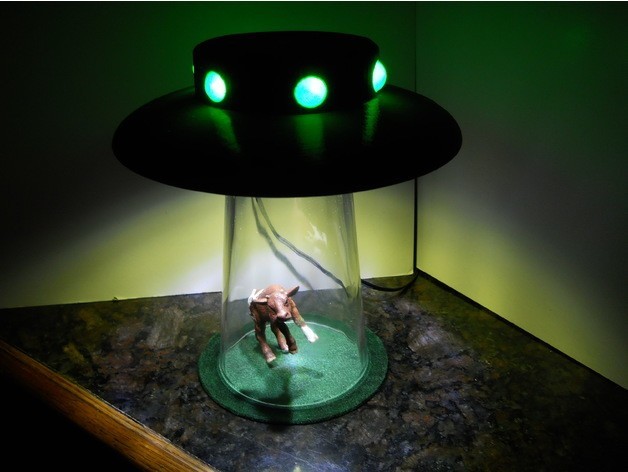

Designed this after not finding one I liked

Uses "Core" brand beer glass (straight tapered sides) 16 or 22 oz.
available on line, or if you know your bartender.
super bright leds cool white 12B-CW-S for main light
(5) 5 mm 12v leds (your color preference) for windows
(1) 12v charger/power supply 500 ma or greater
(1) small plastic farm animal

screw main light in to bottom recess of core connect all red wires together and black

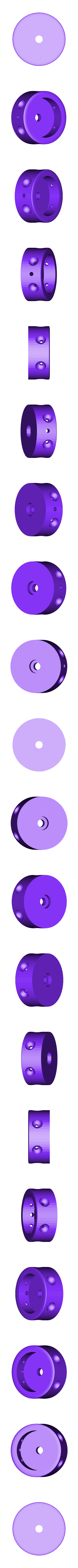

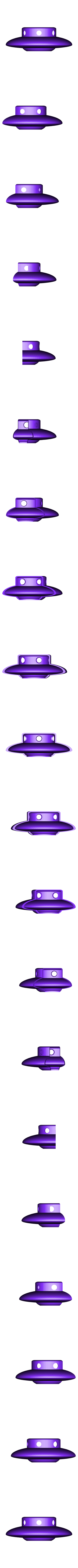

drill hole in edge of saucer feed power supply wires thru hole connect to all red and black led wires(wires from power supply, the positive is usually the one with a trace) test wiring before assemble. glue windows in saucer half's position core and glue led in core. glue core in one half of saucer, assemble saucer note: use double face tape to attach sandpaper to end of glass, sand opening in bottom of saucer for snug fit to glass.
don't over sand or glass will rest on core.

3D printing settings

Printer Brand:

MakerBot

Printer:

MakerBot Replicator+

Resolution:

.20

Infill:

10%

Notes:
16 & 22 oz. glasses have same size base.

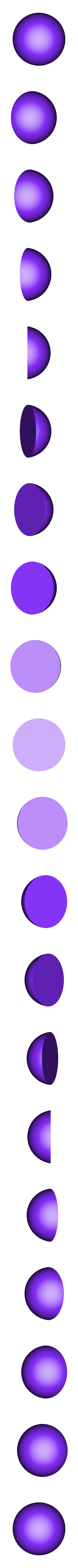

make 6 windows

  • 3D file format: STL

Tags

Creator

License

CC BY
