Adapter for dyson vacuum cleaner

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.1k views
  • 4 likes
  • 2 downloads

3D model description

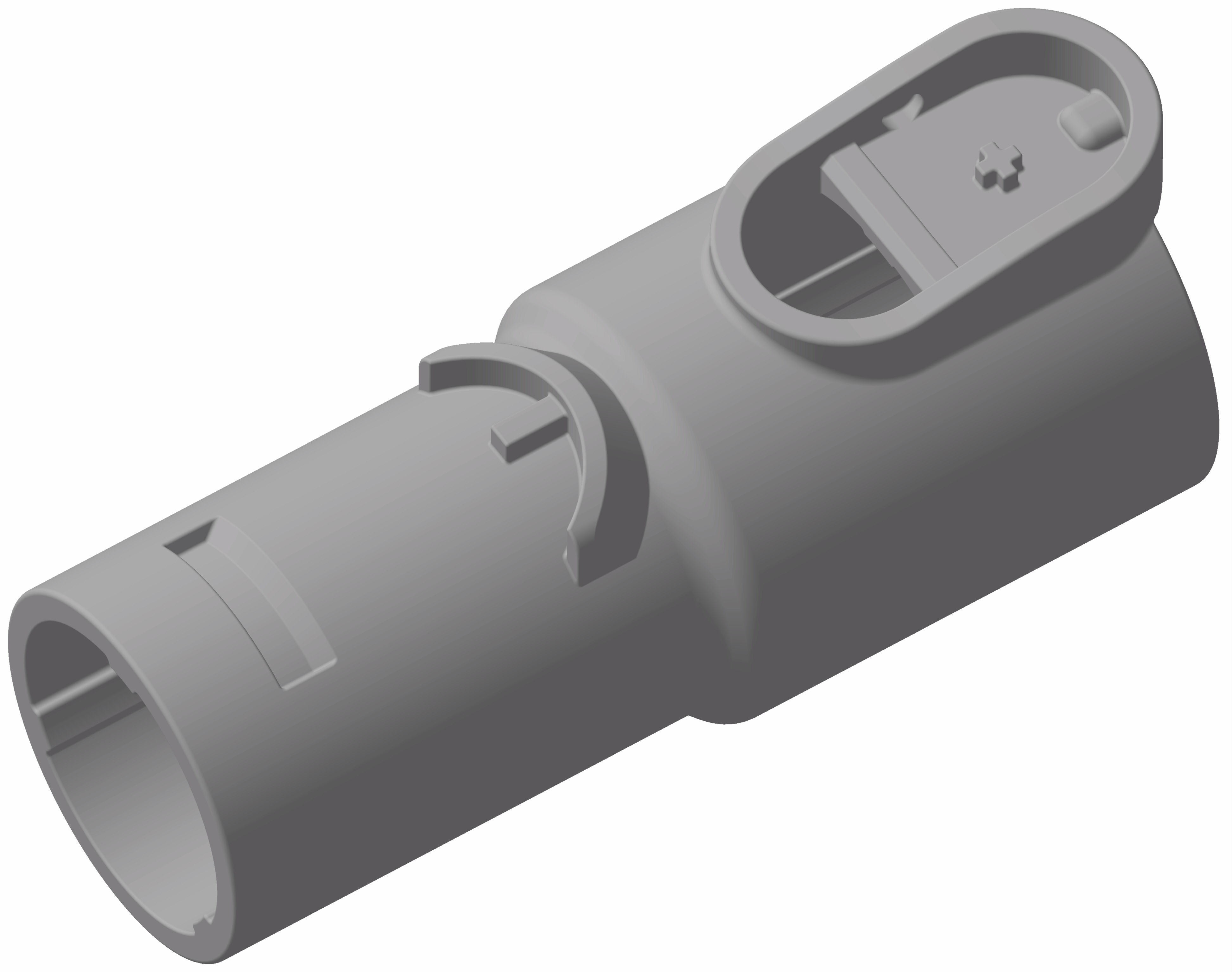

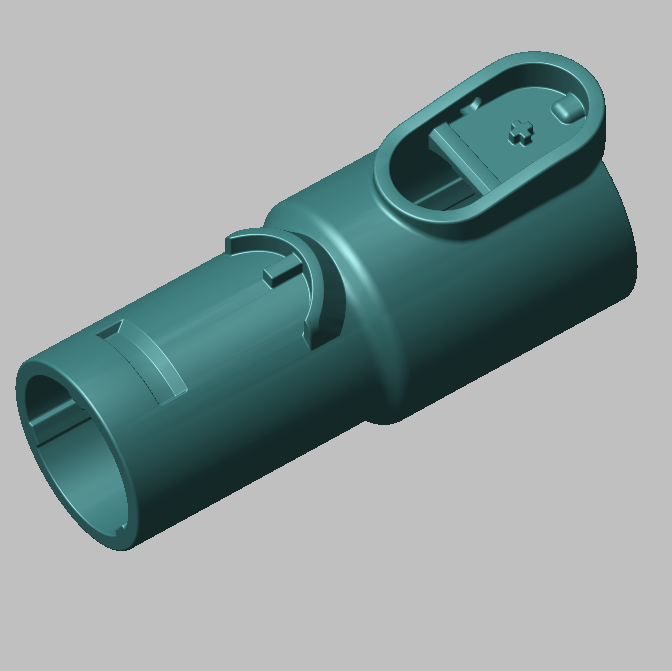

Adapter for dyson vacuum cleaner between old sled vacuum cleaner and new accessories.

it is necessary to add an O-ring in the adapter to ensure perfect sealing but also works very well without it.

the button is available on the website: https://cults3d.com/en/3d-model/various/clip-fixation-tuyau-for-suction-dyson vacuum cleaner

By Gabuzome

a small spring recovered from a clothespin did the job very well.


3D printing settings

Printing in PLA 100% filling

0.4 mm nozzle and 0.2 mm layer

nozzle temperature 210°C

substrate temperature 50 °C

Printed with support from anywhere, but with an 85° overhang angle (required for the button hole).

3D printer file information

  • 3D design format: STL Folder details Close
    • ADAPT DYSON.stl

    Learn more about the formats

  • Last update: 2019/06/04 at 14:02
  • Publication date: 2018/10/18 at 09:16
