7: A set of seven objects in contemporary design matched all along the line.
Enter the future with the possibilities of 3D printing!
-> CUSTOMIZING and DECALING patterns on a line of style.

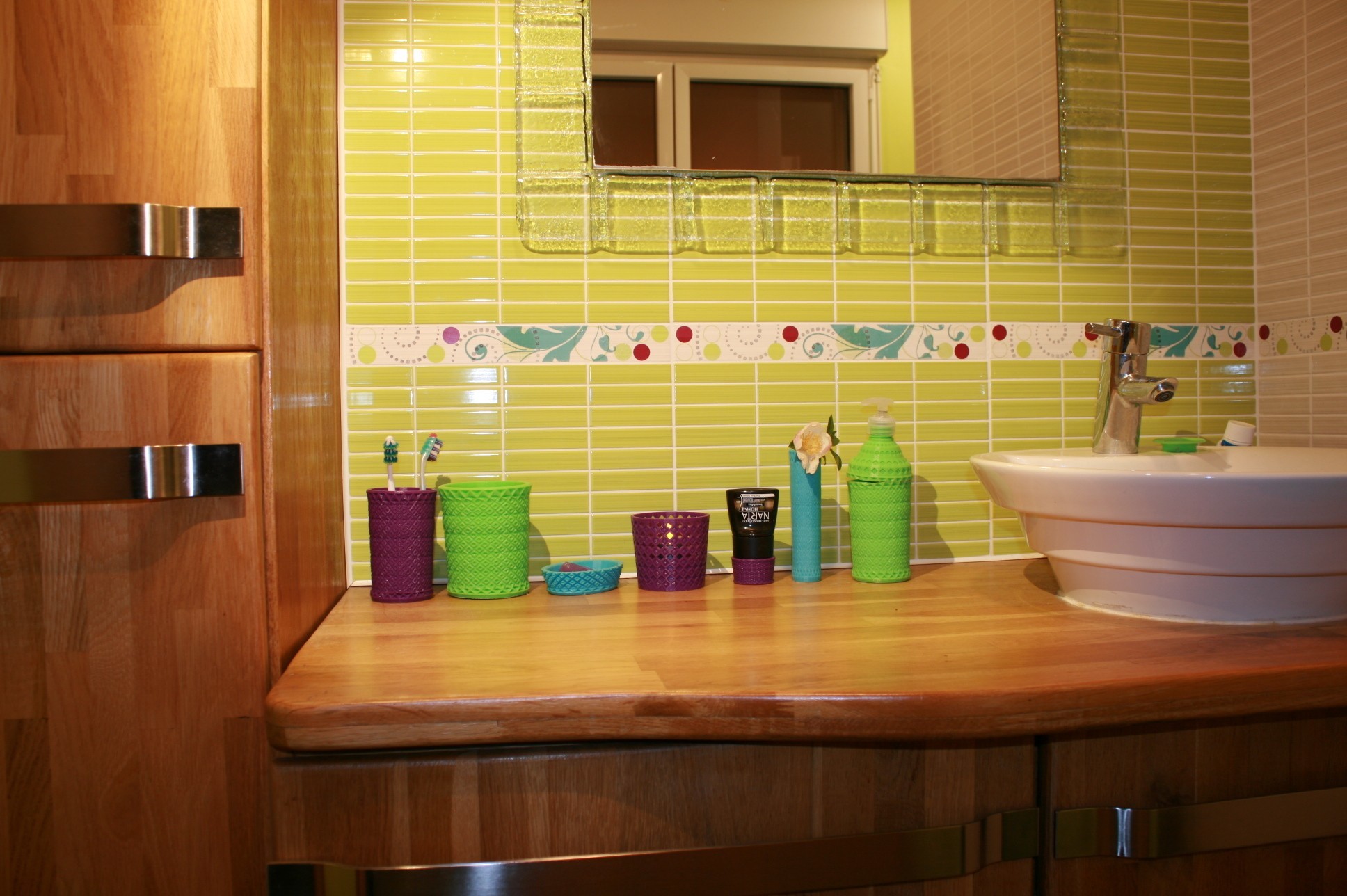

The project brings together all the necessary decorative and useful for your bathroom:

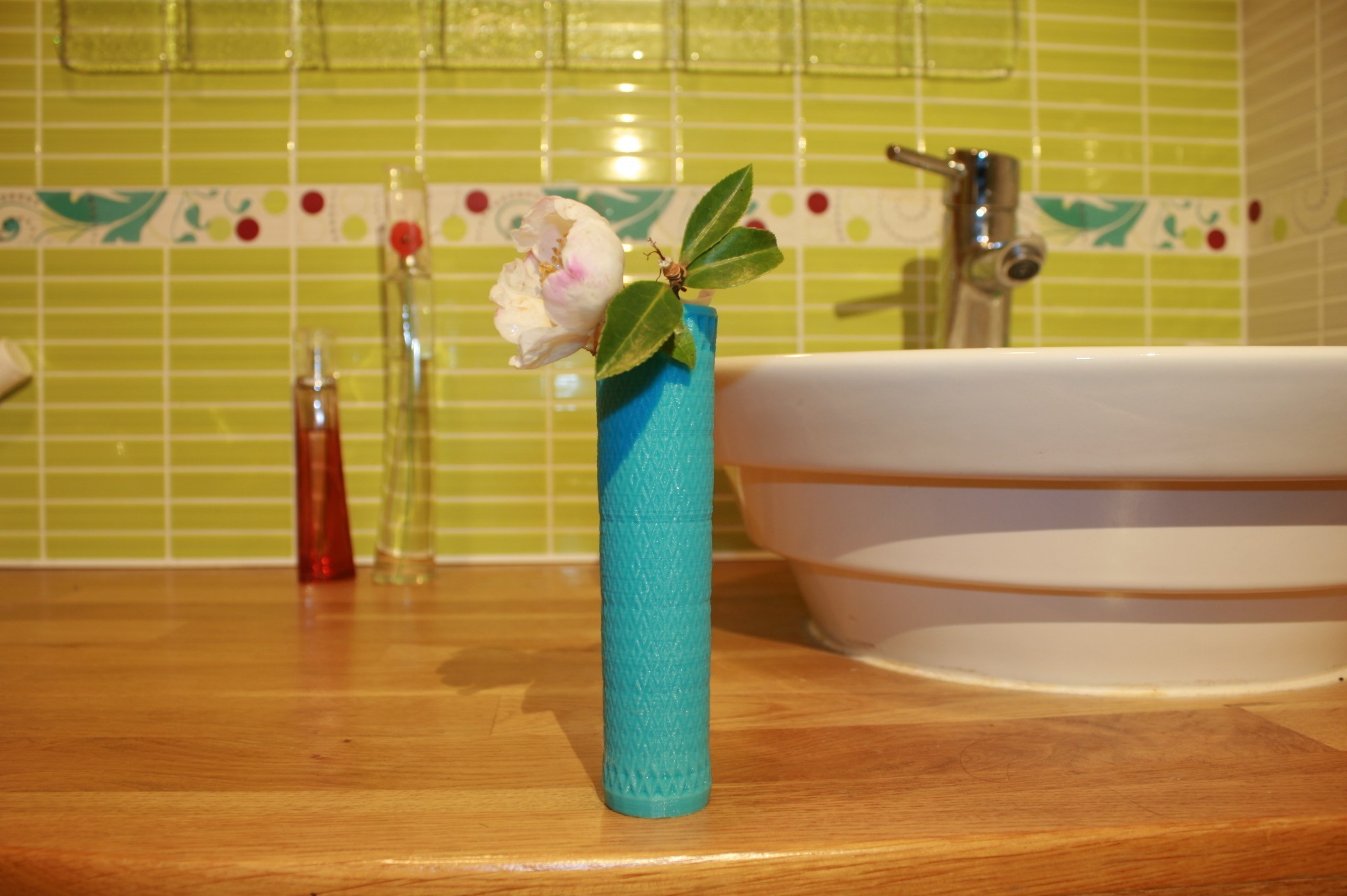

a soliflore for a little poetry,

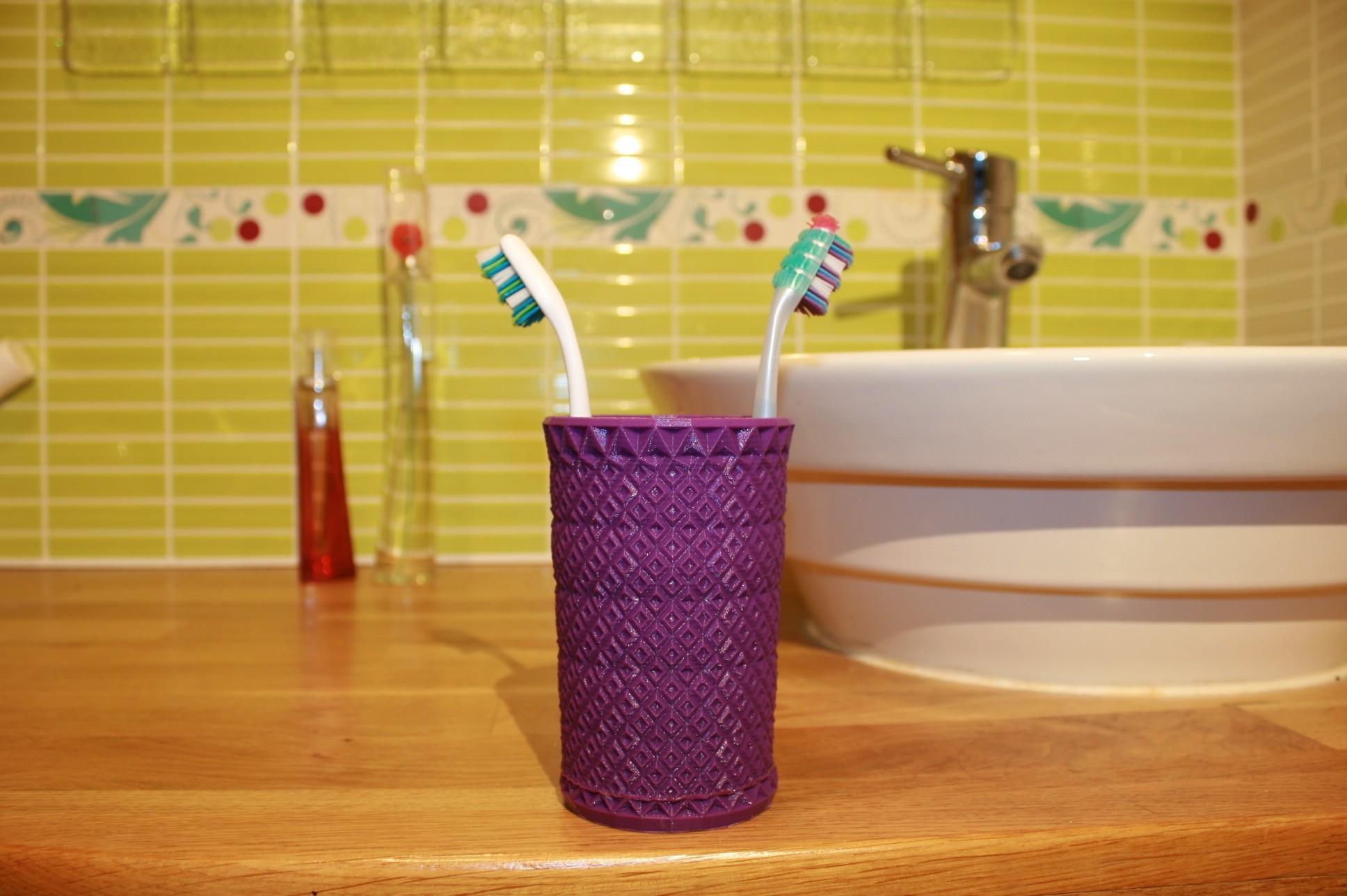

a toothbrush tumbler, a soap dish and a shower gel fountain for the traditional and practical side,
an exclusive item I invented to save your favorite ball deodorant by keeping it upside down,
A toilet brush holder, classic bathroom kit matching as in your Leroy Merlin proximity
and a candle holder to bring relaxation to your Zen.
Seven objects for free download of only one !!!

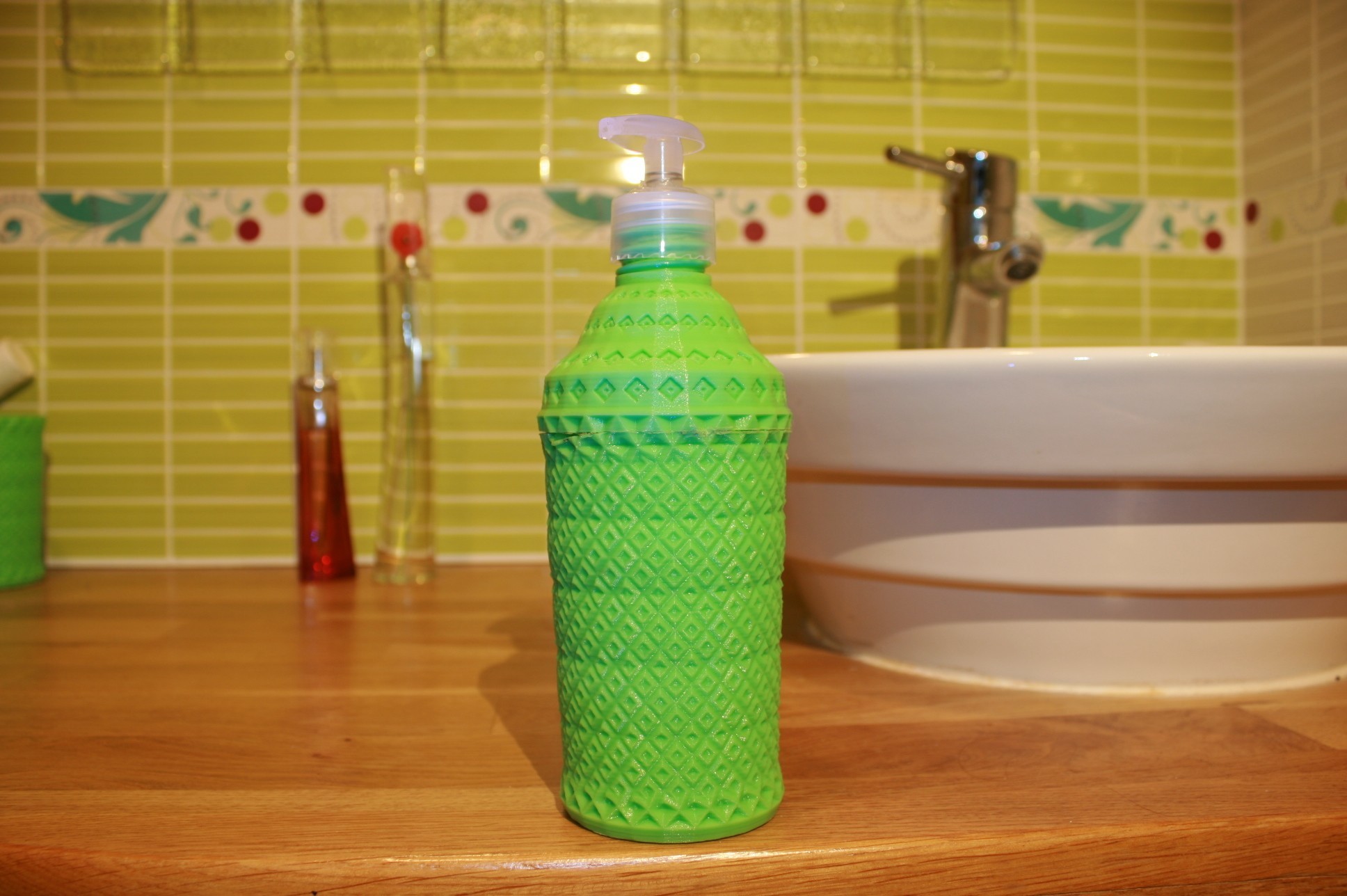

The shower gel fountain is designed with its universal thread of this type of products to recycle a liquid soap pump that you will find in supermarkets. Upcycling is part of our future too ... think ecology!

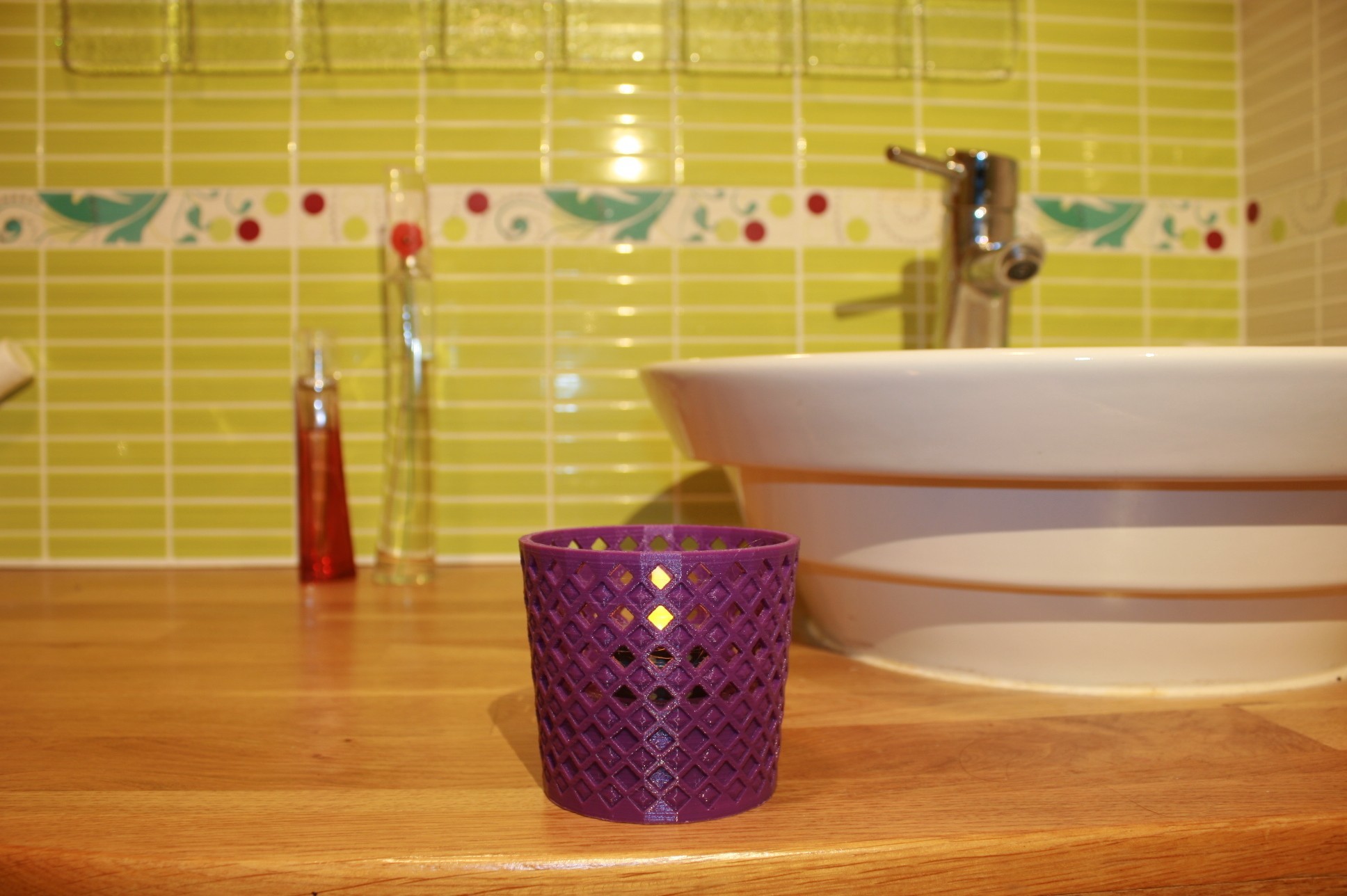

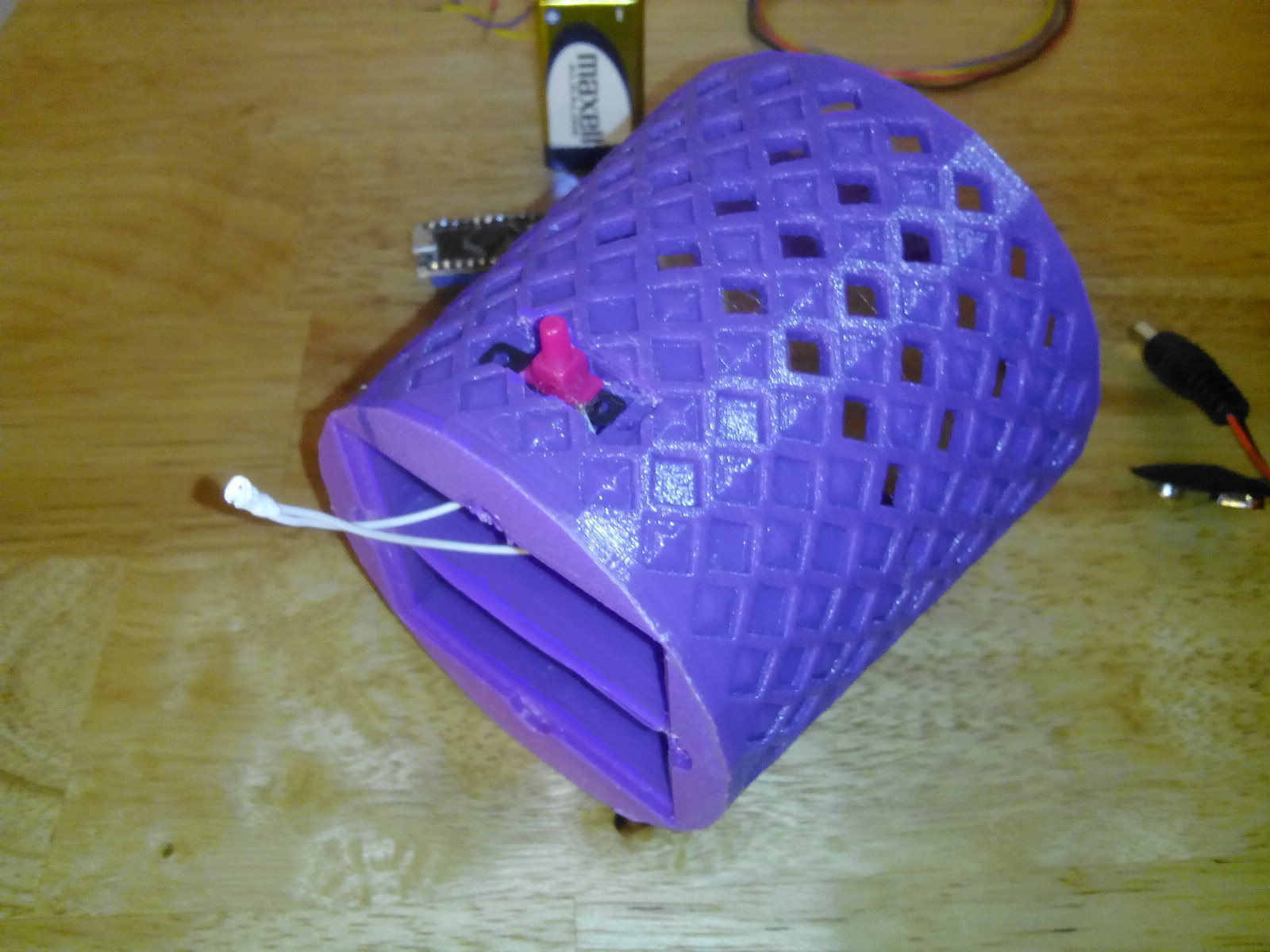

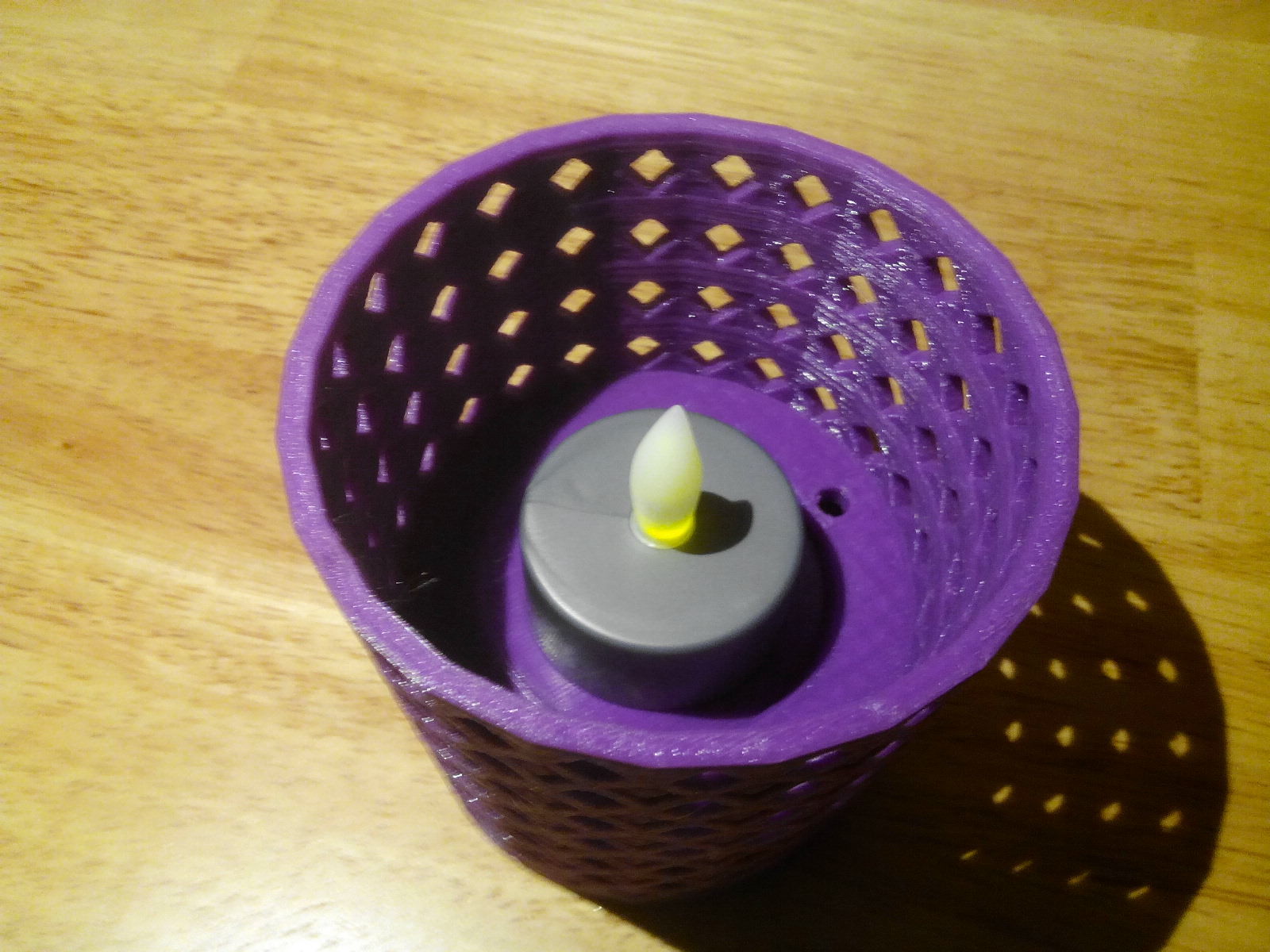

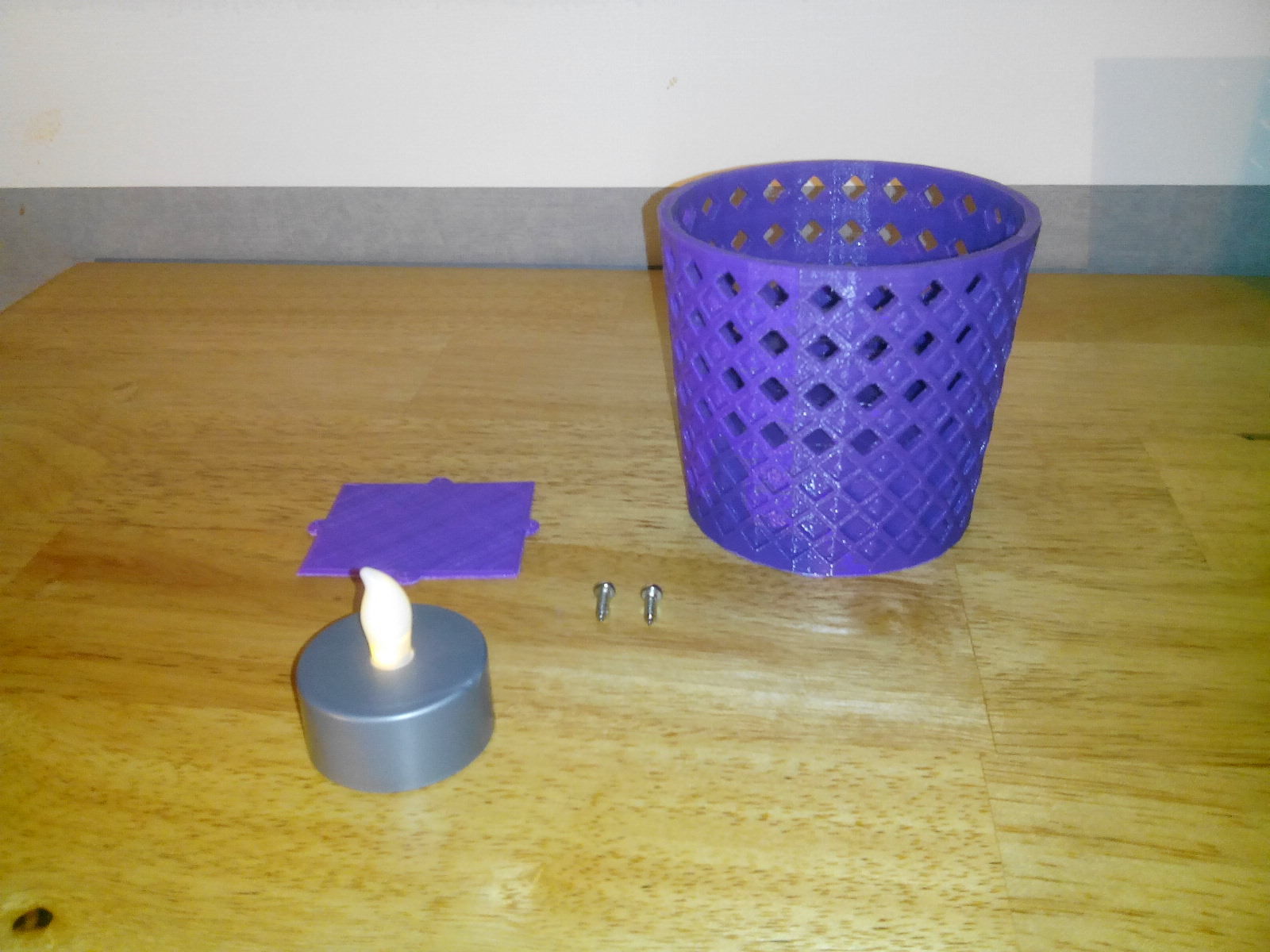

The candle holder is designed to be used with an LED electronic candle and also for Makers who want to have fun with a NeoPixel ring, and an Arduino Nano.

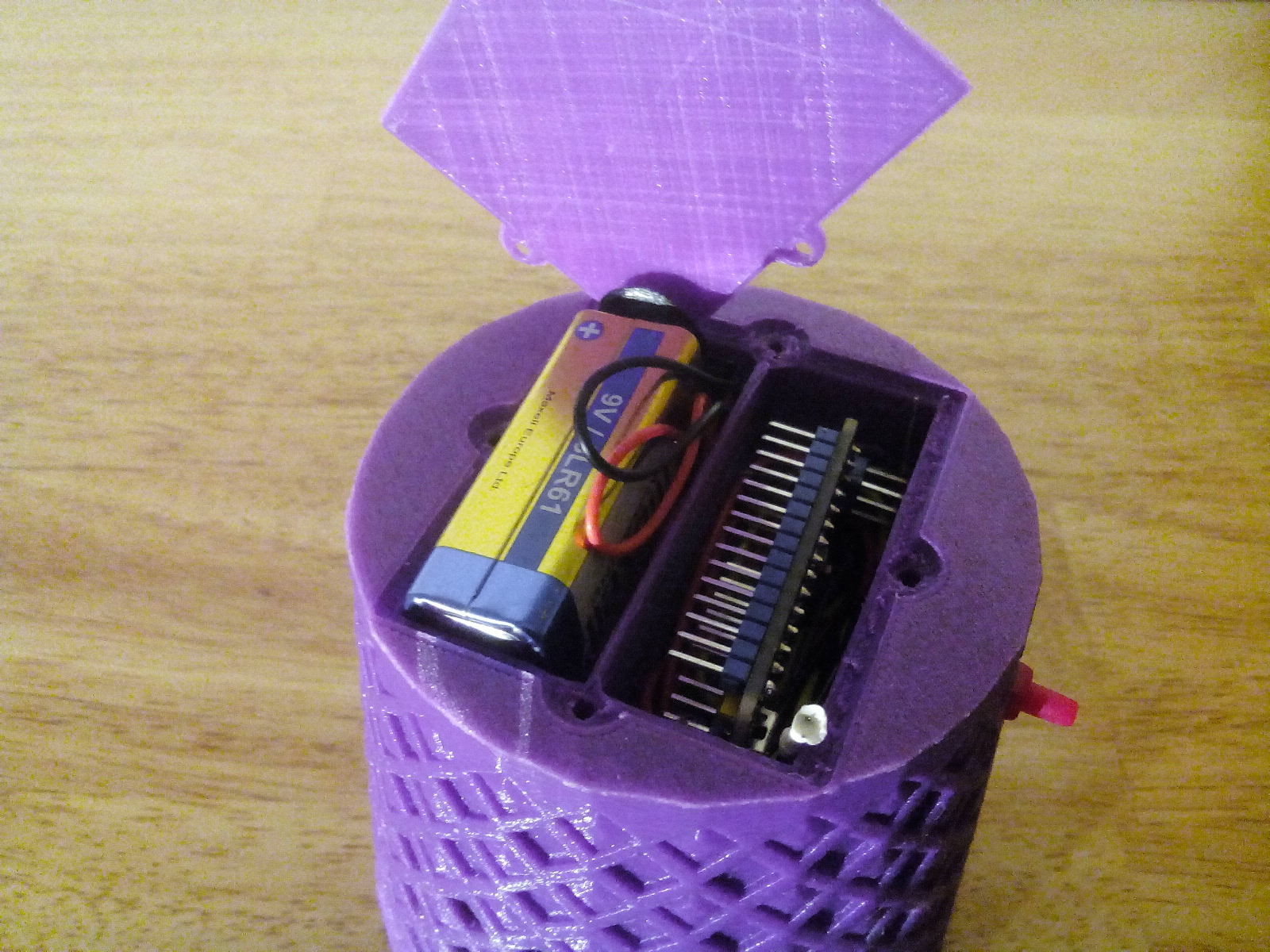

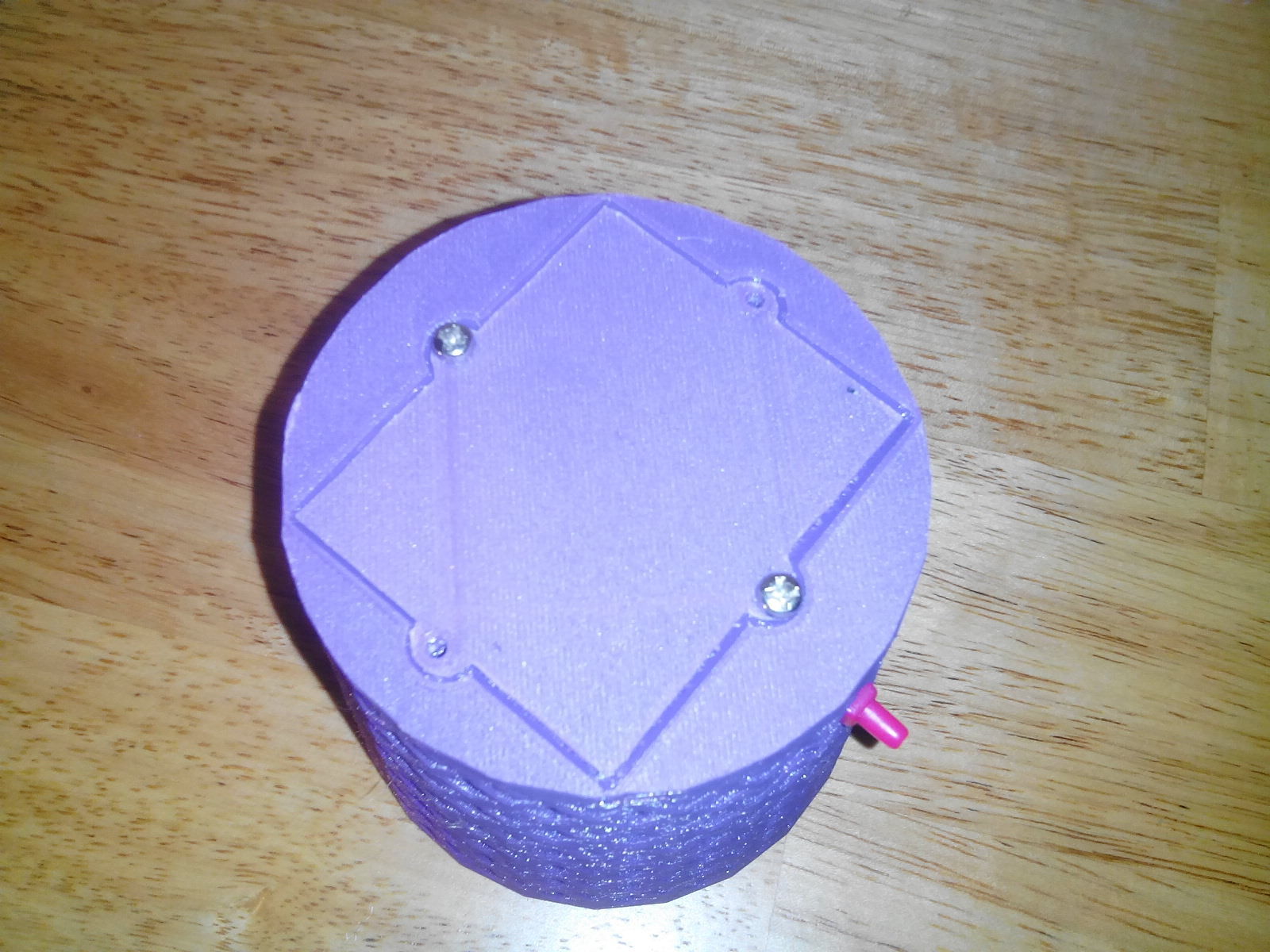

The Design of the object is designed to accommodate a 9V battery, the Arduino nano, the NeoPixel Ring 16 LEDS (Adafruit), the switch on the side of the photophore. The son passages are also provided, as well as the hatch to close the underside of the object. See pictures for mounting elements.
After the contest entry deadline, the project will be freely customizable with the Vectary tools:
My project :
Great, no? So, vote for me: Just click on "I LOVE" at the top right of the presentation photo of my project (no need account of any kind!)
(to be respected at best for an optimal result)
The ideal is to use HDGlass filament from Form Futura, the PLA in particular being hydrophobic, therefore not waterproof. I have not tried with ABS, but it must be adapted too.
Nozzle diameter: 0.35mm or 0.5mm (This seems to fit most FDM machines currently on the market as well as kits, and DAGOMA NEVA).
Layer height: 0.2 mm.
Wall Thickness: 0.7 mm or 1 mm (depending on the diameter of the nozzle, ideally a wall of 2 passes of the print head for good resistance)
Fill rate: 25%
Top and Bottom Thickness: 0.6 mm
Brim: YES (8mm for example)
Support: NO (except for the photophore, possibly (me, I used the specificity to be able to use "the bridges" that the 3D printer knows how to manage inside the compartments for the optional electronics).
To print all or part, in one or more times according to your desires of the moment, the colors which will enchant you when the time comes; you can also play with the scaling possibilities.
Bricoleur tout azimuth, depuis que je suis tombé dans la potion de l'impression 3D il y a 2 ans, je n'en suis toujours pas ressorti : magique !!!
