1/14 Kitten 703 Articulating Dump Truck

Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 11k views
  • 32 likes
  • 107 downloads
  • 1 collection
  • 1 make
Licence CULTS - Private Use
Last update 2023-12-02 at 03:54
Publication date 2023-08-26 at 14:46
Design number 1409625
3D design format
ZIP Folder details Close
  • 22x22 Dumpbed.zip
    • DB main A.stl
    • DB main B.stl
    • DB side DRV.stl
    • DB side PAS.stl
  • Kitten703 v1.2 by Burnie222rc.zip
    • BuildManual/CAT 730 Buildvideo.url
    • STL/Cabin/Cab cap.stl
    • STL/Cabin/Cab Door.stl
    • STL/Cabin/Cab Exhaust.stl
    • STL/Cabin/Cab Interior.stl
    • STL/Cabin/Cab Main.stl
    • STL/Cabin/Cab Mirrors.stl
    • STL/Cabin/Cab Railings.stl
    • STL/Cabin/Cab Rear.stl
    • STL/Cabin/Cab Rockshields.stl
    • STL/Cabin/Cab Roof.stl
    • STL/Cabin/WindowTemplate.stl
    • STL/Dumpbed/DB front wall.stl
    • STL/Dumpbed/DB hinges.stl
    • STL/Dumpbed/DB main.stl
    • STL/Dumpbed/DB rear pieces.stl
    • STL/Dumpbed/DB side A.stl
    • STL/Dumpbed/DB side B.stl
    • STL/Dumpbed Tailgate/TG DRV.stl
    • STL/Dumpbed Tailgate/TG hinges.stl
    • STL/Dumpbed Tailgate/TG Main.stl
    • STL/Dumpbed Tailgate/TG PAS.stl
    • STL/Front Chassis/Choose Steering/Actuator Steering/Fch Front Axle Actuator.stl
    • STL/Front Chassis/Choose Steering/Actuator Steering/Fch Mid Actuator.stl
    • STL/Front Chassis/Choose Steering/Strong Steering/Fch Front Axle Strong Steering.stl
    • STL/Front Chassis/Choose Steering/Strong Steering/Fch Mid Strong Steering.stl
    • STL/Front Chassis/Choose Steering/Strong Steering/SS steering arm.stl
    • STL/Front Chassis/Fch Bellypan.stl
    • STL/Front Chassis/Fch Btm Swing.stl
    • STL/Front Chassis/Fch Catwalks DRV.stl
    • STL/Front Chassis/Fch Catwalks PAS.stl
    • STL/Front Chassis/Fch Frame DRV.stl
    • STL/Front Chassis/Fch Frame PAS.stl
    • STL/Front Chassis/Fch Front Grille orient 1.stl
    • STL/Front Chassis/Fch Front Grille orient 2.stl
    • STL/Front Chassis/Fch Front lights.stl
    • STL/Front Chassis/Fch Front sides.stl
    • STL/Front Chassis/Fch Frontbumper.stl
    • STL/Front Chassis/Fch Hood1.stl
    • STL/Front Chassis/Fch Hood2.stl
    • STL/Front Chassis/Fch Mudguards.stl
    • STL/Front Chassis/Fch Railing DRV.stl
    • STL/Front Chassis/Fch Railing PAS.stl
    • STL/Rear Chassis/Rch Axle.stl
    • STL/Rear Chassis/Rch bottom.stl
    • STL/Rear Chassis/Rch MainSwing.stl
    • STL/Rear Chassis/Rch middle.stl
    • STL/Rear Chassis/Rch PND inside.stl
    • STL/Rear Chassis/Rch PND outside.stl
    • STL/Rear Chassis/Rch Rear Frame.stl
    • STL/Rear Chassis/Rch top with Tailgate.stl
    • STL/Rear Chassis/Rch top without Tailgate.stl
    • STL/Rear Chassis/Rch top.stl
    • STL/Wheels/1x Hubs.stl
    • STL/Wheels/1x Wheels.stl
    • STL/Wheels/2x Hubs.stl
    • STL/Wheels/2x Wheels.stl
    • STL/Wheels/4x Hubs.stl
    • STL/Wheels/4x Wheels.stl
    • STL/Wheels/6x Hubs.stl
    • STL/Wheels/6x Wheels.stl
    • What you need/List of screws.txt
    • What you need/Parts List with links.txt
    • STL/Rear Chassis/Rch Main Frame.stl
    • STL/Front Chassis/Fch HoodV2 1.stl
    • STL/Front Chassis/Fch HoodV2 2.stl
  • Kitten703Electronics Schematic.zip

Learn more about the formats
burnie222

burnie222

3D printer file info

3D model description

EDIT:
2nd december 2023 - Added a better looking hood. Download the newest version v1.2 and find it in the Front Chassis folder. The STL files are named "HoodV2".
12th september 2023 - Fixed a small issue with the file "Rch Main Frame.stl" it had two studs that prevented the rear suspension to work properly. Download V1.1 to get the update.

Build yourself a hobbygrade Articulating Dump Truck.

Model Dimensions:
Length 75cm (25.5in), Width 21cm(8.2in), Height 25cm(9.8in).
This is a big dump truck, perfect for rough terrain. It has a fully working suspension, and a 6x6 driveline.

It is operated by 12v actuators and motors, which means you dont need hydraulics and oil.
Included in the zip file is all the STL files, a complete 53 page build manual, and a complete parts list with links and pictures of what you need in order to build this model.
The dumpbed can dump 12kg loads with ease.

You can choose between two steering options, one is super simple, and is one advanced and more efficient.
A tailgate for the dumpbed is also included in the files, putting it on is optional.

A complete build series of how I built mine can be seen in this link:
https://www.youtube.com/playlist?list=PLdh4mhBIIM2Jh07l0oFISXkGNZhv6gVLf

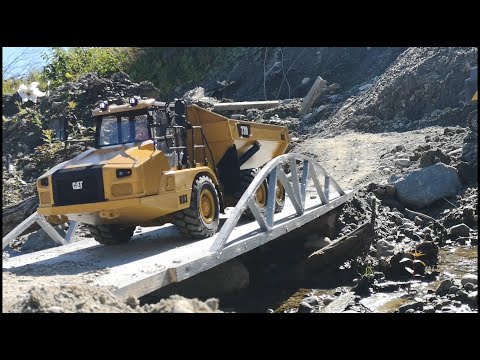

Here is a video with a few clips of the ADT:
https://youtu.be/R-4rnIdH4GY

The model has a 22x22x22cm printer bed size version, as well as a 30x30x40cm printer size version.

I have tried my best at making all the parts as user friendly as I possibly can. I even exported all the STLs in the best orientation for printing WITH premade brims, so you dont have to.
Runs on a 3S lipo battery.
For those who purchase this, Thank you! And I wish you happy building!!
