XL-RCP 16.0 XYCLOPS: Cockpit camera pan-tilt for 808 # 16 HD cam

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

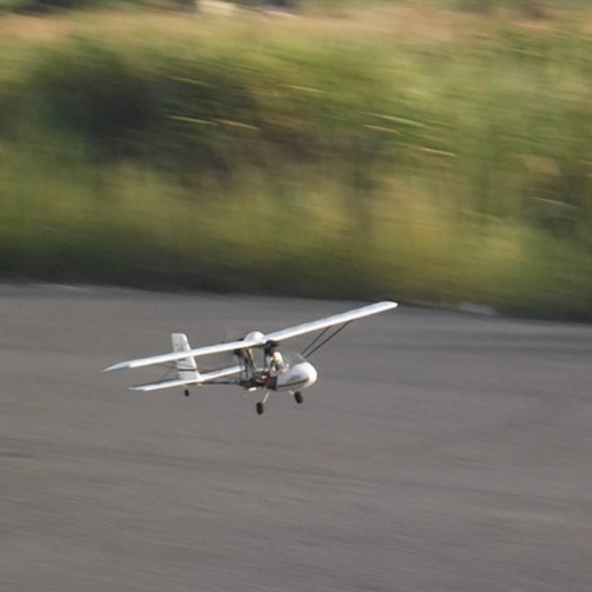

3d printed pan-tilt set for FPV optimized for ES Drifter Ultralight .:
XL-RCP 16.0 XYCLOPS: Cockpit camera pan-tilt for 808 # 16.

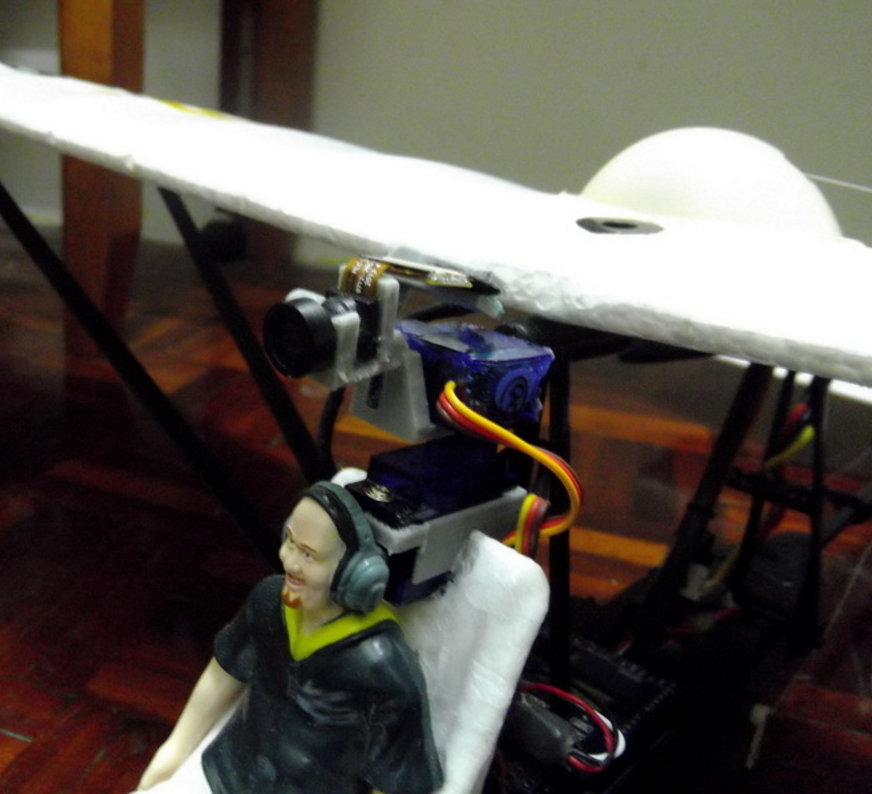

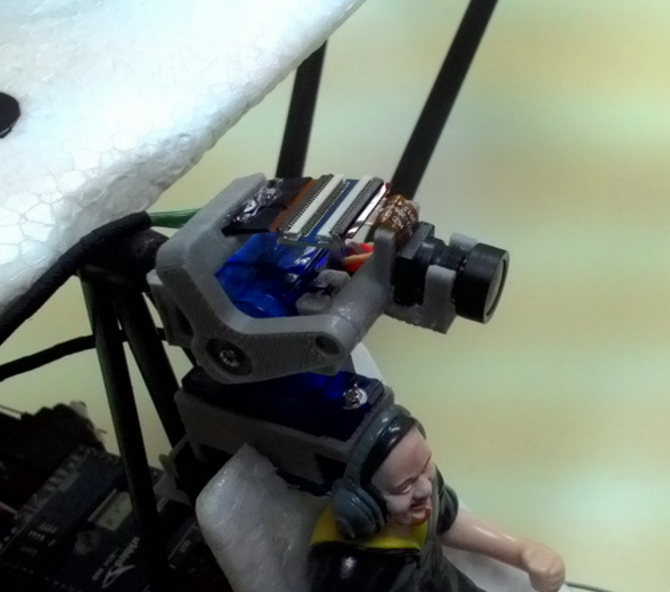

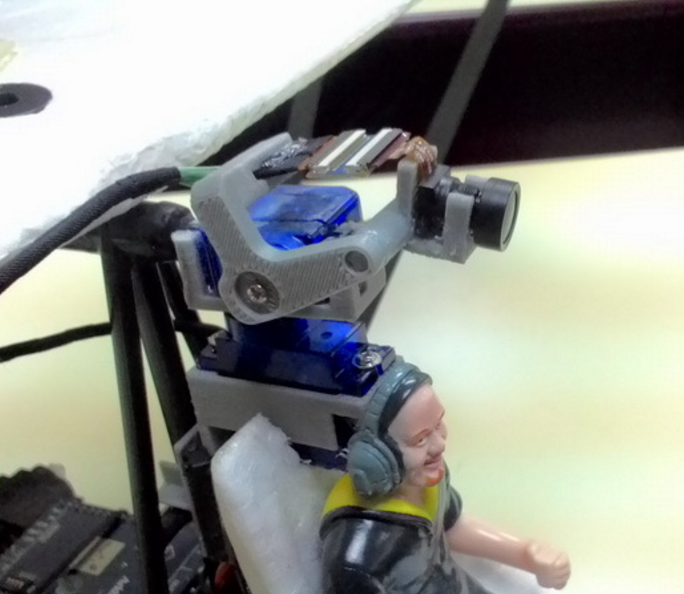

This kit is similar to XL-RCP14.0 HAWX EYE but slightly beefy, rigid, heavy by few grams and high mounted behind the cockpit. HAWX EYE runs on 3.7g servos while XYCLOPS runs on powerful 9g servos (optionally with 180deg after market servo) which is more commonly used by most FPV / drone flight enthusiast. The most prominent differences between them are the sizing and the way the kit was mounted on the plane. XYCLOPS originally was designed for on ES Drifter Ultralight plane, it has seat mounted and adjustable post to adapt to the rigid pillar of wing structure for rigid placement and vibration damping purposes.

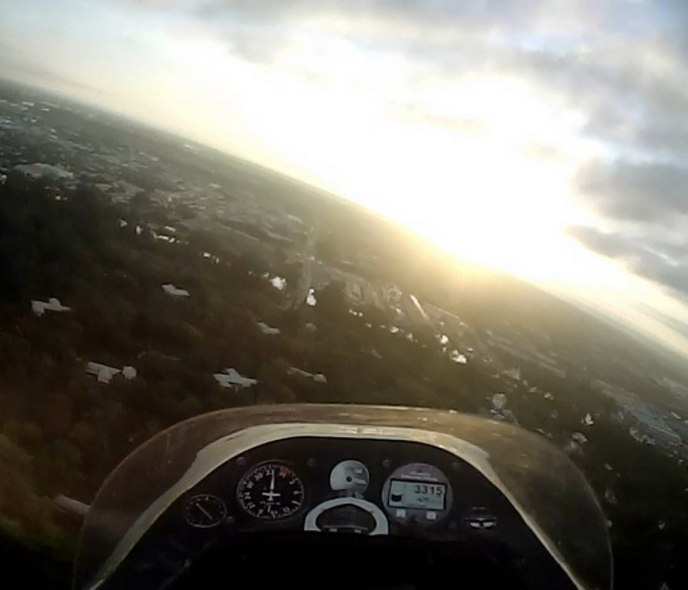

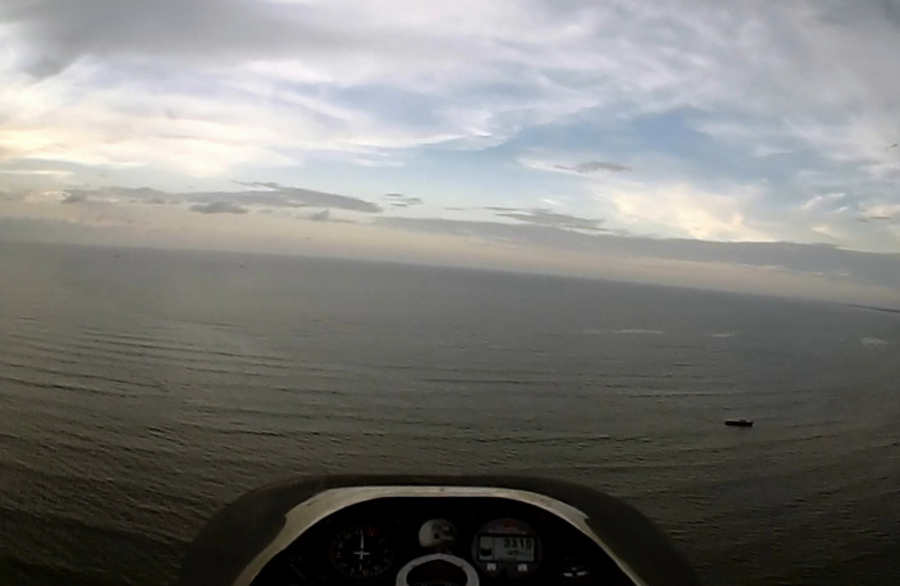

This kit reduce the weight of overall vs conventional pan-tilt system in the popular 9g size servo. This kit still retains its original purpose for cockpit flying experience with extra camera tilting feature. The narrow profile design starting from 808's lens all the way to the back allow more aerodynamic efficiency against wind and reduce drag.
For more details and instruction check it at this url: Models / xl-rcp-160-xyclops-cockpit-camera-pan-tilt-for-808-16-hd-camera / menu-id-118.html Build this 3D parts so would look "cracky" on some 3d viewer but no problem during 3D printing.

3D printer file information

  • 3D design format: STL Folder details Close
    • 808_board.stl
    • drifter_pillar_jig.stl
    • lens_socket.stl
    • pan_servo_base.stl
    • tilt_arm.stl
    • tilt_servo_holder.stl

    Learn more about the formats

  • Publication date: 2015-10-20 at 11:42


CC BY-SA - Attribution - Share alike



Designs 32
Downloads 4.5k
Followers 65

Love 3D designs, graphics and R/c models.
Follow me on Twitter:
My website:
