wind-up Bathtub Boat V4 - Badewannen Boot zum Aufziehen - Funktionsfähig

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.6k views
  • 16 likes
  • 166 downloads

3D model description


NEW VERSION OUT NOW
click here: https://www.thingiverse.com/thing:3554489

or here: https://cults3d.com/en/3d-model/game/wind-up-bathtub-boat-v5-with-benchmark-test-badewannen-boot-zum-aufziehen-funktionsfahig

Sunday is bathing day.

My daughter has a squeaky frog with which she can splash around water.
My son has a small boat that he happily shoves through the tub. Only me, I have nothing. I want something too.

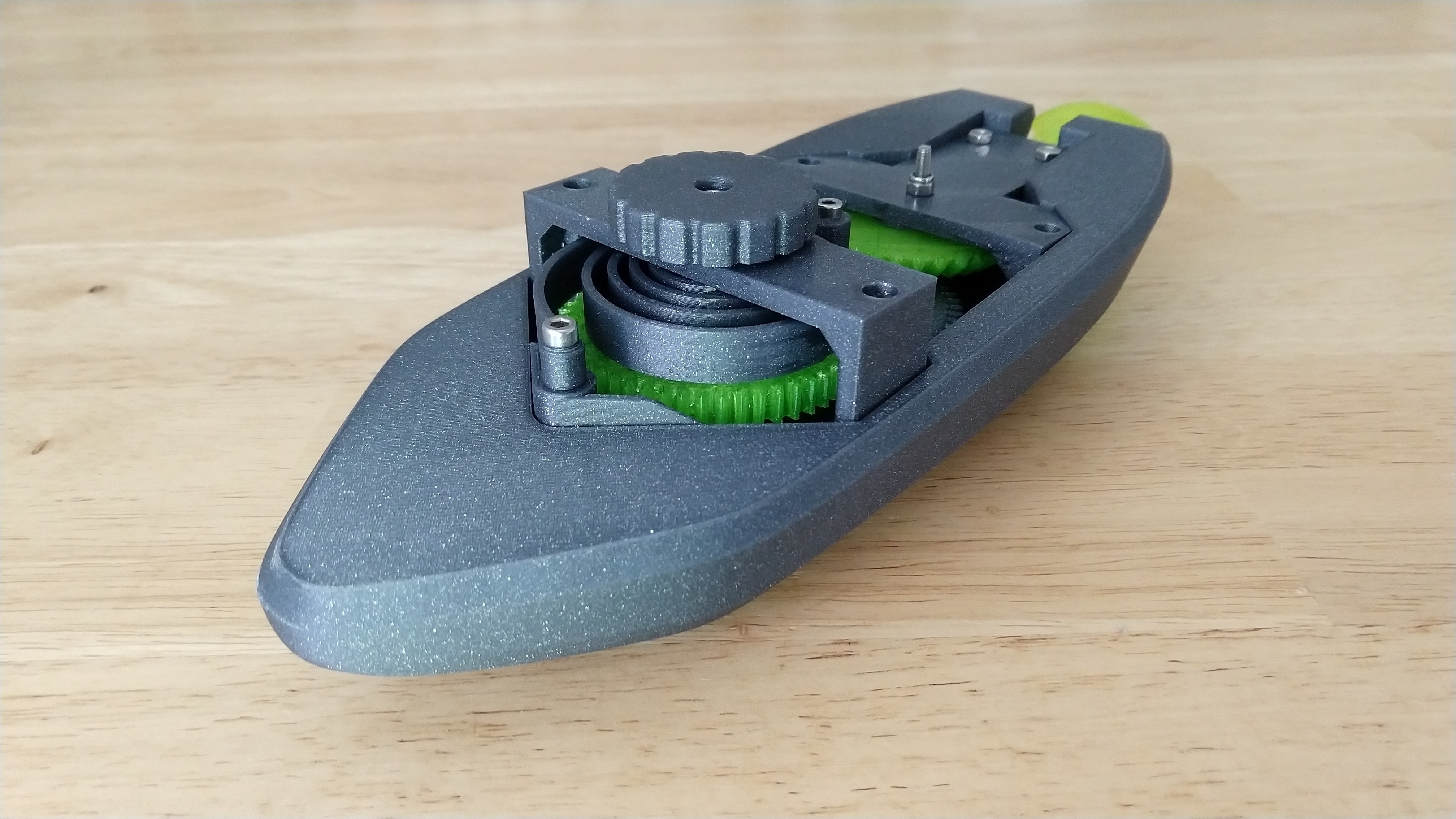

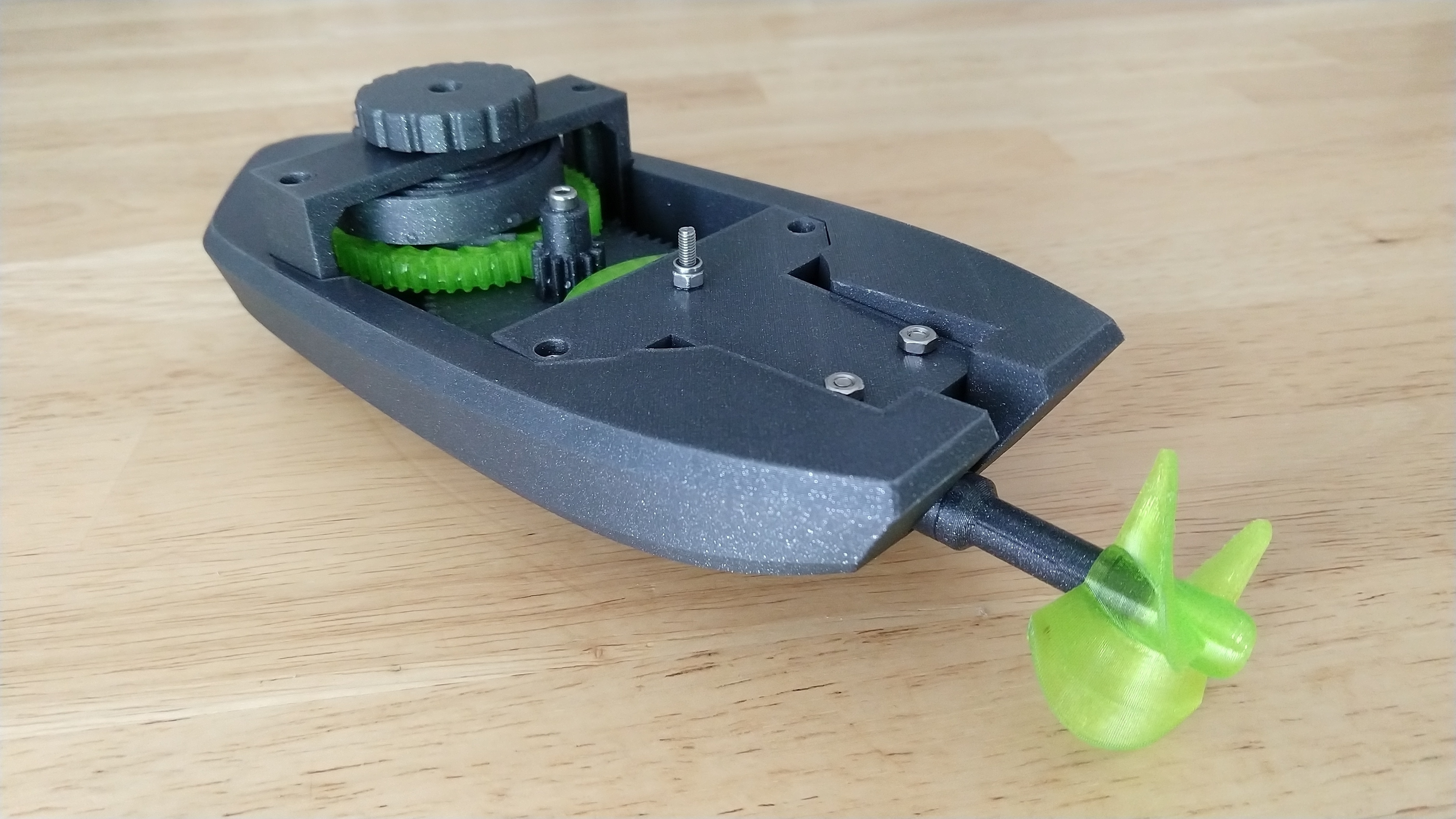

I want a working wind-up boat!

Everything can be printed in PLA.
You also need some screws and nuts:

2x M3x10 (optional to fix the gearbox in the mainbody)
4x M3x20
1x M3x25
4x M3x30
1x M3x40
4x Nyloc nuts M3 for the moveable gears and the spring
6x regular nuts M3

Do not tighten the Nyloc nuts!

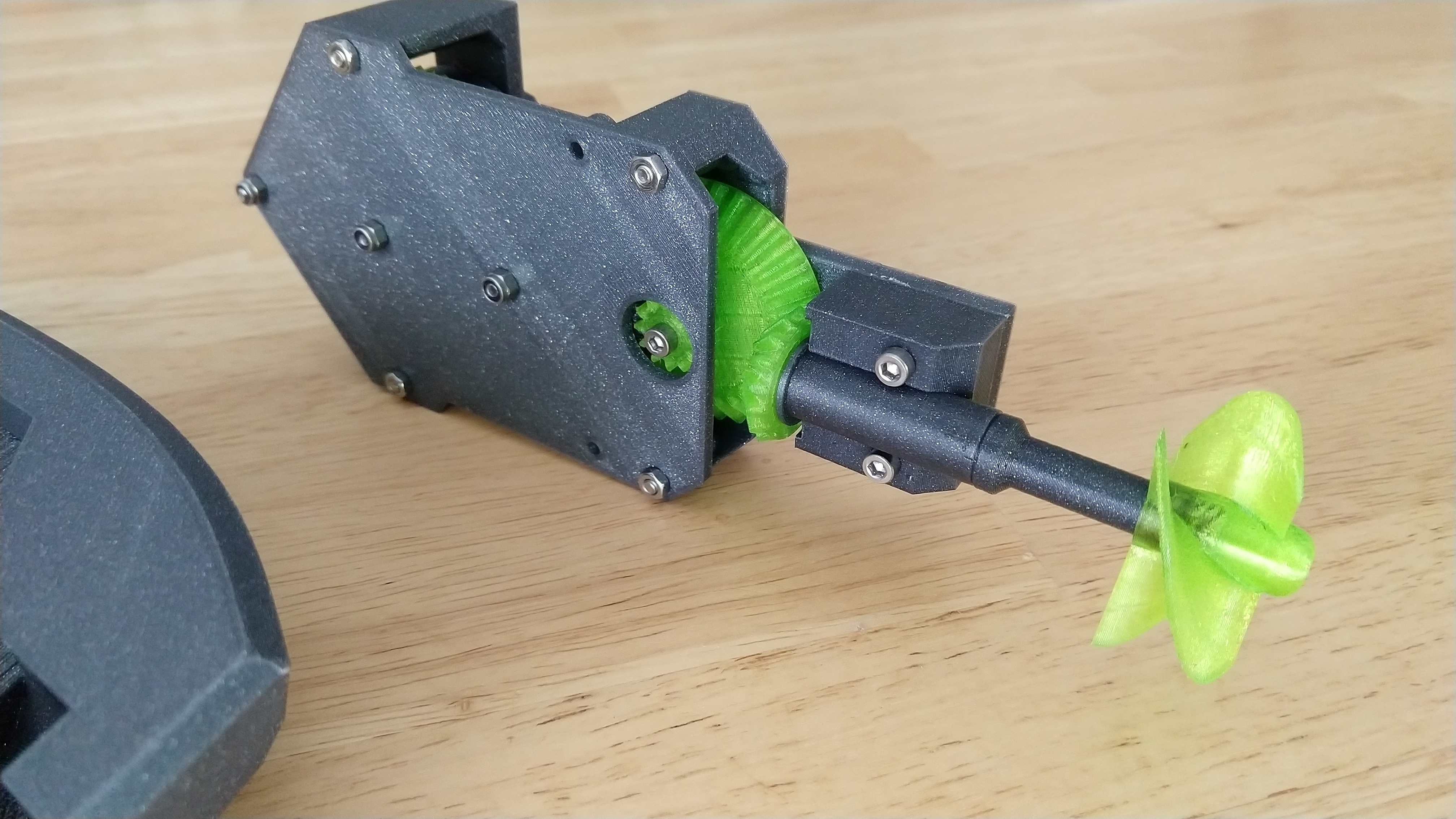

If the bevel gears does not run very smoothly for you (and it has to run very easily), then you can increase the backlash by putting foil or something waterproof between the axle holder and the bearing holder until it runs smoothly.

Happy printing!

Das hier ist jetzt der 4. Versuch, ein funktionierendes Boot für die Badewanne zu konstruieren. Und dieses Mal hat es Tatsächlich geklappt.

Es schaft etwa 2-3 Meter. Auch durch Schaum durch. Ihr Braucht folgende Schrauben und Muttern:

2x M3x10 (optional zum verschrauben des Getriebes mit dem Rumpf)
4x M3x20
1x M3x25
4x M3x30
1x M3x40
4x Nyloc Muttern M3
6x Normale Muttern M3

Wenn bei euch das Kegelrad nicht ganz leicht läuft (und es muss ganz leicht laufen), dann könnt ihr das Flankenspiel vergrößern, indem ihr zwischen Achhalter und Lagerhalter so lange Folie oder irgendwas anderes Wasserfestes legt, bis es leicht läuft.

Vergewissert euch, dass ihr euren Extrusionsmulti optimal eingestellt habt.

Trockentest:
https://www.youtube.com/watch?v=PZq3W4KlTqI

Jungfernfahrt:
https://www.youtube.com/watch?v=1hmKH3XBahE

Viel Spaß beim nachmachen.
