Water Jet for 540 Motors

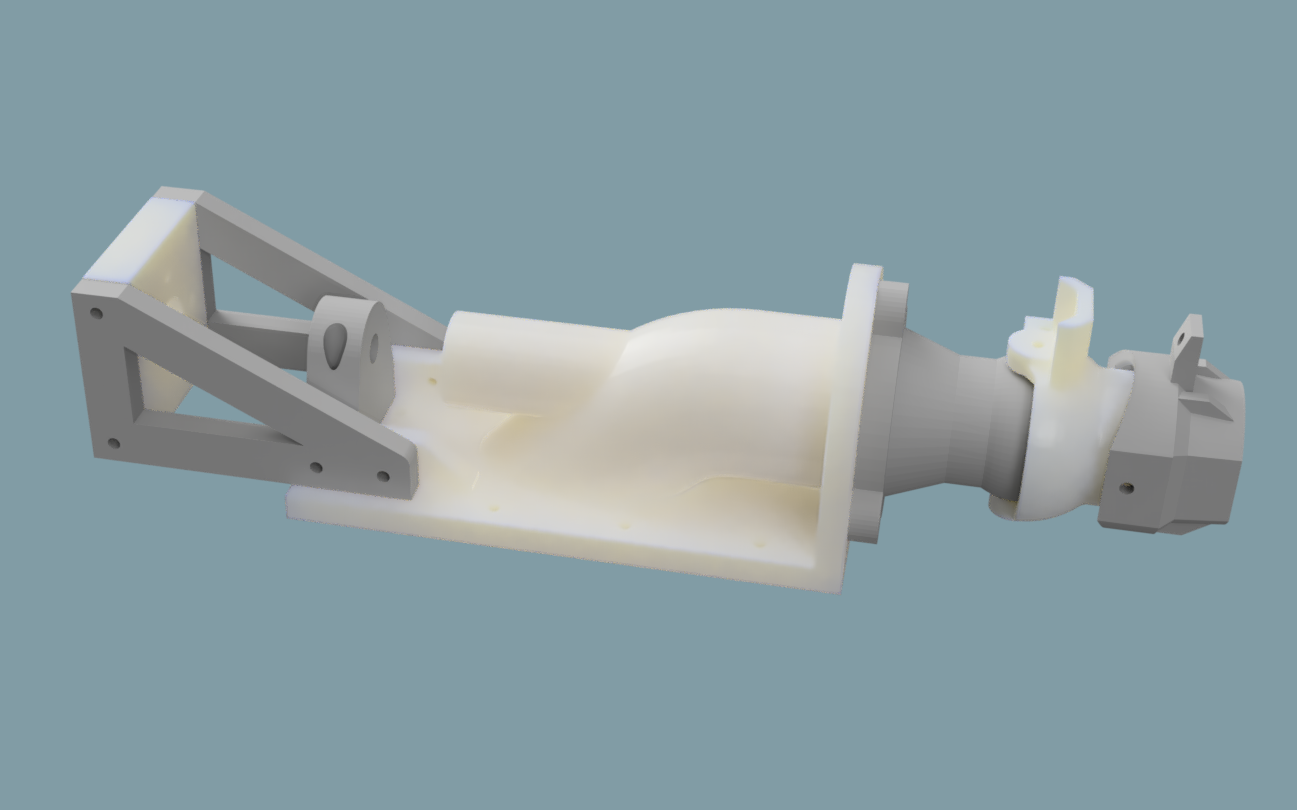

drive.png Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Frame.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
3mm_Prop.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Steering_Nozzle.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Trim_Nozzle.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
4mm_prop.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Nozzle.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
3mm_Shaft_Jethousing.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Motor_Mount.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Bearing_Block.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
4mm_Shaft_Jethousing.stl Free STL file Water Jet for 540 Motors・3D printing design to download, SeanTheITGuy
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Remix of this water jet drive
https://www.thingiverse.com/thing:2217927

and nozzle attachment.
https://www.thingiverse.com/thing:2512106

This was scaled and tweaked to utilize standard 3mm shaft, and M3 screws, while being driven by a 540 RC motor. As originally designed, I believe it was designed for a 400 series brushless, but I didn't have any of those. However, I did have a large collection of 540 size brushless from my days of running RC trucks.

I also modified the bearing carriers to accept MR93ZZ bearings. If you have any other bearings you would prefer to run, let me know and I can easily modify the stl to accept other bearings / shaft sizes.

Note that I haven't actually printed and assembled this yet, so do so at your own risk of wasting time and filament. I will update when I assemble it as to any tweaks I had to do.

Edit: 2019-03-19: Added a 3 and 4mm shaft option for the prop and jet housing. Updated clearances for M3 hardware.
