Vardo Caravan

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 3.2k views
  • 22 likes
  • 303 downloads

3D model description

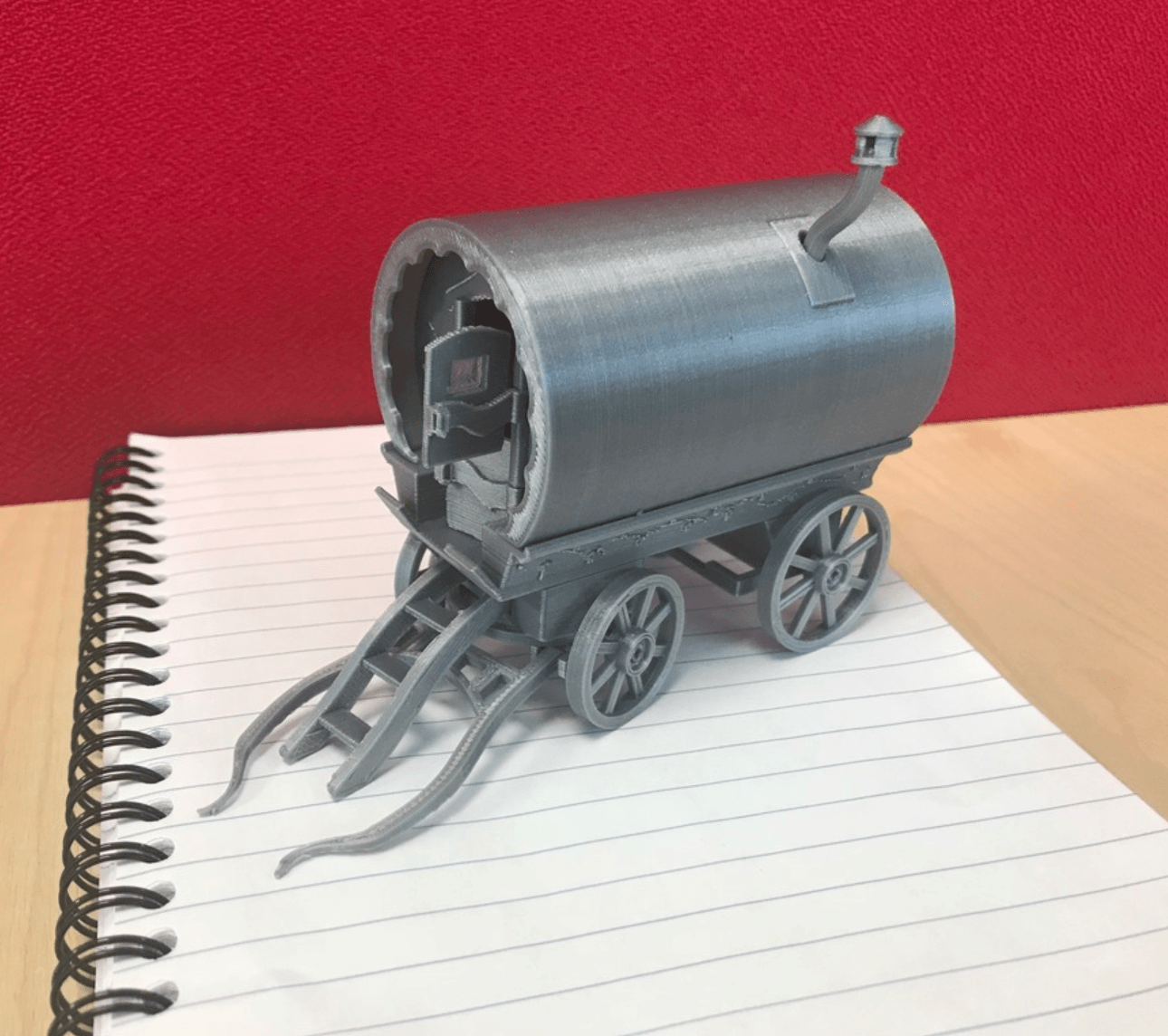

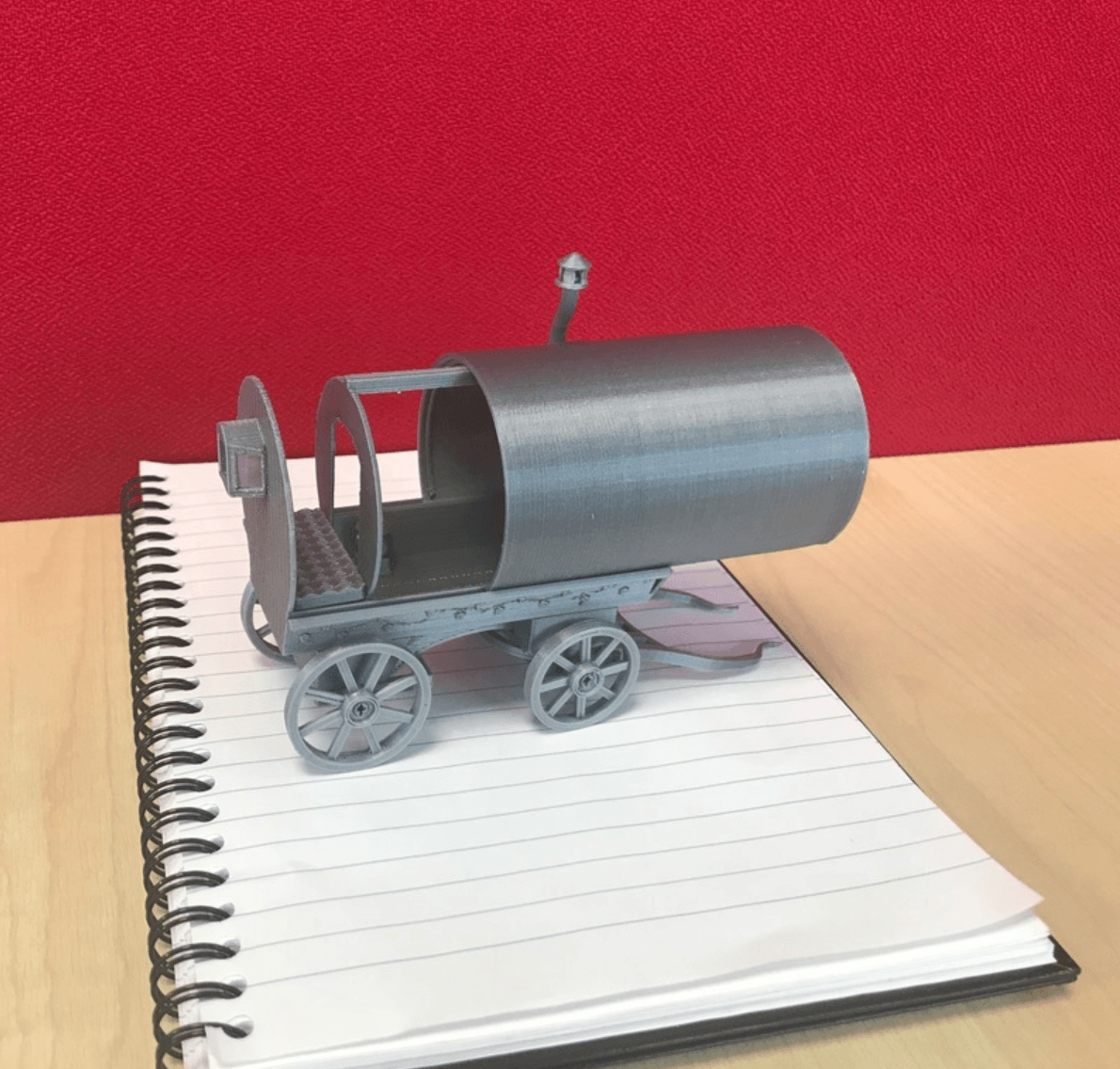

This is my take on a small scale Vardo Caravan. it is approximately 1:48 (1/4) scale and I have designed it to (hopefully) scale up to approx 1:12th.
There are a few configurations. the door can be printed separately or in place using the Wagon Base-Door-stove assy. if printed separately you could use a 0.5mm wire or pin for the hinge, when printed in place you must very carefully and slowly work the hinge to prevent it from breaking as it is only 0.4mm at this scale but it does work. The same applies to the shaft set.
The rear sub frame can be printed in one piece or two separate parts if you want some swivel to the rear wheels.
The wagon also doubles up as a puzzle box as lifting the smoke stack lets the roof slide open.
Everything will click / slide together so nothing is glued (except stove if made separately)

22/03/18 Update. I have re-orientated all of the parts to the optimal print positions and moved the options to a separate zip folder, leaving the preferred print setup. I have also added a file with all of the parts(except the base assy) if your confident enough to print all at the same time. J.C..

Please respect the non commercial licence and happy printing.
J.C..


3D printing settings

Printer Brand:

TEVO

Printer:

Tornado

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

Discretionary

Notes:
Roof, wagon base, ladder, wheels, and chassis need supports. the very small parts will print fine to the current scale at 0.2mm resolution with a 0.4mm nozzle. I used clear PLA for the windows and opaque PLA for everything else.
Print temperature for most parts I would suggest 190- - 210 but 190 may be better for the base and the front subframe to give the hinges a better chance. the roof could be taken to 230 deg C if scaling up to give it some more strength.

3D printer file information

  • 3D design format: STL and ZIP Folder details Close
    • All_parts_except_base.stl
    • Front_Subframe_assy.STL
    • Front_Wheel.STL
    • Front_Window.STL
    • Front_box.STL
    • Individual_options.zip
    • Ladder.STL
    • Matress.STL
    • Rain_cap.STL
    • Rear_Chasis_Assy.STL
    • Rear_Wheel.STL
    • Rear_Window.STL
    • Roof.STL
    • Smoke_Stack.STL
    • Wagon_Base_Decorated-Door-stove_assy.STL

    Learn more about the formats

  • Publication date: 2018/04/25 at 14:37

License

CC BY NC
