Twin Tops

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 480 views
  • 2 likes
  • 10 downloads

3D model description

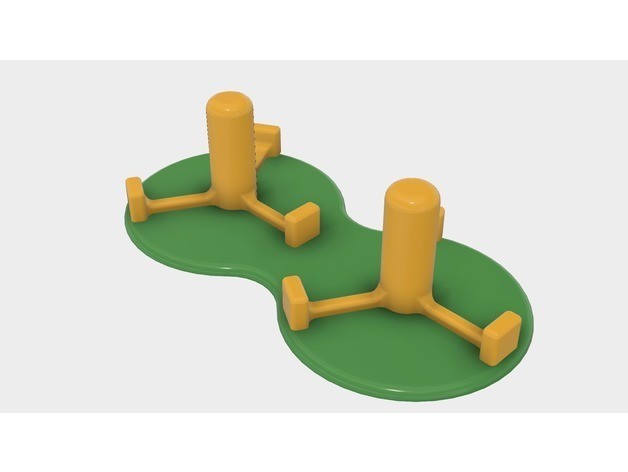

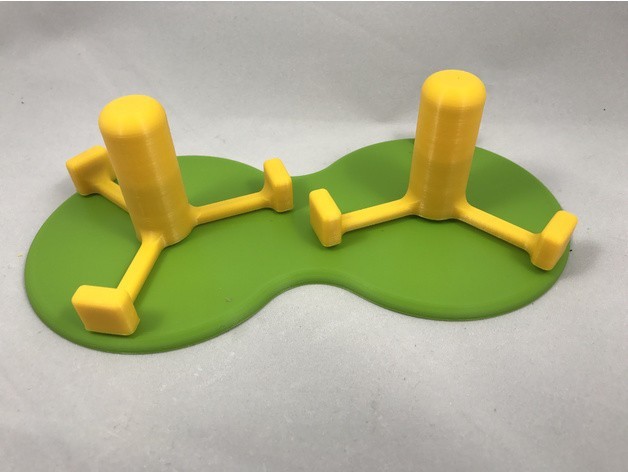

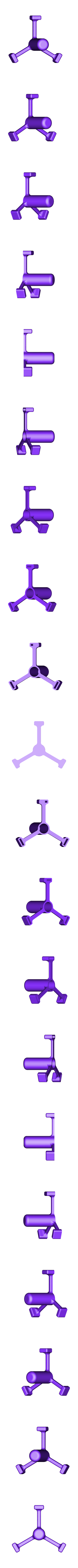

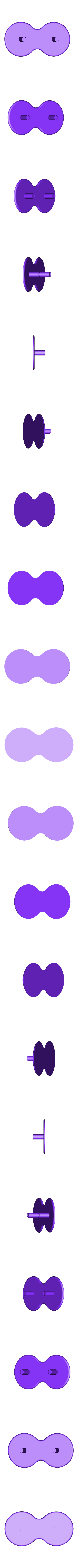

"Twin Tops" is my rendition of Grand Illusions "Magneturn" (grand-illusions.com). Spinning either top induces motion into the remaining top thanks to magnetics. The design also minimizes rotational friction via opposing magnetics between the Base tower tops and each Top. As combined these features create a great magnetics educational tool. My rendition is larger than the original to make it more "grandkid friendly" (easier to grasp, more difficult to swallow).

You will need to purchase 10 neodymium disk magnets 12mm in diameter and 3mm thick in order to complete "Twin Tops". I have purchased these magnets from a local hardware store (Ace) and online (Amazon).

Video of prototype is here: https://www.youtube.com/watch?v=woXns1lunyA.

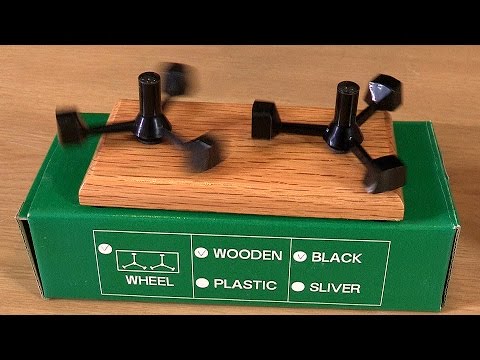

Video of Grand Illusions "Magneturn" is here: https://www.youtube.com/watch?v=zllYJokkvV4&t=10s.

Designed using Fusion 360, Sliced using Cura 2.3.1, and printed in PLA on an Ultimaker 3 Extended.

3D printing settings

Printer Brand:

Ultimaker

Printer:

Ultimaker 3

Rafts:

No

Supports:

No

Resolution:

.1

Infill:

50%

Post-Printing
In order to correctly orient the magnets, I started by stacking all 10 magnets together, then one by one placing an "X" on the topmost magnet using an indelible ink pen, sliding that magnet off the stack, then repeat the process with the next magnet until all 10 magnets are marked.

Position the Top "arm" magnets into the 6 arms with the "X" facing outward.

Position the Base "tower" magnets into the towers with the "X" facing upward.

Finally, position the Top "center" magnets into the Tops with the "X" facing downward (the "X" must be visible when looking into the Top).

Slide the tops onto the Base towers and spin.

  • 3D file format: STL
  • Publication date: 2018/06/06 at 19:30
