1/10 Turning Head RC Driver With Movable Arms

animated_01.gif 1/10 Turning Head RC Driver With Movable Arms
animated_02.gif 1/10 Turning Head RC Driver With Movable Arms
animated_03.gif 1/10 Turning Head RC Driver With Movable Arms
01-head.jpg 1/10 Turning Head RC Driver With Movable Arms
02.jpg 1/10 Turning Head RC Driver With Movable Arms
03.jpg 1/10 Turning Head RC Driver With Movable Arms
04.jpg 1/10 Turning Head RC Driver With Movable Arms
05.jpg 1/10 Turning Head RC Driver With Movable Arms
06.jpg 1/10 Turning Head RC Driver With Movable Arms
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.8k views
  • 47 likes
  • 45 downloads
  • 1 collection
Licence CULTS - Private Use
Last update 2023-12-08 at 20:42
Publication date 2023-06-02 at 05:05
Design number 1249970
3D design format
ZIP Folder details Close
  • Turning Head RC Driver With Movable Arms.zip
    • Alternative Head.stl
    • Body Bottom.stl
    • Body Top.stl
    • Half Body Cover.stl
    • Head Horn.stl
    • Head.stl
    • Hear Bar.stl
    • Left Arm.stl
    • Manual_v1_en.pdf
    • Manual_v1_es.pdf
    • Right Arm.stl
    • Servo Horn.stl

Learn more about the formats
robroy07

robroy07

3D printer file info

3D model description

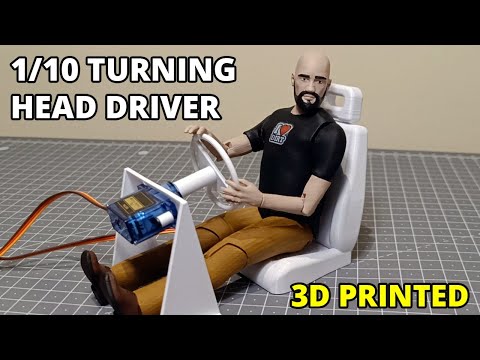

This is the Mk2 of the Turning Head RC Driver. It turns the head using a micro servo that is inside the body and the arms have joints that allow to add a steering wheel with a servo that move them.

Here is a video of how it works: https://www.youtube.com/watch?v=3rBb0xzwRgE

There are 2 options:
- Full body: The legs can also move and that way it can adapt to different seat heights.
- Half body: It has only the top part of the body (useful for lexan interiors.

To build this you will need:
- 1 x Micro servo 9g (23x12x29mm) – It is used to make the head turn
I bought mine here: https://aliexpress.com/item/1005004195697567.html
- 1 x 5mm M1.4 screw – It is used to hold the micro servo horn
You can find them here: https://aliexpress.com/item/10000181293335.html
- 2 x 8mm M2.5 screws – They are used to join the legs or cover if you don’t want legs)
to the top part of the body and keep the servo in place.

To connect it to your RC you may need:
- 1 x Servoinversor – It can be useful to make the head turn the opposite direction (it
will depend on your main steering servo position)
I bought mine here: https://aliexpress.com/item/32728471122.html
- 1x Servo cable splitter – If you want to use the same channel of your main steering
servo, you will need it.
You can find it here: https://aliexpress.com/item/1005002233232226.html

I have included a brief manual with instructions to build the driver. It is available in both English and Spanish.

I hope you like it!

Note: It only includes the driver. The white 3D printed pieces are not included, they are only for testing purposes.

Update 2023-12-08: I have included another head, this time with nice hair and beard

3D printing settings

Print using PLA at 0.15-0.10 mm layer height
