OVERVIEW

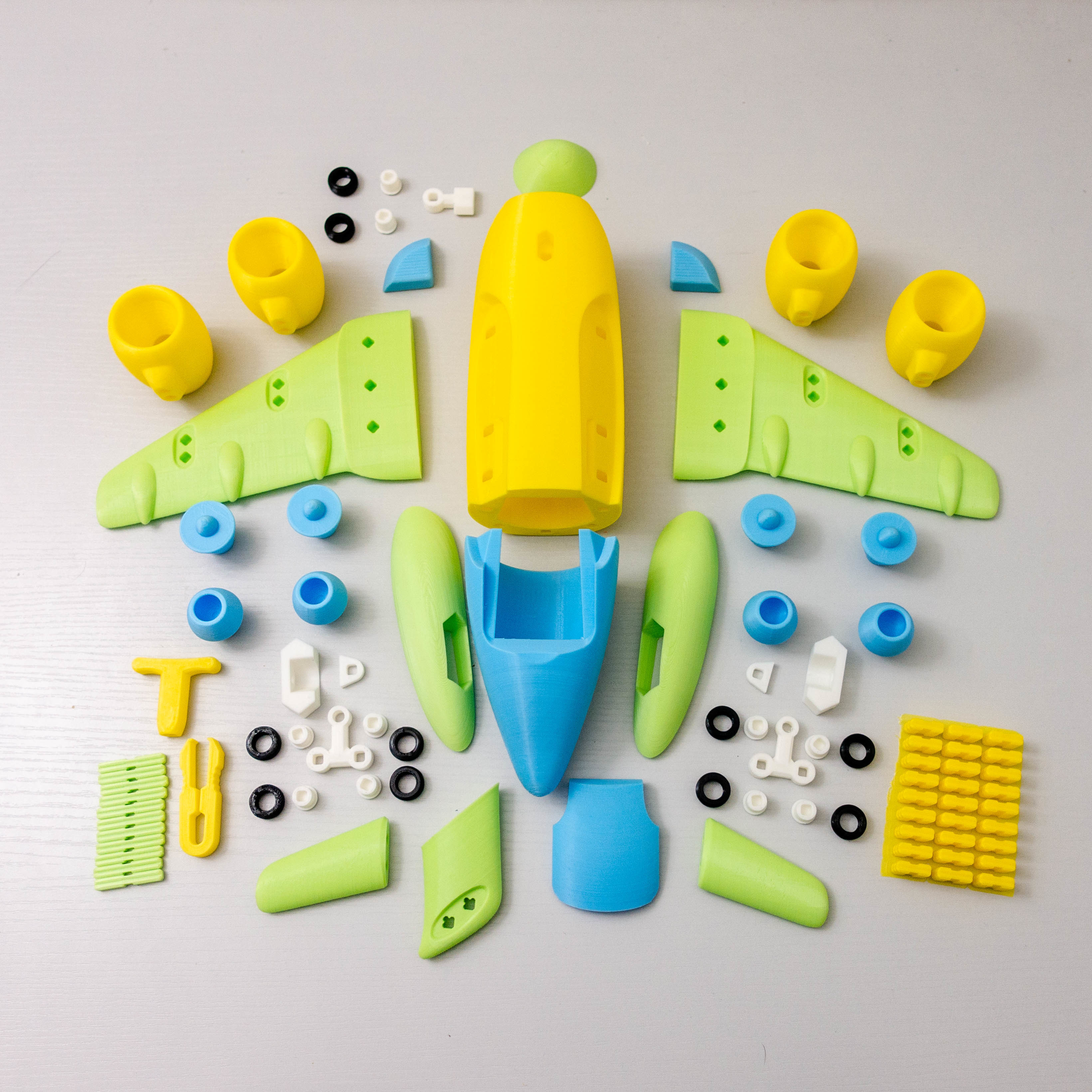

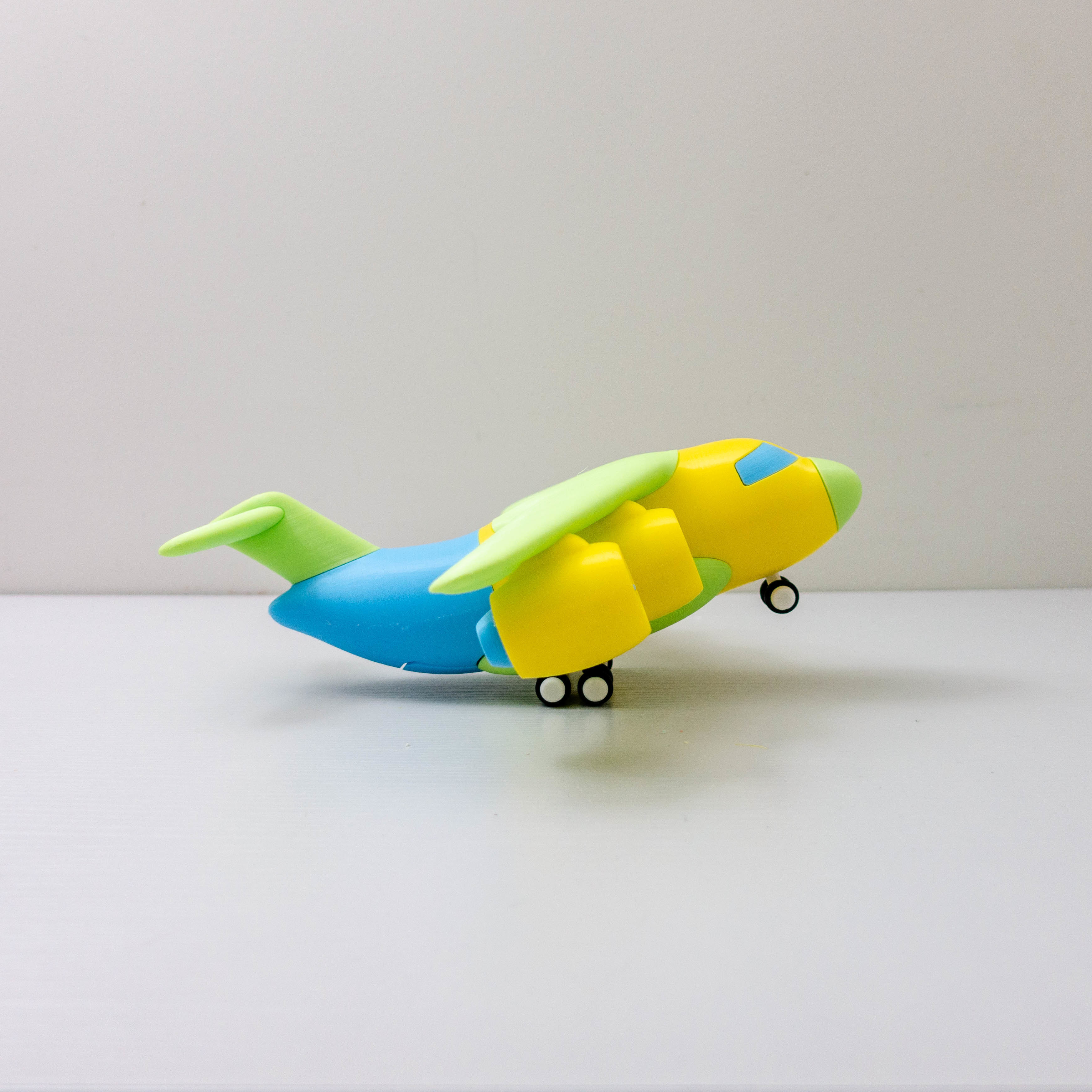

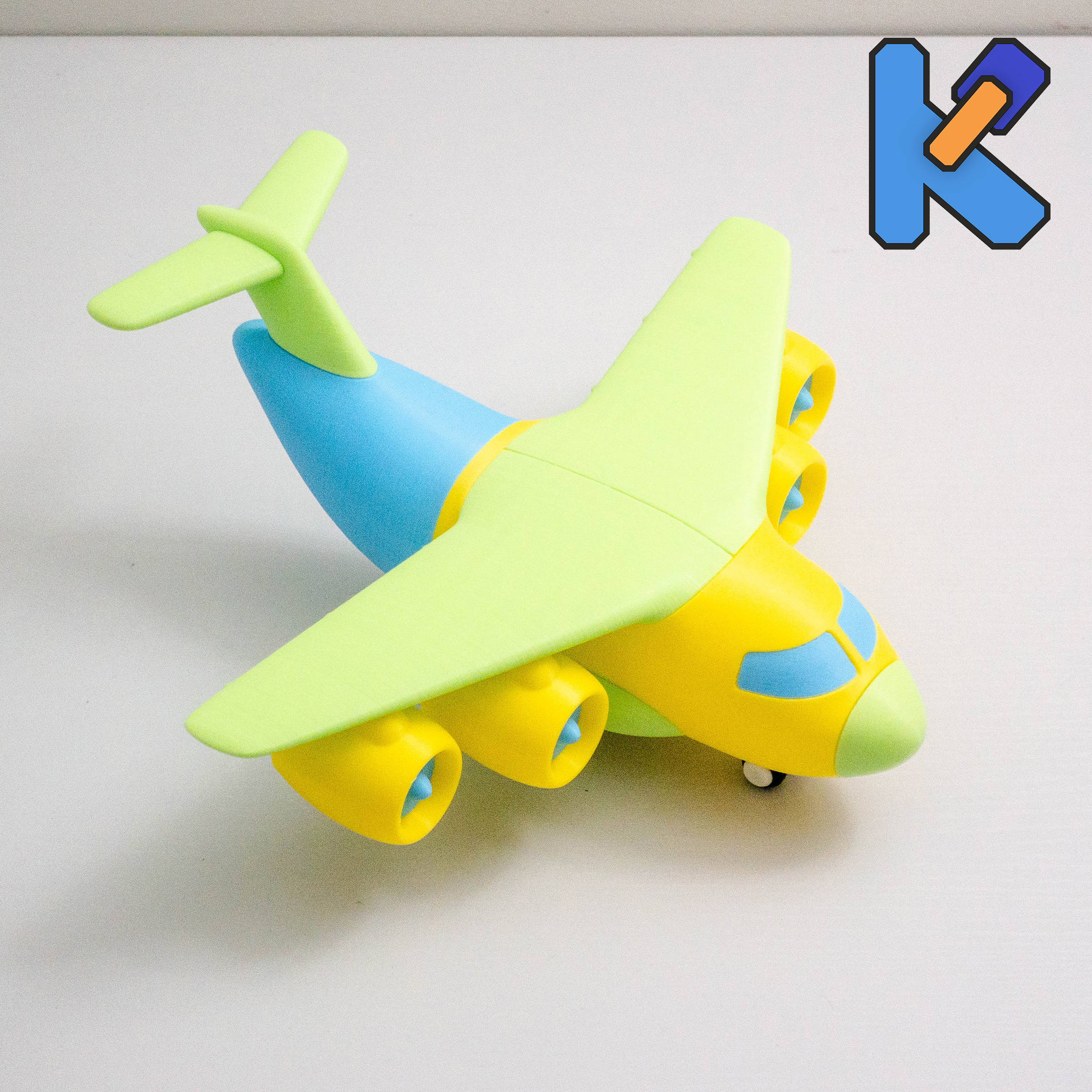

The object is a toy style transport aircraft, split in parts for puzzle assembly.
It consists of only printed parts, and doesn't requrie glue to put together.

Printing and assembly video:
https://www.youtube.com/watch?v=3IeNuz5jJn4

Check out the other models of the same serie from here:
https://cults3d.com/en/users/HeyVye/creations

CONNECTION

K-Pin is a push-fit pin to connect parts together. It has a specially designed section profile with a shape of "K". The profile is optimised for 3D printing by being more forgiving on tolerance.
Use the included K-Pin pusher to push the pins into sockets.

MAKE

Print the parts in prepared orientation. Change filament color as you wish. The STL files consist of all parts at sufficient quantity.
The socket sizes for K-Pin in the design are all identical. Actual printed size of sockets might vary due to and filament shrinkage.


3D printing settings

No supports. At least 15% infill.
0.2 layer height for landing gears and K-Pin. Any layer height for others.

3D printer file information

  • 3D design format: STL Folder details Close
    • K-Pin 15mm x50.stl
    • K-Pin 30mm x10.stl
    • K-Pin pusher.stl
    • K-Pin remover.stl
    • TC_Body front.stl
    • TC_Body nose.stl
    • TC_Body side.stl
    • TC_Body tail.stl
    • TC_Engine inside.stl
    • TC_Engine shell.stl
    • TC_Landing gear.stl
    • TC_Landing wheel.stl
    • TC_Window.stl
    • TC_Wing.stl
  • Last update: 2020/09/12 at 01:25
  • Publication date: 2020/09/04 at 10:36
