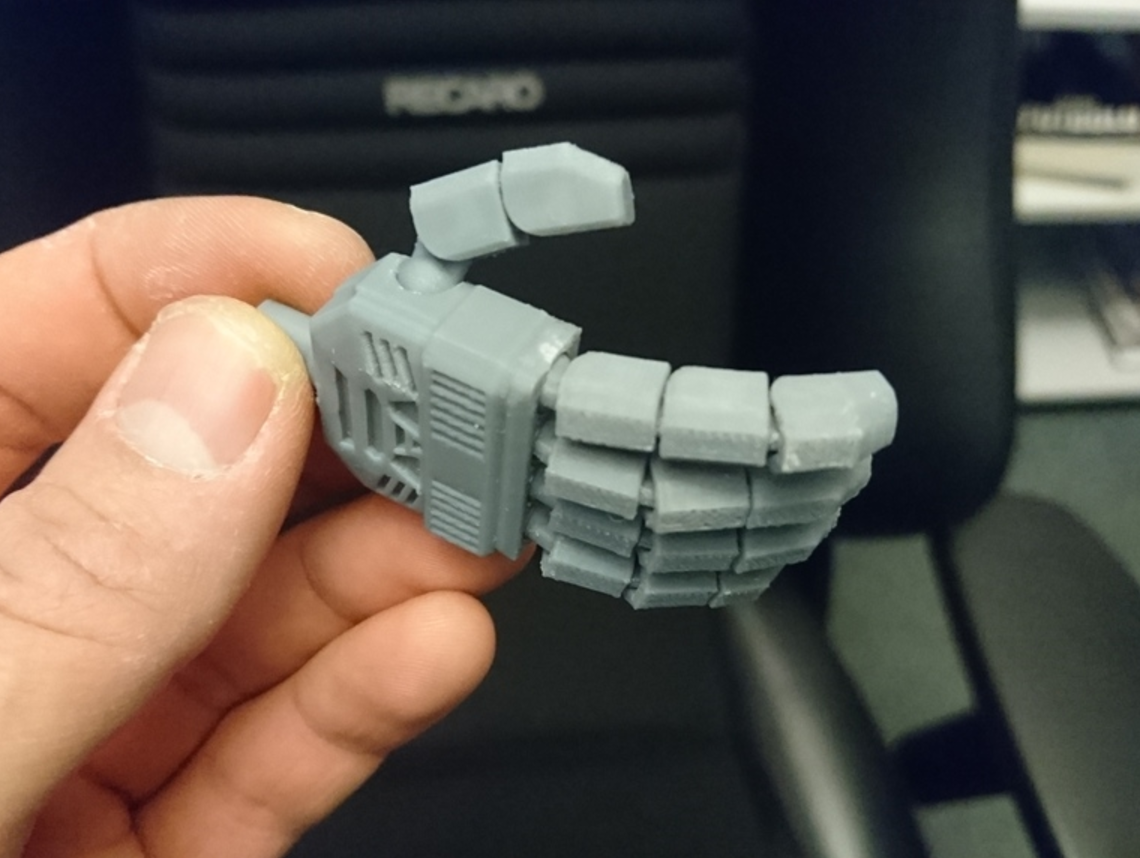

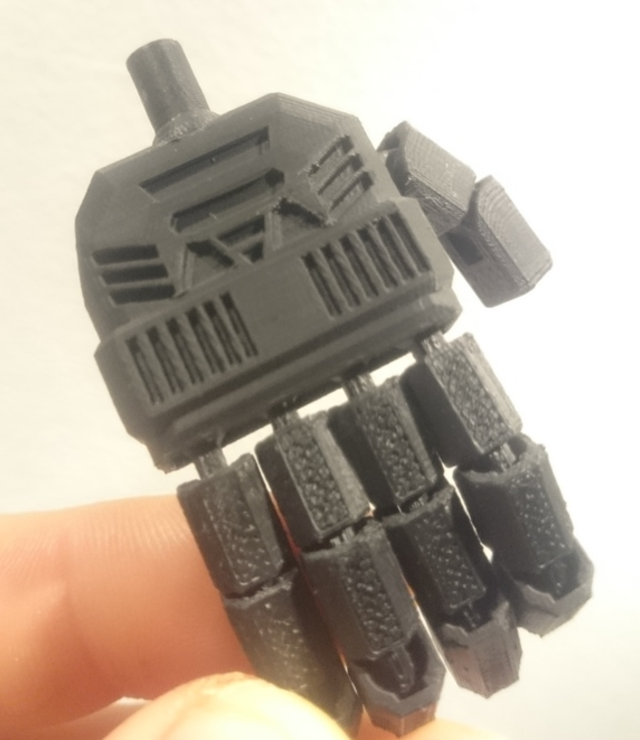

TRANSFORMERS CW POSABLE HANDS 2.0

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 5.5k views
  • 16 likes
  • 342 downloads

3D model description

TRANSFORMERS CW POSABLE HANDS 2.0


3D printing settings

TRANSFORMERS CW POSABLE HANDS 2.0

3D printer file information

  • 3D design format: STL Folder details Close
    • FULL_BALLJOINT_58mm_ball_hinge.stl
    • FULL_BALLJOINT_detail_v5_left.stl
    • FULL_BALLJOINT_detail_v5_right.stl
    • FULL_BALLJOINT_detail_v6_left.stl
    • FULL_BALLJOINT_detail_v6_right.stl
    • fingerv3_cut_10mm_v2.stl
    • fingerv3_cut_12mm_v2.stl
    • handv5_balljoint_x2_detail_v5_LEFT.stl
    • handv5_balljoint_x2_detail_v5_RIGHT.stl
    • v2_finger-hand_hinge.stl
    • v2_finger-hand_hinge_long.stl
    • v2_fingerv3_long.stl
    • v2_fingerv3_short.stl
    • v2_hand_detail_v6_LEFT.stl
    • v2_hand_detail_v6_RIGHT.stl
    • v2_hand_left.stl
    • v2_hand_right.stl
    • v2_middlefinger_41_ball.stl
    • v2_thumb_6mm_ball_hinge.stl
    • v2_wrist_ball_79mm.stl
    • wrist_ball_794mm_10mm.stl
    • wrist_ball_794mm_8mm.stl
    • wrist_ball_79mm_10mm.stl
  • Last update: 2017/05/26 at 06:01
  • Publication date: 2017/03/14 at 10:35

License

CC BY

Tags

Creator

Issue with this design? Report a problem

Best sellers of the category Game


Add a comment

2 comments

"you need to print

1 body, 3 short fingertips, 2 long fingertips, 9 middlefingers, 1 wrist ball, 4x hand hinges 5,8mm and 1 thumb joint
per hand"
as in files it means :

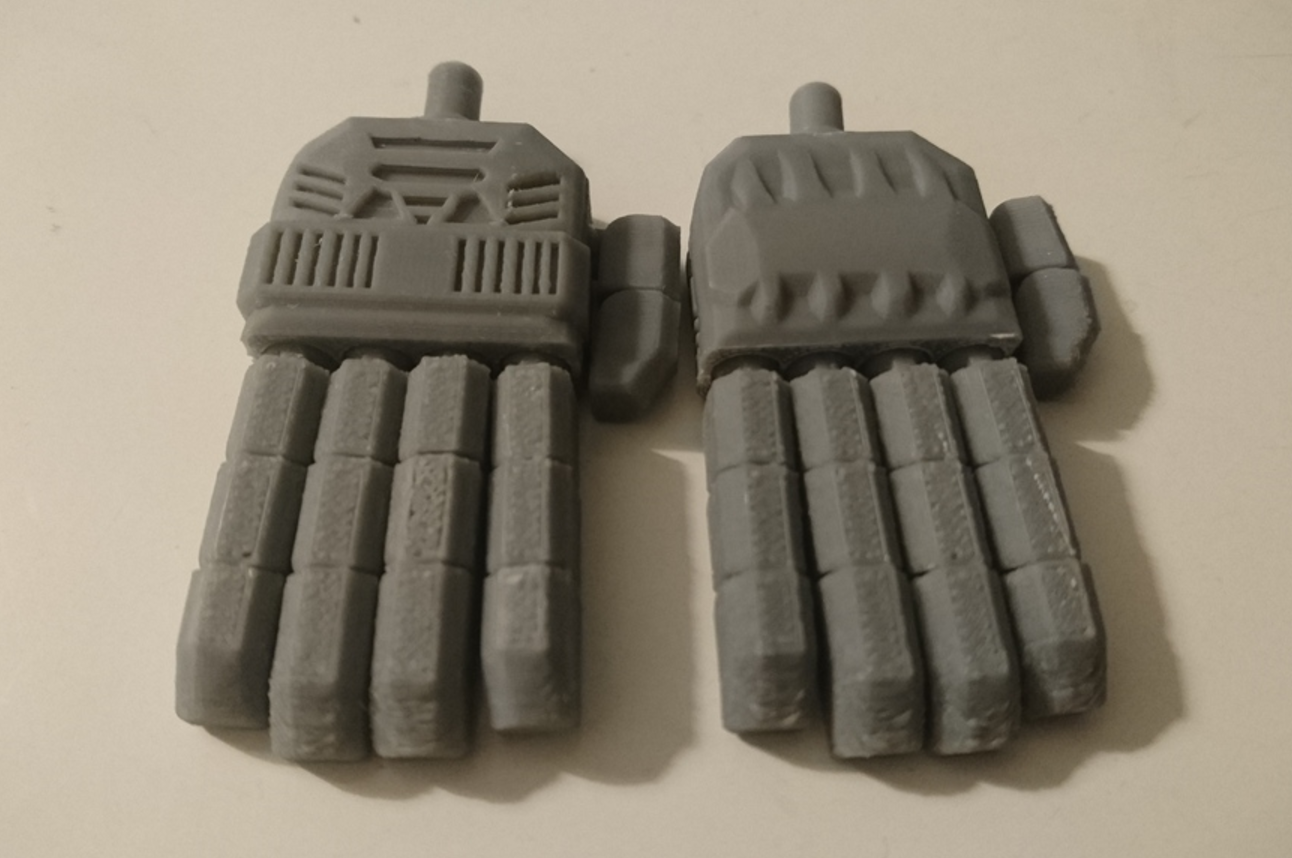

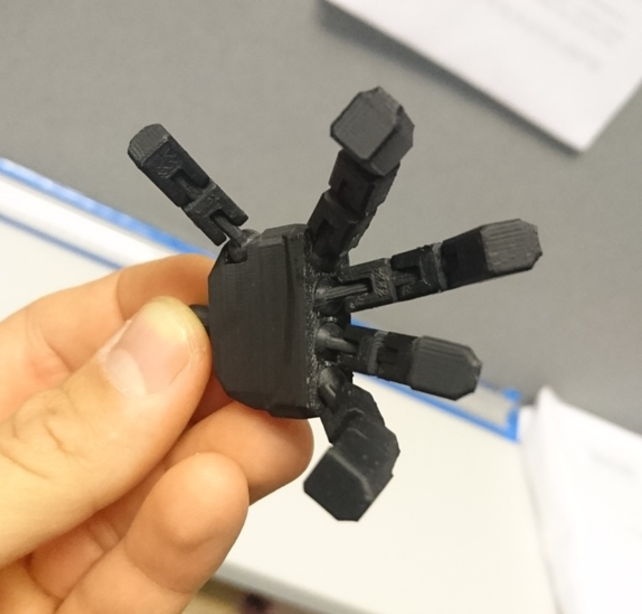

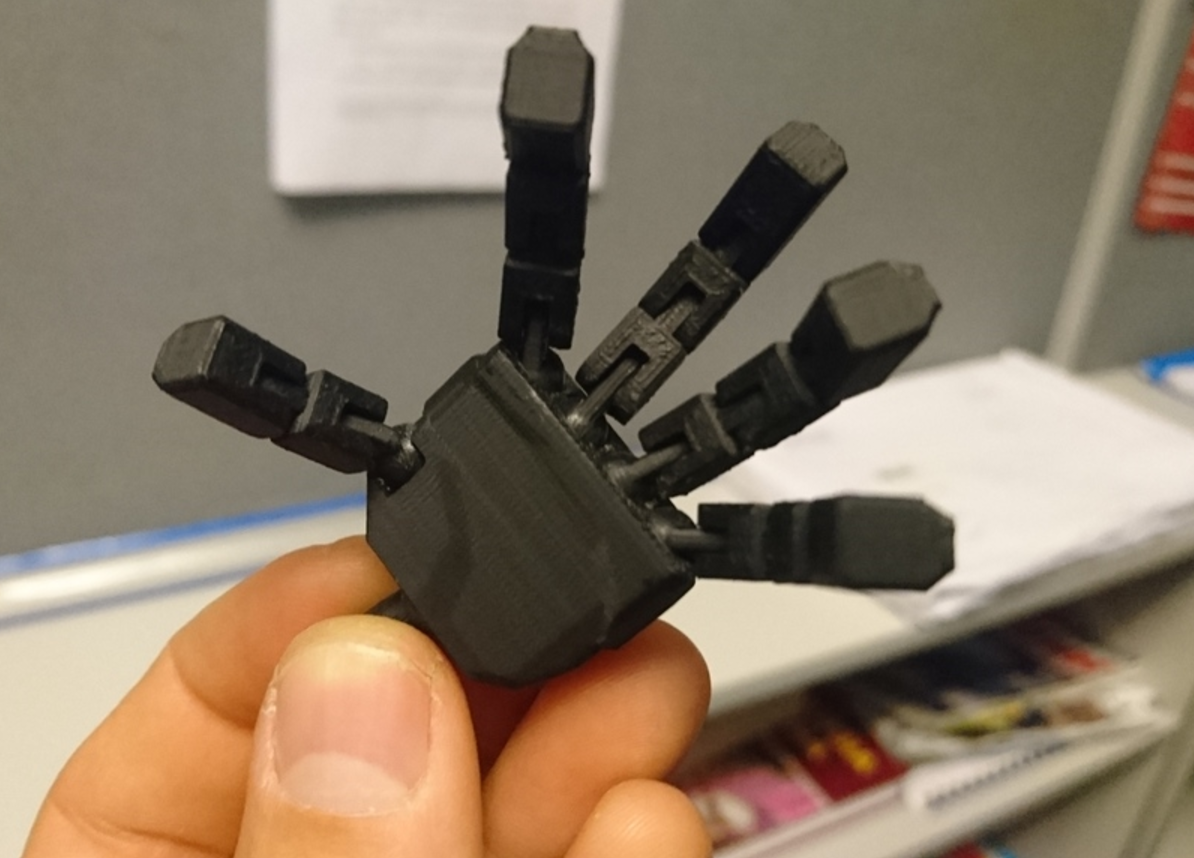

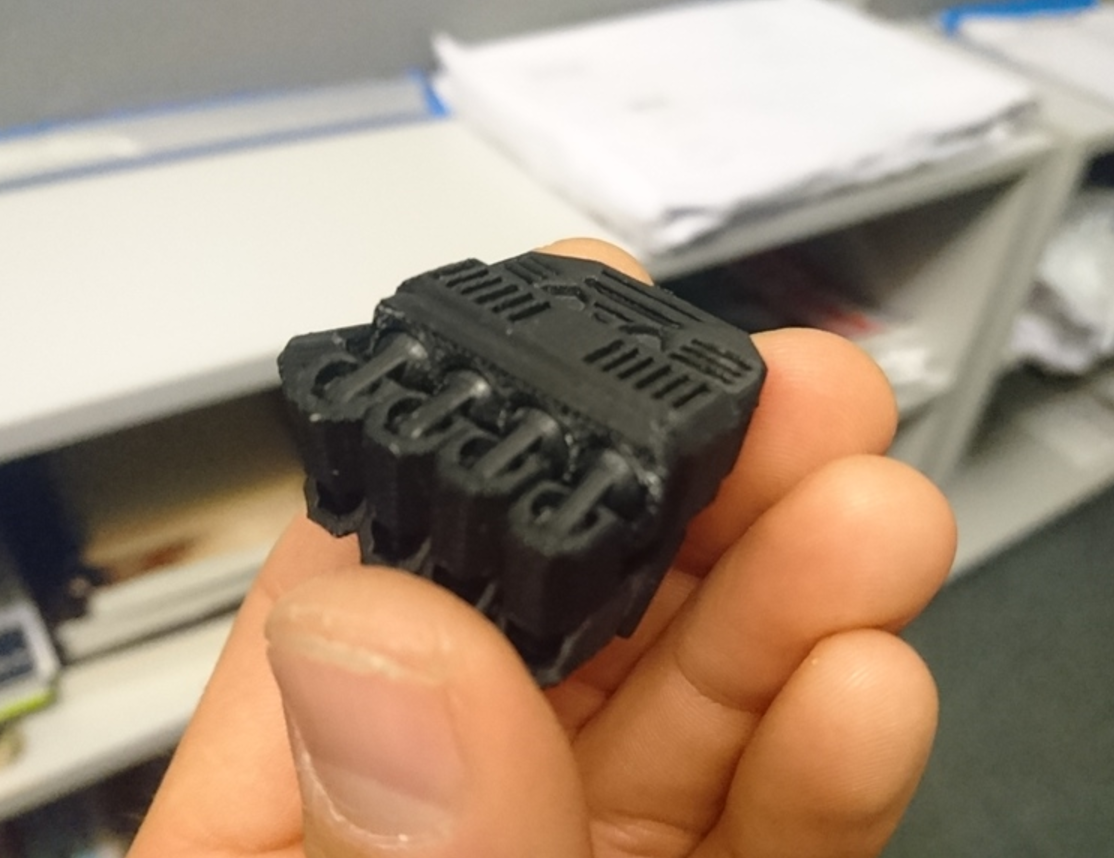

1 hand body L and R - You have 3 versions available. The ones with FULL BALLJOINT in name have full articulation of the fingers and in order to assemble them You need FULL_BALLJOINT_58mm_ball_hinge printed 8 times. for the other hands you need a same amount of hinged joints (v2_finger-hand_hinge or v2_finger-hand_hinge_long)
9 middlefinfer sections per hand (v2_middlefinger_41_ball)
3 short fingertips (v2_fingerv3_short or fingerv3_cut_10mm_v2)
2 long fingertips (v2_fingerv3_long or fingerv3_cut_12mm_v2)
1 wrist ball - You have 3 versions differing in diameter and peg length
1 thumb joint (v2_thumb_6mm_ball_hinge)
4 hand hinge joints 5,8mm (FULL_BALLJOINT_58mm_ball_hinge)
and thats it!
enjoy!

Hi ! I don't get what I should print, as there are more files that the parts you mention. For example: v2_hand_detail_v6_left and v2_hand_left. I don't own a 3D printer and I want to have the parts printed, but I don't know what to print. Thanks !
