Toy plane - McDonnell Douglas F-4B

?
Creation's quality: 4.8/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.2k views
  • 11 likes
  • 28 downloads

3D model description

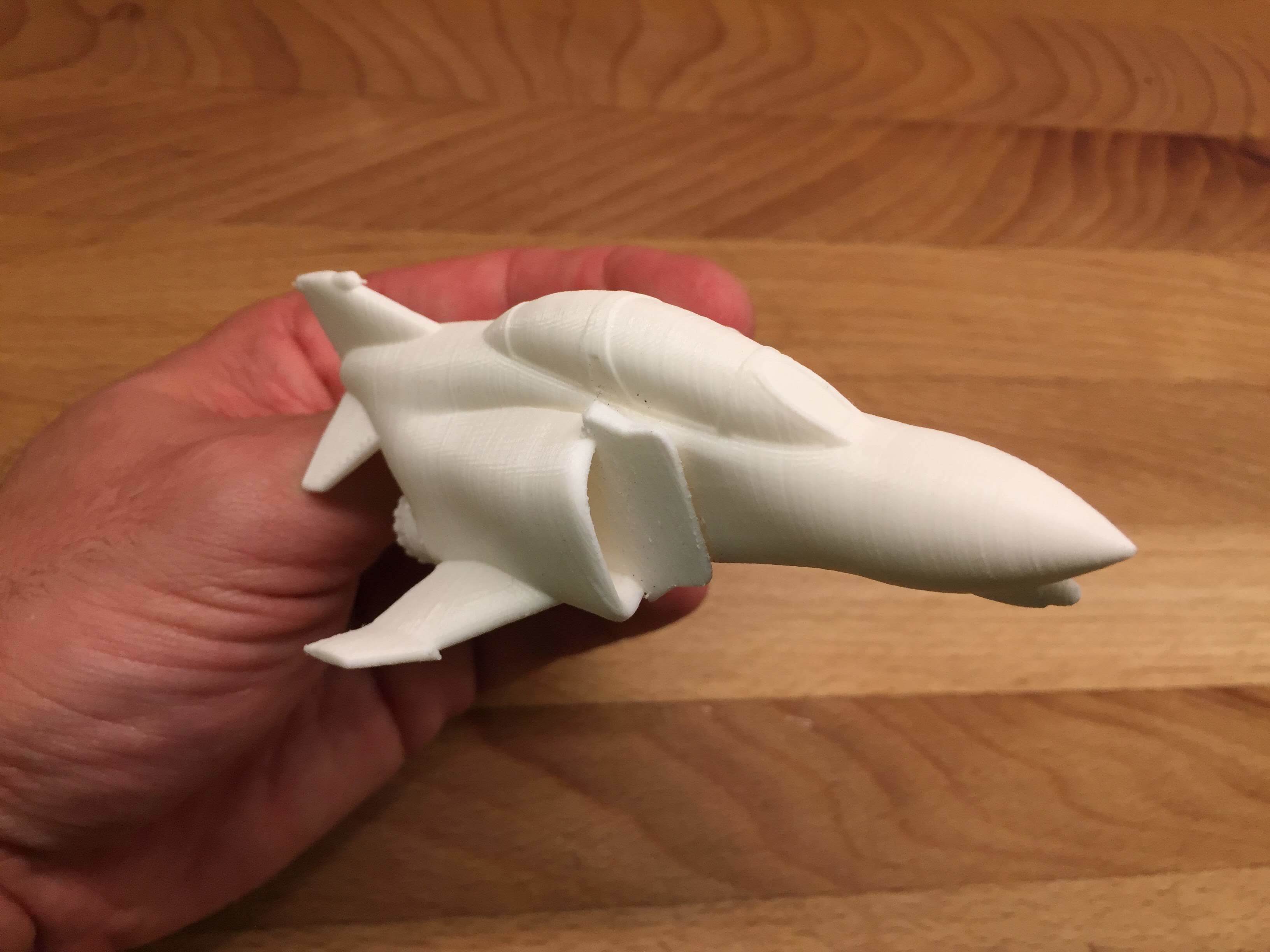

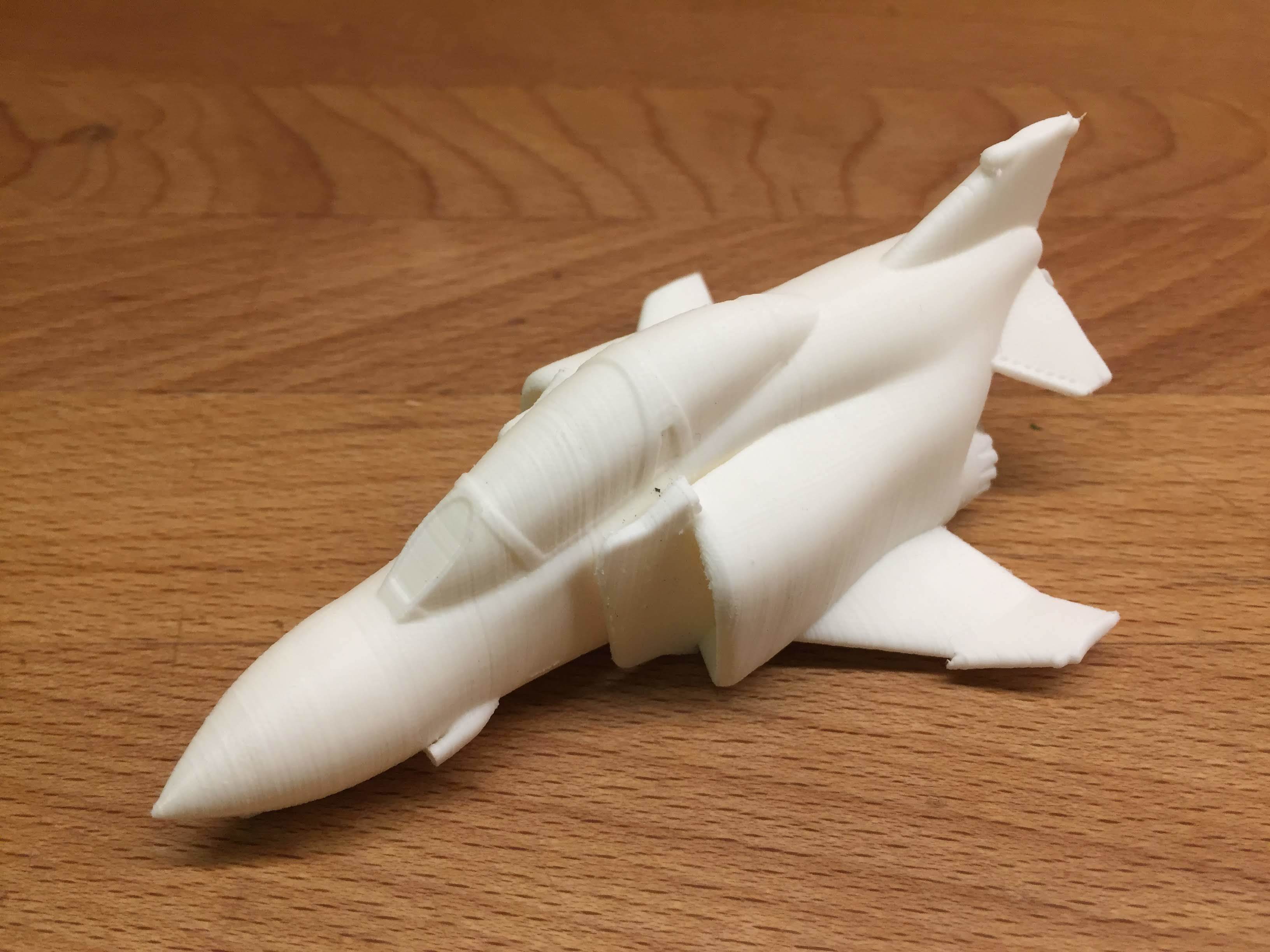

A toy airplane, toon version of the mighty F-4B, a naval version of the Phantom II, widely used by the USN and US Marines.

Edit 17-Mar-2020: Air scoop missing from the nose. Fixed.

3D printing settings

Slicing in CURA:
-I used white Velleman PLA at 200ºC
- Always Enable "Union Overlapping Volumes" in "Mesh Fixes" Panel.
- Infill: 30%
- Supports: yes, everywhere.
- Layer height: 0.1mm
- Bed adhesion: 8mm brim

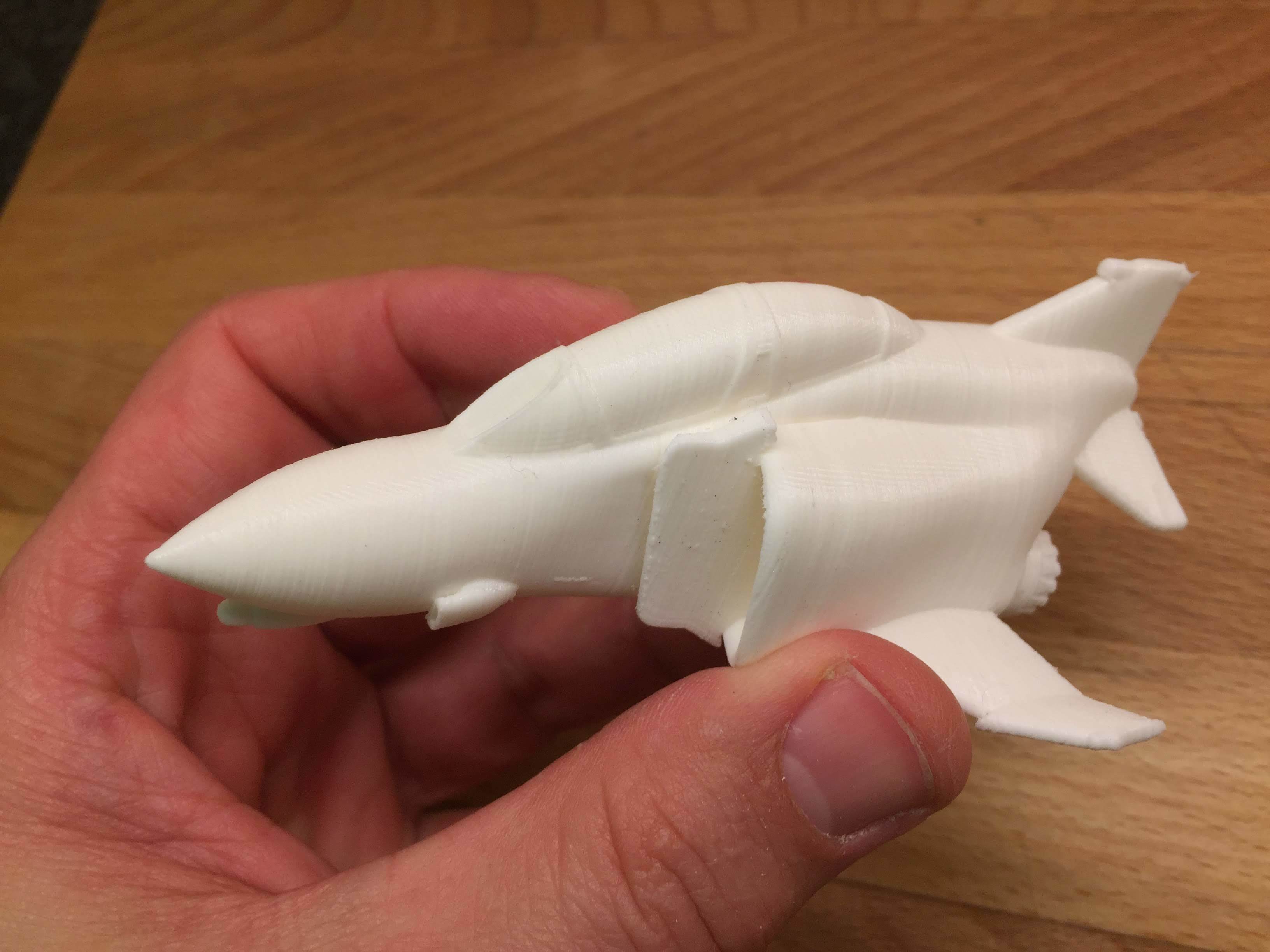

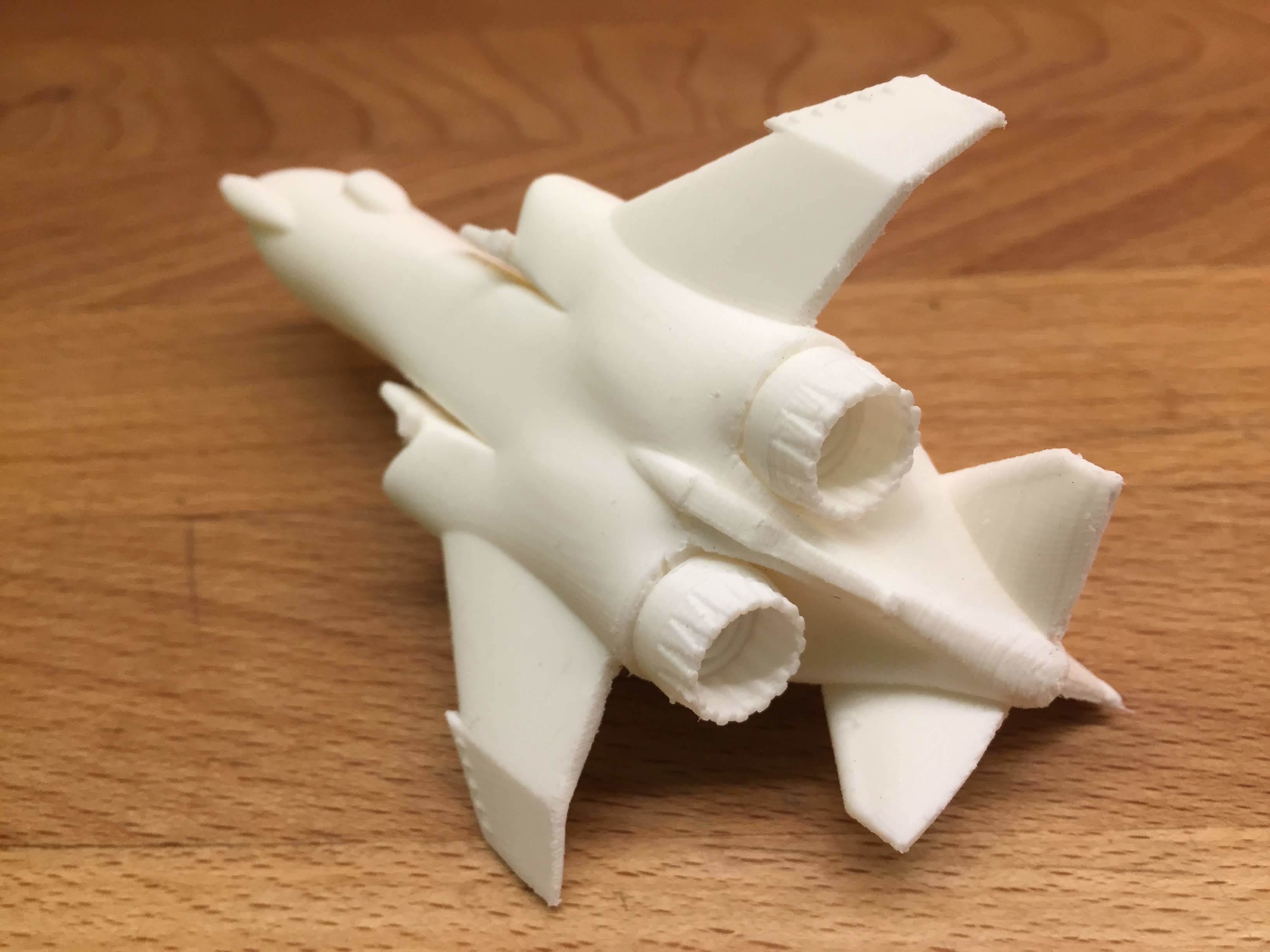

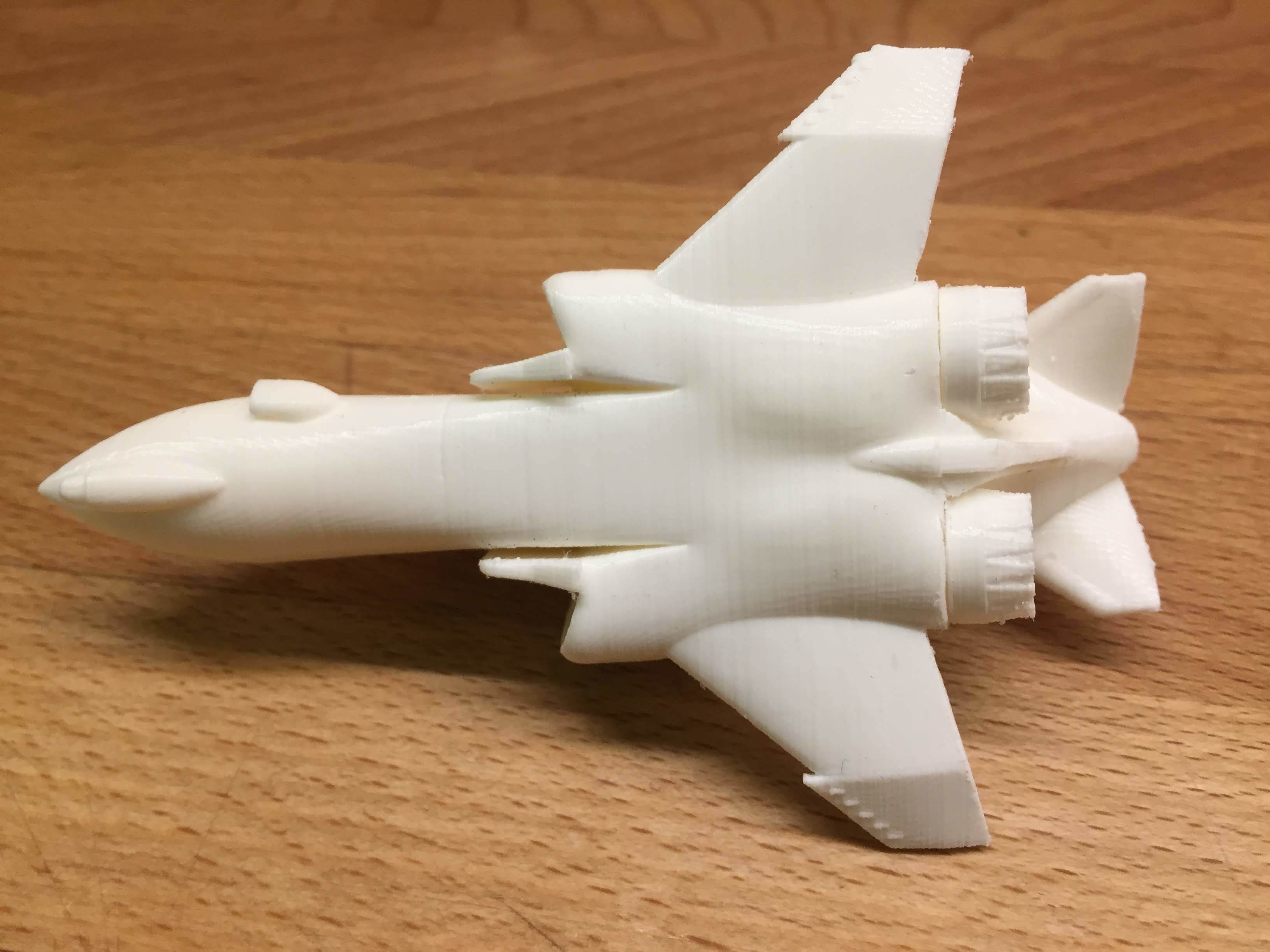

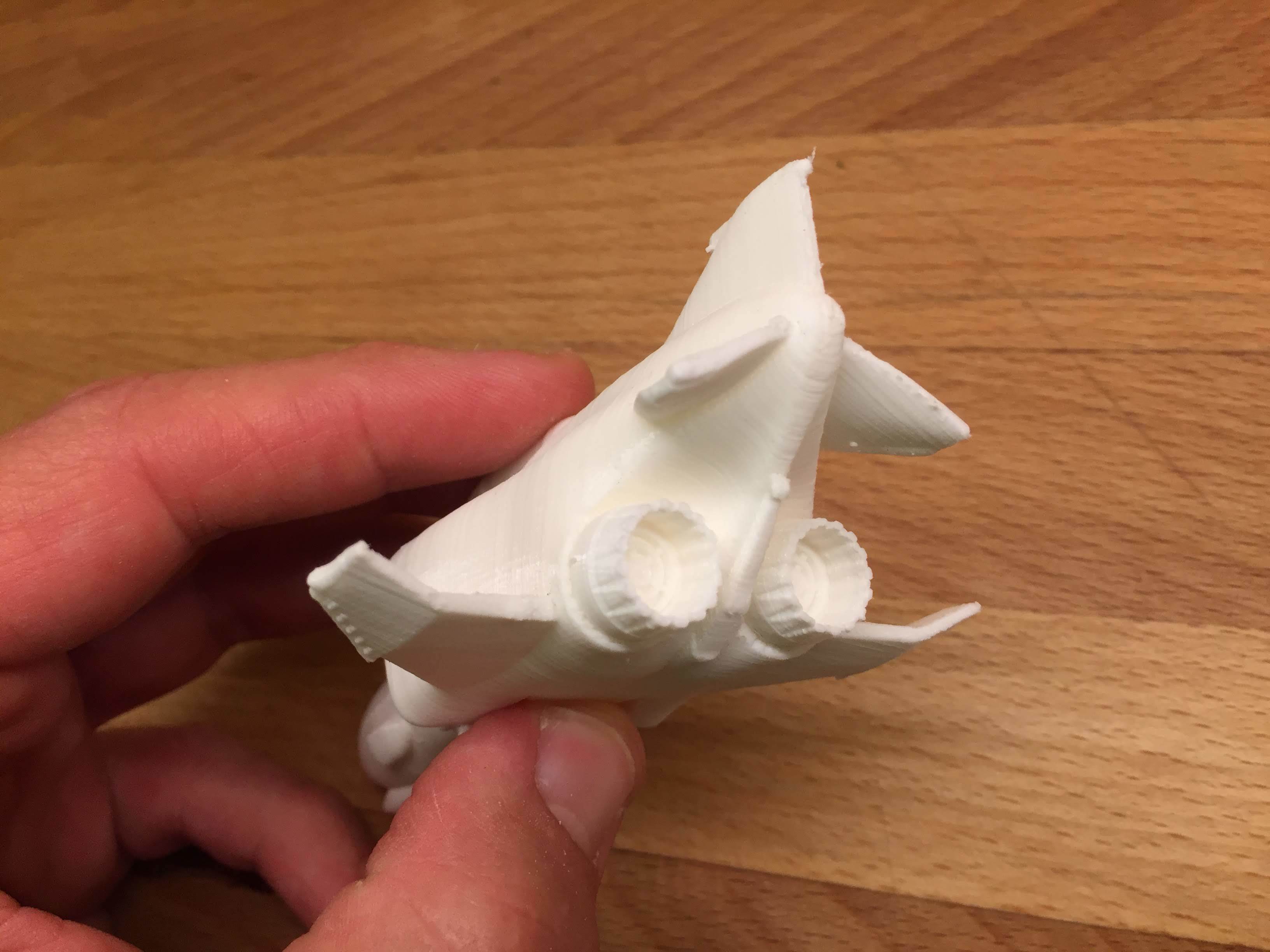

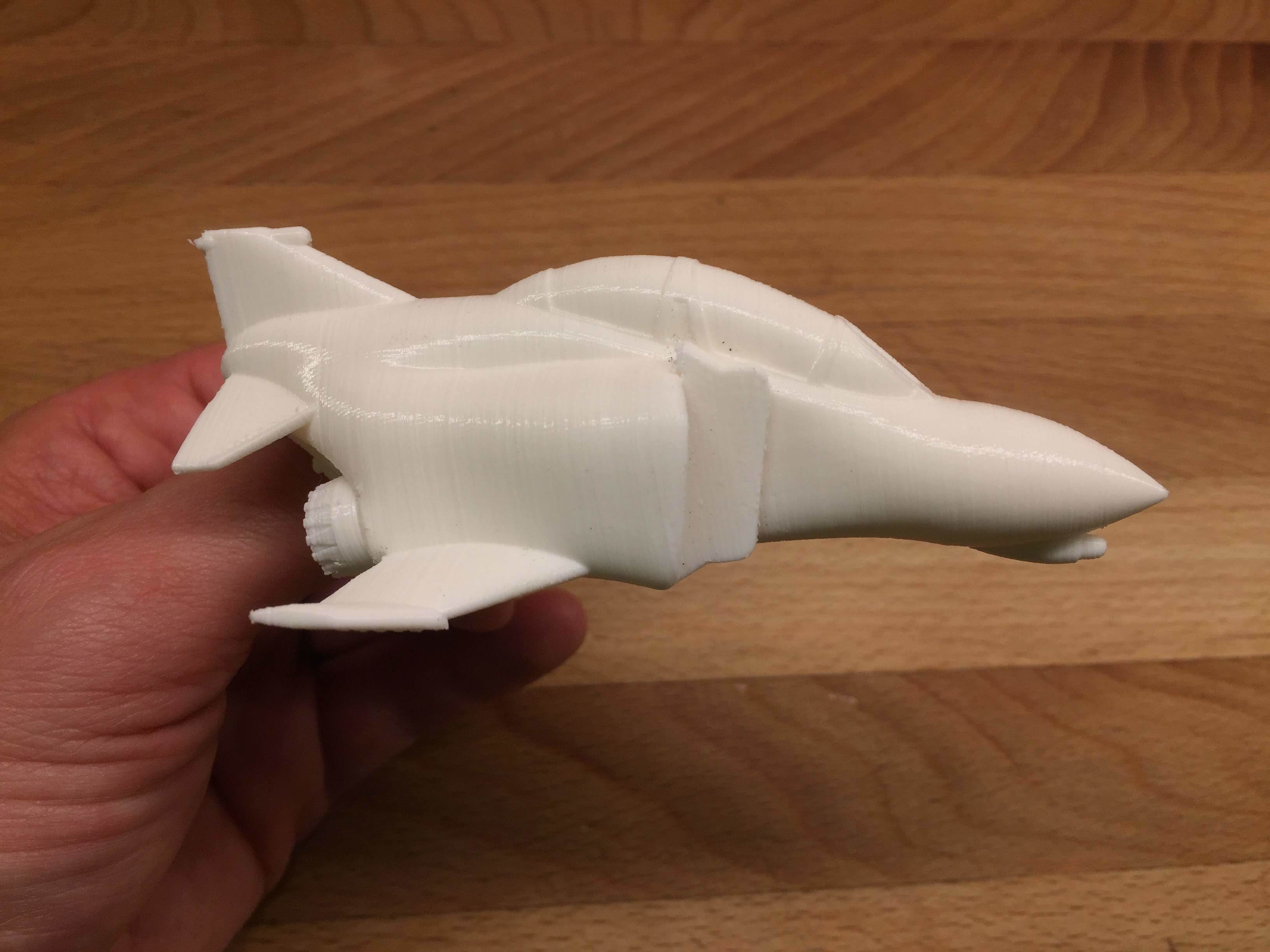

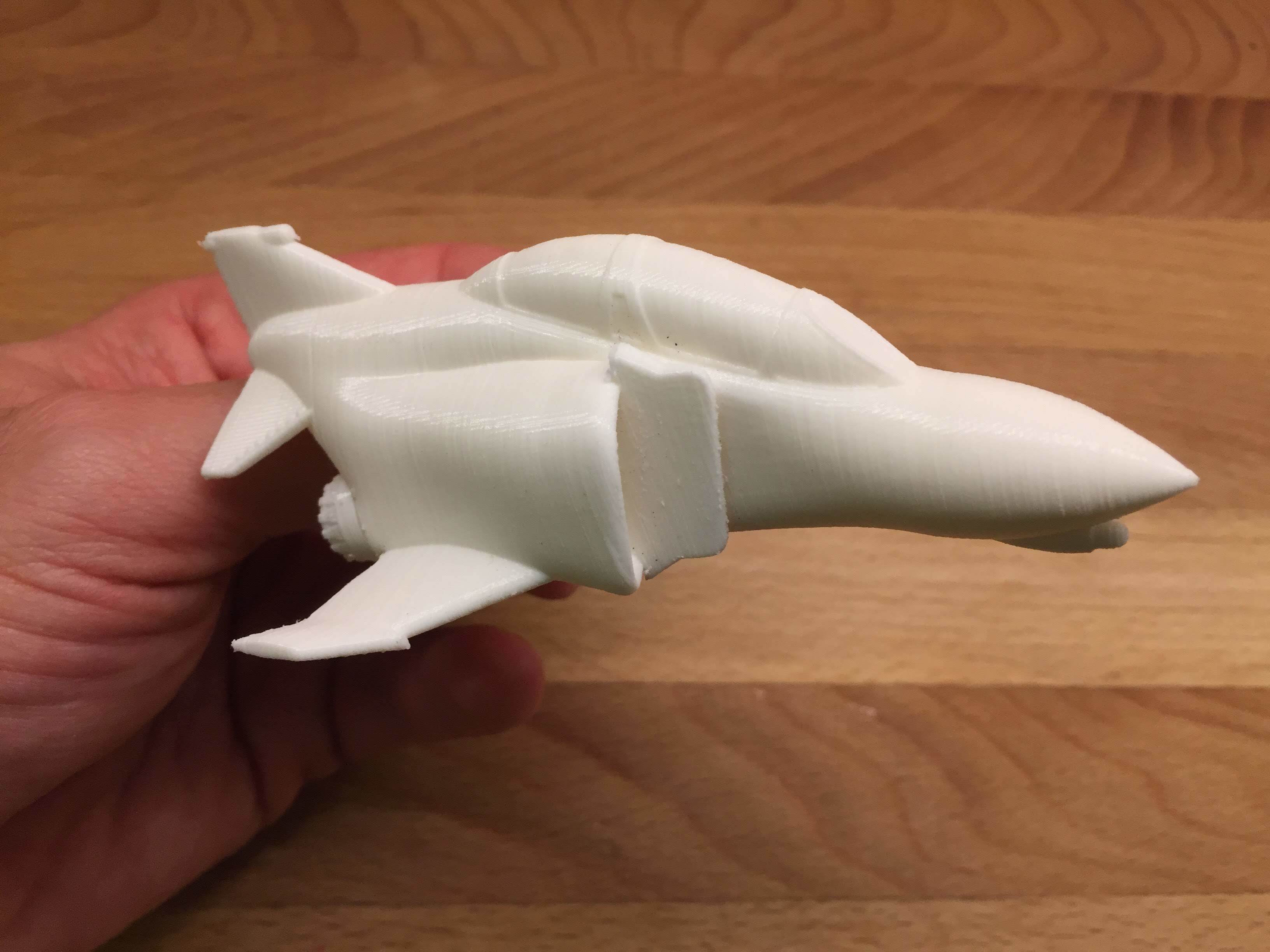

The model is 105mm long (4.13 inches), with these settings and a print and travel speed of 40mm/sec, took about 7hrs to print. The nozzles are separate parts, glue in place after removing supports.
Be extra careful removing supports from wingtips and tails, these areas are usually fragile due to the sweepback angle.

  • 3D file format: STL
  • 3D model size: X 72.7 × Y 50.9 × Z 108 mm
  • Last update: 2020/04/09 at 20:45
  • Publication date: 2020/03/08 at 21:04

Tags

Creator

Designs 28
Downloads 1.2k
Followers 85

Designer from Lisbon, Portugal.

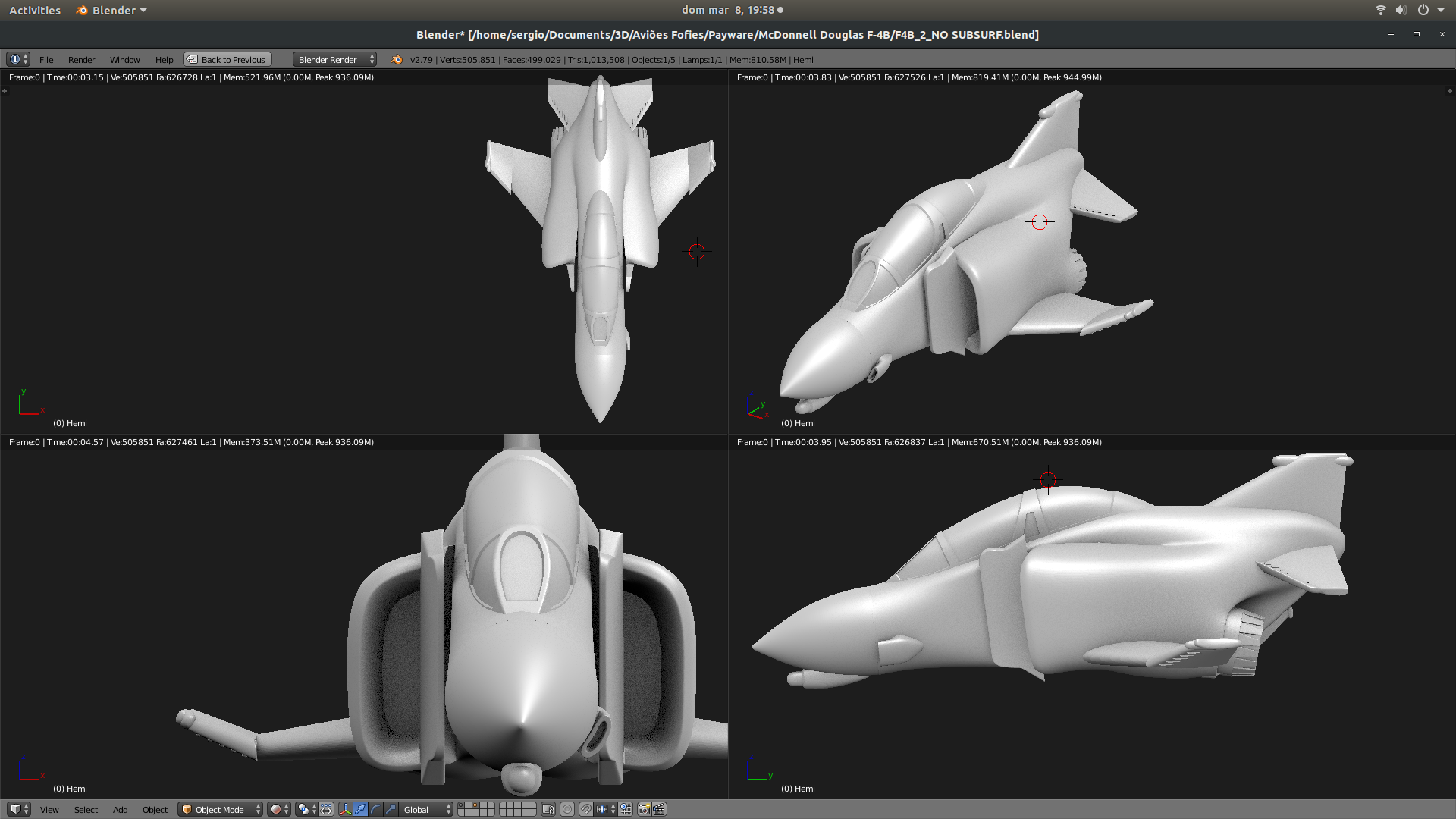

Loves aviation and using Blender.

Copyright

©


Makes created by the community

Best sellers of the category Game


Add a comment

2 comments

Oops, you're right. Sorry about that.
Will fix it right away.

Could you fix the nose scoop so that it is on both the left and right of the nose cone? Thanks.
