Toy plane - Handley Page Victor B.2

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.8k views
  • 6 likes
  • 23 downloads

3D model description

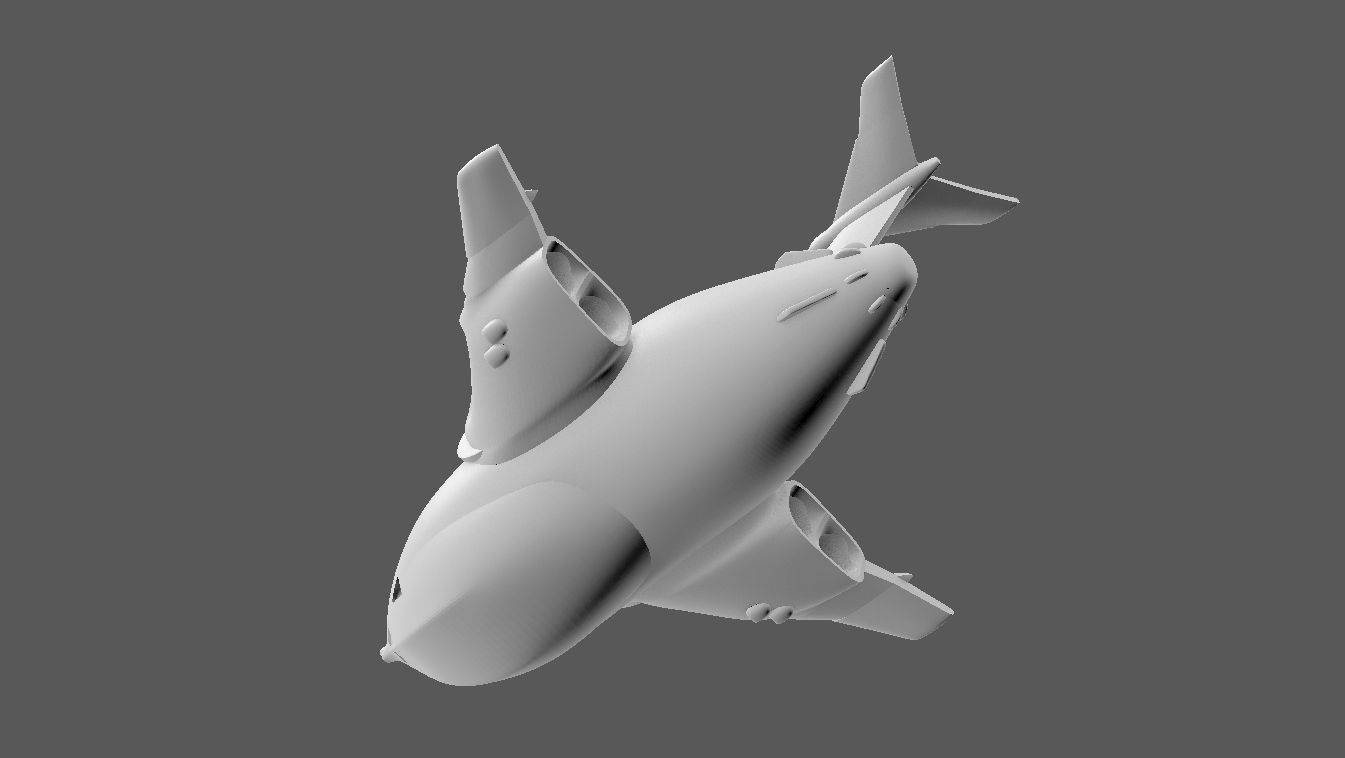

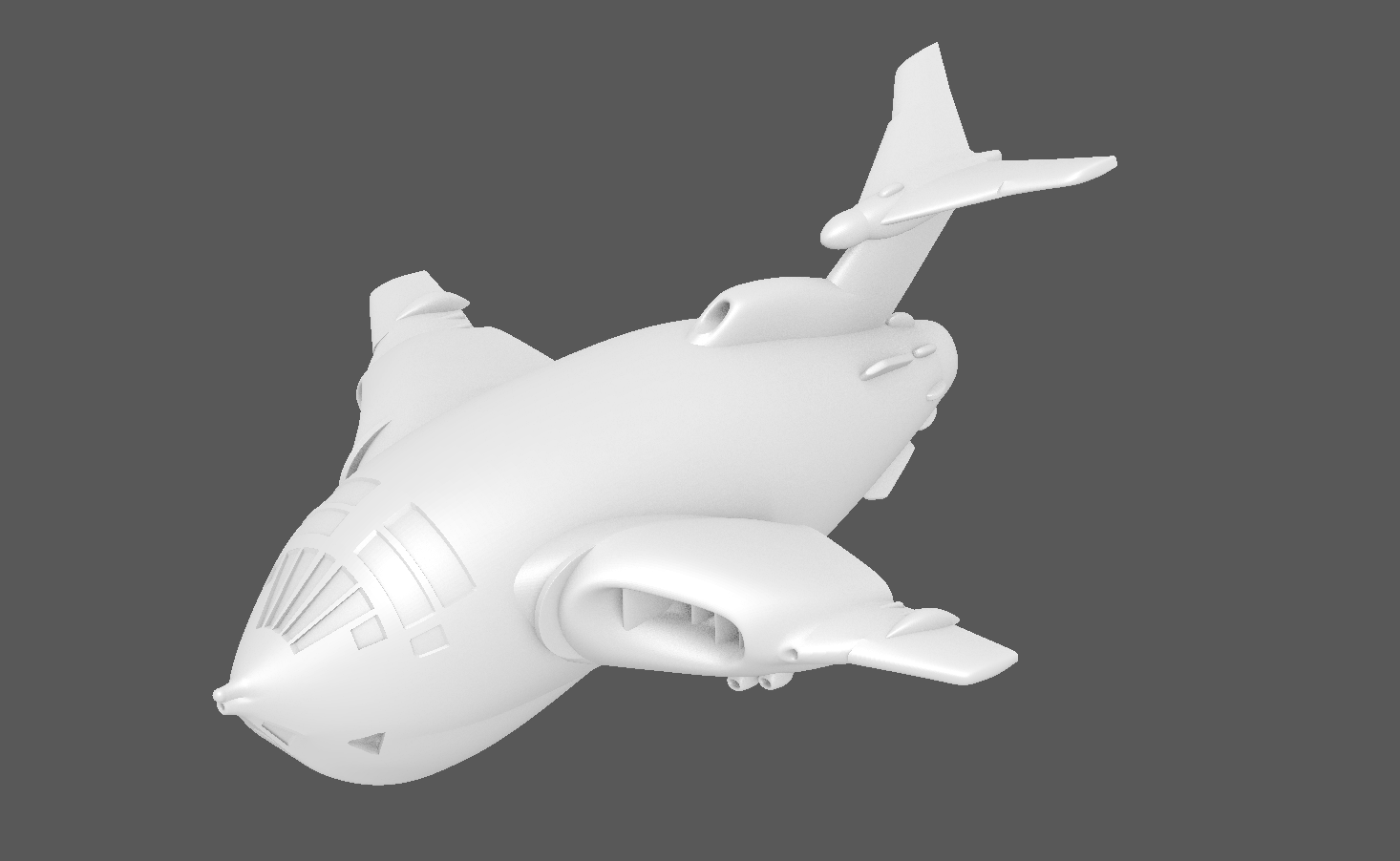

A toon version of the magnificent HP Victor, a hallmark of an era, as a cold war nuclear bomber.

Get 2 versions:
- Victor B.2

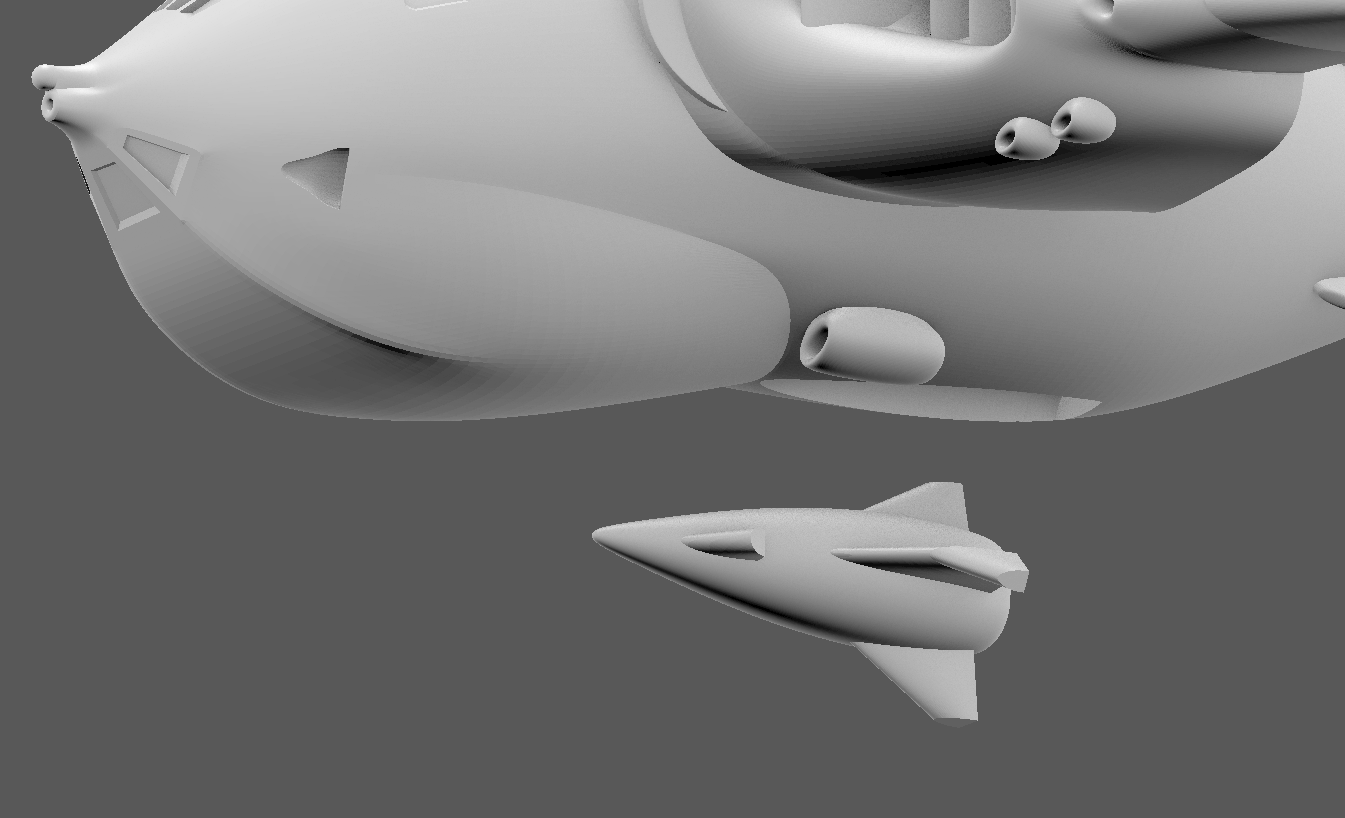

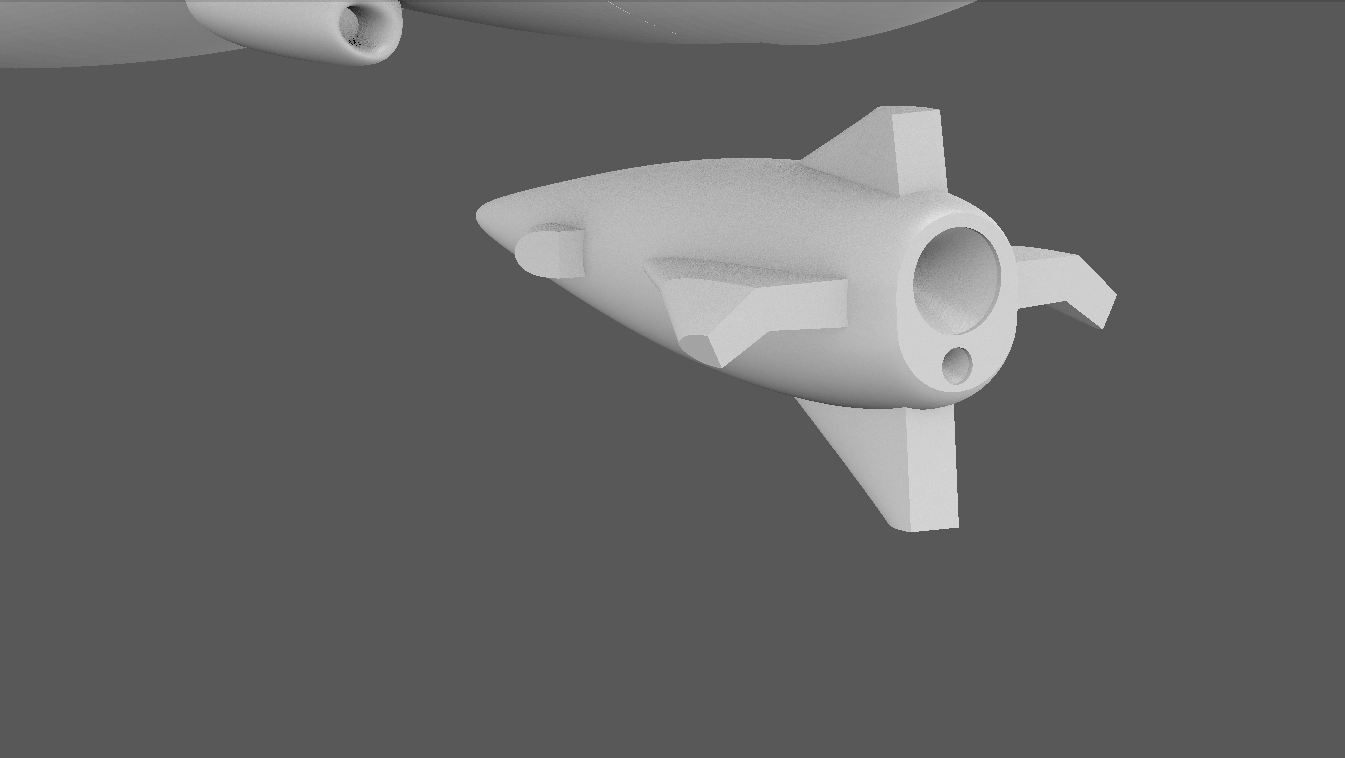

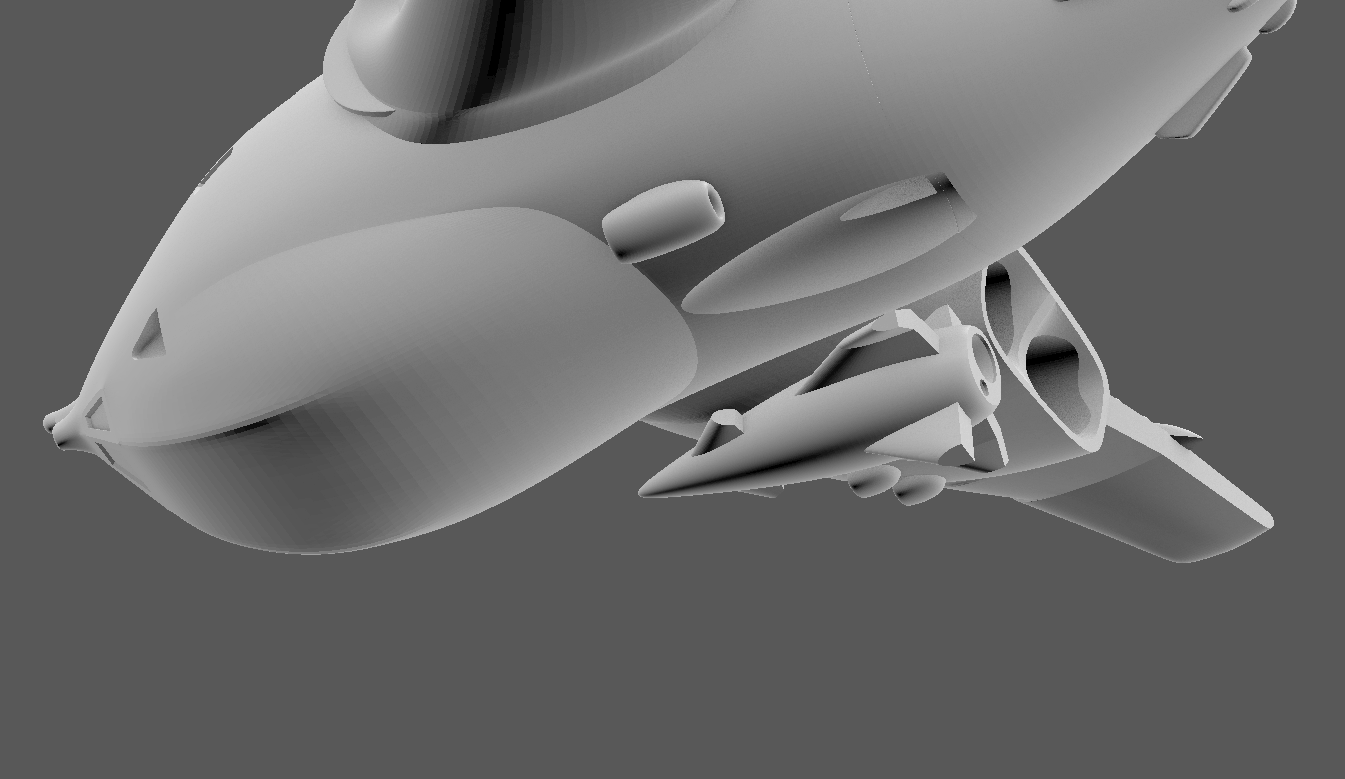

- Victor B.2 with recessed Blue Steel nuclear missile

I regularly update my collection, keep in touch through the FB Groups "Hasegawa Eggplanes", "Chibi Masters", and other related to cute weapons of mass destruction! :D

3D printing settings

Important settings for slicing in CURA:
- Always Enable "Union Overlapping Volumes" in "Mesh Fixes" Panel.
- Infill: 30% or more
- Supports: yes, only thouching build plate (otherwise you may get supports inside the intakes, impossible to remove).
- Layer height: 0.1mm
- Bed adhesion: 8mm brim
- The STL is supplied in my preferred printing position: nose up, nozzles flat on the plate.

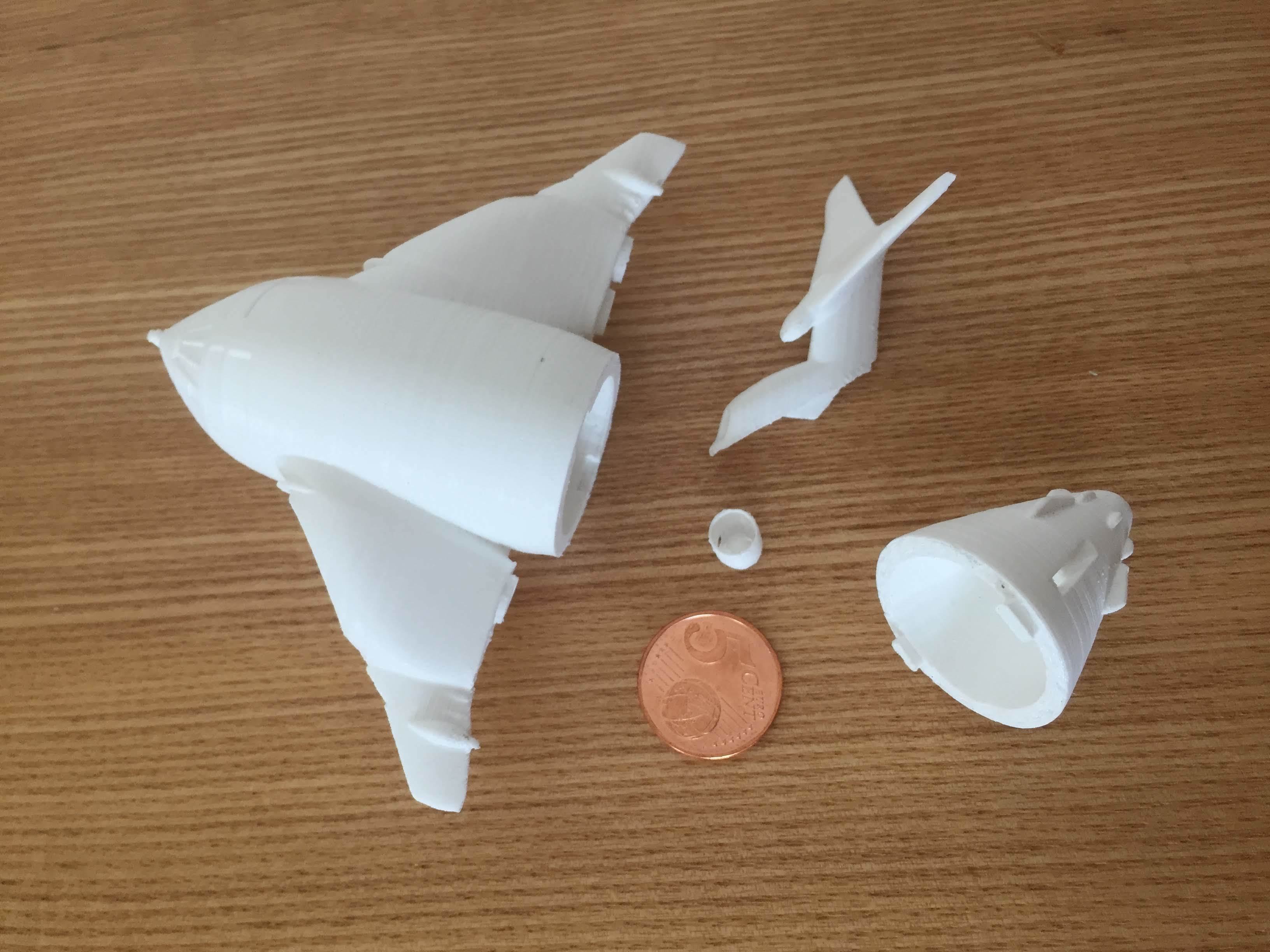

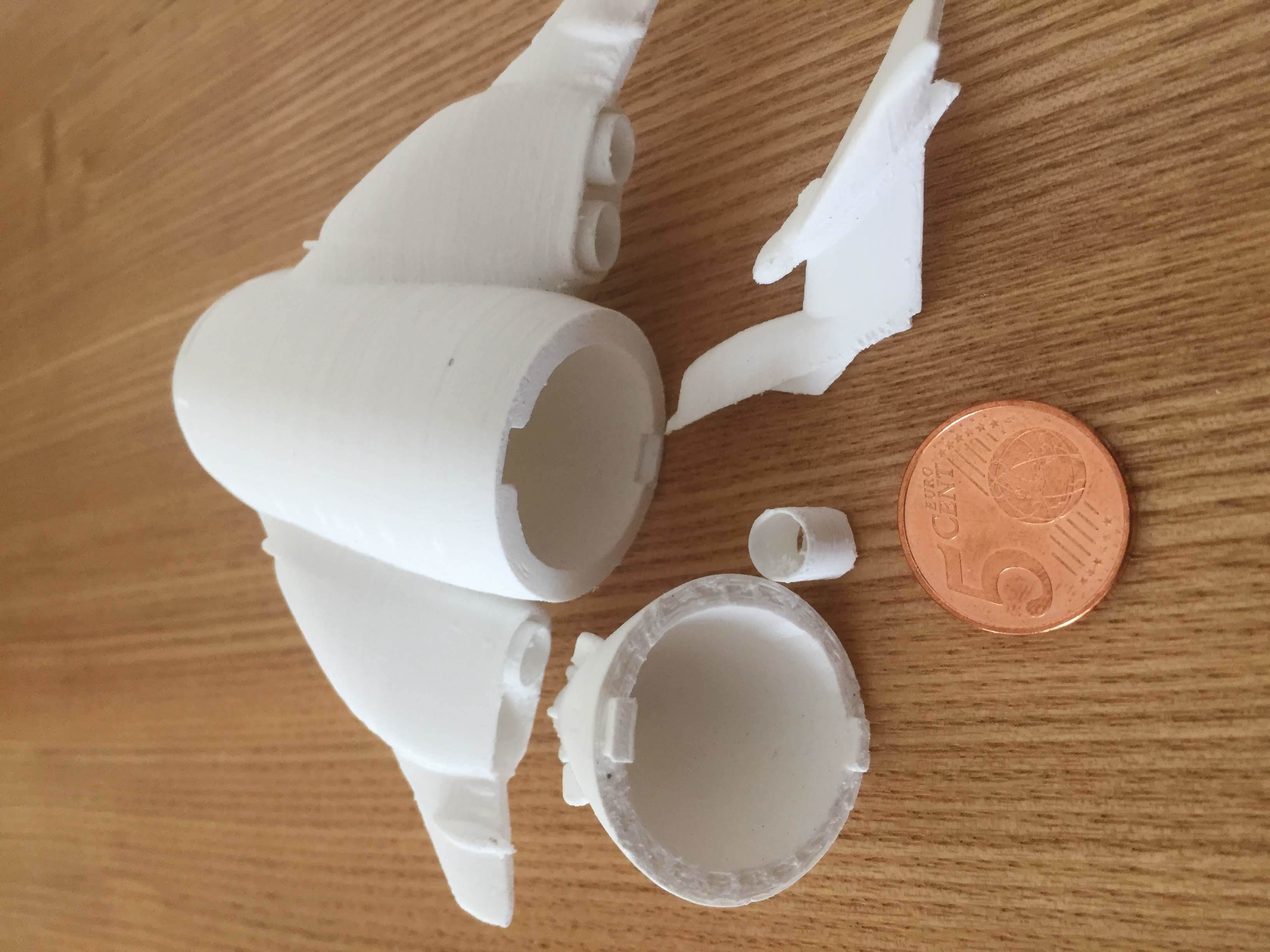

With these settings and a print and travel speed of 40mm/sec, took about 8hrs to print. Several separate, parts, glue in place after removing supports.
Be extra careful removing supports from the engine bays, wingtips and tails, these areas are usually fragile.

Prints well in an FDM printer, as the trailing edges and thin areas are moddelled with a safe thickness.

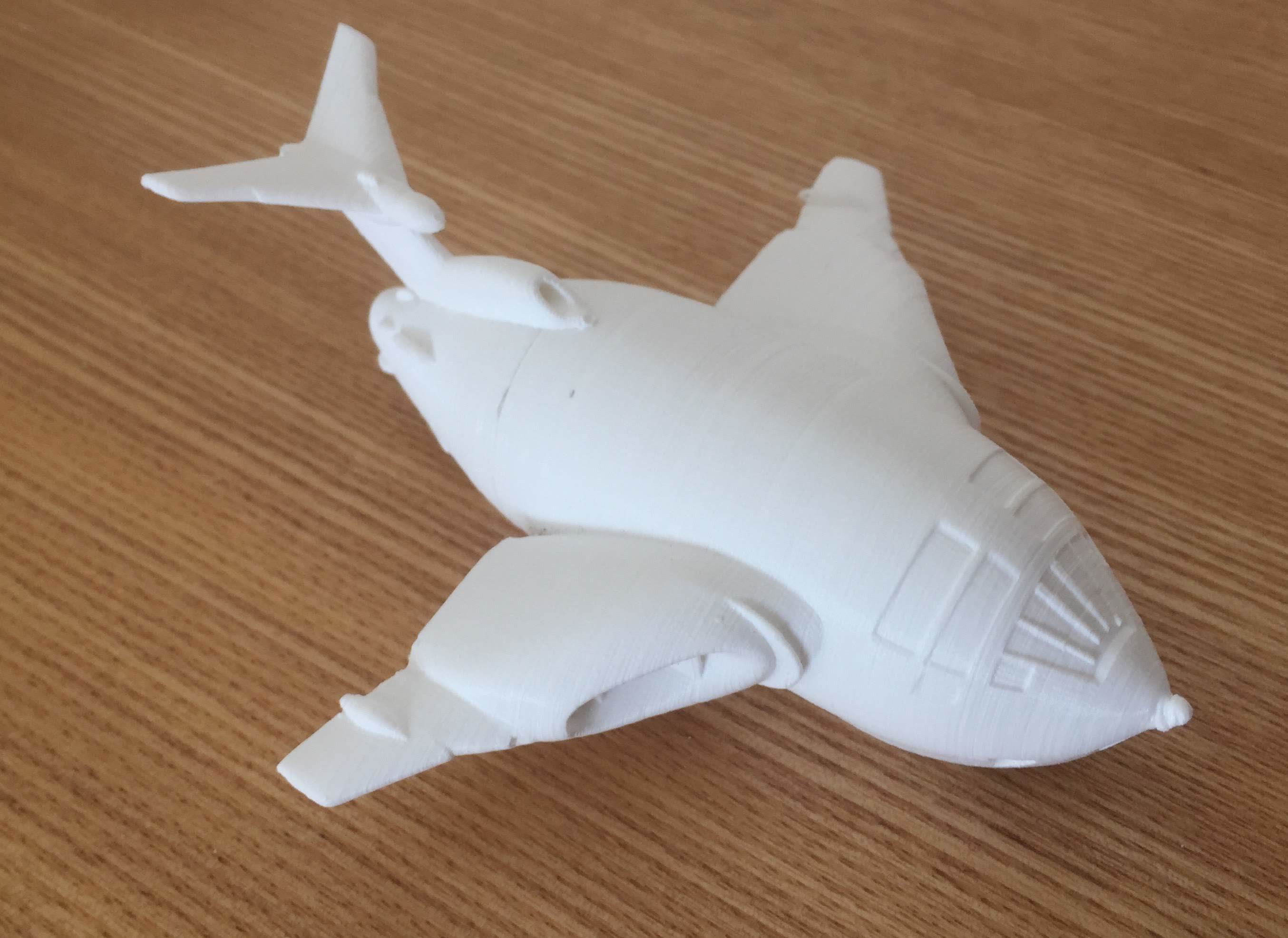

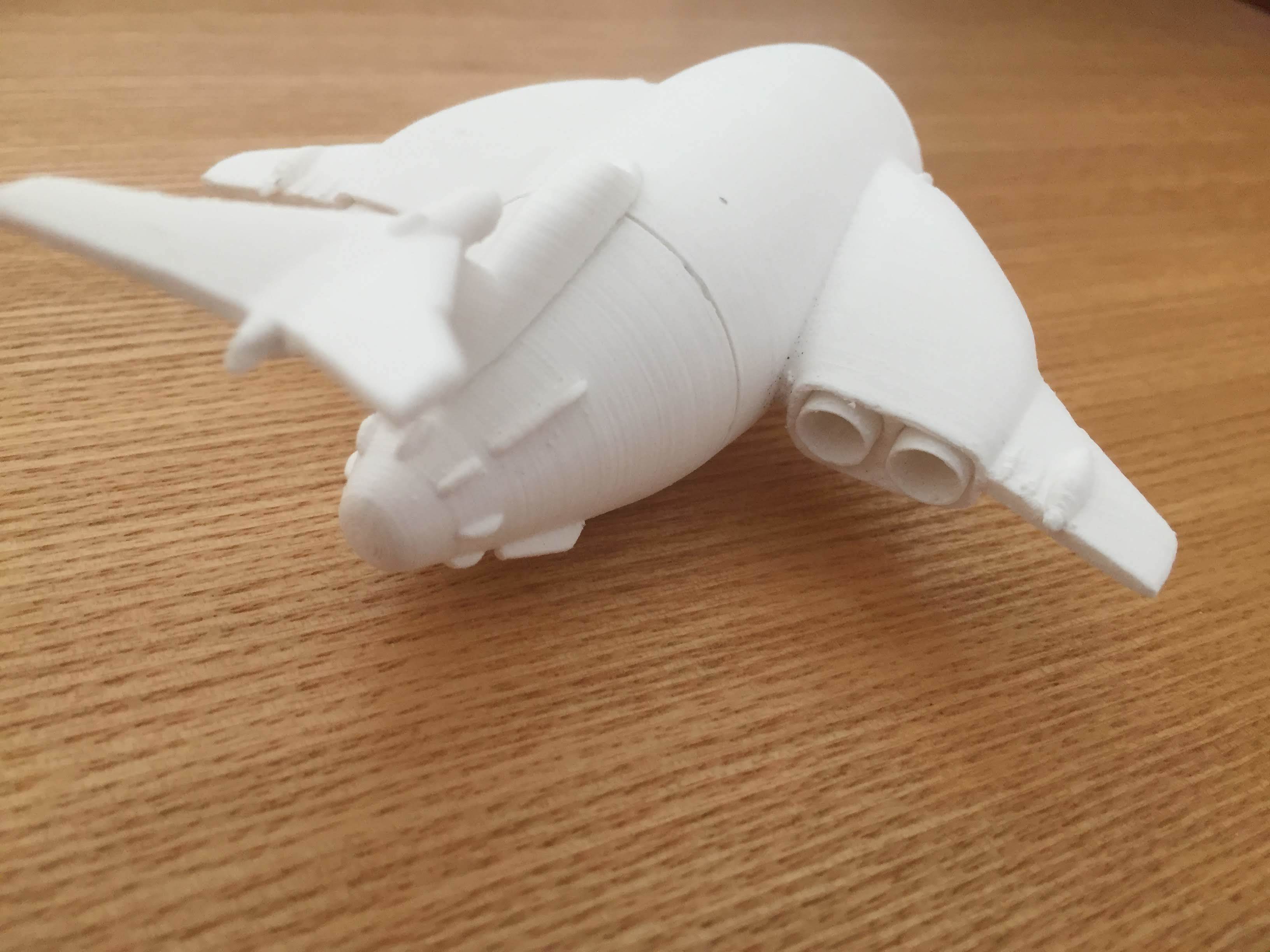

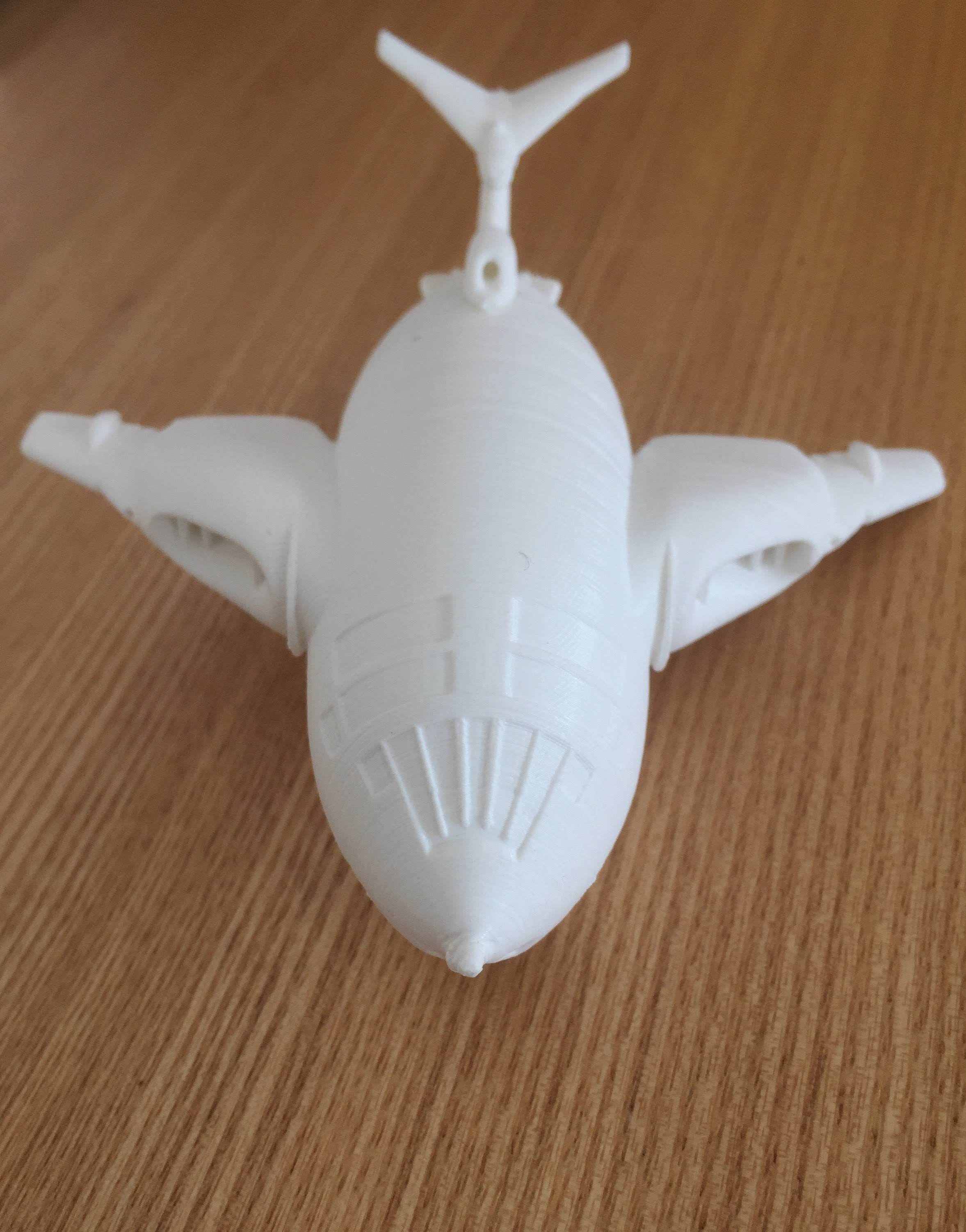

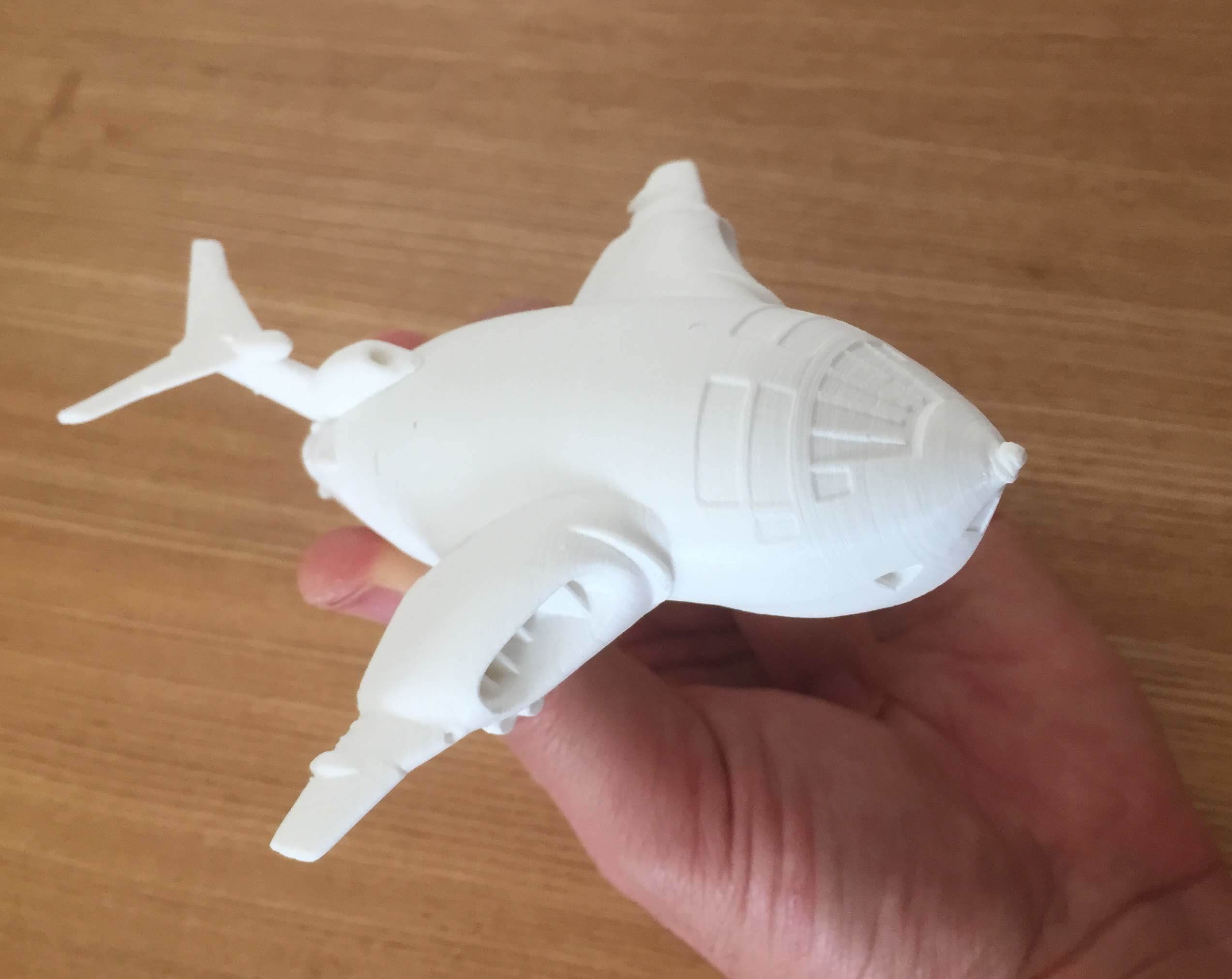

Model as shown in pics is the first prototype, 115mm long after assembly.

The 4-Nozzle file is a request from a user. No need to print this file unless you're having trouble with printing the nozzles and wish to try these separately.

  • 3D file format: STL
  • Last update: 2020/06/24 at 22:58
  • Publication date: 2020/04/11 at 14:56

Tags

Creator

Designs 28
Downloads 1.2k
Followers 85

Designer from Lisbon, Portugal.
Loves aviation and using Blender.

Copyright

©


Best sellers of the category Game


Add a comment

2 comments

Cheers Chris,
Try the new "HP_Victor 4 Nozzle.stl".

Hi Sergio. I'm using an anycubic photon but the engine's on the Victor keep printing badly. Could you do a file of just them so I don't have to keep printing the whole model each time please. If it's possible that is. Thanks.

Chris Simmons. I'm on Eggplane group 😉👍
