Toy plane - Grumman F-14A Tomcat

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.4k views
  • 11 likes
  • 33 downloads

3D model description

A toy airplane, toon version of that sexy jet that filled the big screen and our imaginations (no, not Kelly) in "Top Gun", the F-14A.

3D printing settings

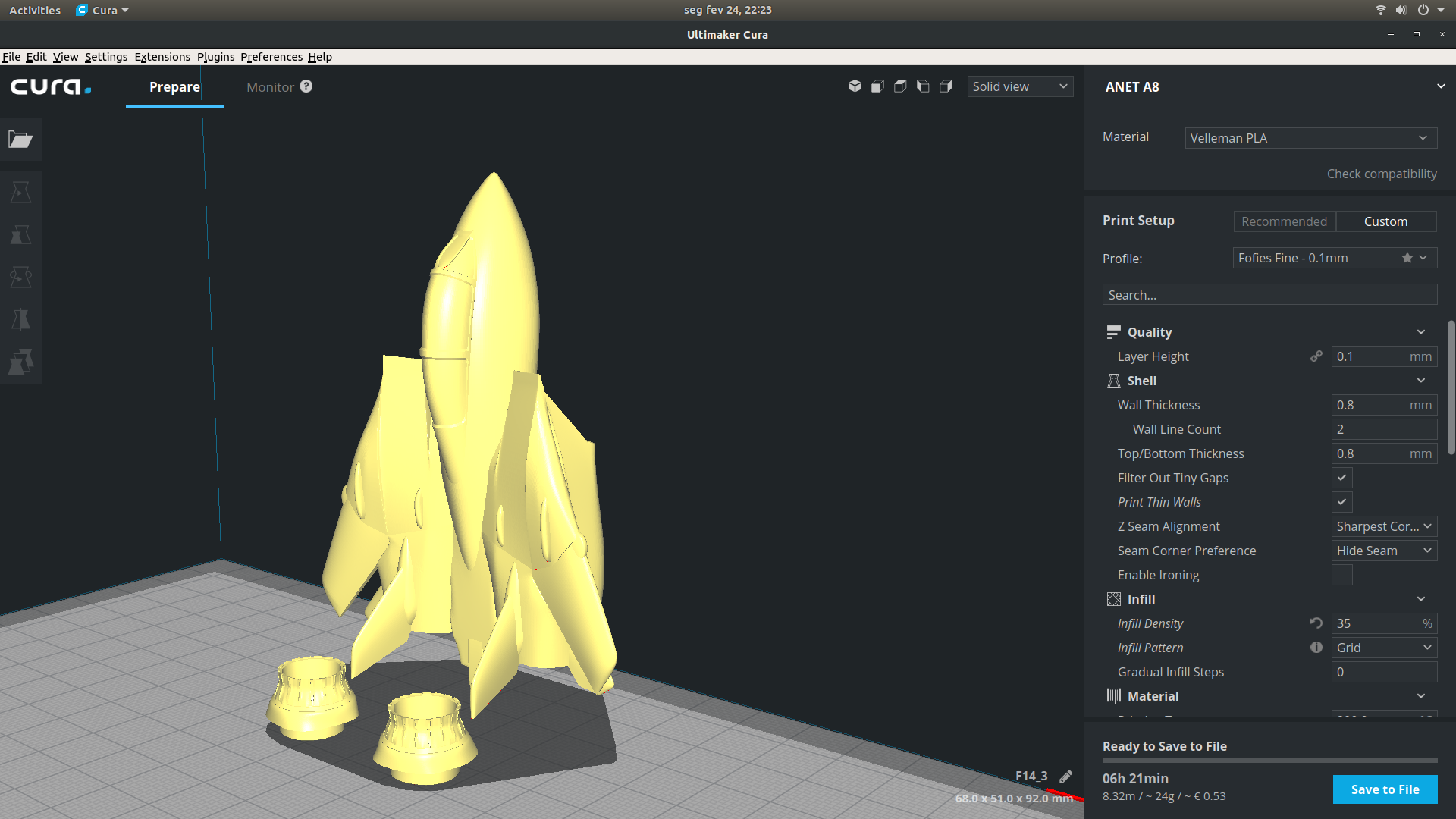

Slicing in CURA:

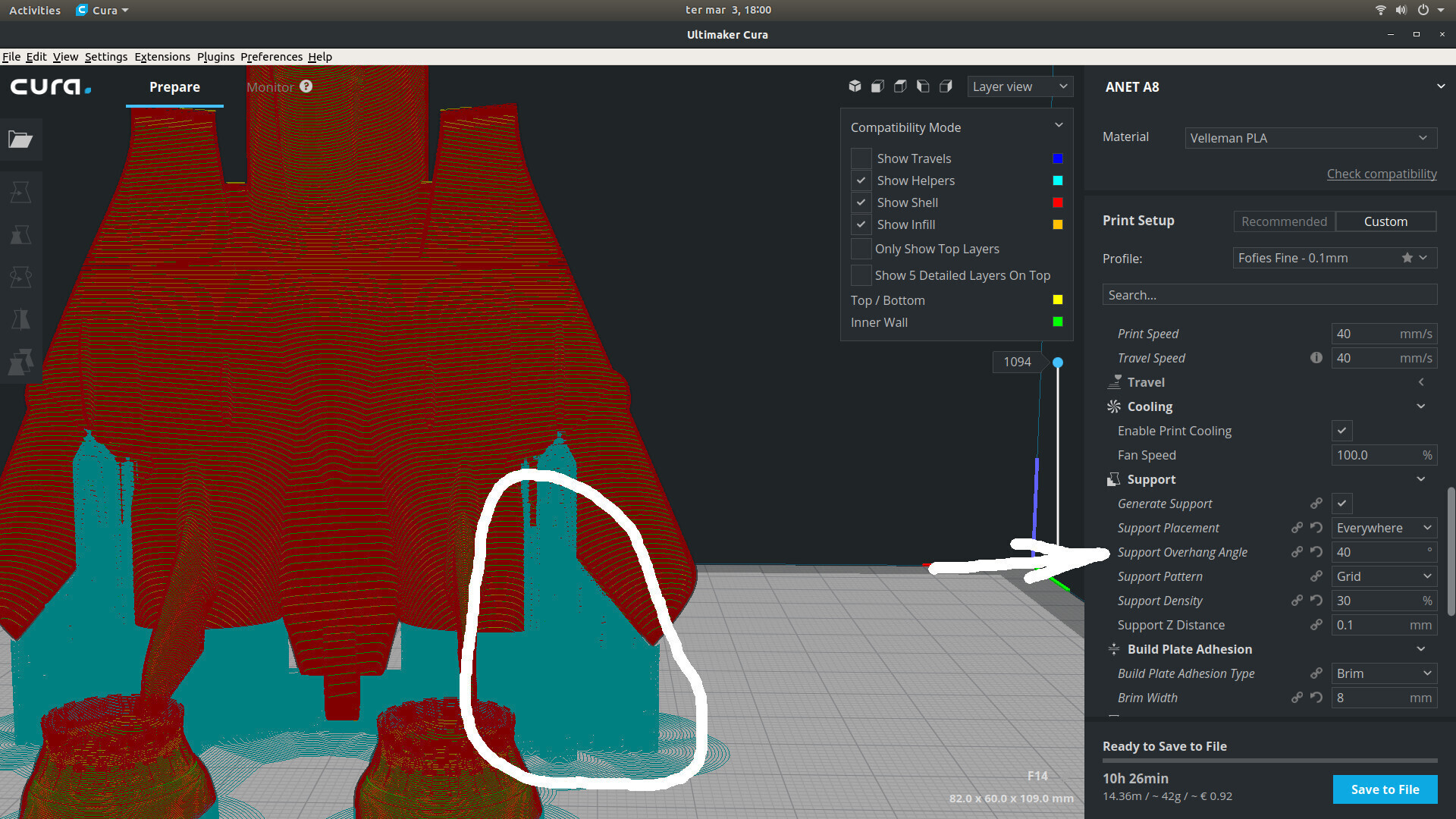

- Reduce the "Support Overhang Angle" to a value around 40º, this makes CURA place support along the entire wing trailing edge.
- Always Enable "Union Overlapping Volumes" in "Mesh Fixes" Panel.
- Infill: 30%
- Supports: yes, everywhere.
- Layer height: 0.1mm
- Bed adhesion: 8mm brim

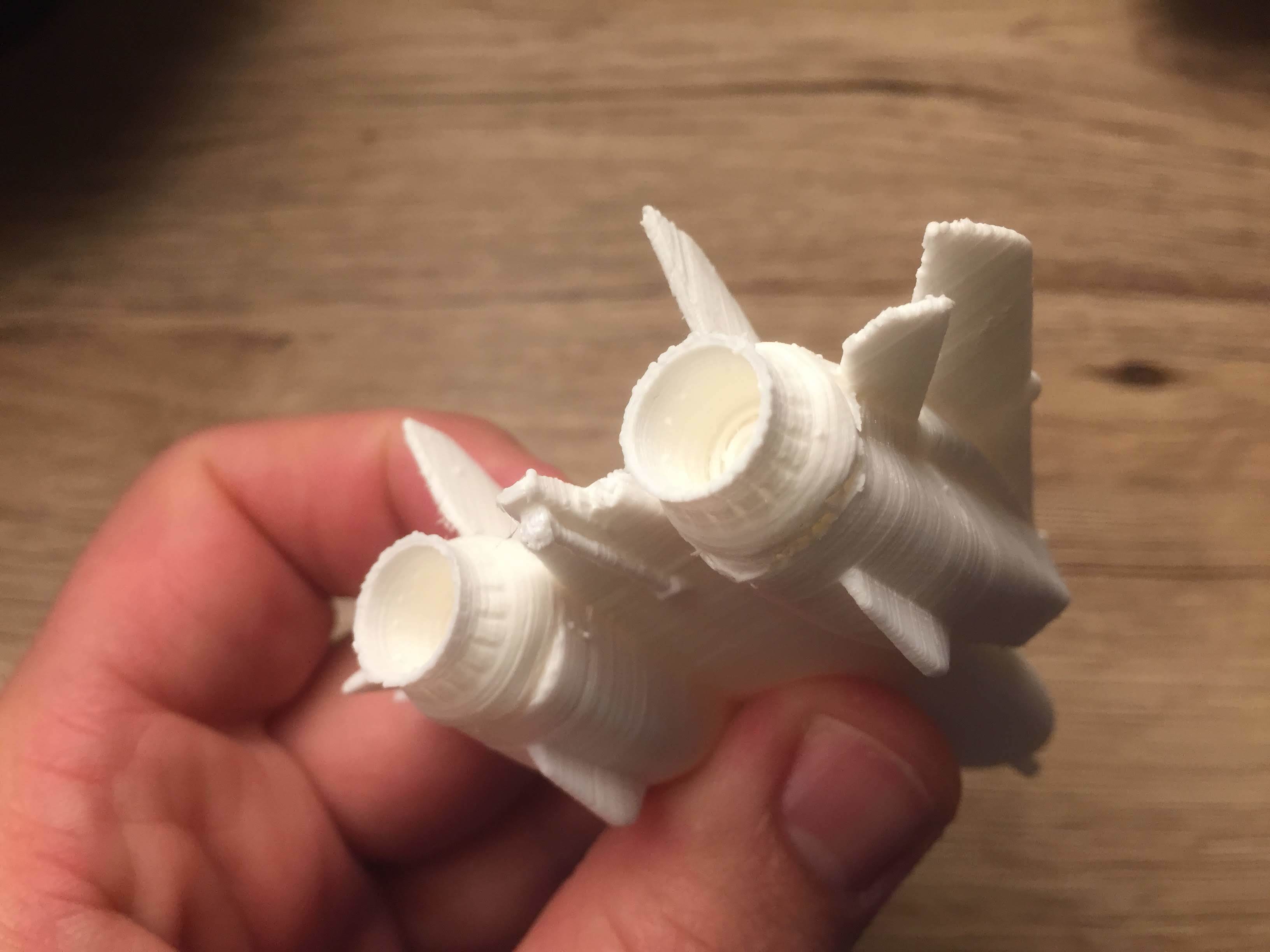

With these settings and a print and travel speed of 40mm/sec, took about 6hrs to print. The nozzles are separate parts, glue in place after removing supports.
Be extra careful removing supports from wingtips and tails, these areas are usually fragile due to the sweepback angle.

  • 3D file format: STL
  • 3D model size: X 8.2 × Y 6.02 × Z 11 mm
  • Last update: 2020/03/06 at 20:18
  • Publication date: 2020/03/05 at 11:13
