The "Revolver"... easy to print but challenging to solve!

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.3k views
  • 6 likes
  • 98 downloads

3D model description

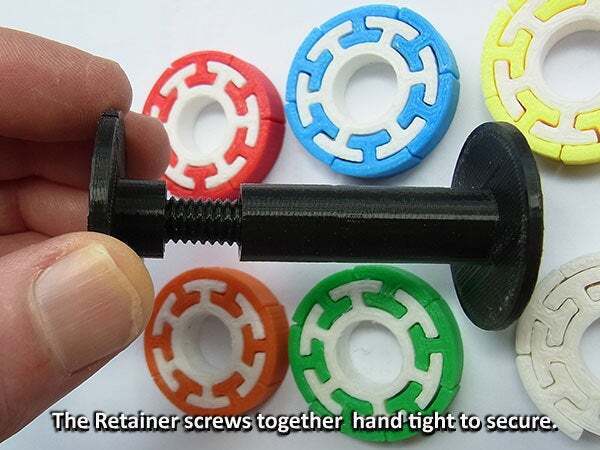

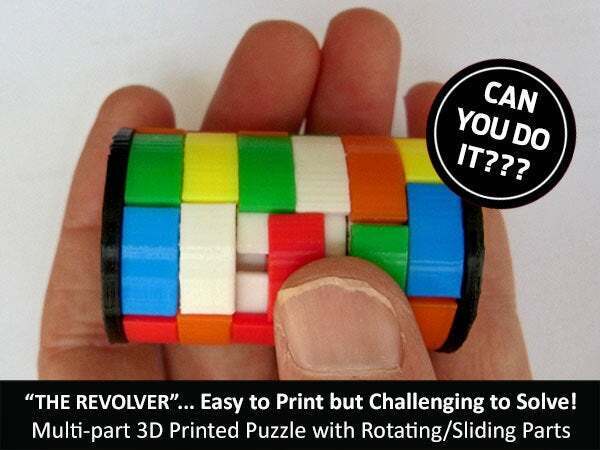

The "Revolver" is a 3D printed puzzle with 41 independent moving parts that revolve / slide around a two part Retainer. The prints are all easy and straight forward and the result is really impressive...

This is similar to a Rubik's cube in that the aim is to align / group matching colours but there are two puzzles in one with the Revolver as you can align rows or columns to be the same colours.

A single / dual; colour version is also available as a separate thing for people wanting this puzzle but without six filament colours available. This alternative has six indented shapes to align instead of colours. Files available at http://www.thingiverse.com/thing:1347886

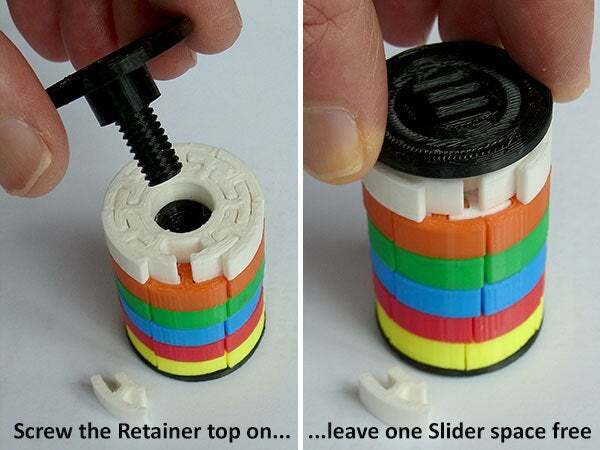

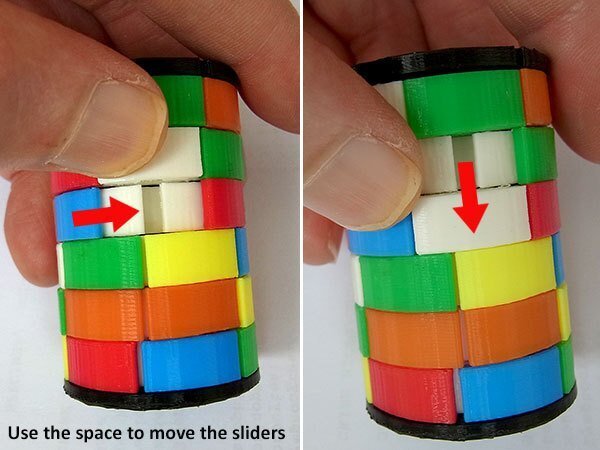

One space is left to allow for the Sliders to move one space at a time. This means you need to plan your moves as you move towards your goal... of course you can pull it apart if you get frustrated with it and realign it that way but if you're really up for the challenge glue the thread so it will never come apart!

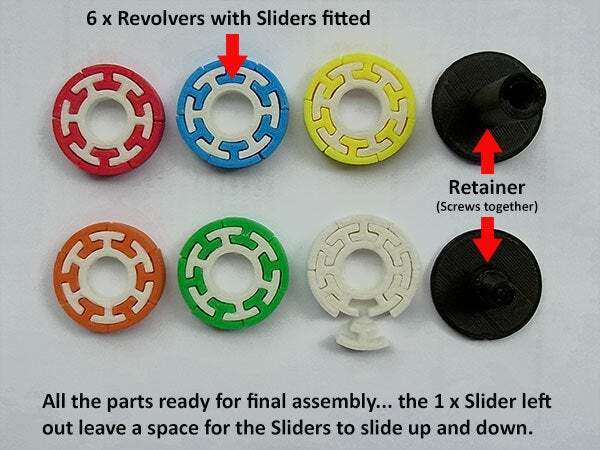

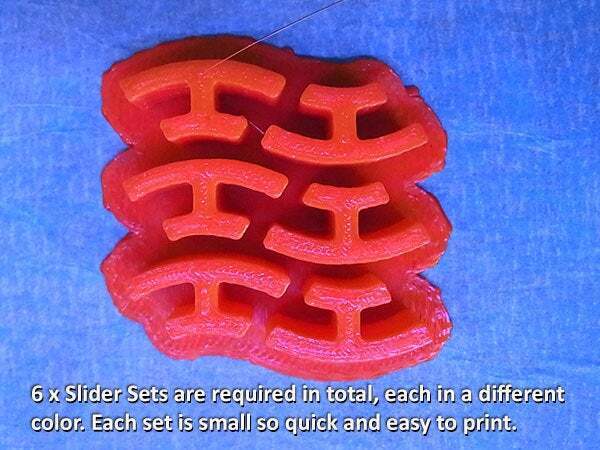

The parts are all easy prints and assemble is very straight forward. However, you will need at least 6 colours of filament. The images provided creates a great result. Black is used for the Retainer. All Revolvers are printed in White and colours used for the Sliders are White, Red, Yellow, Blue, Orange and Green.

As you need to leave one Slider out to make a space for movement make all the Revolvers the same colour as the Slider that you decide to leave out. The reason being, you will see the underlying Revolver colour in the empty space so the gap is hardly noticeable. The space effectively becomes a block of the Revolvers colour (Refer to images for additional information).

To achieve the end result does take time but it's well worth the effort. You need at least 6 colours of filament and to change the filament between prints. Most machines capable of printing fine detail and good slicing apps should have no problem with the fine tolerances in this print.

Watching it come together is satisfying... once it's together, and with the Slider colours well messed up, it can be very frustrating... until you solve it and then it's very satisfying again!

Print the puzzle... then can you do it? And, if you do... post images of your success!

Please refer to the print instructions and images for additional information.

Note: If you like this check out all my other fun and practical designs.

  • 3D file format: STL
  • Publication date: 2019/07/05 at 15:49
