The Key - Puzzle Box REMIXED by LeisureLuke

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

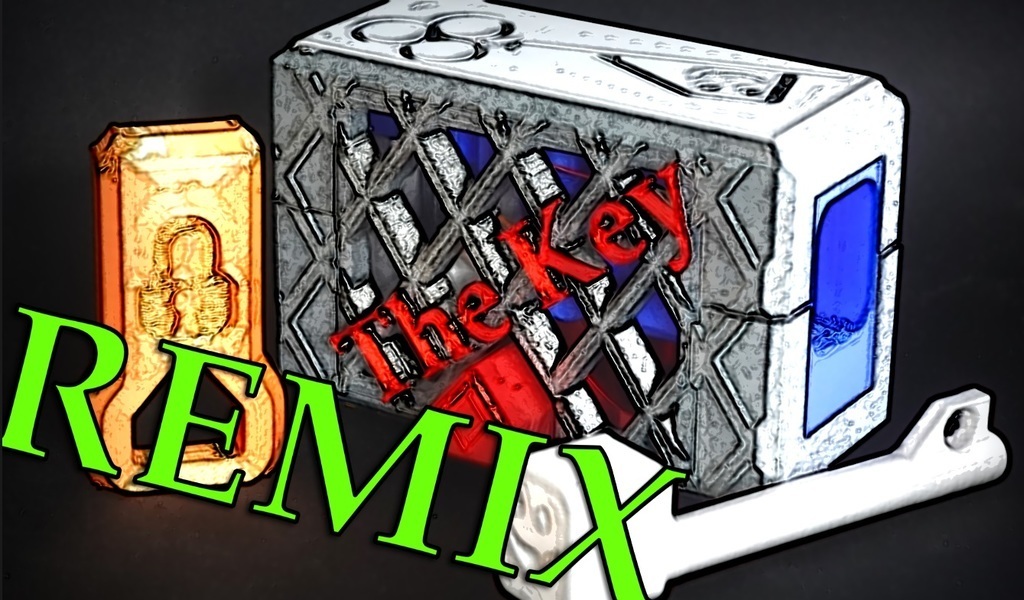

Every Piece has been REMIXED based on your FEEDBACK from 100s of 3D PRINTER ENTHUSIASTS!!!!!! See this YouTube video to for more detail on the improvements:

https://www.youtube.com/watch?v=qoUnkRJTB_c

Thank you for all the feedback, it's allowed us to make this puzzle box extra robust and much much more fun! All the feedback has lead to MASSIVE improvements! Stronger, No more wear, less breaking, smoother, better, easier to use/store/ship and MORE!

The Spring improvements: All the springs that would be "stored" compressed now have the option of adding a rubber band, so it NEVER WEARS OUT! In The Key, there's a rubber band under the T6_222, 1 connecting the H1 and H2, and the final is on the H1 to launch the key!

The Mechanical improvements: Key is fatter & stronger, Freedom lock is stronger, face is compatible with mega-assembly.

Original Hilarious YouTube Homemade Commercial here:
https://www.youtube.com/watch?v=zR1Ifs6JlZ8

Original Assembly and SOLVE NEW here! (Jan 8, 2021)
https://www.youtube.com/watch?v=8bDUSPmLI5A

The Key - Puzzle Box is an original design by Leisure Luke. It's a 7 Piece + 2 BONUS Pieces set that is EASY TO PRINT! No Supports Needed. Print it in PLA! Parts without squiggly springs can be PETG or PLA.

My Colors:

Key - White
KeyPartH2 - White
TheLid - White for 5 layers, Marble for remainder.
BottomCasePv3 - Black for 2 layers, Gold for 5 layers, Marble for Remainder
KeyPartT6_222 - Red
KeyPartH1 - Blue
FreedomLockBONUS2 - Gold
DueceInlayBONUS1 - Black
KeyCapSpade - Black

0.1mm tolerance for all non-sliding parts.
0.2mm tolerance for sliding parts
0.4mm tolerance for loose key eject spring
You should be able to straight from the PRINT bed to ASSEMBLY!

No External parts needed - no metal springs, no bearings, no magnets, no electronics, NO GLUE, NO SANDING... you get the idea!

As tested - 100% PLA 3D Printed!

Print all 9 pieces and they'll fit together pretty easily. The T6 is the only difficult piece to get onto the pv3. The spade cap goes on the H1 after it's threaded through the H2.

Again, see the YouTube Videos to get excited, for assembly, and if needed, to show the solve as well!

Leave your comments, and tune in for the next version - WHICH WILL BE RELEASED JANUARY 14, 2021

UPDATE Feb 14, 2021:

KeySpadeCap_Optional_tighter - if your spade cap is too loose to pinch on, this may be better, as it's much tighter (0-0.05mm tolerance)

Changed The Lid to have 45 degree slope to make it easier to print!
My Philosophy
These are all modular pieces that will be a part of a larger project... that I rambled on about in Episode 1 :P Basically, each puzzle becomes a side of Puzzle box that I call - the 5 aces. After the 4th Puzzle Box I'll release the final pieces required to do the full "5 Aces" Assembly. I'll also be printing and sending that puzzle box to a few youtubers to solve, and possibly selling a fully-assembled version on Etsy (if people are interested). Thanks for all the likes and feedback! I need more feedback always!

I'd love a like, follow, subscribe, etc. I'm hoping I can keep making cutting edge puzzle boxes bigger better and FREE for a long time!!!!

Enjoy!

Print Settings
Printer:
Artillery Sidewinder X1 V4

Resolution:
0.2

Infill:
15%

Filament brand:
TECBears

Filament color:
Black, Red Silk, Marble, White, Gold

Filament material:
PLA

Notes:
Print the t6 part first. If that doesn't slide nicely, you may have to adjust your extrude speed to something lower. Your printer has to be fairly dialed in for all the mechanisms to work properly. See the video for more details.


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close
    • CapSpade_R.stl
    • DueceInlayBONUS1_R.stl
    • FreedomLockBONUS2_R.stl
    • KeyFace_R.stl
    • KeyPartH1_R.stl
    • KeyPartH2_R.stl
    • Key_Base_R.stl
    • Key_Lid_R.stl
    • Key_R.stl
    • T6_222_R.stl

    Learn more about the formats

  • Publication date: 2021-12-04 at 01:02
    ?
    Published to Thingiverse on: 2021-12-03 at 22:12

License

CC BY
