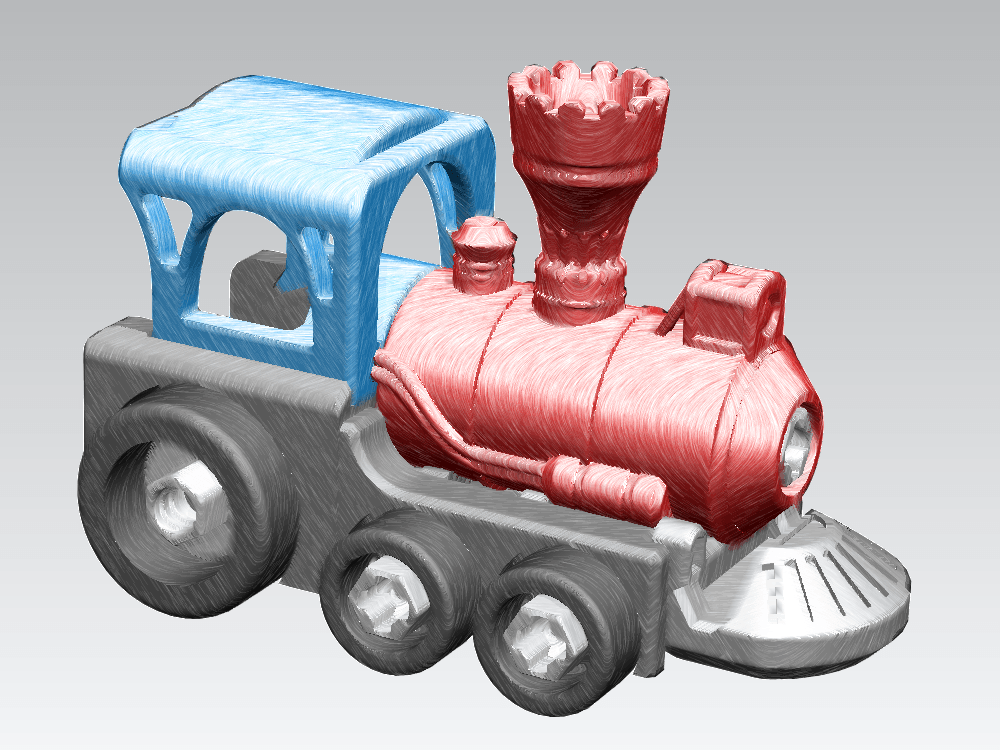

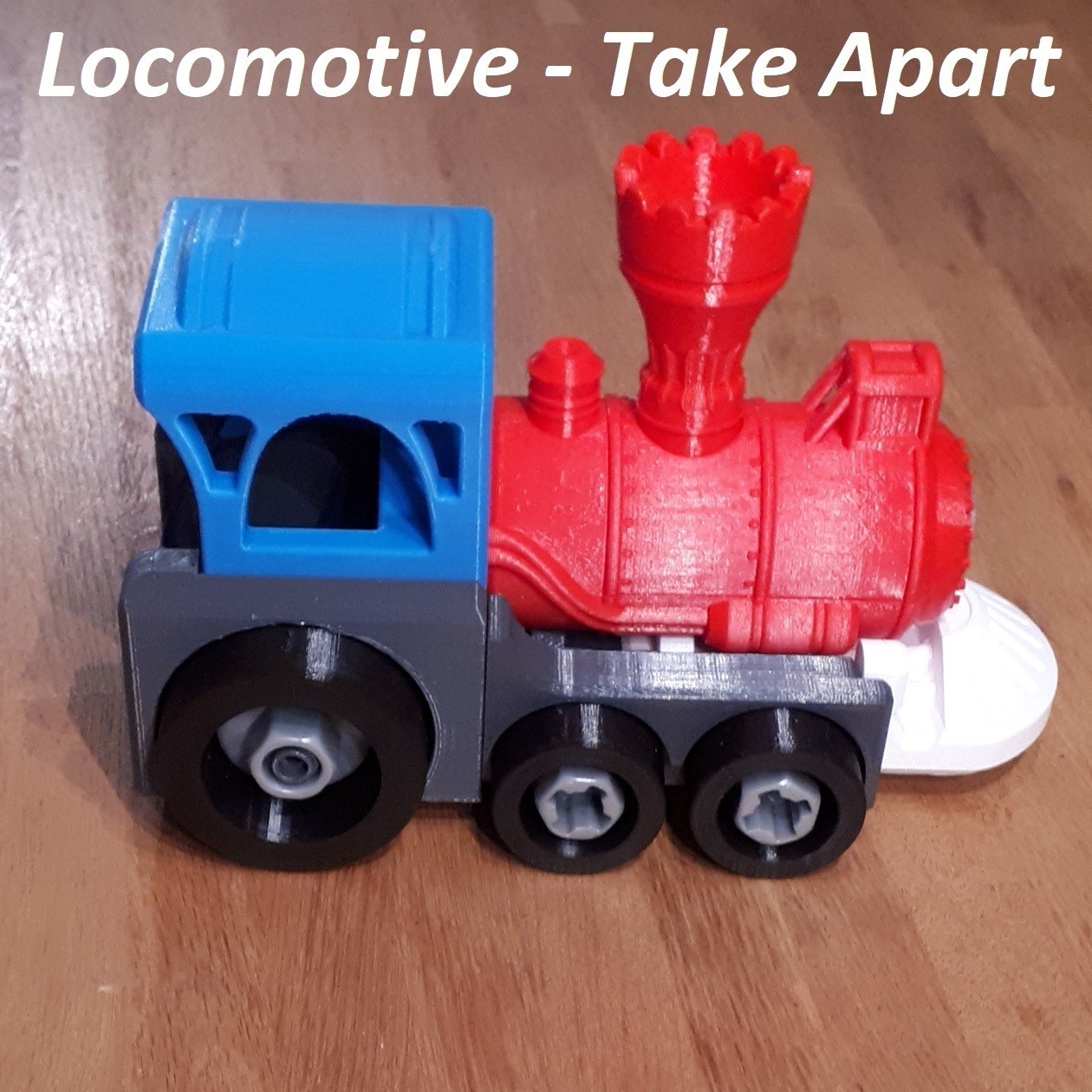

Take Apart Locomotive

3D model description

Finally the locomotive is joining the take-apart-toy series.

An other fun toy, for children to take apart & build again.
When the boiler explodes, the locomotive could be "repaired" easily.
For young children, this is a fun way to improve eye-hand coordination.

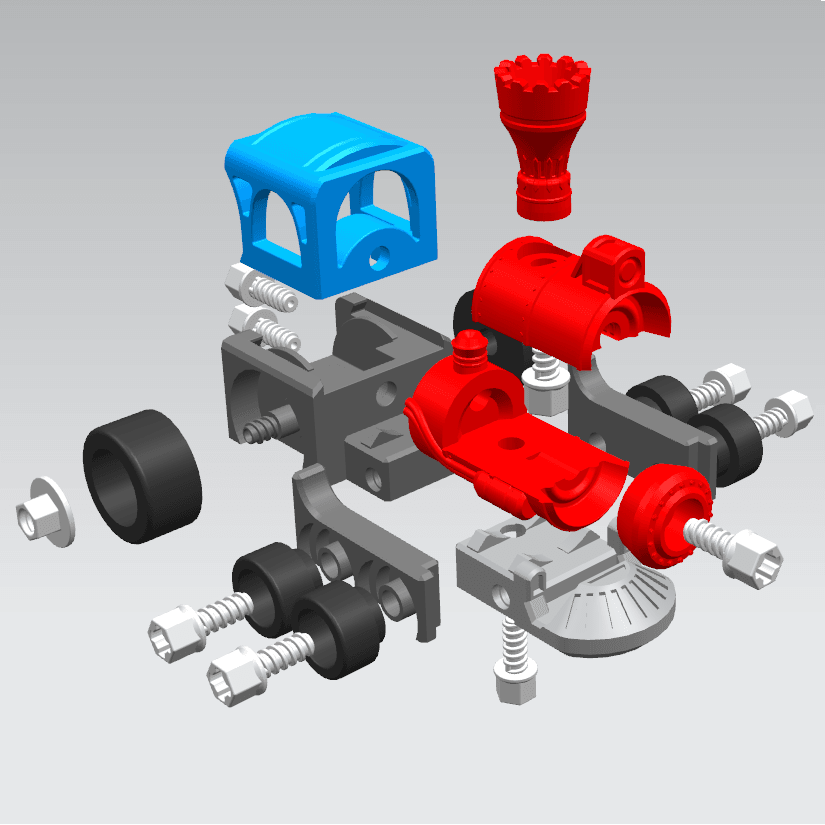

This locomotive needs:
* all body parts
* 9x bolts
* 2x nuts
* a screw driver set

Bolts & nuts & screw driver set, could be downloaded here for free:
https://cults3d.com/en/3d-model/game/take-apart-bolts-nuts

With 10+ downloads, also a wagon will be designed.
For now, the base_frame2.stl does have a M3 interface, for adding a hook.

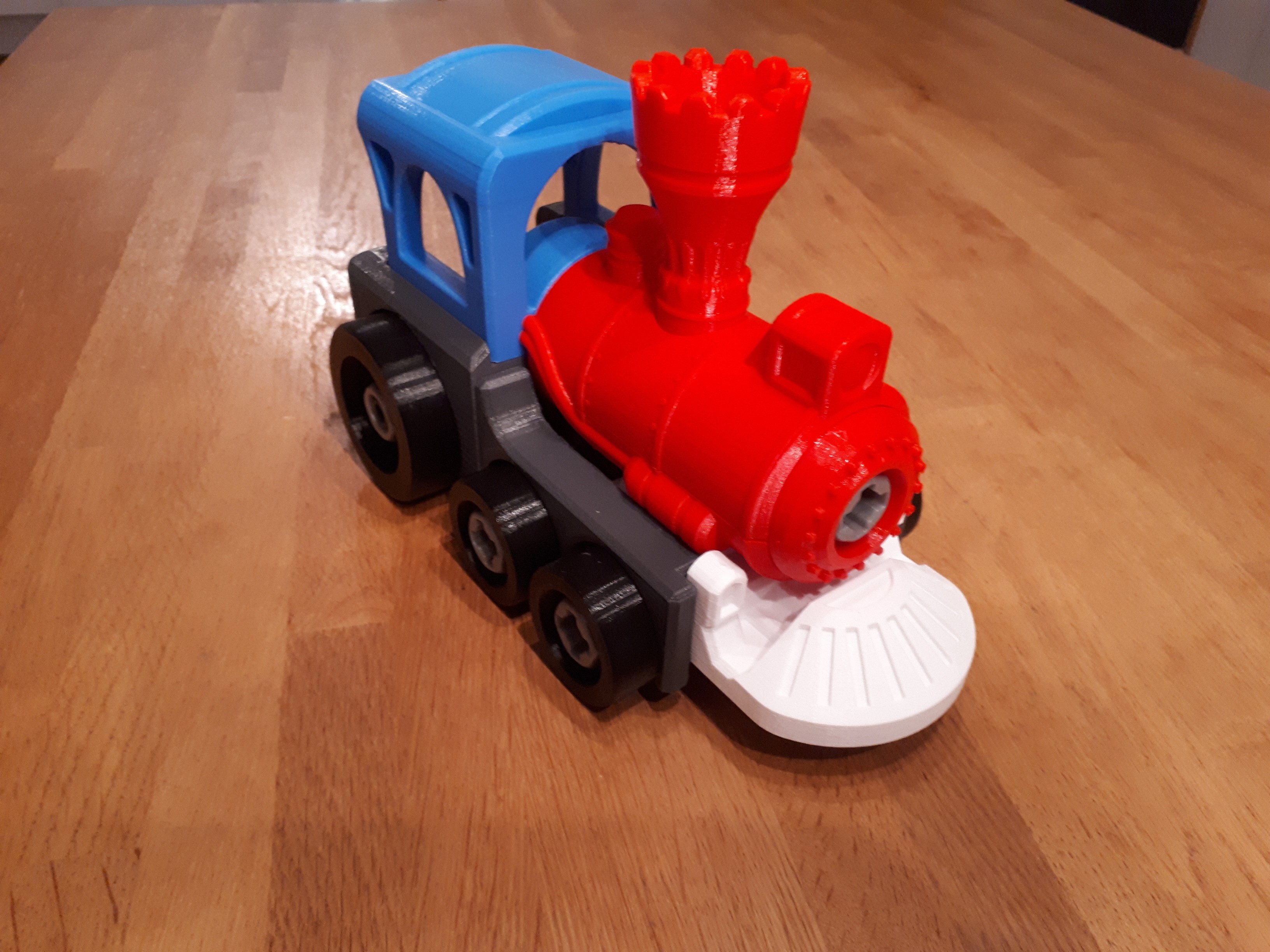

20190119: Model is printed, tested and where necessary the uploaded stl files are optimized.

3D printing settings

Printed most parts with 0.8 nozzle.
Boiler parts & cap with 0.4 nozzle.

Care has been take, getting all dimension right. But it still seems difficult to print the right dimensions.
The bolt & nut interfaces on the locomotive parts are the same like the 'stand-alone' bolt_v1 & nut_v1. I would like to suggest, first printing one bolt & nut and use the same settings for the locomotive parts.

  • 3D model format: STL
