3D model description

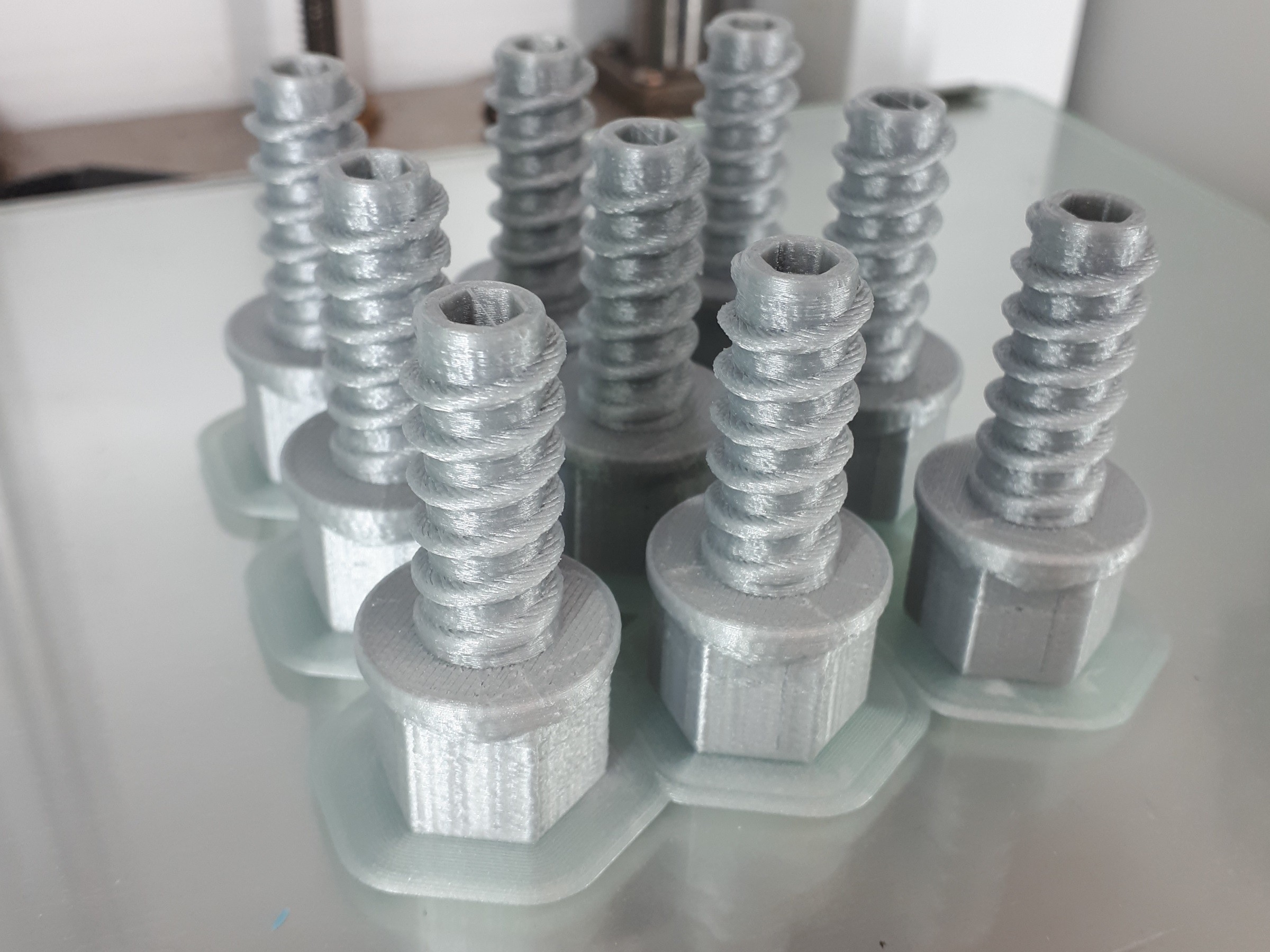

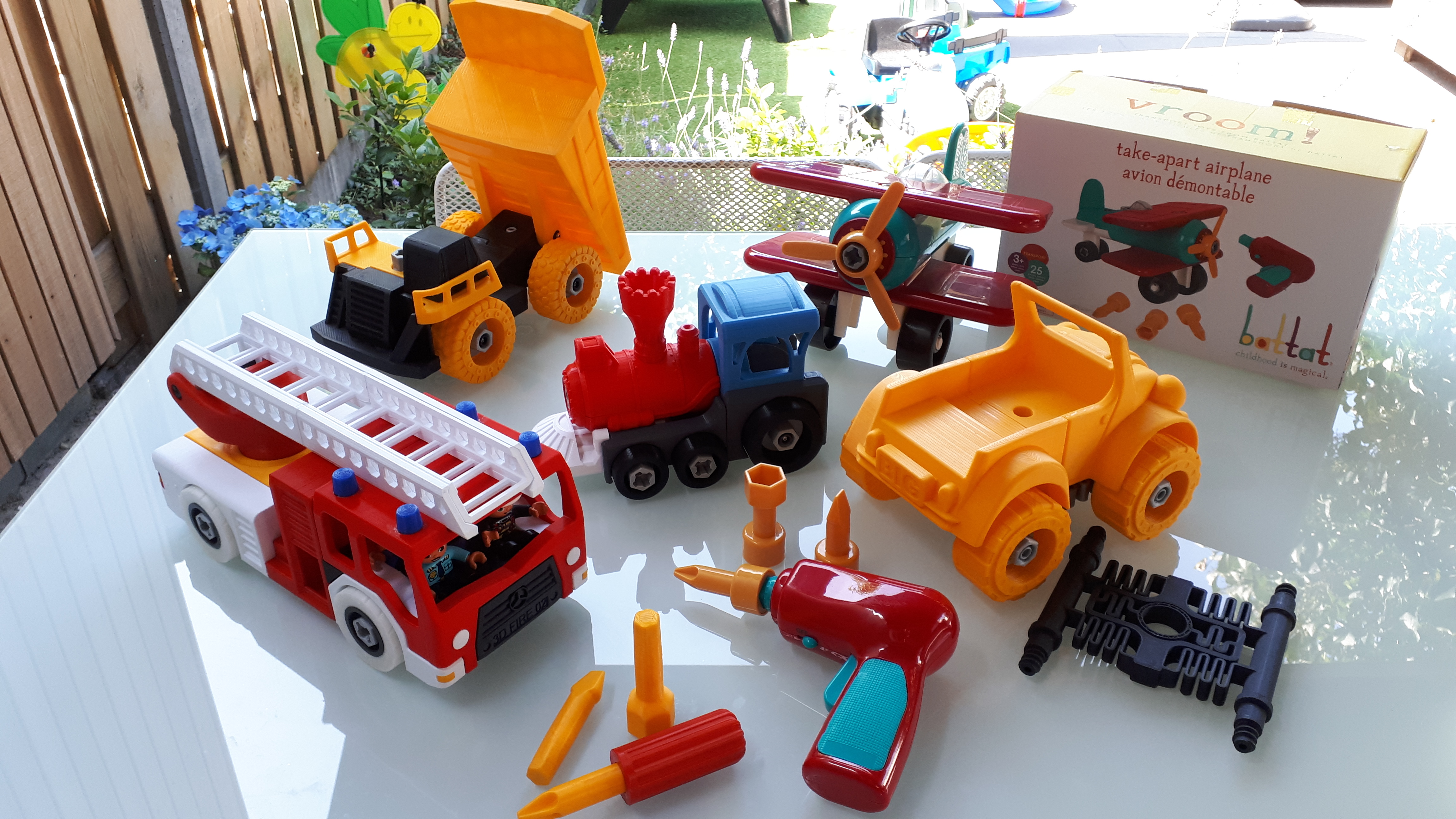

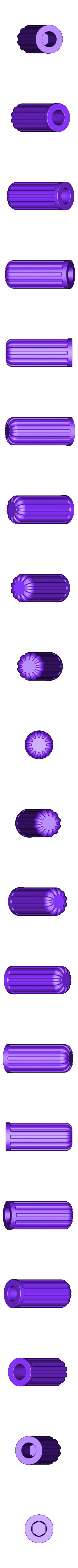

Use these bolts & nuts as spare parts for all reloaded take apart toys listed below:

Locomotive: https://cults3d.com/en/3d-model/game/take-apart-locomotive"
Dump truck: https://cults3d.com/en/3d-model/game/dump-truck-take-apart
Monster 2CV: https://cults3d.com/en/3d-model/game/monster-2cv-take-apart-toy
Monster Jeep: https://cults3d.com/en/3d-model/game/monster-jeep-willy-take-apart-toy
Tow truck: https://cults3d.com/en/3d-model/game/tow-truck-take-apart
Rocket launcher: https://cults3d.com/en/3d-model/game/rocket-launcher-take-apart
Fire truck: https://cults3d.com/en/3d-model/various/fire-truck-take-apart

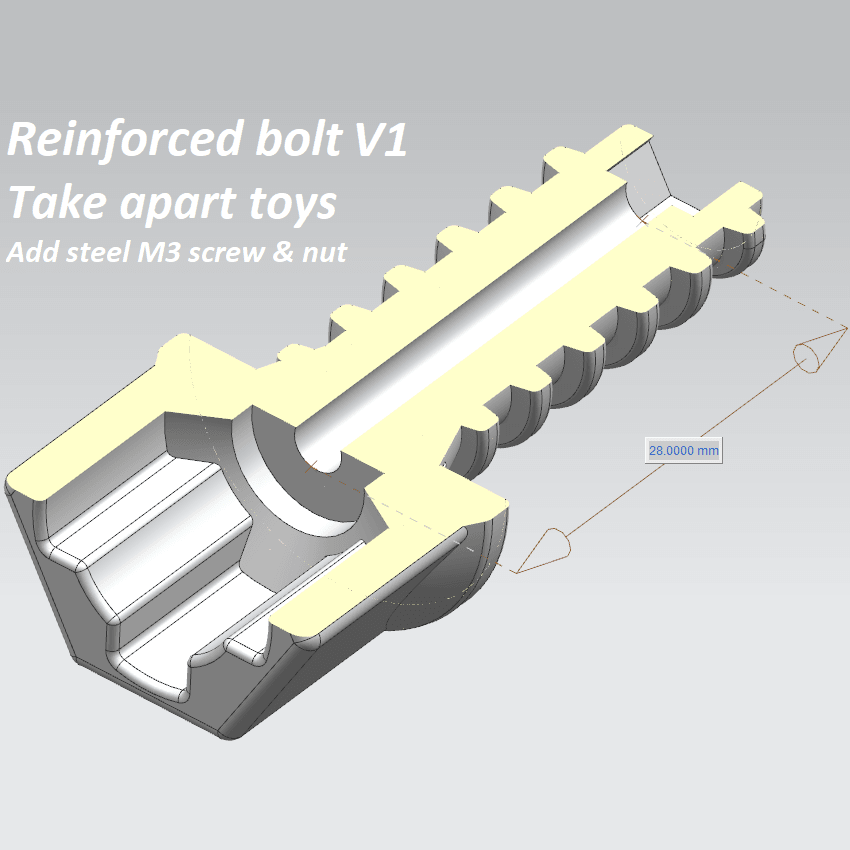

The bolts could optional be reinforced, in case of poor layer bounding. A steel bolt M3x30 and nut will certainly strengthening the printed bolt.

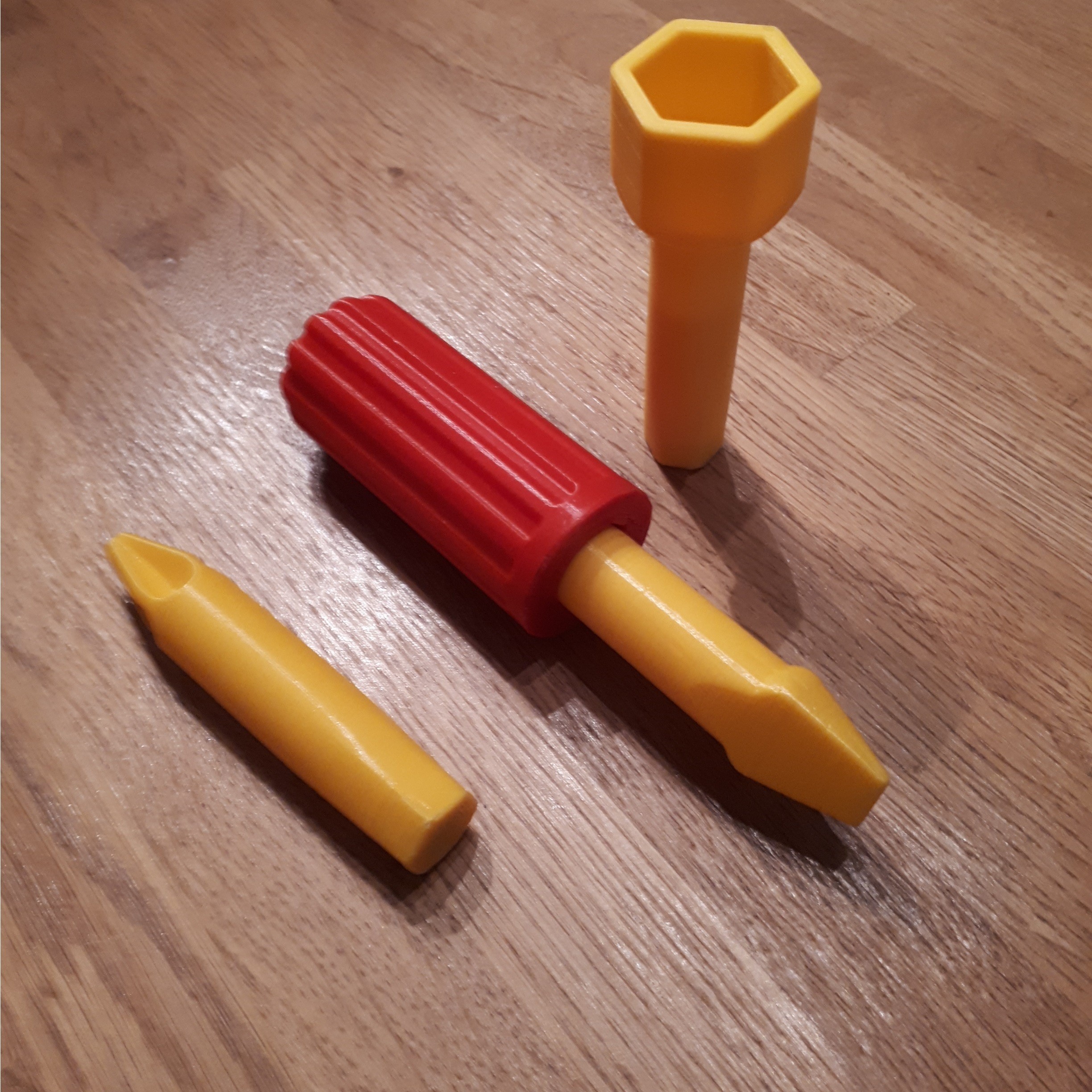

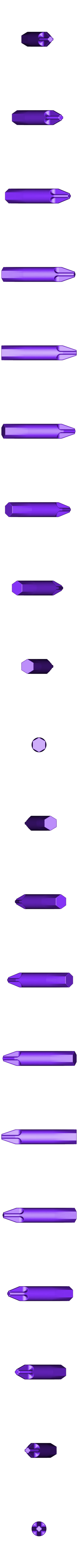

The screw driver set is also open source and could be downloaded here too. When using one handle for all bits, D6L6 magnets could be inserted during printing.
There is a tools-connected stl part, for easy printing of all bits at once.

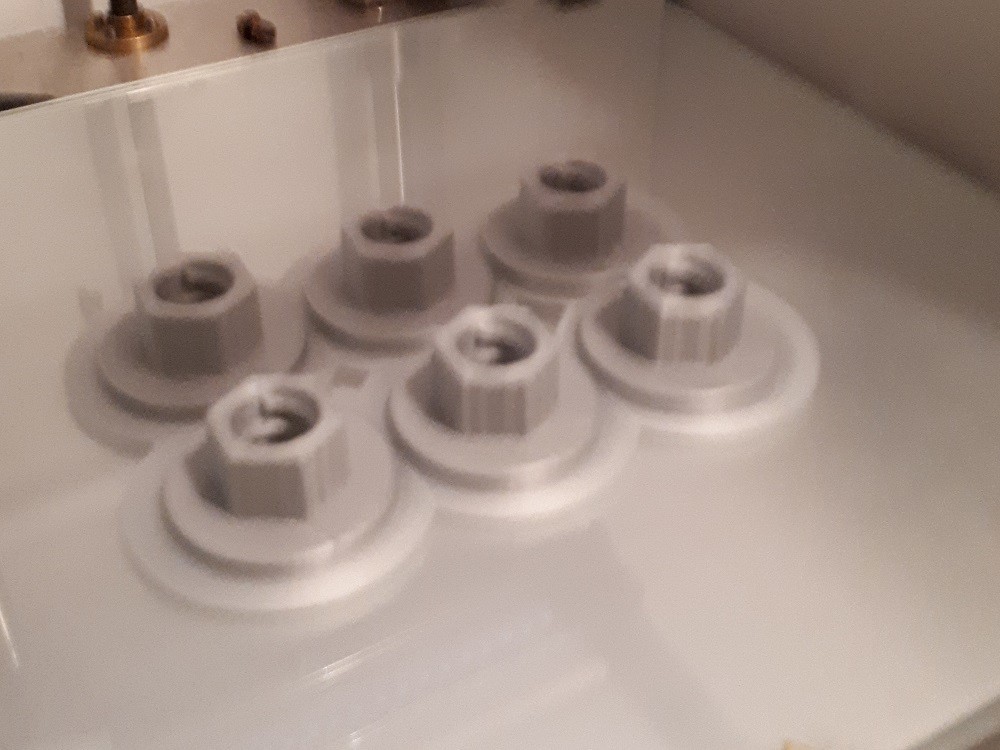

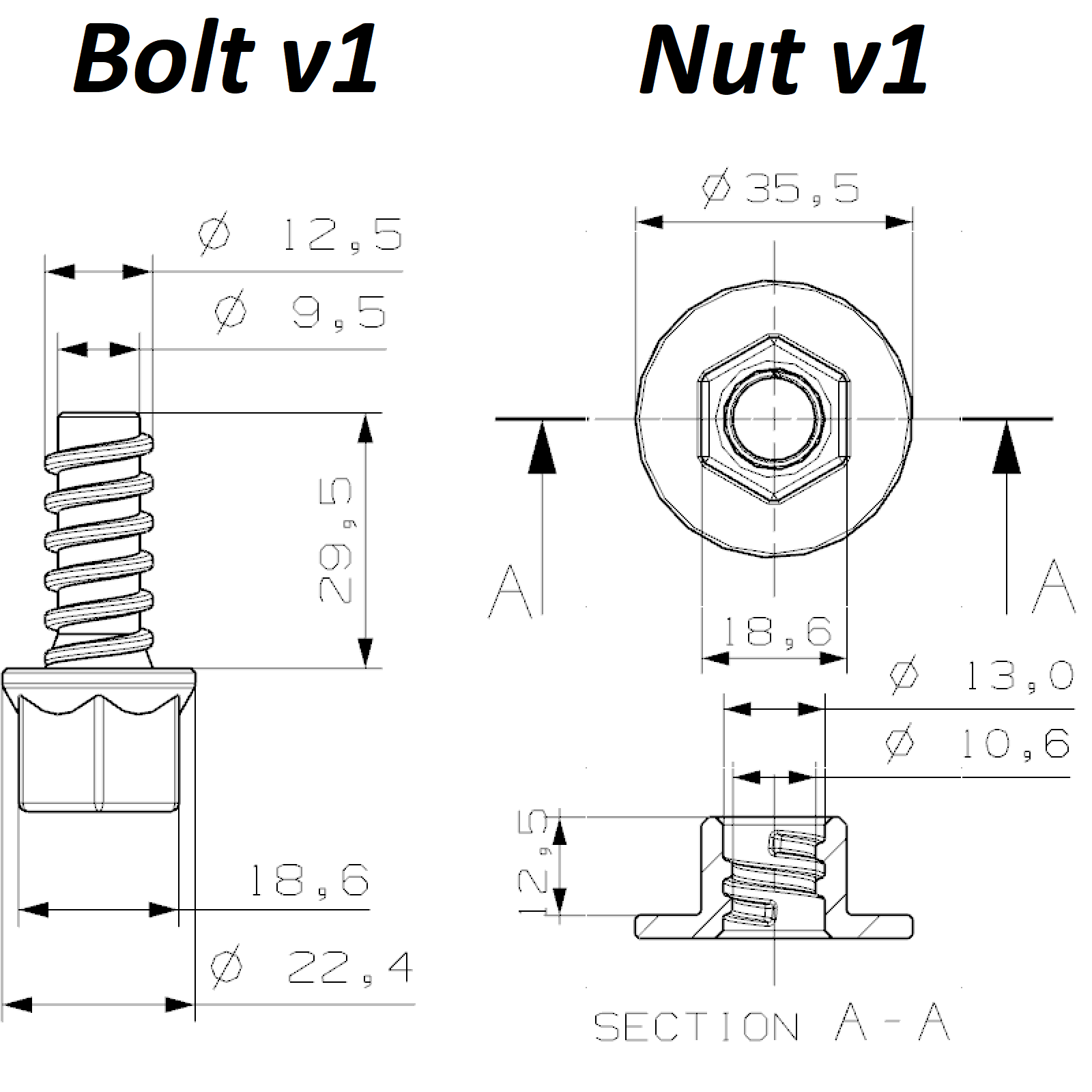

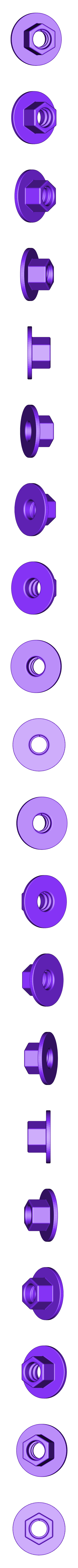

After a short parameter study, decided to make the inside of the nut_v1 a little larger for dealing with FDM issue's printing an inner circle.

3D printing settings

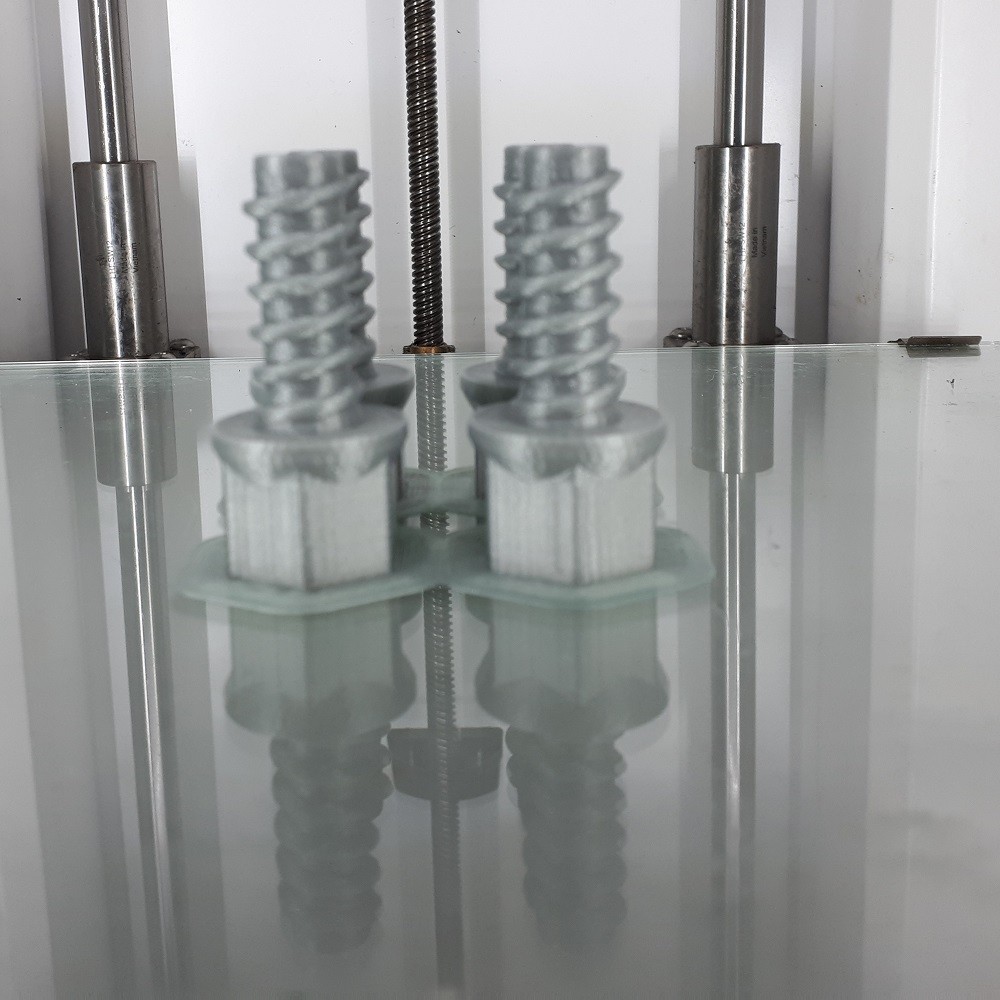

Although care is been taken, getting all dimension right, it's challenging to print these bolts & nuts.
I do get better results printing these in ABS then PLA.

Now I get also way better results with PLA, when minimizing the layer height to 0.06 mm. (And having all print speeds (walls/roofs) the same.)

  • 3D file format: STL
  • Last update: 2020/08/14 at 11:25
  • Publication date: 2019/01/13 at 10:30
