SUPERMAN LED Light/Nightlight

1_display_large.JPG SUPERMAN LED Light/Nightlight
combine_images_display_large.jpg SUPERMAN LED Light/Nightlight
7_display_large.JPG SUPERMAN LED Light/Nightlight
8_display_large.JPG SUPERMAN LED Light/Nightlight
3_display_large.JPG SUPERMAN LED Light/Nightlight
4_display_large.JPG SUPERMAN LED Light/Nightlight
2_display_large.JPG SUPERMAN LED Light/Nightlight
5_display_large.JPG SUPERMAN LED Light/Nightlight
6_display_large.JPG SUPERMAN LED Light/Nightlight

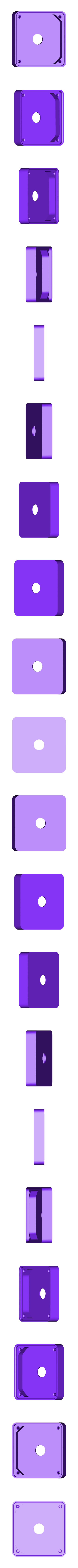

BackCase.STL SUPERMAN LED Light/Nightlight

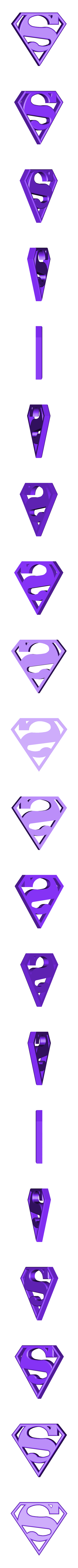

SuperMan.STL SUPERMAN LED Light/Nightlight

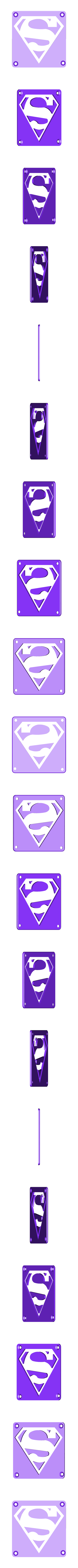

SuperMan_Plate.STL SUPERMAN LED Light/Nightlight
Advertising
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 4.3k views
  • 15 likes
  • 153 downloads
Licence CC BY-SA
Publication date 2018-12-20 at 15:50
Design number 41238
3D design format
STL Folder details Close
  • BackCase.STL
  • SuperMan.STL
  • SuperMan_Plate.STL

Learn more about the formats
Balkhagal4D

Balkhagal4D

3D printer file info

3D model description

Here's a video of it in action...

https://www.youtube.com/watch?v=n1N92gXU7yg

Here's a group I made for my LED lights and things, if you like my LED designs, join the group and you'll be updated as I upload new ones... I plan on making a lot more logos just like this. So if you have and suggestions, please tell me and I'll make it.

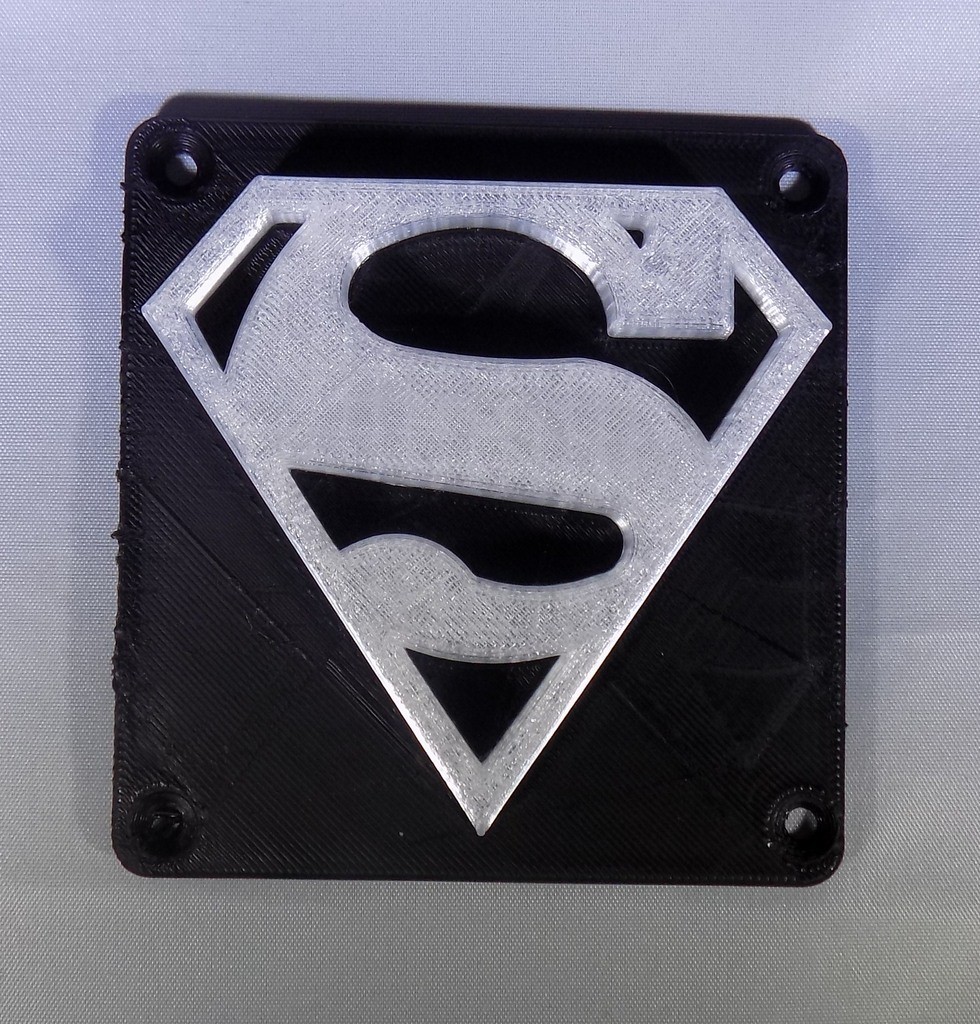

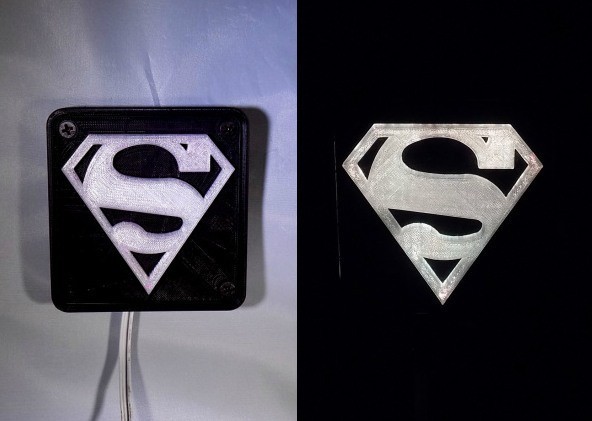

This is a extruded LED SuperMan Logo I printed on my dual extruder... I took a JPEG of the SuperMan Logo and traced it in Solidworks... I then extruded and filleted the SuperMan Logo and saved it as its own STL to be used in dual extrusion... I then designed a plate around the SuperMan Logo, added holes for screws and save that as its own STL... Lastly, I design a shell to go around the plate and SuperMan Logo, the shell has aligned screw holes so it can be fastened to the plate...

I then printed the shell in regular ole black PLA on my Rep 2... And I did the dual extrusion using the same black PLA for the plate and I used Bendlay (link below) to print the SuperMan Logo... I used Bendlay because it is extremely translucent (91% of light passes through)...

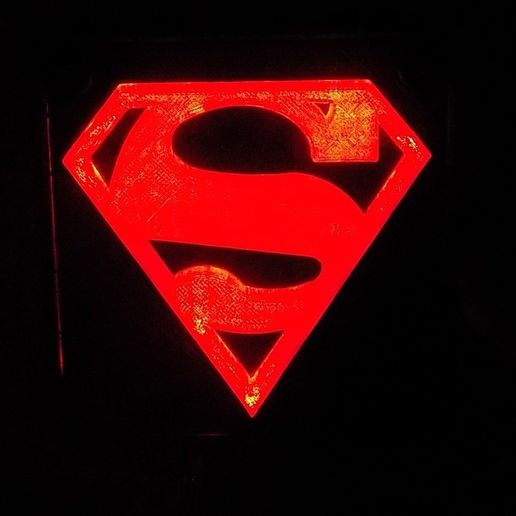

I then hooked up an RGB LED strip, wrapped it around the inner shell and hooked it up to an IR receiver so it can be controlled with a remote...

Bendlay Link:

http://www.amazon.com/MatterHackers-BendLay-Filament-1-75mm-MakerBot/dp/B00K1NRCIY/ref=sr_1_1?ie=UTF8&qid=1435347958&sr=8-1&keywords=bendlay&pebp=1435347954416&perid=1WG2SRVP9TGP9WAM748W

3D printing settings

Pretty straight forward, You're going to want to dual extrude the plate and SuperMan Logo together... I used PLA Black for the plate and Bendlay for the SuperMan Logo due to the fact Bendlay is extremely translucent (91% of light passes through)... But you could use Natural PLA or a translucent filament, but they aren't as translucent as Bendlay is...

I did not print a floor on the plate and SuperMan Logo print so it would allow more light to pass through... I did too much infill (10% linear) on mine... I wish I would have done about 5
