Spring Clutch DIY (LEGO compatible)

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 1.4k views
  • 1 like
  • 45 downloads

3D model description

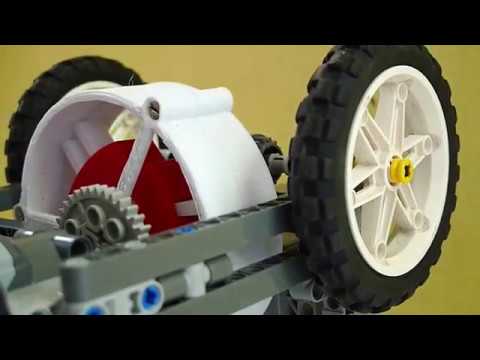

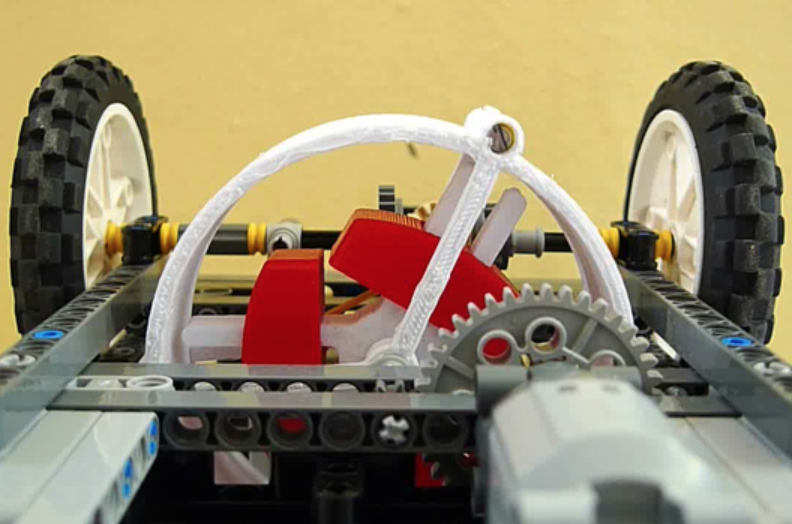

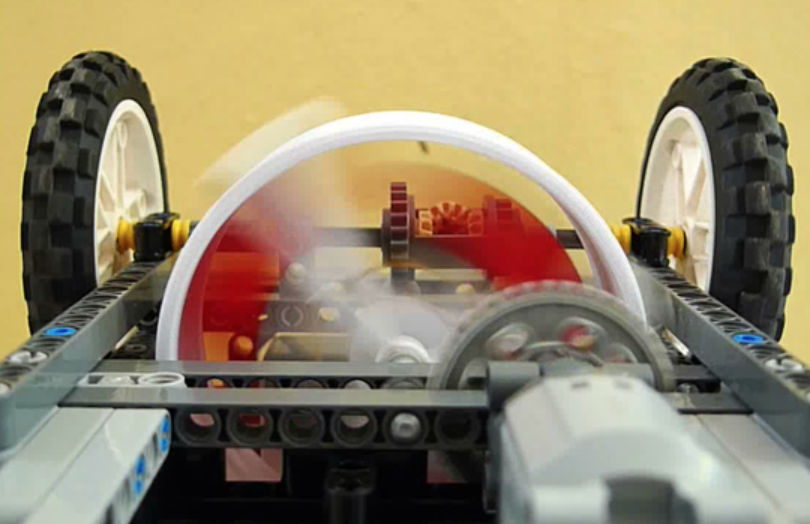

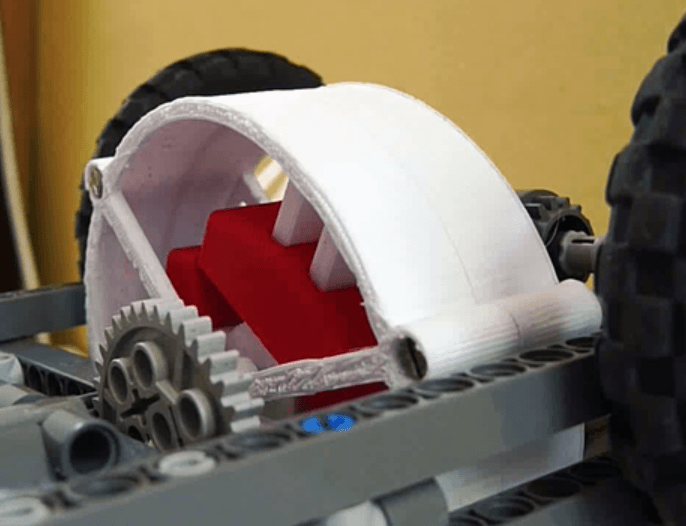

This is a DIY spring clutch which you can use in many different projects. I designed it so it is compatible with LEGO now, but you can connect it to any other motors as well. The working principle is, that the centrifugal force pushes the sliding parts to the side of the housing so it drives it.
To make this, you have to print out the housing parts and the middle part and 3 pieces of the sliding part. You also need a simple rubber, which you will place around the three sliding parts.

This video may help you to understand:
https://www.youtube.com/watch?v=TXJtXOxTz4U

3D printing settings

Printer:

Craftbot PLUS

Rafts:

Yes

Supports:

No

Resolution:

0.2mm

Infill:

10-15%

  • 3D file format: STL
  • Publication date: 2018/03/29 at 13:15

Tags

Creator

Designs 14
Downloads 1.7k
Followers 12

License

CC BY
