Slide Fidget - Hilbert's Curve

?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

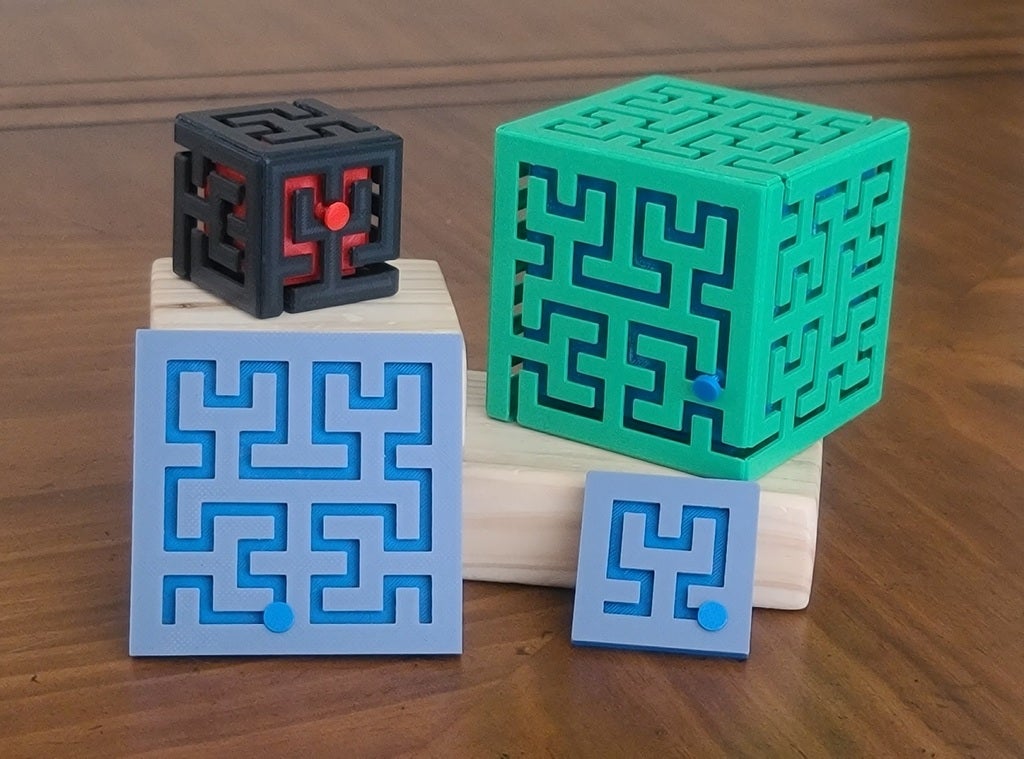

Simple sliding "maze" fidget toy based on the Hilbert's Curve Fractal.

Included are STLs for:
Mini 1st Iteration
Mini 2nd Iteration
Large 3rd Iteration
Cube Mini 2nd Iteration
Cube 3rd Iteration

Cube Instructions:
-Needed: Side 1 (x3), Side 2 (x3), Backplate (x6), Cube Slide Button, super glue
1. Attach backplates to all of Side 1 and 2 pieces.

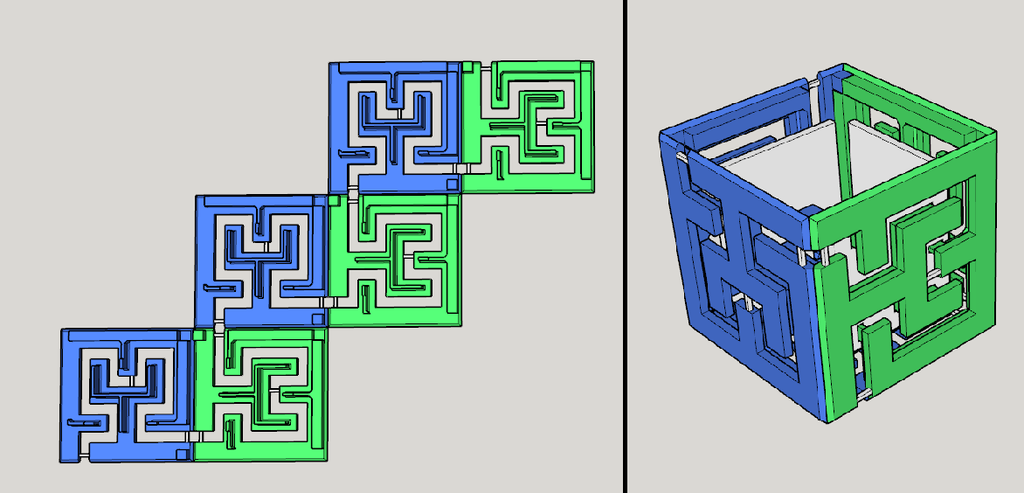

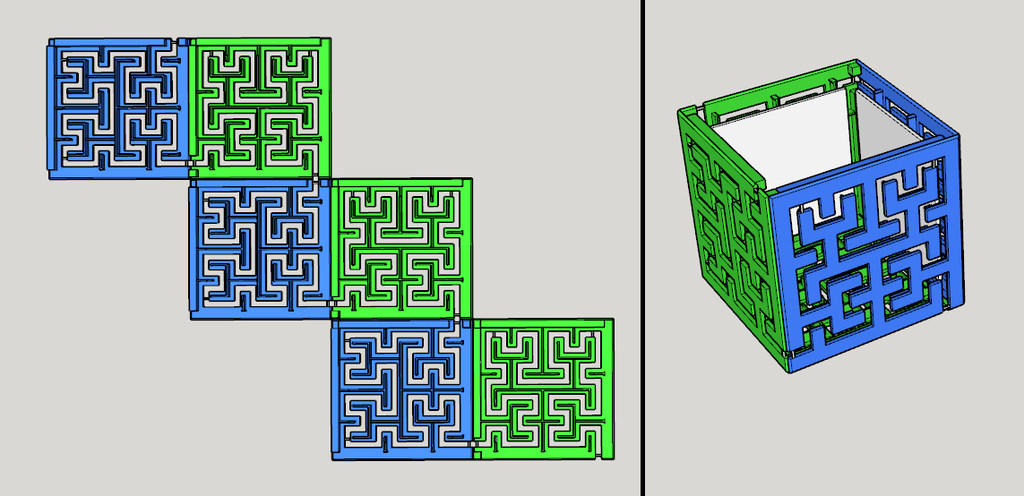

2. Using the pattern from the image construct all but one side of the cube.
3. IMPORTANT Cut one of the track supports and insert the slide button, you will not be able to do so after attaching the final side.
4. Attach final side
5. Cut remaining track supports


3D printing settings

-

3D printer file information

  • 3D design format: STL Folder details Close

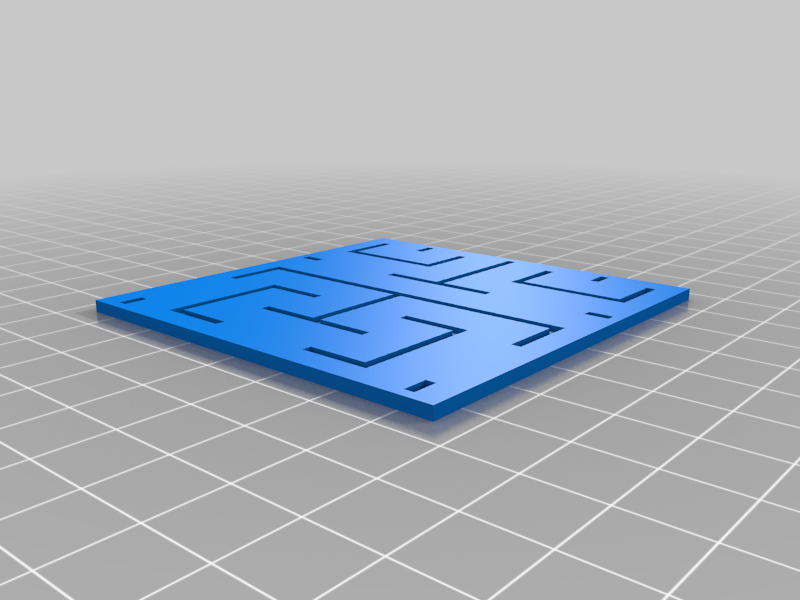

    • Cube_Hilbert_3rd_Iteration_Back_Plate.stl

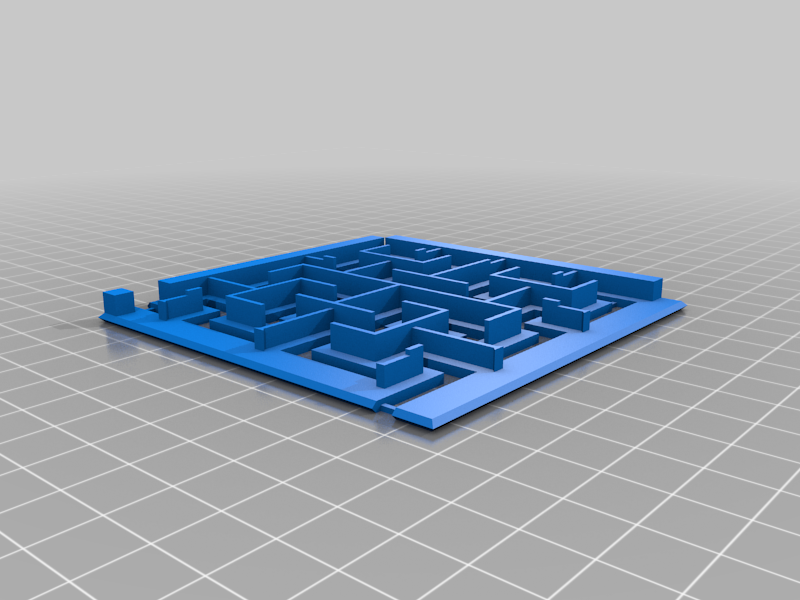

    • Cube_Hilbert_3rd_Iteration_Side_1.stl

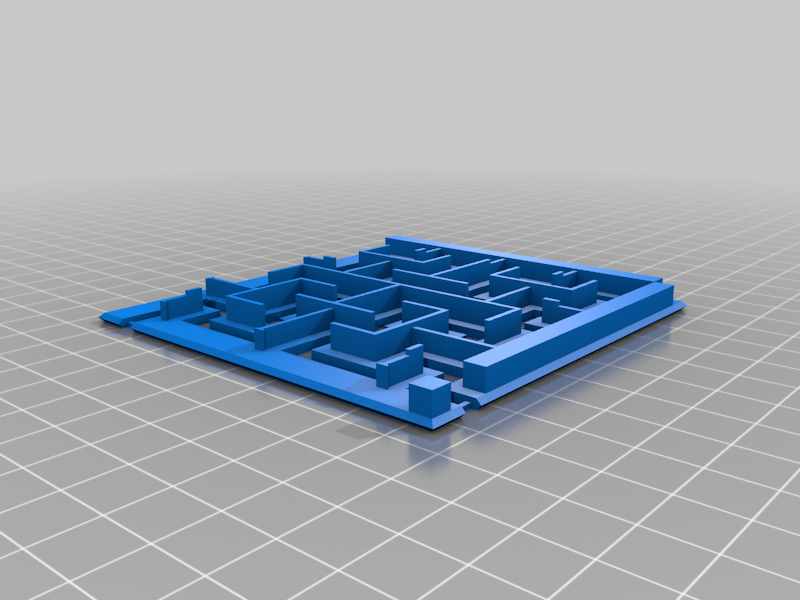

    • Cube_Hilbert_3rd_Iteration_Side_2.stl

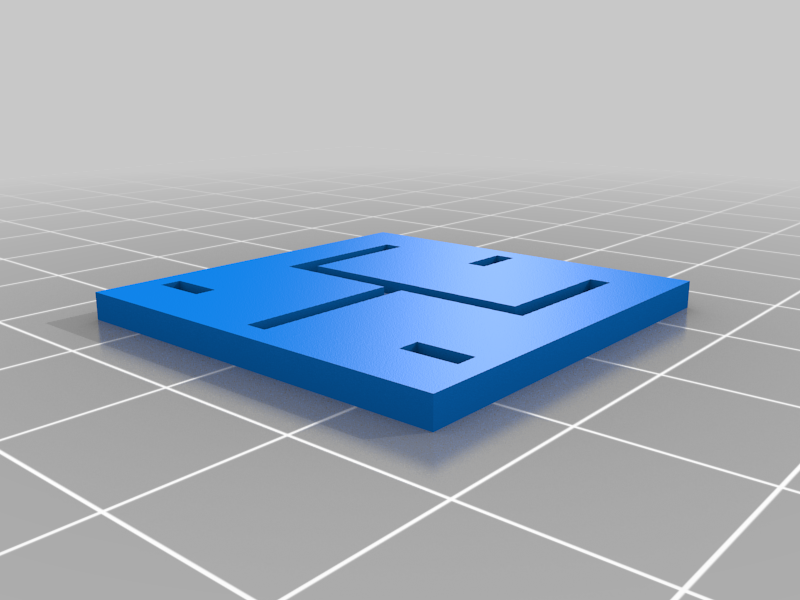

    • Cube_Mini_Hilbert_2nd_Iteration_Back_Plate.stl

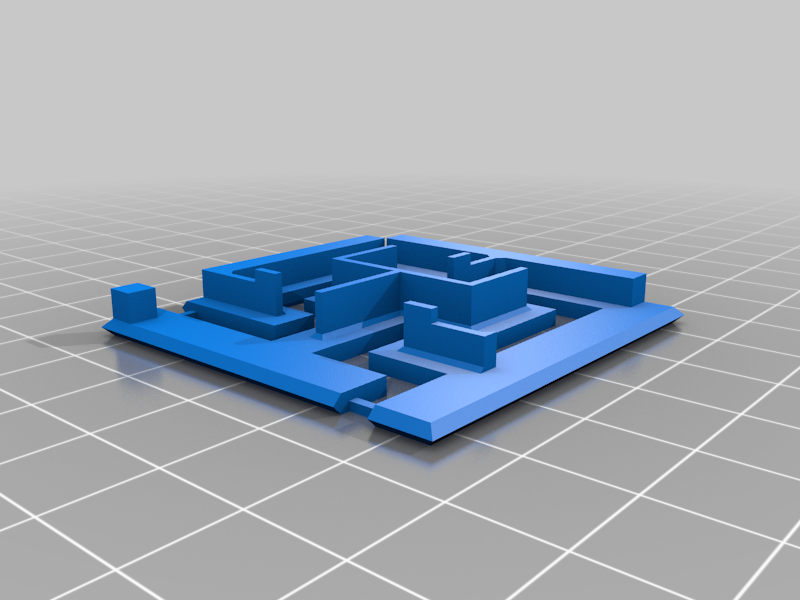

    • Cube_Mini_Hilbert_2nd_Iteration_Side_1.stl

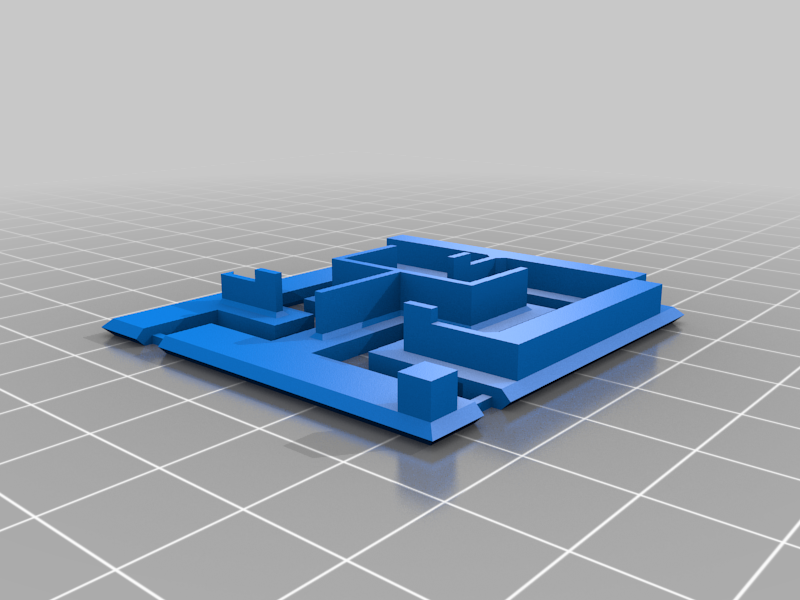

    • Cube_Mini_Hilbert_2nd_Iteration_Side_2.stl

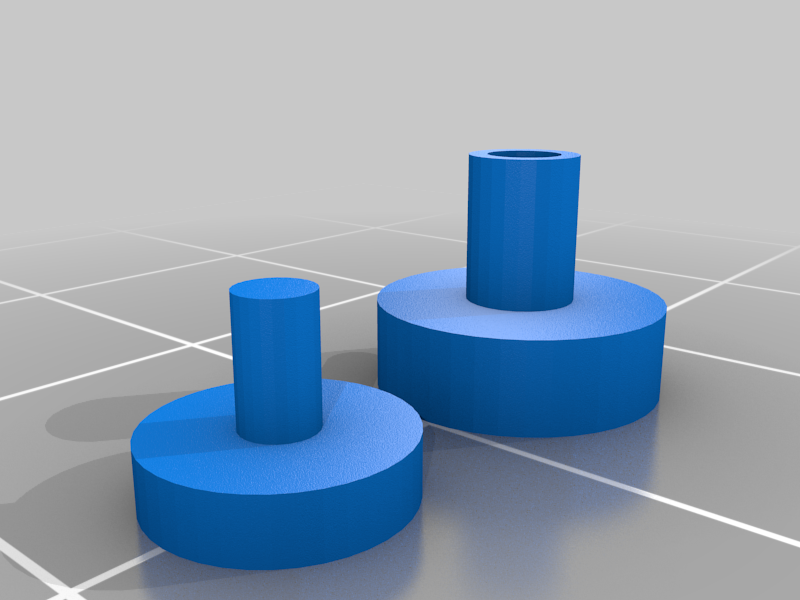

    • Cube_Slide_Button.stl

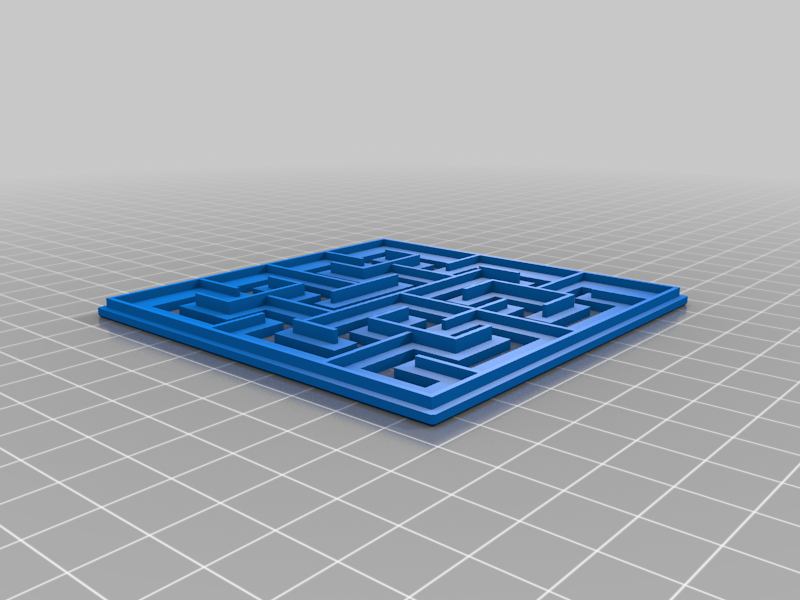

    • Hilbert_3rd_Iteration.stl

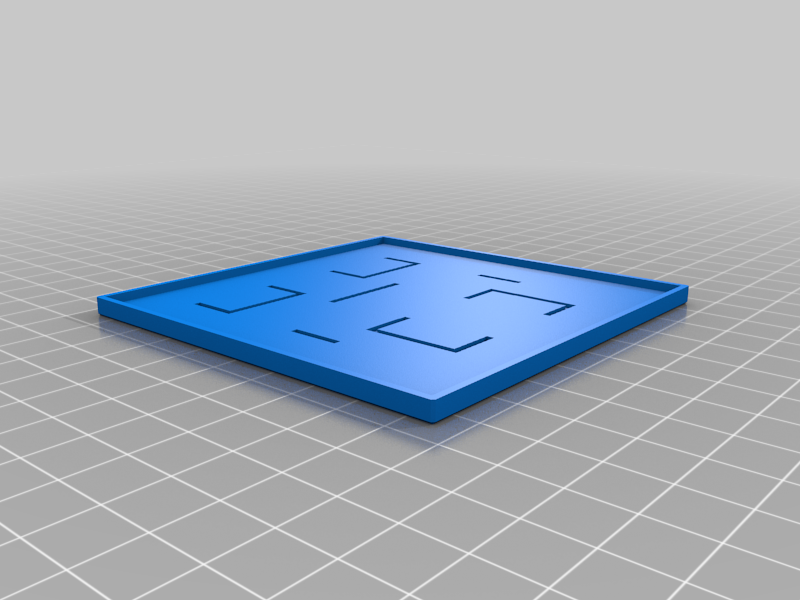

    • Hilbert_3rd_Iteration_Base.stl
    • Mini_Hilbert_1st_Iteration.stl

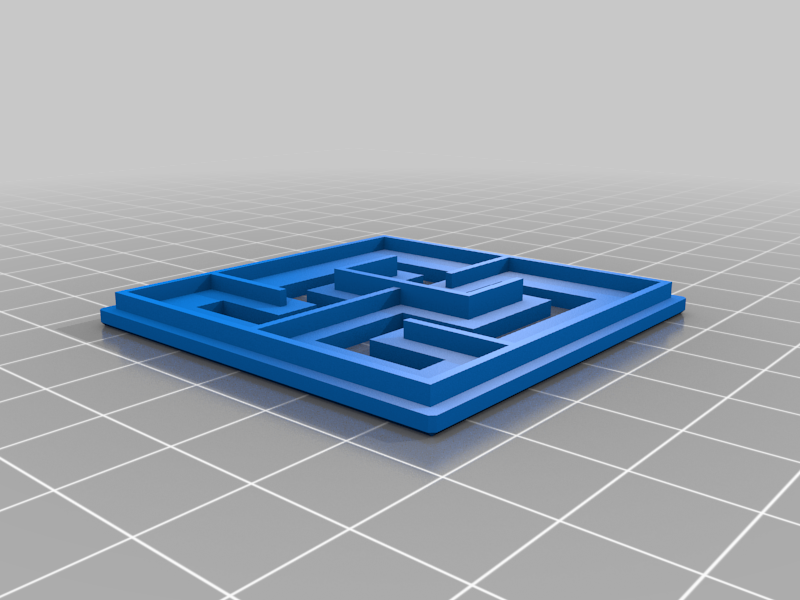

    • Mini_Hilbert_2nd_Iteration.stl

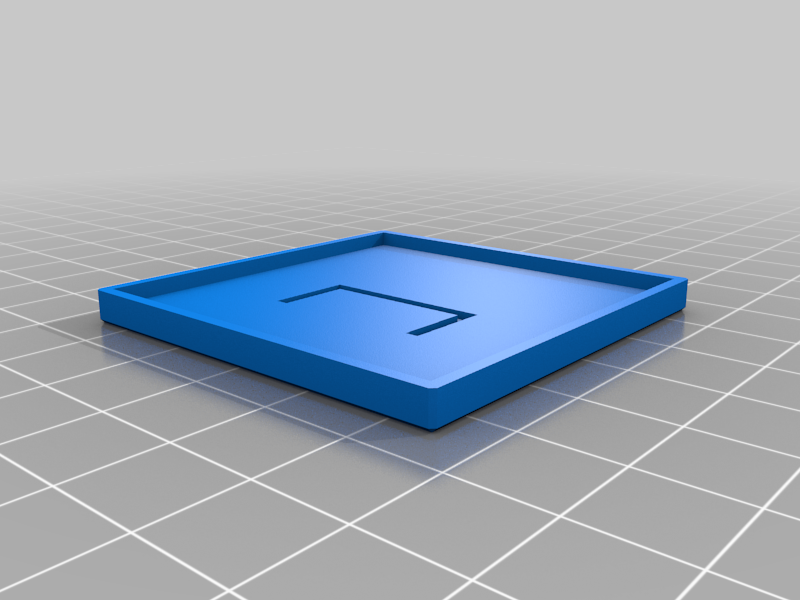

    • Mini_Hilbert_Fidget_Base.stl

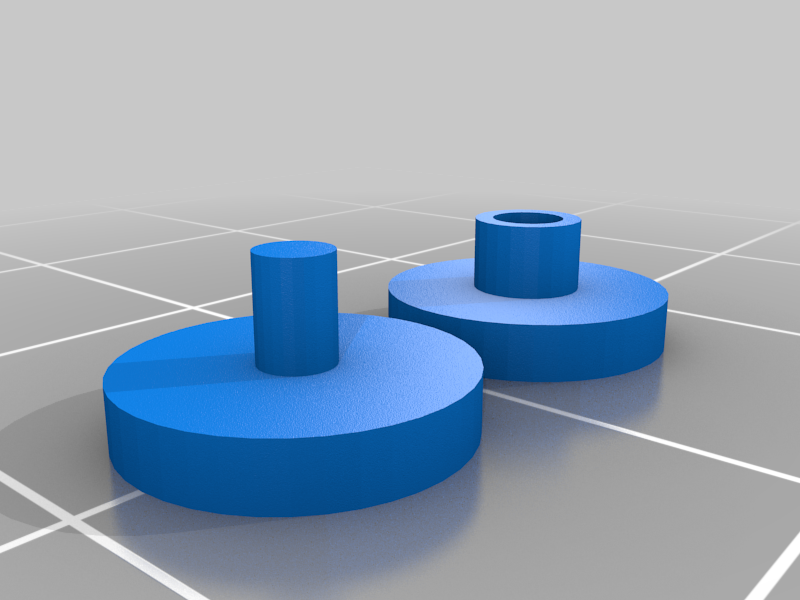

    • Slide_Button.stl

    Learn more about the formats

  • Publication date: 2021-09-08 at 01:22
    ?
    Published to Thingiverse on: 2021-09-07 at 23:47
