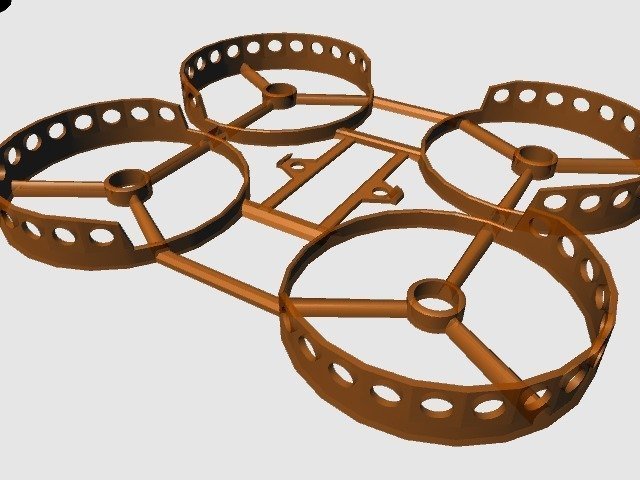

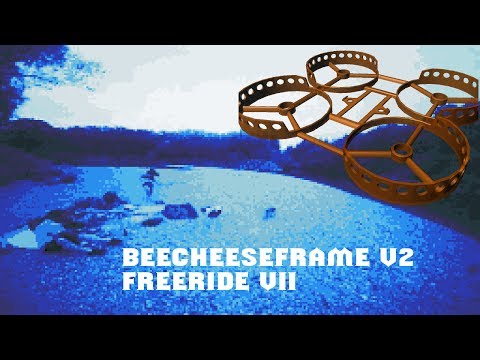

This is a remix of my beecheeseframe based on stylesuxx´s awesome cheeseframe.
Print it with 100% infill. You can print it pretty fast with still good results.

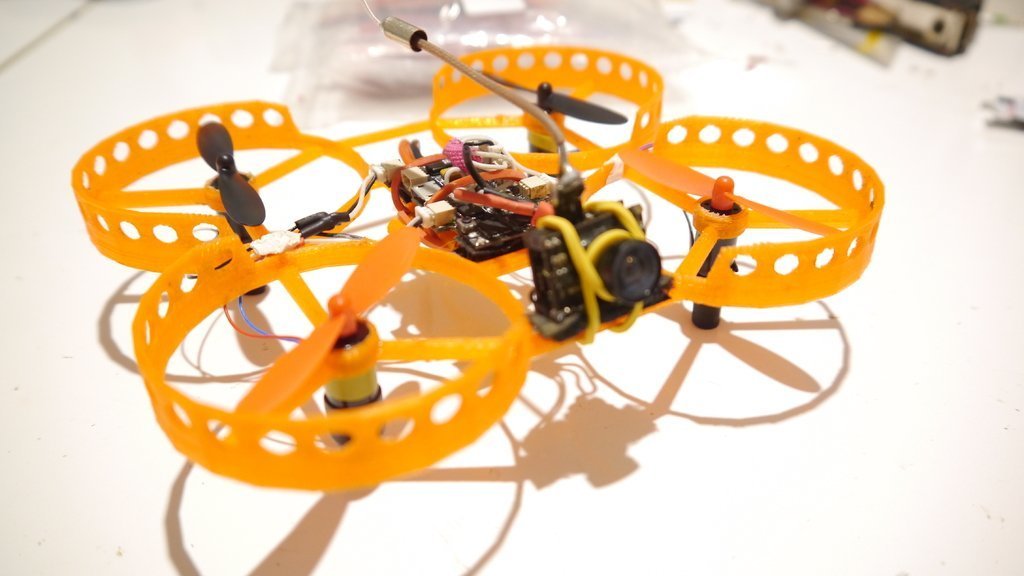

It will fit 8520 motors and 55mm props. The ducts are reduced to save weight and resized to fit bigger propeller.The 55mm props improve flight performance and flight duration alot, compared to the 50mm version. I got around 6 Minutes on 700mah 1s. It anyhow doesnt feel that agile, but has more power to compensate hard moves.
I did some reinforcment at weak points. It can take some hits and is easy to fix using superglue if something went wrong ;)
You may use my cam mount on your already printed frames.
Awesome flightcontroller firmware:
Betaflight 3.1.6 Omnibus
Do not forget to break in your motors. (Around 1 lipo pack at min throttle, best way to do is on motors tab in betaflight configurator)

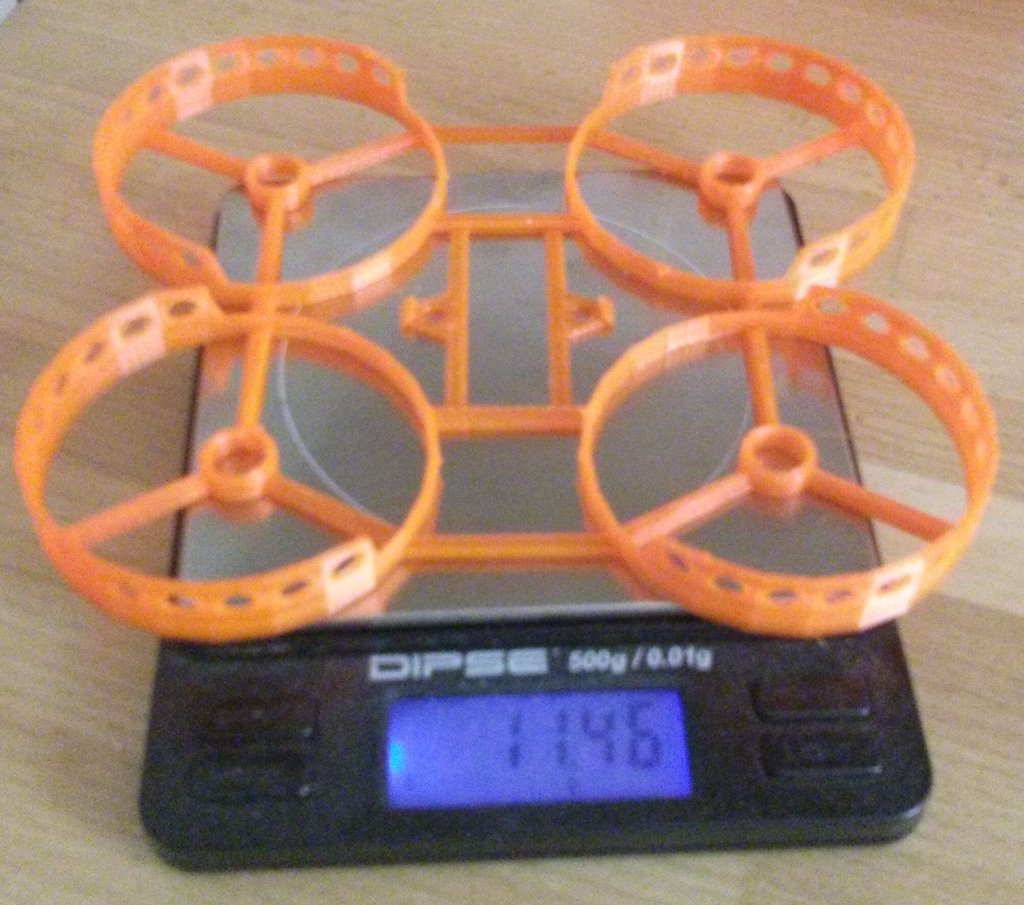

Weight: 11.5 grams
Build video: (Frame V1 but same hardware as in V2) (english subtitles)
(Links to banggood.com)
Flight control board:
"Omnibus F3 with OSD and RX" (Flysky/FrSky/DSM compatible versions available)
Propeller : (Watch out, there are some flyaway props around. Cant recommend the cheap ones)
2 blade with 55mm diameter
FPV cam/transmitter combo - TX03 (great image quality for its size, very leightweight)
1S 600mah 50C Battery With Charger (higher C rate means more power for your quad)
5V active Buzzer (take it, if you dont want to search your quad for hours and hours.)
Further you need:
Transmitter of your choice. I use the Flysky I6 with SBUS mod
FPV goggle of your choice. I use the Kylin Vision with Eachine DVR mod
Connectors you will need: (Links to banggood.com)
4x JST SH 1.0 - 2 Pin - pigtails or connectors for the motors ->https://goo.gl/72d5is
1x JST SH 1.0 - 4 Pin - pigtails or connectors for the fpv camera -> https://goo.gl/r3Vn92
