Retractable landing gear for drone

Download free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_frDownload free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_frDownload free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_frDownload free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_frDownload free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_frDownload free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_frDownload free OBJ file Retractable landing gear for drone • 3D printable design, Blaise_fr

Did you 3D print this model?

3D model description

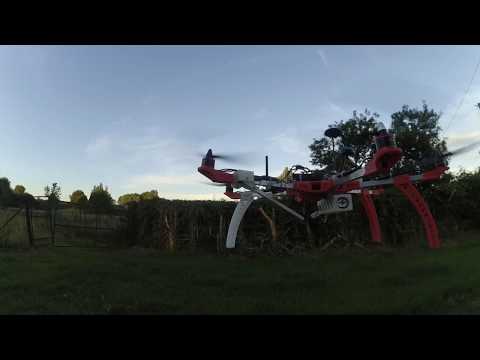

Video : https://youtu.be/M7KORC912Xo

EN :

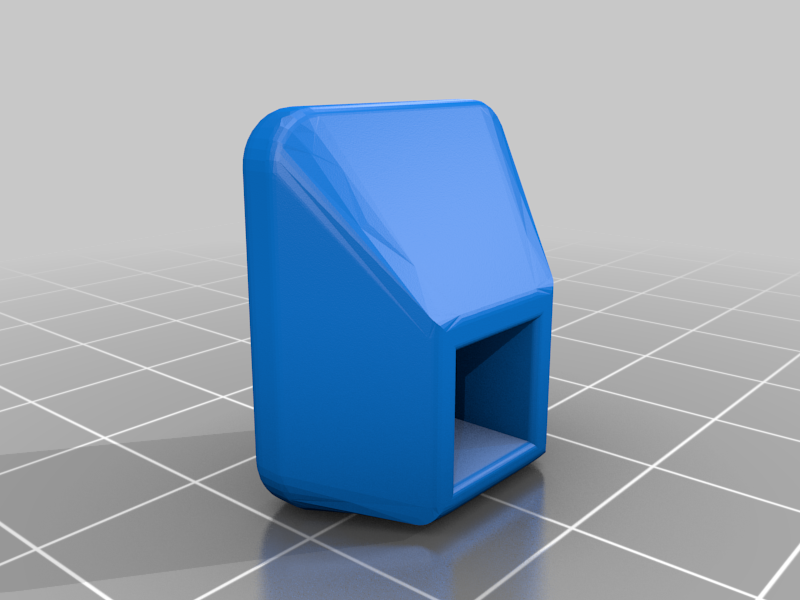

Retractible landing gear made from PZ15094M mounted on 12mm square tube on side of arm to fold next to the arm. Made to suit my hexacopter (link below), 50g per leg.
You need to remove the bottom plate (see photo) and re-use the srews on the top.
For the mount on the other side, just mirror the part in your slicer.

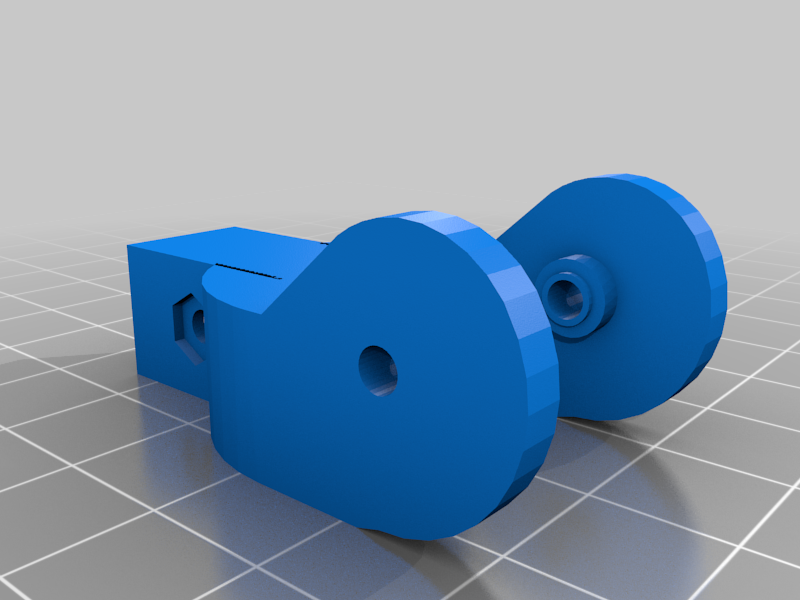

One M3 thread glued in the central hole of the pivot.
Two M3 screw for each side of the pivot, and two other for the mount on the drone arm.
Freecad files enclosed update as you want!

FR :
Train d'atterissage repliable fait à partir de PZ15094M monté sur tube carré alu 12mm de coté pour repliage le long du bras. Conçu pour mon hexacopter (lien plus bas), 50g par jambe de train dans cette configuration.
Pour la pièce de montage sur le bras du coté opposé, faite un effet mirroir sur la pièce dans votre slicer.
Vous devez démonter la plaque de fixation (cf photo) et ré-utuliser les vis en haut.
Un bout de tige fileté M3 collé et entrant dans le centre du pivot.
Deux vis M3 pour chaque coté du pivot, deux autres pour le montage sur la bras du drone.
Fichier freecad joints, modifiés selon vos besoin!

Made for Hexaltitude https://www.thingiverse.com/thing:4437316
