Reinforcement elevator servo of the 1:11 Freewing F-4 Phantom

Creation quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.


Licence CC BY-NC
Publication date 2023-01-28 at 17:11
Published to Thingiverse on: 2021-04-06 at 14:08
Design number 1034029
3D design format
Folder details Close
  • Freewing-F4-Hoehenruderservohalter.stl

Learn more about the formats

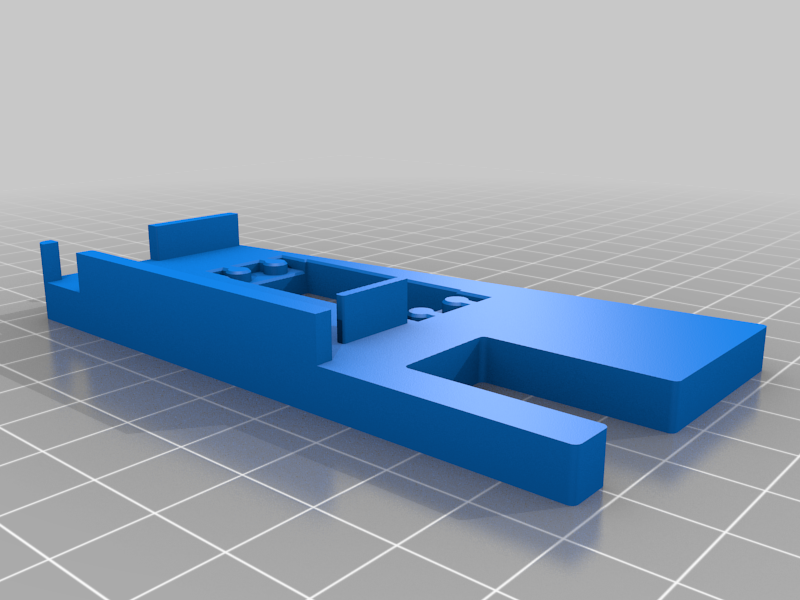

3D model size X 48.9 × Y 94.9 × Z 12 mm

3D printer file info

3D model description

Verstärkung für das Höhenruder Servo der 1:11 Freewing F-4 Phantom.
Da sich das Servo nach mehreren Flügen lösen kann, habe ich einen Rahmen konstruiert, der einfach mit Uhu-Por oder Sekundenkleber
über das installierte Servo geklebt wird. Dazu muss das Servo nicht ausgebaut werden. Die Passung des Rahmens ist schön stramm,
somit wird das Servo zusätzlich fixiert und kann sich nicht losvibrieren.
An der untere Epo-Abdeckung muss eine Kleinigkeit ausgespart werden. Mir war jedoch die Anbindung des Rahmens in diesem Bereich wichtiger.
Gedruckt aus PETG mit 0,2 Layerhöhe, 10% Infill ergibt ein Gewicht von 13 Gramm.

Reinforcement for the elevator servo of the 1:11 Freewing F-4 Phantom. Since the servo can come loose after several flights,

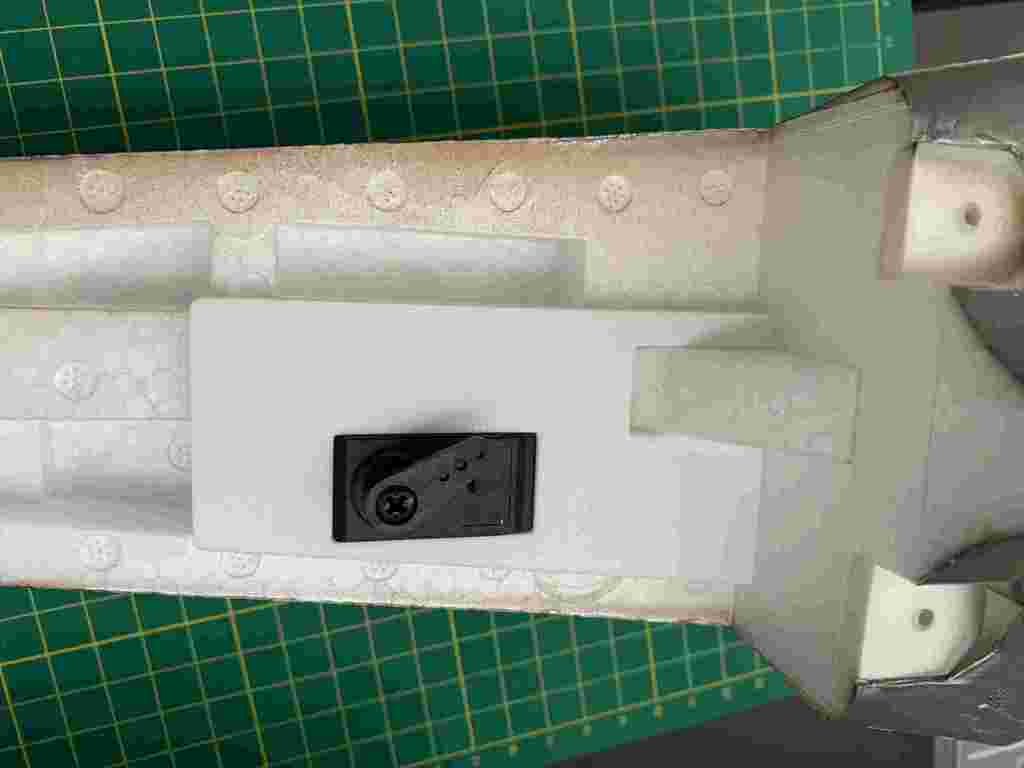

I constructed a frame that is simply glued over the installed servo with Uhu-Por or superglue.

The servo does not have to be removed for this. The fit of the frame is nice and tight, so the servo is also fixed and cannot
vibrate away. A small cut must be made on the lower epo cover. However, the connection of the framework in this area was more important to me.

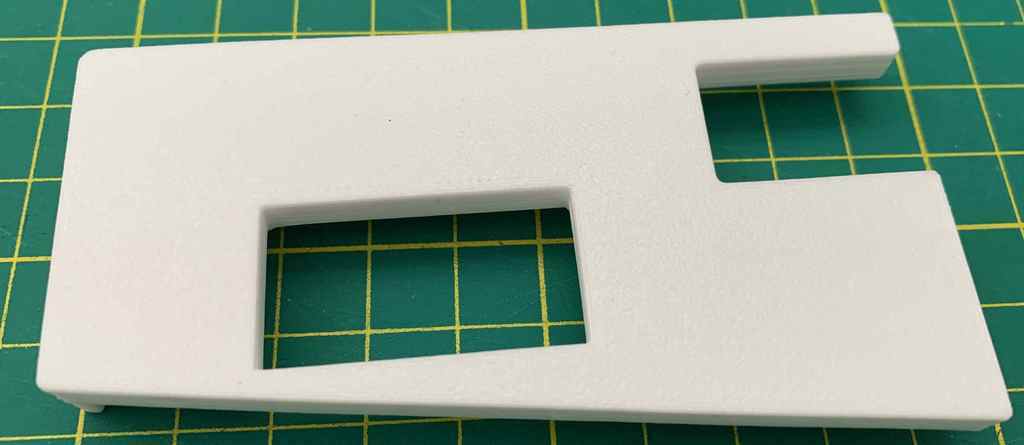

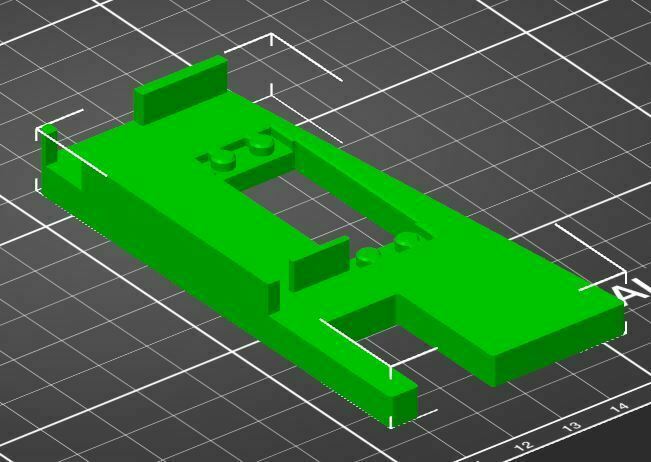

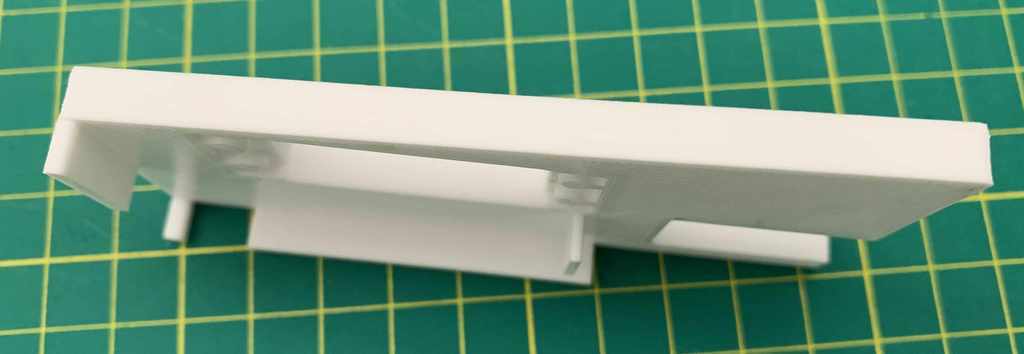

Printed from PETG with a layer height of 0.2, 10% infill results in a weight of 13 grams.
