"Red Duck" First Take Off of a fully printed flying wing.

Capture_d__cran_2015-08-18___14.18.40.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.17.55.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.19.02.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.19.18.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.19.30.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.19.47.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.19.57.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Capture_d__cran_2015-08-18___14.20.07.png Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fin_bottom.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fin_top.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_01.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_02_hood_flat.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_02_hood.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_02_mod_brim.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_05__brim.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_04.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_03.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_06.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_07.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
fuselage_spacer_118.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
holding_down_clamp.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
mountig_cover_plate.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
overview_split.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
rudder_162.6.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
rudder_horn_left.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
rudder_horn_right.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
servo_insertion_left_MPX.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
servo_insertion_right_MPX.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_back_end.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_back_middle_left.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_back_middle_right.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_back_servo_left.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_back_servo_right.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_back.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_front_750_pleat.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_front_middle_left.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_front_middle_right.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_front_pleat.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_front.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_middle_back_end.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
wing_spar_box.stl Free STL file "Red Duck" First Take Off of a fully printed flying wing.・3D printable object to download
Share
Add to
Make
?
Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

Designer

wersy

wersy

3D model description

My intention was to design a plane up to 3 m wingspan without strengthening by carbon tubes - that means 100% printed.
But I had to stop at 1,35 m because the wing reached already a weight of almost 1,1 kg. My small motor which I used already on my sail plane wouldn't last for much more weight.
Additionelly I thought a flying wing would make less problems to get the CG forwards, because of the short tail. But again I got the same trouble. The big mass of the wing pushed the CG backwards, so I was forced to add a spacer on front. This makes the plane looks a bit like a duck ;-)
Nevertheless I fasten the wing ends just with tape to have the ability to extend the wing span at any time.

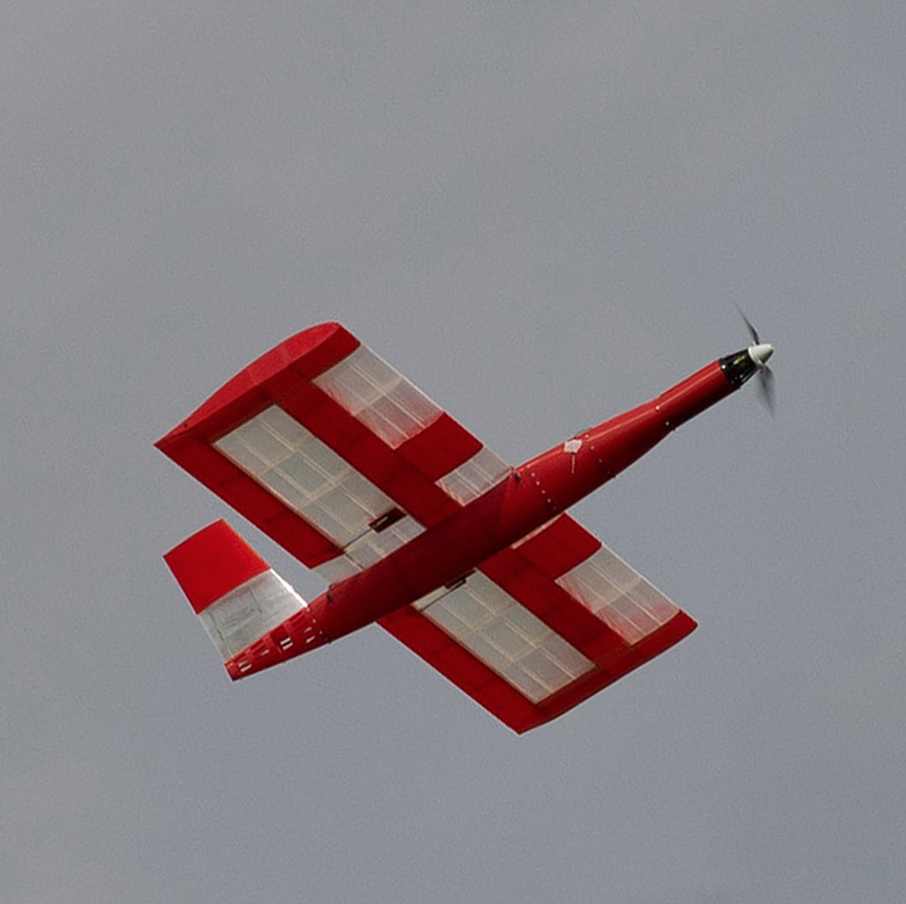

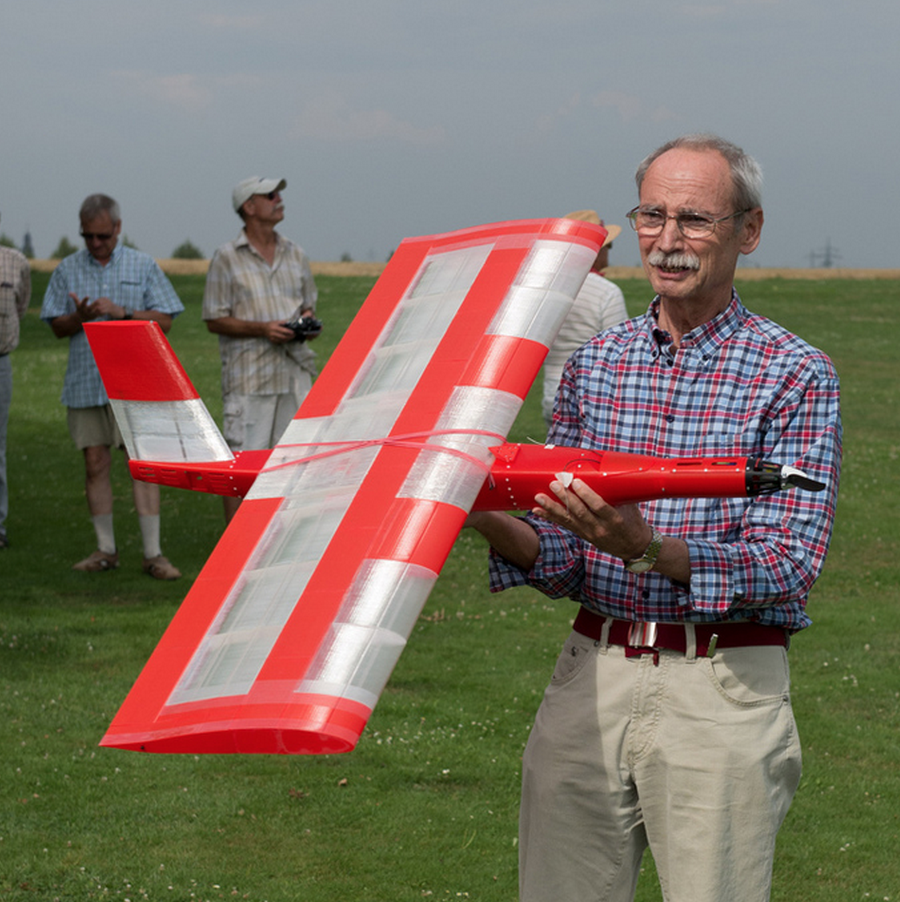

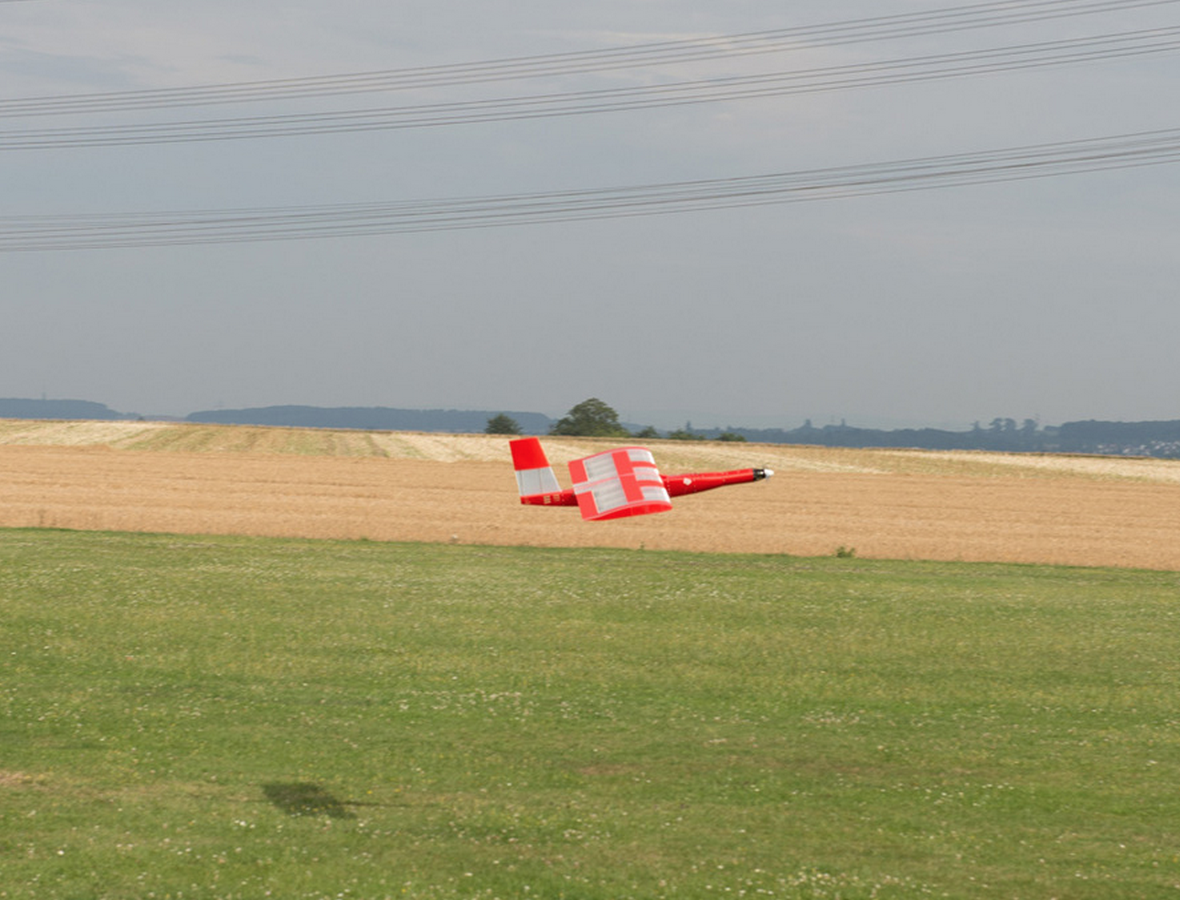

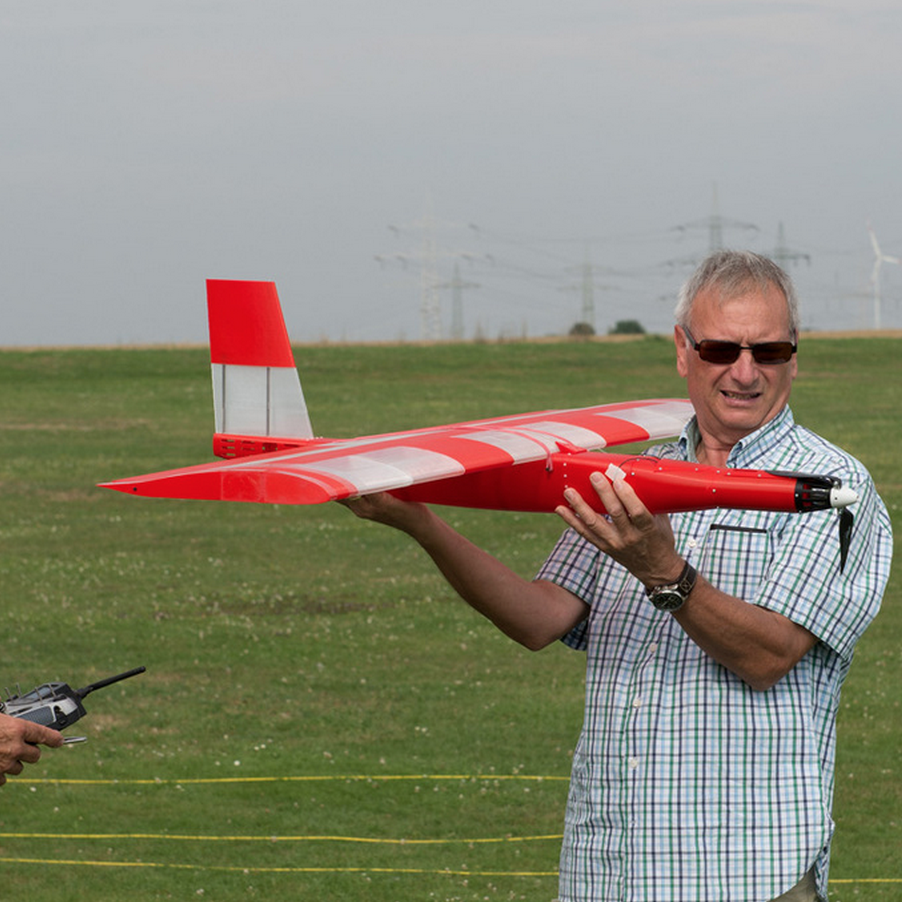

Uli Richter - a long standing pilot of the Lufthansa and very experienced in building and flying air plane models - was so kind to fly my wing plane. He had absolutely no problems and showed us immediately a fully acrobatic flight show. Thank you very much for the wonderfull flights!
It was not so easy to follow with the camera all the unexpected maneuver in flight. Therefore the video can't give by far the impression as it was in reality.

http://youtu.be/c6Udkt3NSK0
My Club: http://hackerspace-ffm.de/

3D printing settings

Specifications
wing span: 1350 mm
wing chord: 336 mm
aerodynamic center: 78.1 mm
aerodynamic center 5% stability: 61.3 mm
wing profil: Clark YS
wing overall weight: 1100 g
wing area: 45,36 dm²
fuselage overall weight 680 g
wing loading: 39,2 g/dm²
directional stability (Thies) STFs: 38
motor: Robbe Roxxy BL Outrunner 2834-08
propeller: Aeronaut CAM 10 x 6”
static thrust: 1100 g (3S Lipo)
Print and Material
print time wing: 81 h
print time fuselage: 35 h
used PLA: 1.4 kg
.
Update 2014/09/29
"fuselage 02 brim.stl" replaced by "fuselage 02 mod brim.stl"
The lower edge of the border is rounded for easier printing.
.
The next days I will give more information.
