Mini RC Twin Jet Boat 200

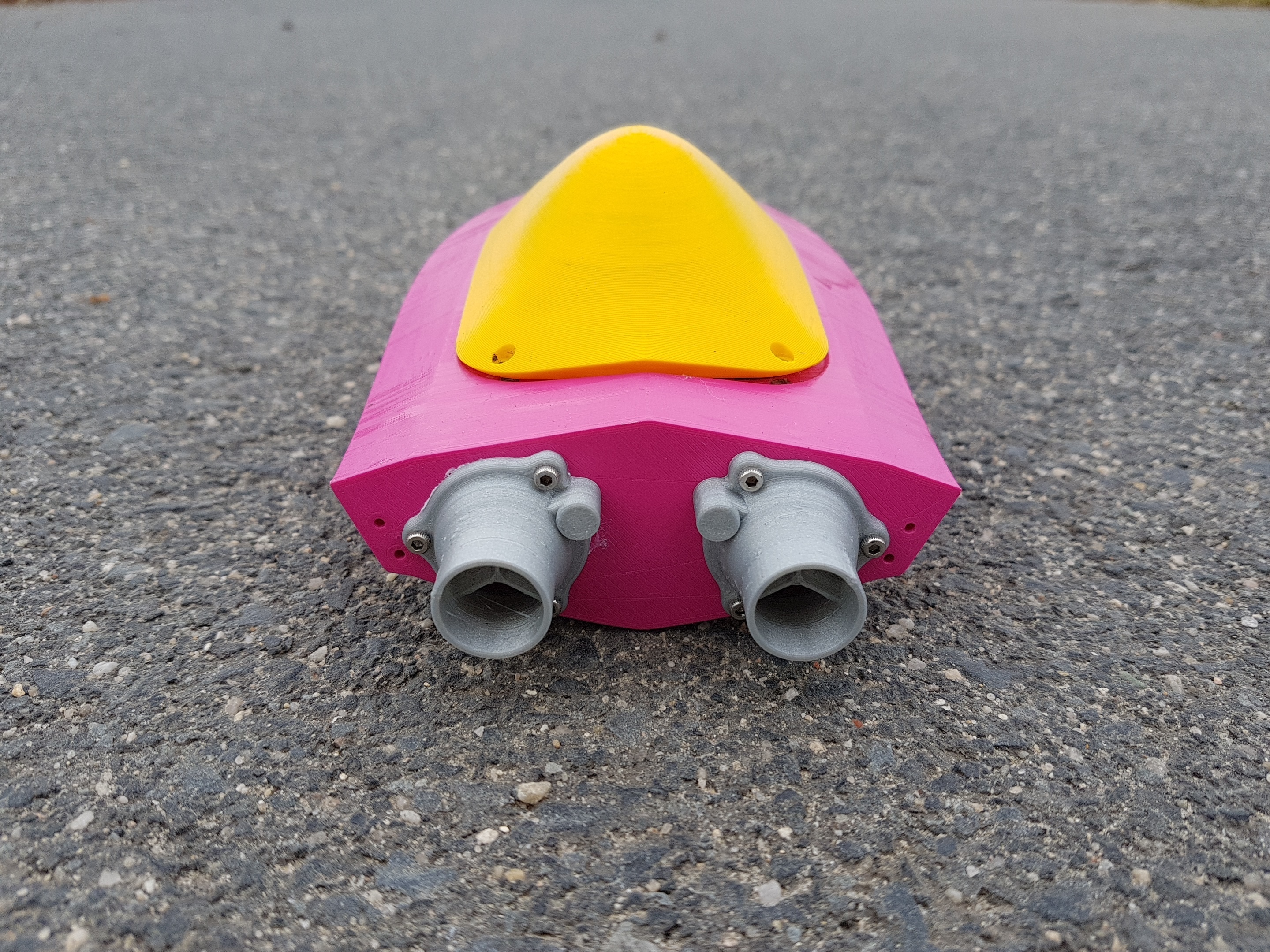

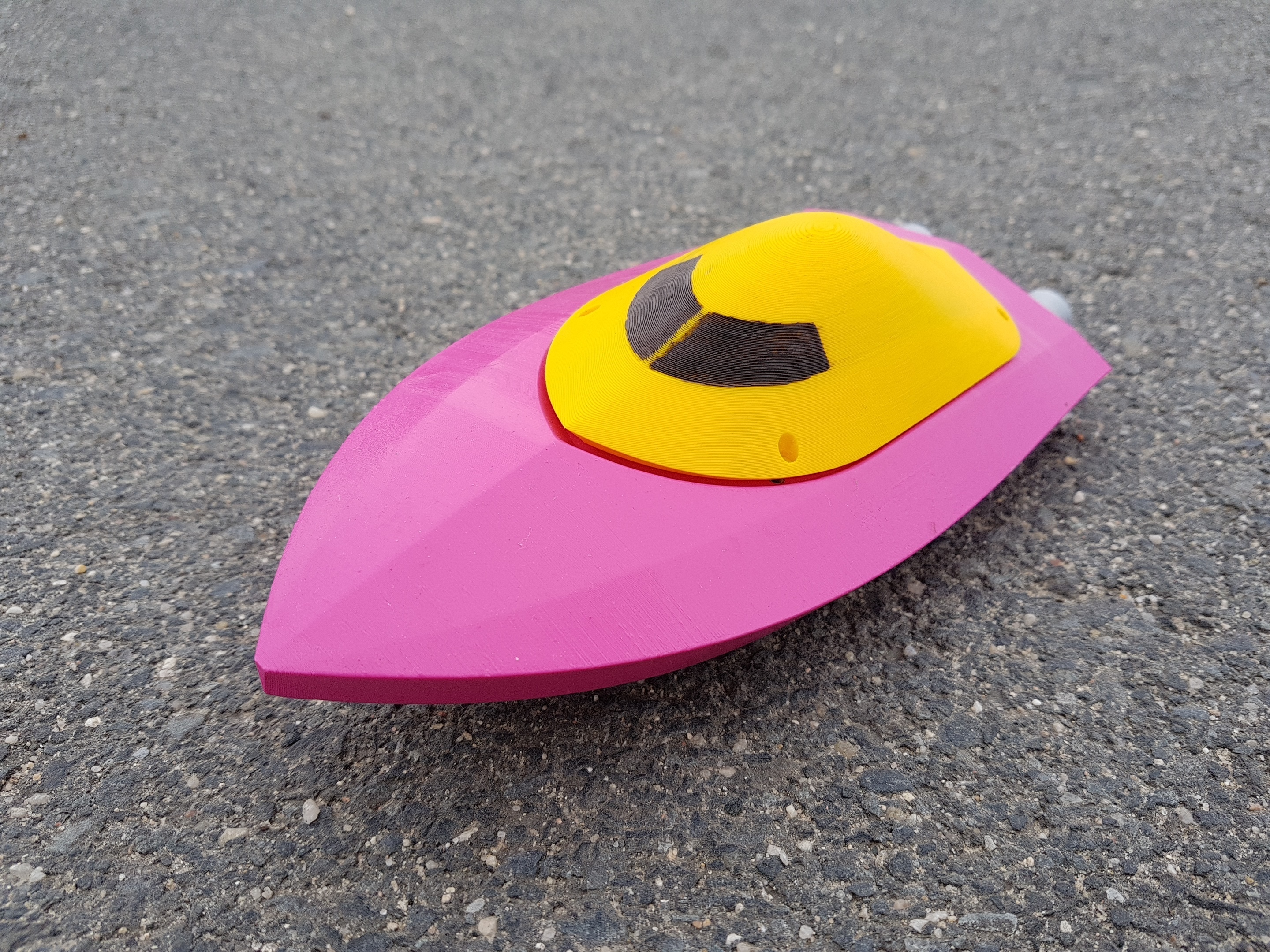

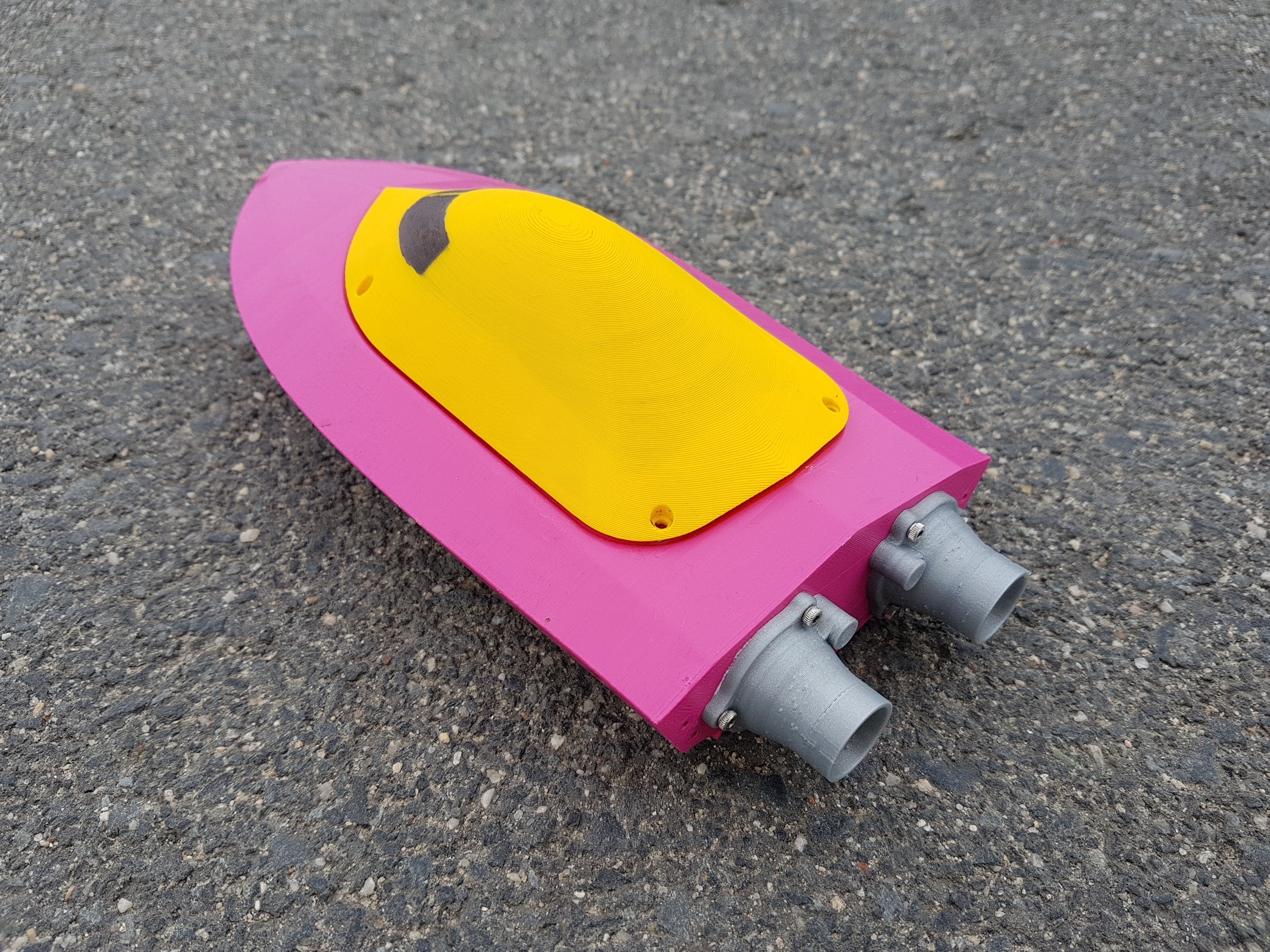

Boat full Size with Stator and Nozzle 230x80x50mm

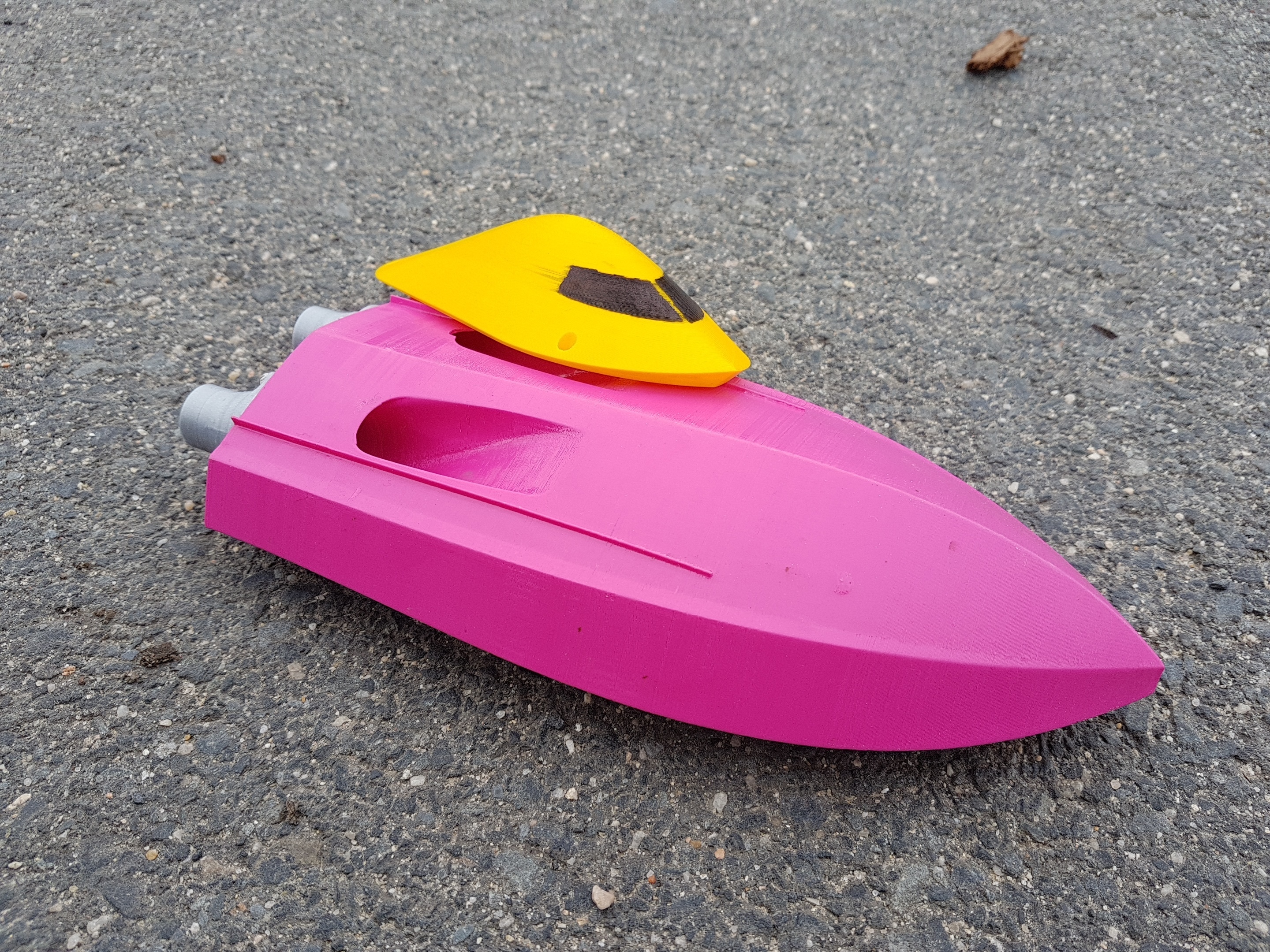

Boat Size without Stator and Nozzle 200x80x50mm
You need a 3D printer with a print-high of >200mm.

Follow us on Cults3d and on Youtube to get notice of a New Upload!
The first Downloads of every New Upload are free.

RC controlled Mini Jet Boat 200 Mono
RC controlled Mini Jet Boat 200 Twin
RC controlled Mini Jet Boat 300 Mono
Take this model, if you only need the Water Jet Drive
For beginners, i recommend to start with RC Jet Boat 200 Mono or the Jet Boat 300 Mono

Video:

• 3D printed RC Twin JET Boat
• 3D printed RC JET Boat with JET Drive - Testing
• 3D printed RC JET Boat with JET Drive - Assembly
• How to Replace Brushless Motor Shaft

Parts:

• 6x screw headless M2x3mm (propeller)
• 6x screw inbus M2x8mm (3x jet nozzle, 1x oil)
• 12x screw inbus M2x6mm (4x cover, 4x electronic, 4x motor)
• 8x insert M2x3mm heating brass insert, 4x cover, 2x electronic mount
• 1x seal Moosgummi Foam rubber cord 2x200mm
• 2x battery 18650 3400mah 3.7V or 18350 1500mah 3.7V
• 1x balancing cable 500 mm RC Servo cable
• 2x drive Littlebee 20A ESC
• 1x drive Recom R-785.0-0.5
• 2x drive motor DYS BE1806 2300KV or 4 pcs Motor other motors also possible, diameter max. 23mm, length ca. 18mm, screws 16mm
• 2x drive longer motor shaft 2x30mm
• 2x drive rod 2x100mm
• 2x drive shaft coupling, motor 2mm to rod 2mm
• 4x drive Brass bearing 52B 2.05x5x2.4mm, OD 5mm or MR25ZZ (4.50€)
• 1x drive jet bearing, brass tube OD 3mm, ID 2mm (drive rod Length 3mm)
• 1x Battery Lipo Charger iMAX B6 charger (optional)

Brushless Motor

• 2x drive motor DYS BE1806 2300KV or 4 pcs Motor other motors also possible, diameter max. 23mm, length ca. 18mm, screws 16mm
• 2x drive esc Emax 20A BLHELI ESC

Brushed Motor

• 4x screw inbus M2x4mm (2x motor)
• 2x drive Brushed motor 180
• 1x drive Brushed Dual ESC 20A

My RC Controller (example)

• 1x Transmitter FrSky Taranis X9D Plus 2.4G
• 1x Receiver Mini Frsky D8 2.4G 4CH

or

• 1x Transmitter FLYSKY FS-i6X i6X 2.4GHz
• 1x Receiver Flysky i6 i6X i6S

Is it waterproof ... YES!

• Watch the video RC MiniMono Boat - 3D printed Jet Drive UNDERWATER! After that, there was no water in it!
• If your print of the hull is good, it should be waterproof. But, if you want to be safe, you could still paint it with a thin layer of car clear coat. I tried both variants and it works very well.
• The drive shaft of the boat is sealed between two plain bearings with a lubricating seal.
• The cover is sealed with a 2mm cord of foam rubber

Update

• 20200827 added sticker decoration as svg and pdf
• 20200630 update coord system of boat_cover.STL
• 20200611 update esc and motor part list
• 20200430 upload

Object License - Standard Digital File Store License

• Remixing Not Allowed
• Commercial Use Not Allowed
• Add Credits To Designer When Sharing Links, Photos and Videos of Objects

Show me your makes.

Discover my other jtronics designs on cults3d

Website: http://www.jtronics.de/
Instagram: https://www.instagram.com/jtronics.de/
Youtube: https://www.youtube.com/jtronicsTV
Twitter: https://twitter.com/jtronics2
Facebook: https://www.facebook.com/jtronics.de/

slicer: cura (please take cura, Don't take slic3r!)
Nozzle: 0.4mm
wall: 3 Perimeter
support: only for cover
Optimize Wall Printing Order: Yes
Fill Gabs Between Walls: No
adaptive layers: Yes with Layer: 0.10 to 0.20mm
material: PLA
infill: no (only for cover)
Infill Travel Optimization: Yes

Not to fast! Print the parts with about 30mm/s, to get a good layer connection. (It depends on the quality of your printer)
not to hot, because of dropping nozzle PLA 205*C
