Rainbow Tippe Top

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.2k views
  • 15 likes
  • 101 downloads

3D model description

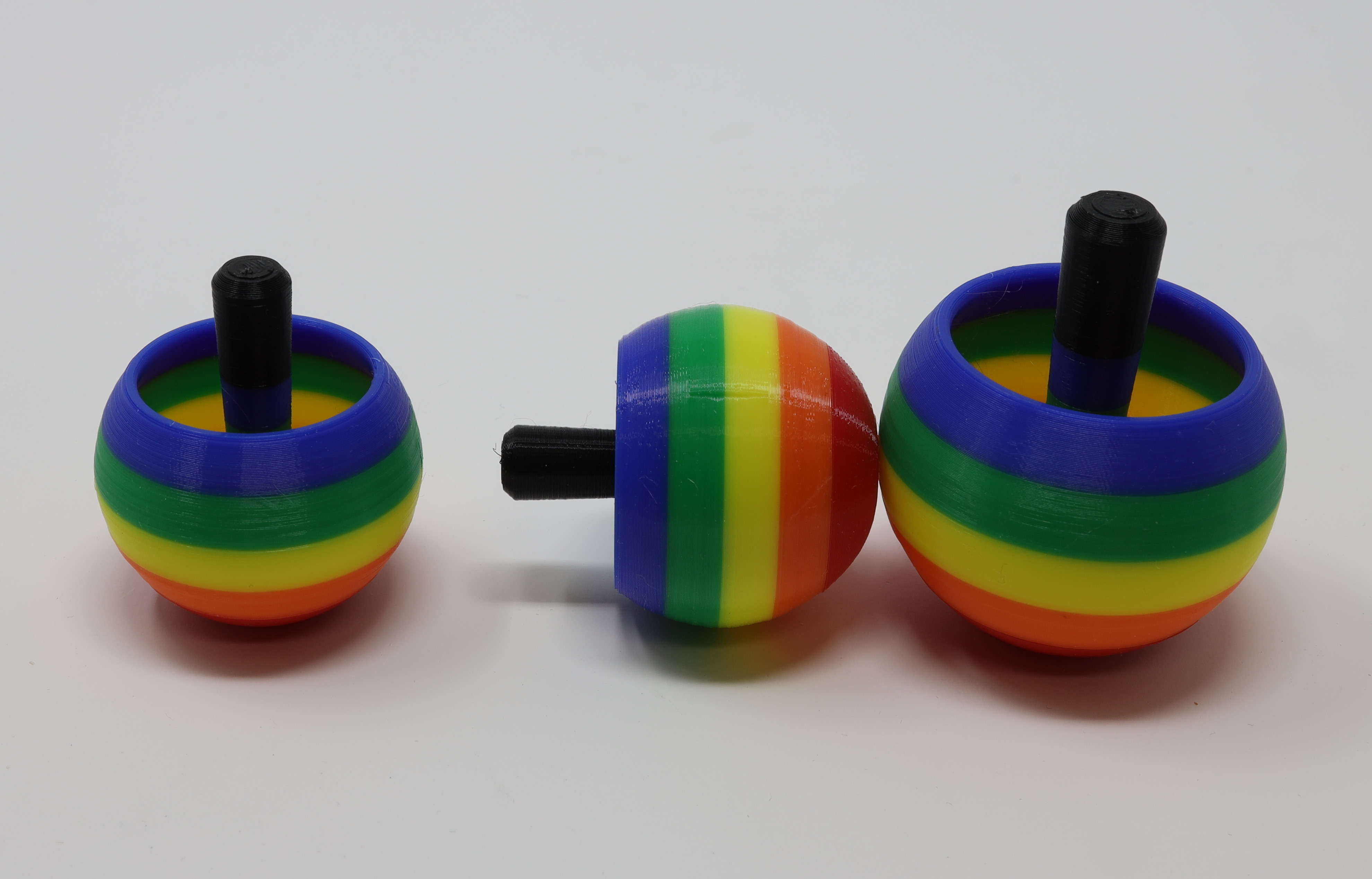

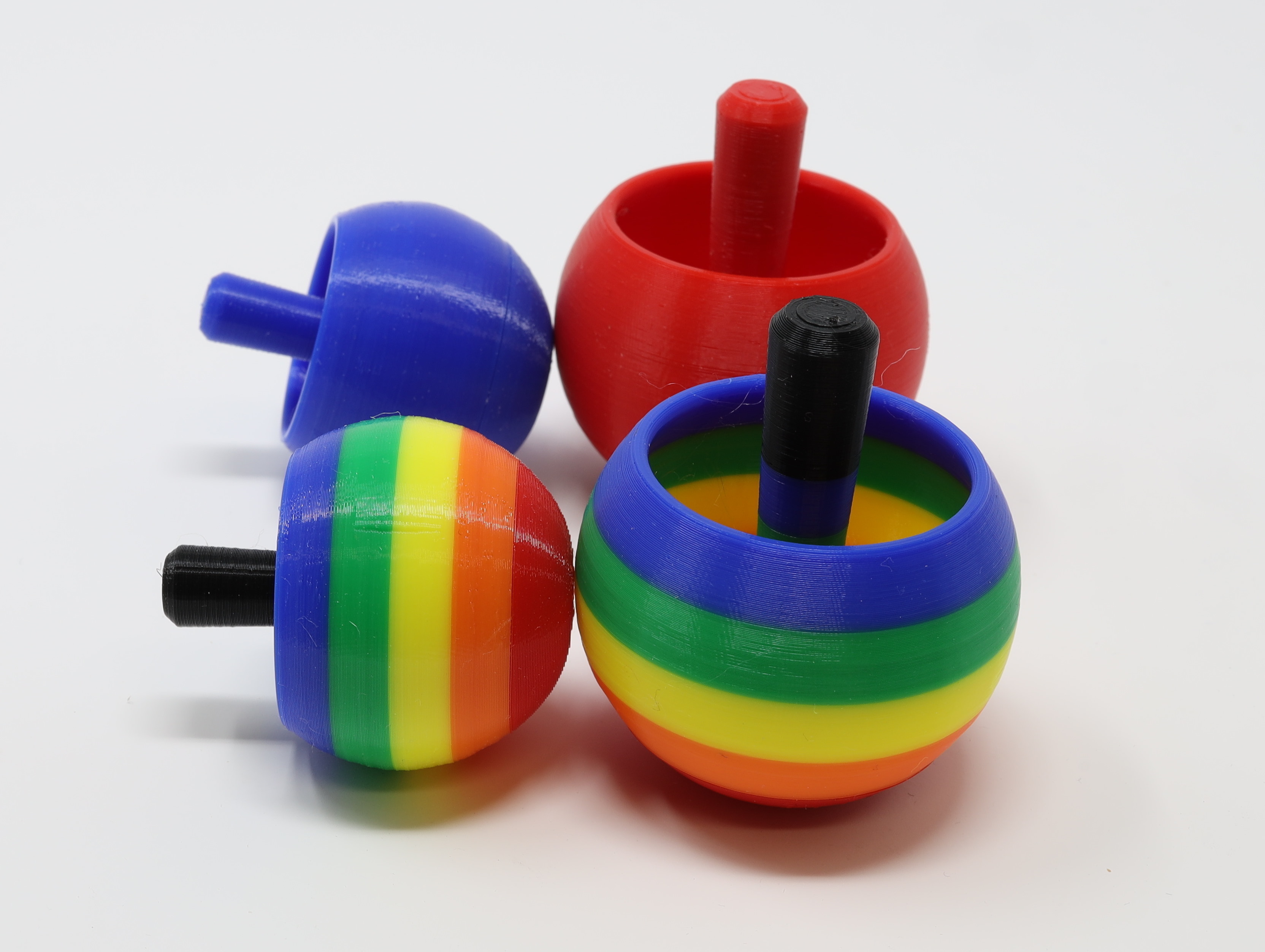

This is a modification of "Top Notch Tippe Top" by Shawn Gano, https://www.thingiverse.com/thing:3053074 which prints easily with NO SUPPORTS. The standard version takes about 75 minutes to print, the large version (scaled 125%) takes twice as long. Each model is composed of two pieces (Tip and Body). You can print this model in a single color (easy) or in multiple colors (requires filament changes during printing or a multi-material printer).

The Tip is only 5.6 mm thick and concave downward, if your build plate is not flexible or removable you may have difficulty detaching this from your build plate. In that case You may want to try one of the build options for "Top Notch Tippe Top".

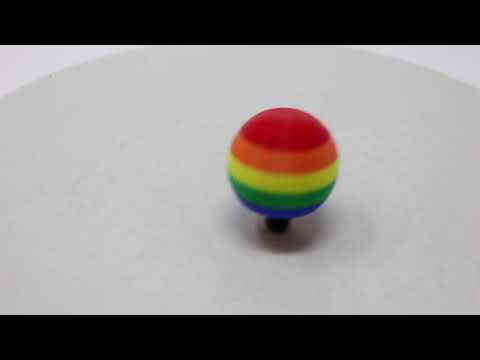

https://youtu.be/YFPkkV2Pw0E


3D printing settings

If you are printing in one color, print the two halves together in the orientation in the files. I use 15% infill. No supports are needed. If you are printing the rainbow version, see the README file for details on the color switches. It is much easier to print this top in a single color.

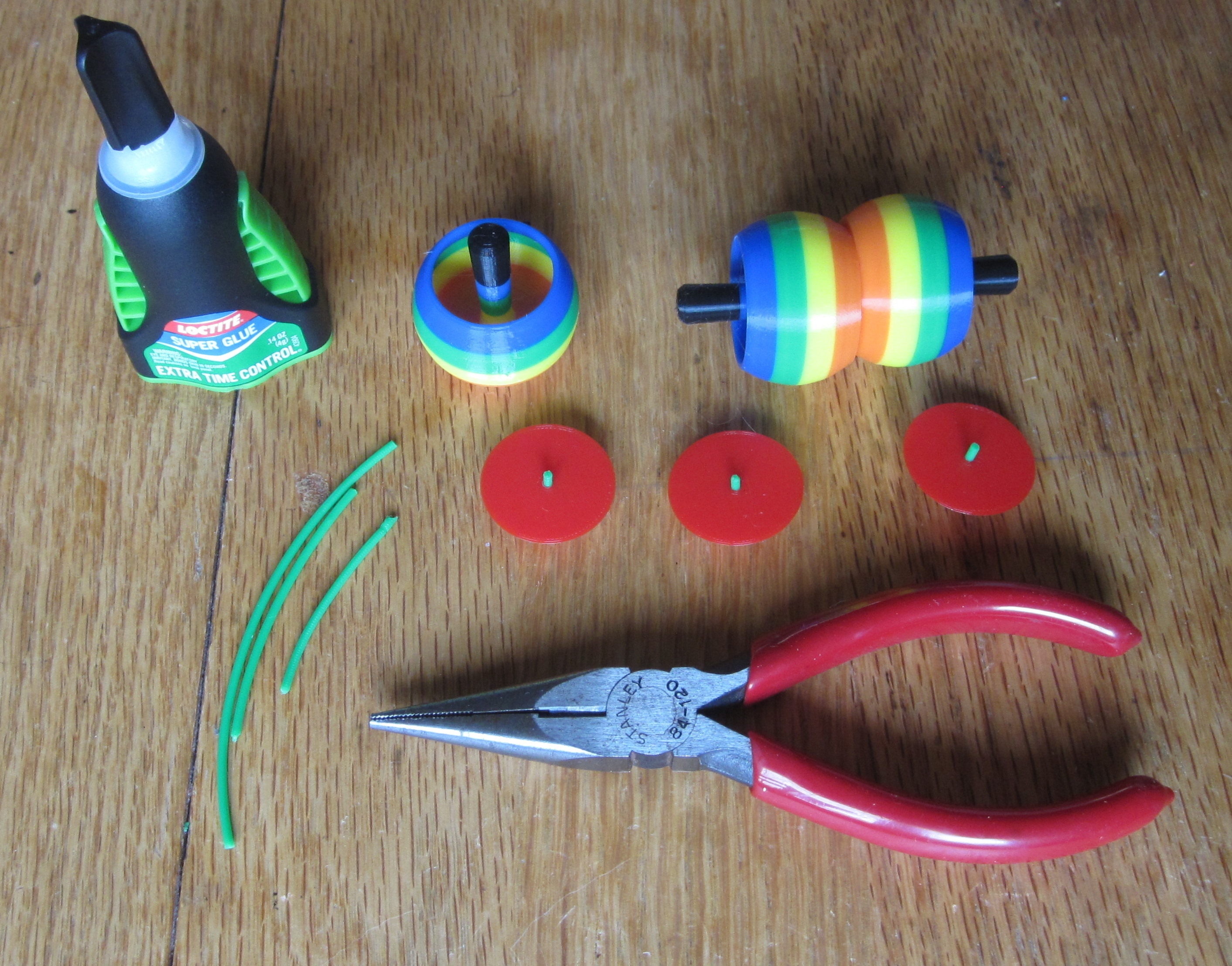

The two halves contain 2 mm diameter alignment holes for gluing together. I recommend superglue. Snip off a short length of filament, less than 1 cm long. Insert into the holes to align and glue.

3D printer file information

  • 3D design format: 3MF, STL, and TXT Folder details Close
    • README.txt
    • RainbowTippeBody.3mf
    • RainbowTippeBody.stl
    • RainbowTippeLargeBody.3mf
    • RainbowTippeLargeBody.stl
    • RainbowTippeLargeTip.stl
    • RainbowTippeTip.stl
  • Last update: 2020/01/27 at 10:53
  • Publication date: 2020/01/22 at 11:41

License

CC BY NC
