Quad frame

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 258 views
  • 4 downloads

3D model description

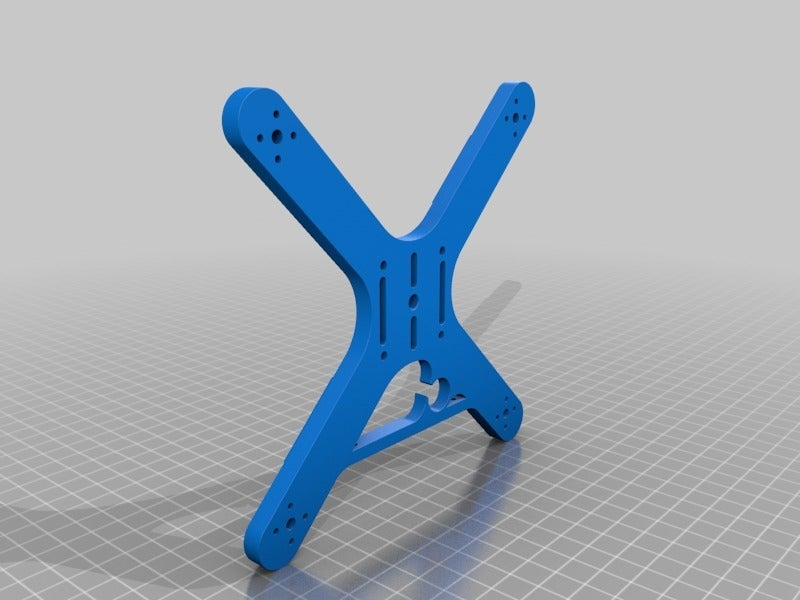

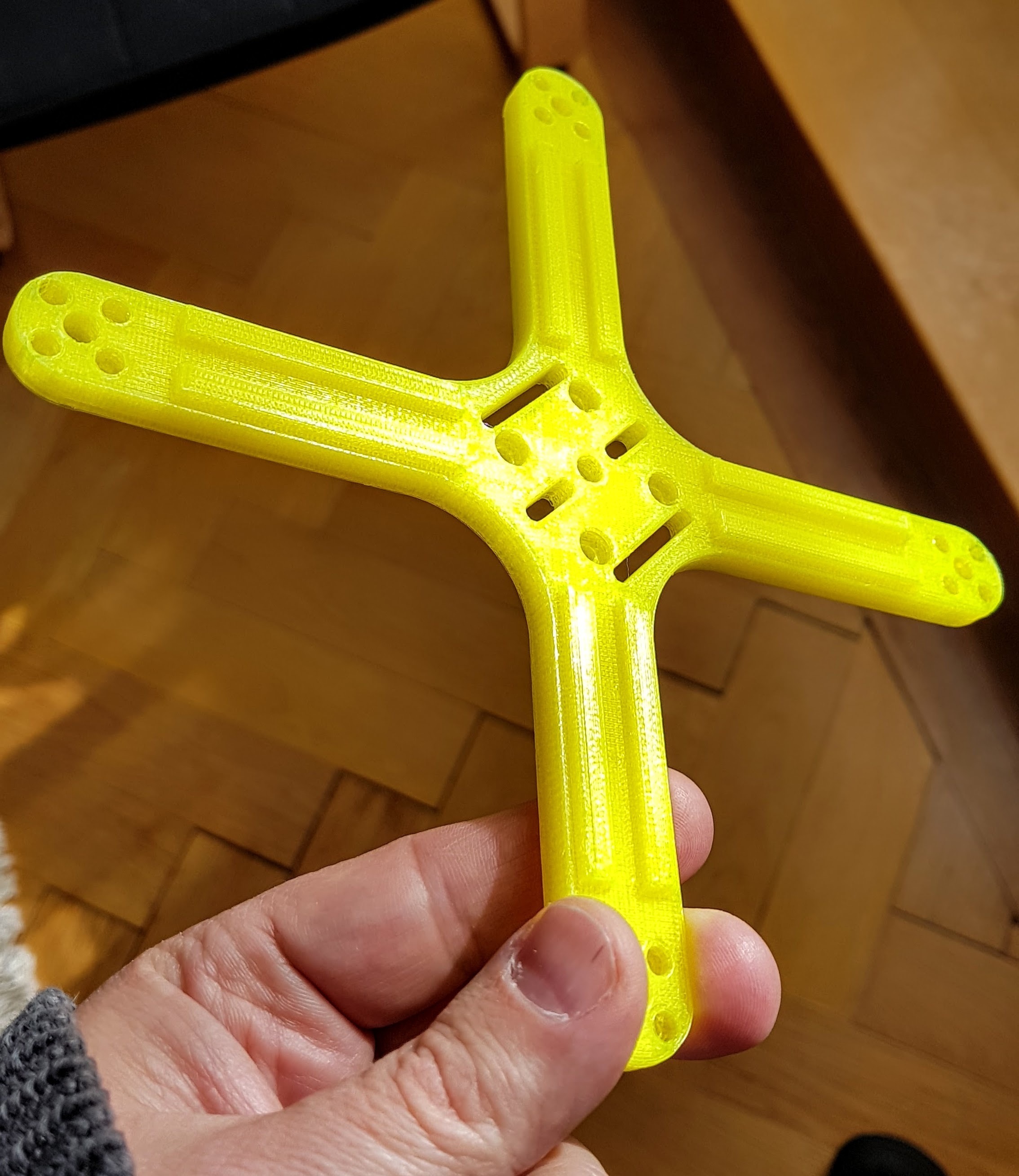

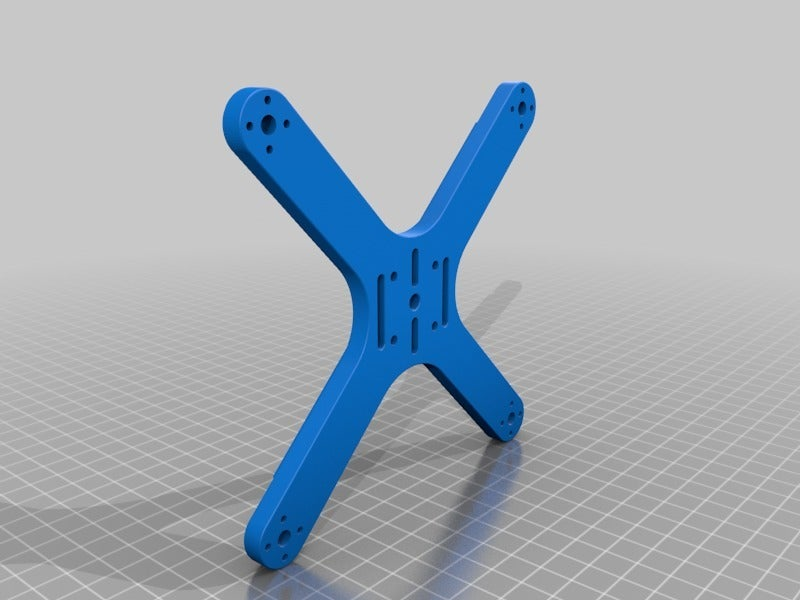

160mm quad frame
About 250gr with a 3s 800mah lipo and FPV gear
PLA : 50% infill
TPU : 50% infill

Flight control : Piko F4 8/8khz Dshot 600
Motors : RCX H1306 3100KV (holes for motors : 12mm M2)
Cam Foxeer
Vtx: TS5823
Props : 4x4.5
RX: Frsky XSR
Lipo : 3s 800 mah

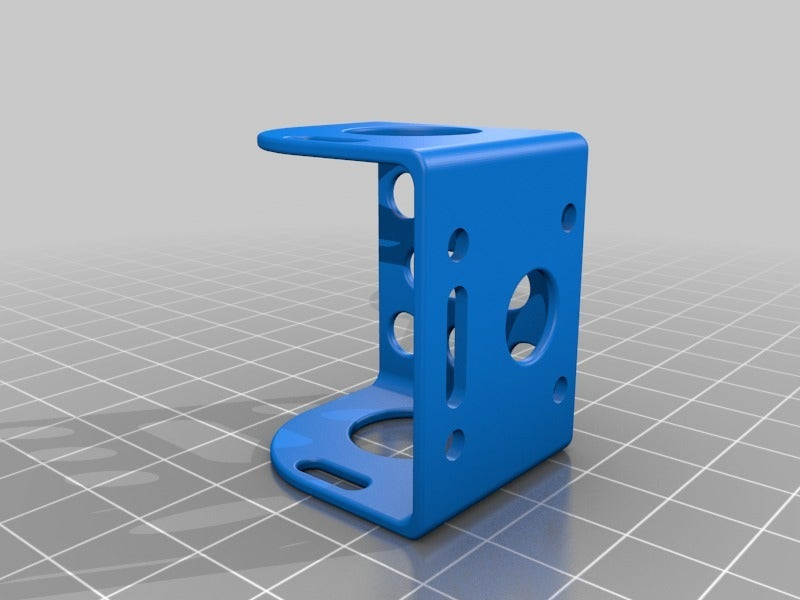

24.12.2017 New frame for 30.5 x 30.5mm fc with buzzer holder. !! Cam holder is for 20 x 20mm fc!!

  • 3D file format: STL

Tags

Creator

License

CC BY
