Printed truck: Driveshaft

?
Creation's quality: 5.0/5 (2 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 2.1k views
  • 9 likes
  • 151 downloads

3D model description

This will work with both Truck V1 and truck V2

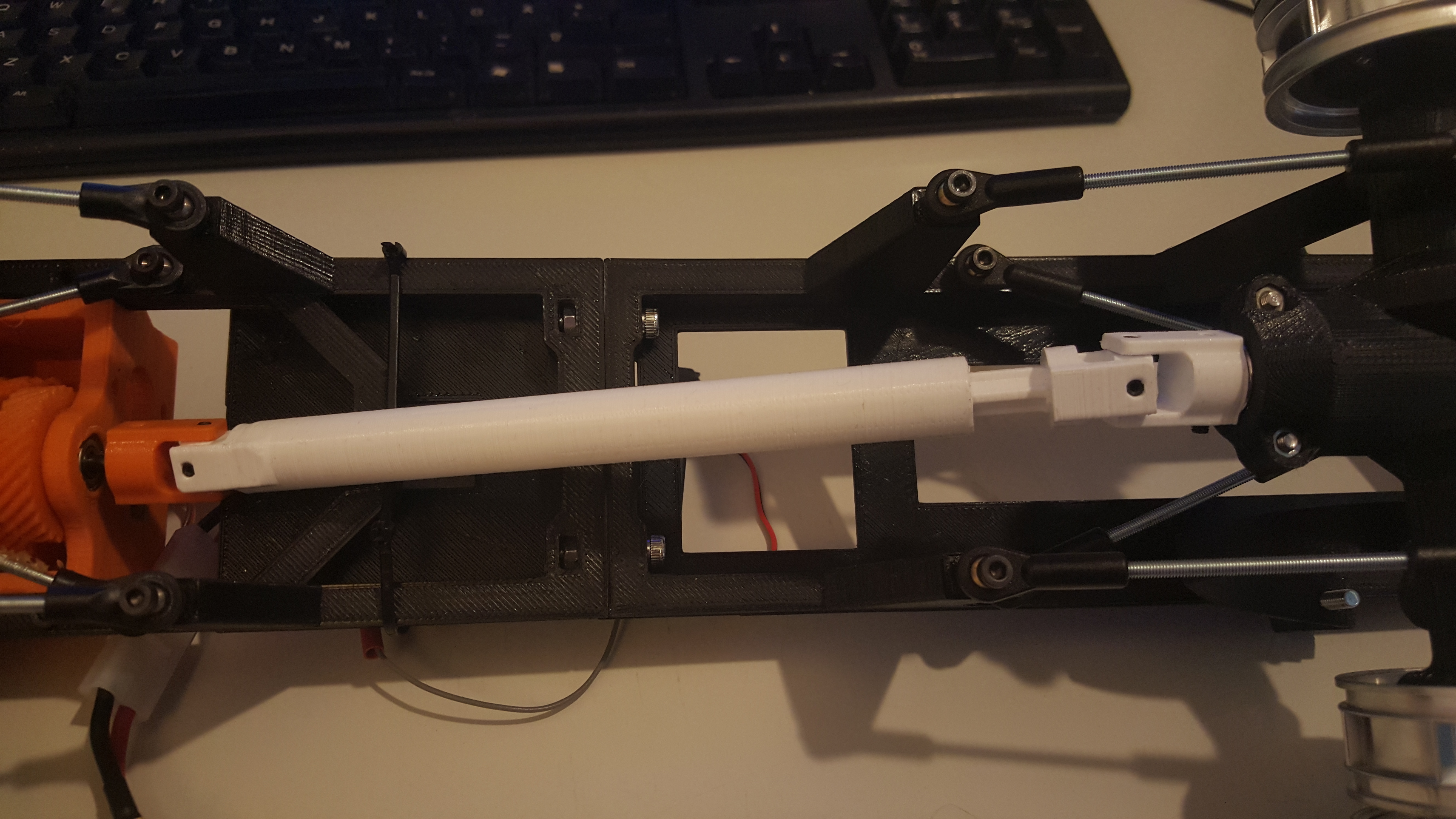

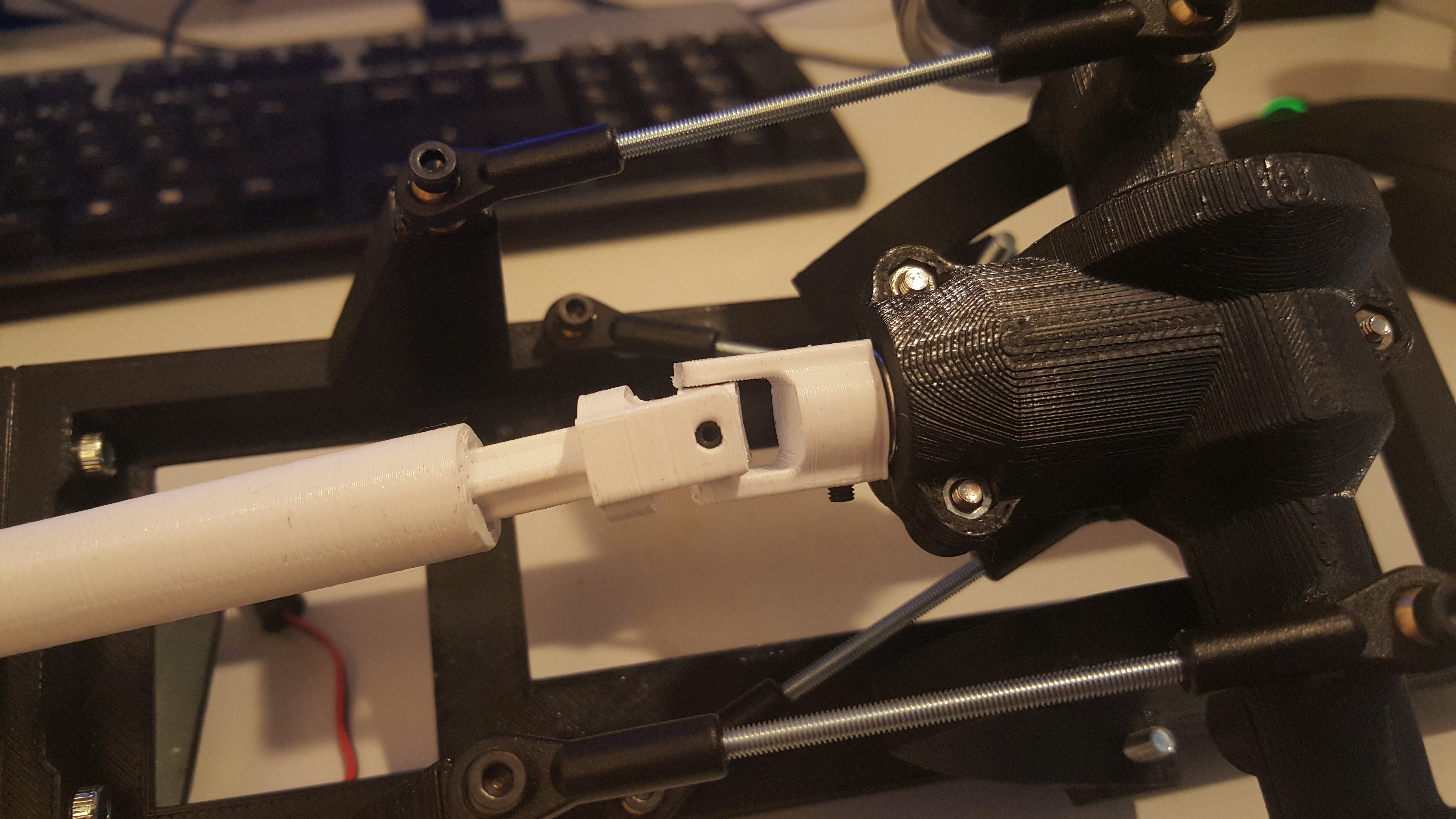

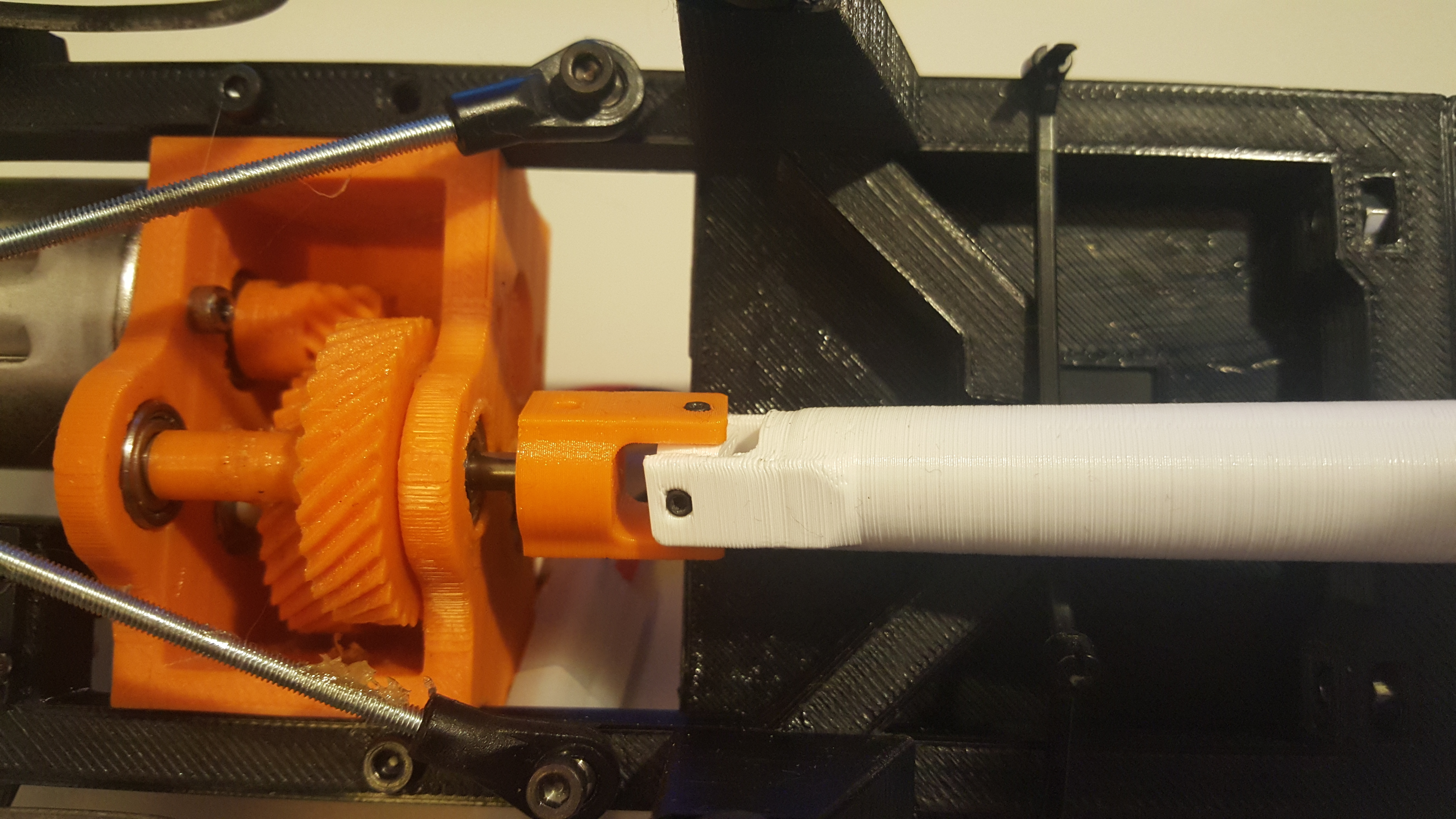

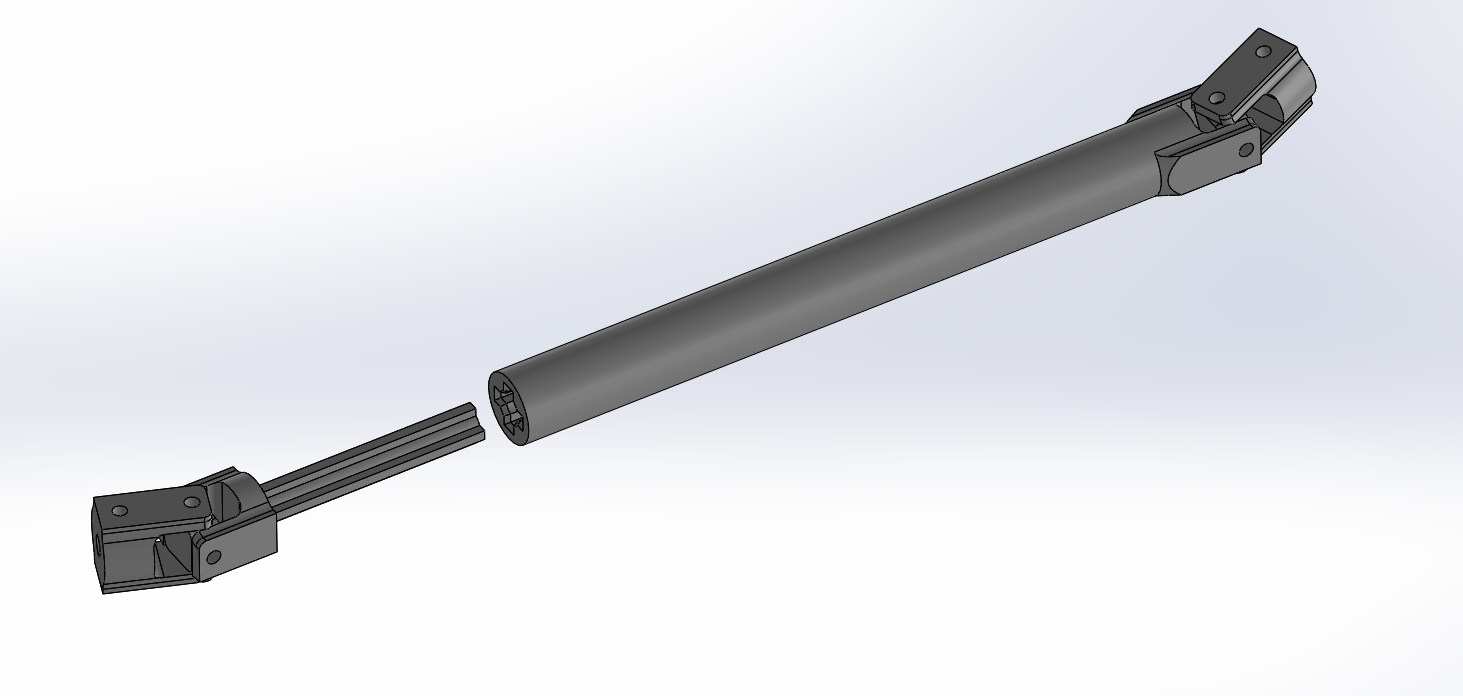

Telescope driveshaft to go along with the helical gearbox. Input for 4mm shaft at either side, screw the joints together with 3mm grubscrews. 4mm long ones will work but 6-8mm is probably better.

You can see a demo of the complete truck here:
https://www.youtube.com/watch?v=rr9fuMH2_O4

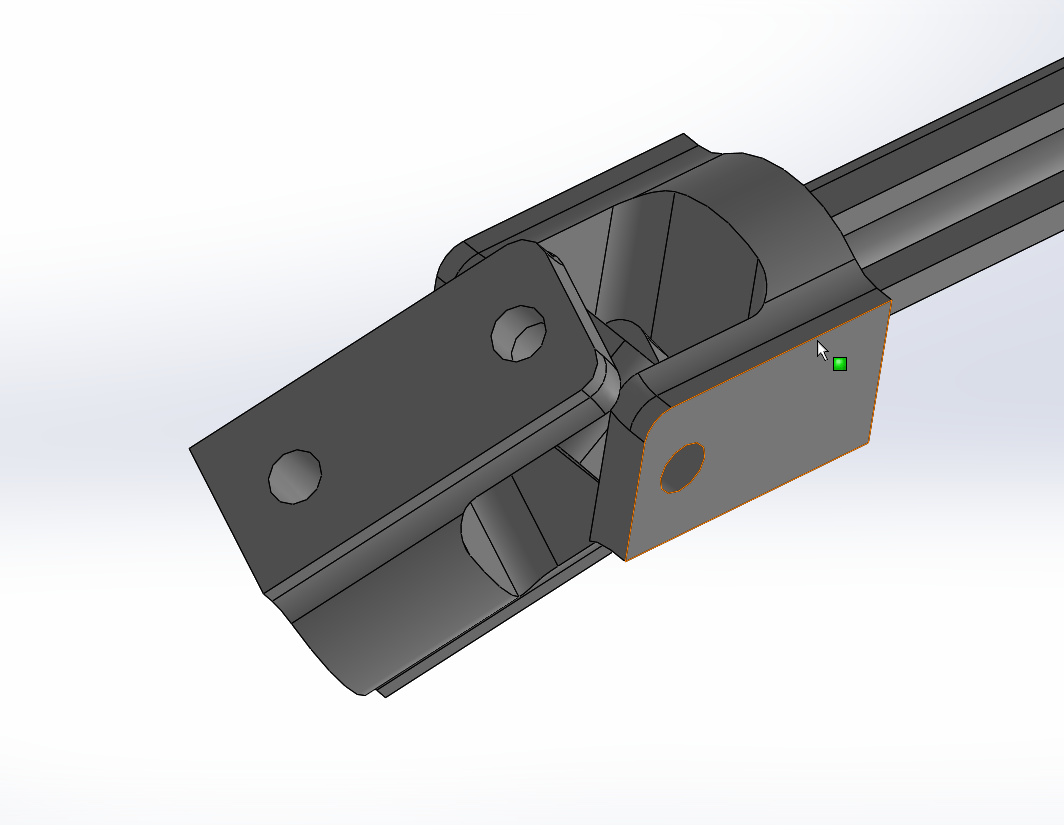

Edit 2016-03-12: Added U-joint1_PIN.stl, this is the same as U-joint1 but with a 1.5mm hole for a through-pin instead of grubscrews, this seems to work better on the output shaft from the gearbox. Requires drilling through the metal shaft so it's a bit more work.
Edit 2016-04-24: Reinforced U-joint1 and U-joint1_PIN a bit, also added a longer u-joint3b.
