PLA Spring Motor Windup Helicopter

Creation quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

How better to "wind up" the helicopter series than with a Windup Helicopter!

All components, including the spring, are printed in PLA.

Video of prototype is here:

Designed using Sketchup Make 2015, and printed in PLA on a Makerbot Replicator 2 using Makerware "Standard" Settings (.2mm layer height, 2 shells, 10% infill).

3D printing settings


Doesn't Matter


Doesn't Matter




10% with exceptions

When printing "Chassis.stl", "Nose.stl", "Fuselage.stl" and "Tail.stl", supports may be required depending on your printer and printer settings. My prototypes printed fine without supports.

Print "Key.stl", "Spring.stl" and "Axle Spring.stl" with 100% infill, remaining parts with 10% infill.

Study "Assembly.skp" or "Assembly.stl".

Print all pieces as shown in "Assembly.skp" or "Assembly.stl". Supports are optional, depending on your printer and settings, for printing "Chassis.stl", "Nose.stl", "Fuselage.stl" and "Tail.stl". My prototypes printed fine without supports. Print "Key.stl", "Spring.stl" and "Axle Spring.stl" with 100% infill, remaining parts with 10% infill.

Test fit and trim, file, sand, etc. all parts as necessary for smooth movement of moving surfaces, and tight fit for non moving surfaces. Depending on the colors you chose and your printer settings, more or less trimming, filing and/or sanding will be required.

Place wide rubber bands around the circumference of all wheels for traction.

Assemble as shown in "Assembly.skp" or "Assembly.stl". Start by assembling the entire chassis except for the rotors, their gears and the body parts ("Nose.stl", "Fuselage.stl" and "Tail.stl"). Next, attach "Fuselage.stl" onto "Chassis.stl", then add the rotors and their gears, and finally, attach "Nose.stl" and "Tail.stl" onto "Chassis.stl".

Apply light machine oil on the moving parts.

Once fully assembled, tested and aligned, a small dot of thick cyanoacrylate glue between the gears and axles will aid in holding the gears in position.

If you desire a more "grandkid / youngster" proof toy, I recommend printing the rotors and axles at 100% infill.

Feel free to comment if you have questions.

Hope you like it!

3D printer file information

  • 3D design format: STL and ZIP Folder details Close

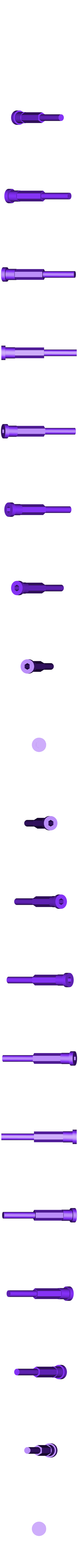

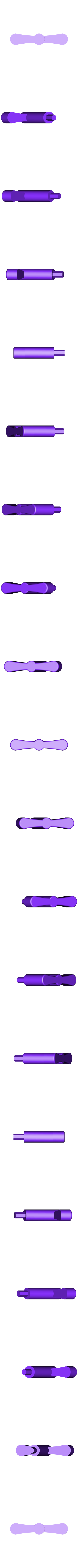

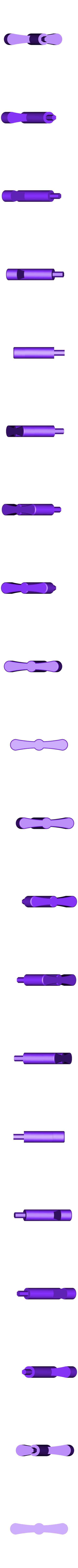

    • Axle_Drive.stl
    • Axle_Main.stl
    • Axle_Spring.stl
    • Chassis.stl

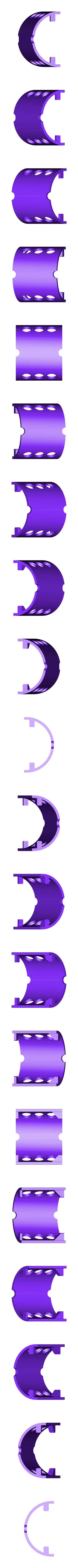

    • Fuselage.stl

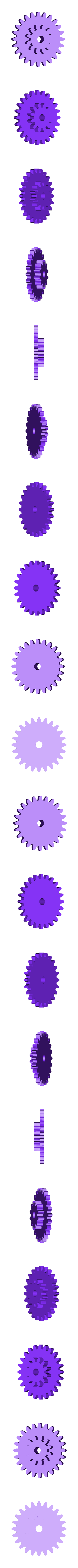

    • Gear_Axle_Wheel.stl

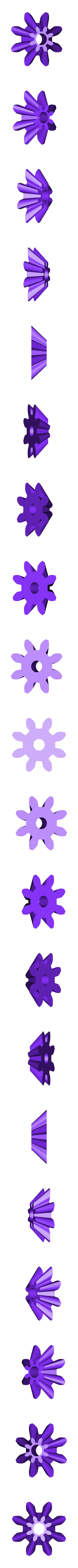

    • Gear_Bevel_Drive.stl
    • Gear_Bevel_Rotor.stl

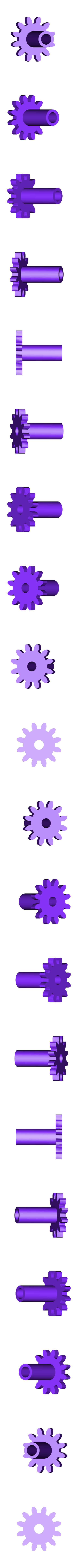

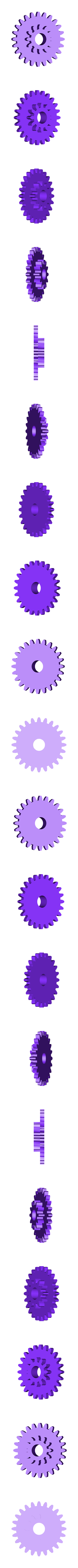

    • Gear_Drive_Front.stl
    • Gear_Drive_Rear.stl

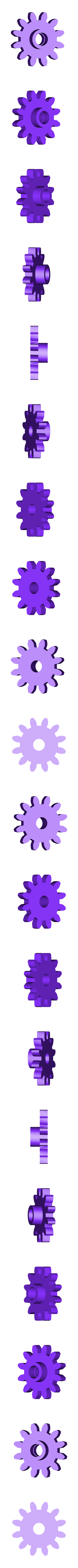

    • Gear_Idler_1.stl
    • Gear_Idler_2.stl

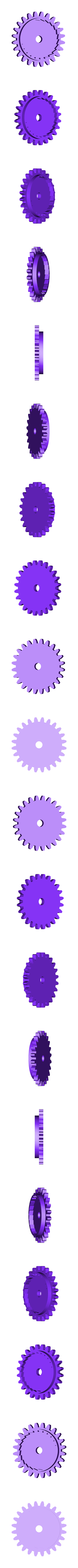

    • Gear_Spring.stl
    • Key.stl
    • Key_2_Larger_Diameter_Hex.stl

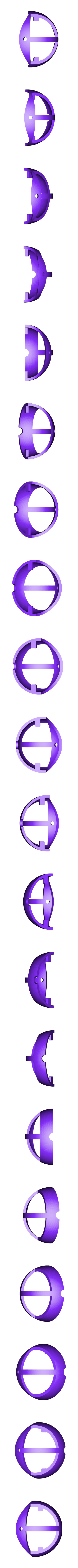

    • Nose.stl
    • Pawl.stl

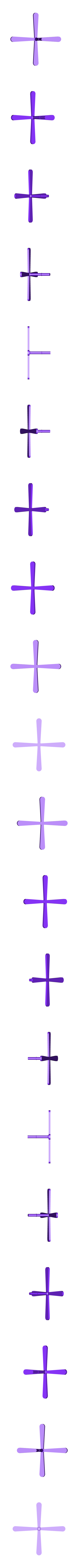

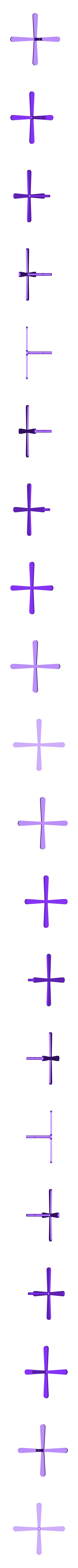

    • Rotor_Front.stl
    • Rotor_Rear.stl

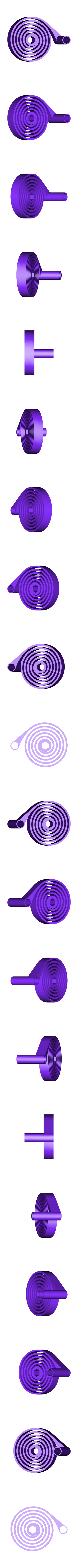

    • Spring.stl
    • Tail.stl
    • Wheel.stl
