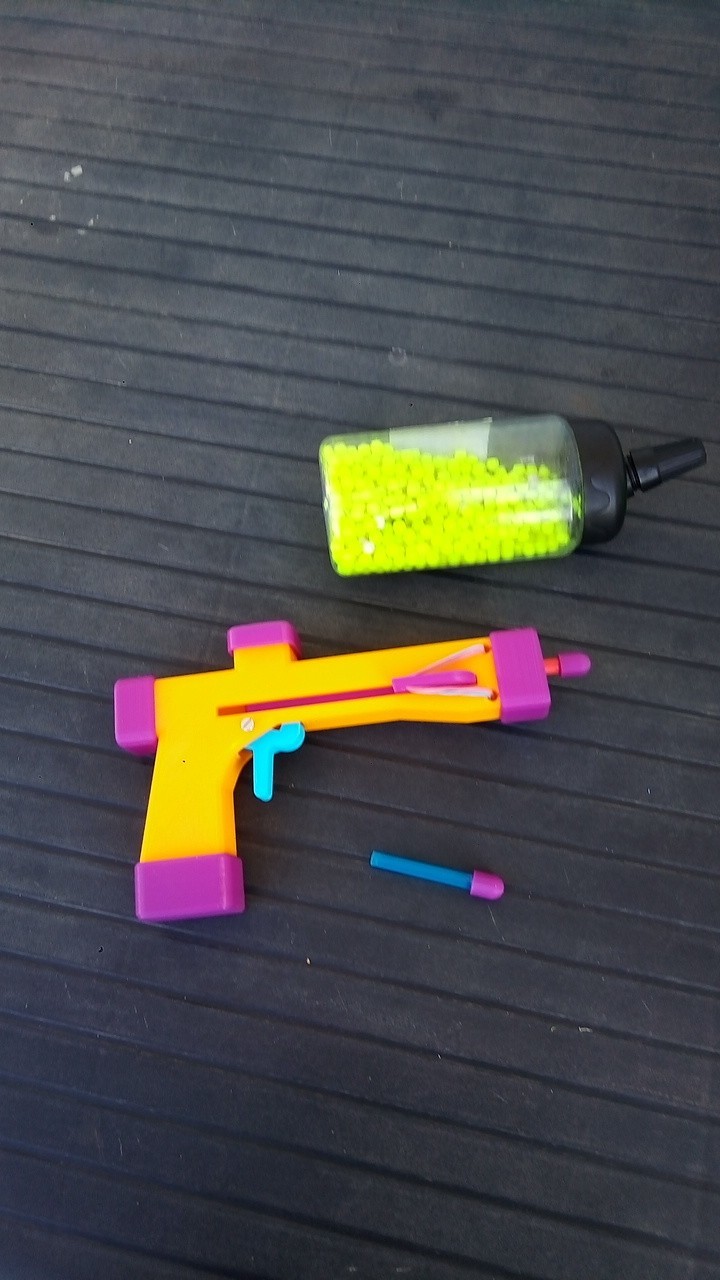

P_20190324_104519.jpg STL file Arrow gun・3D printable model to download, RFBAT

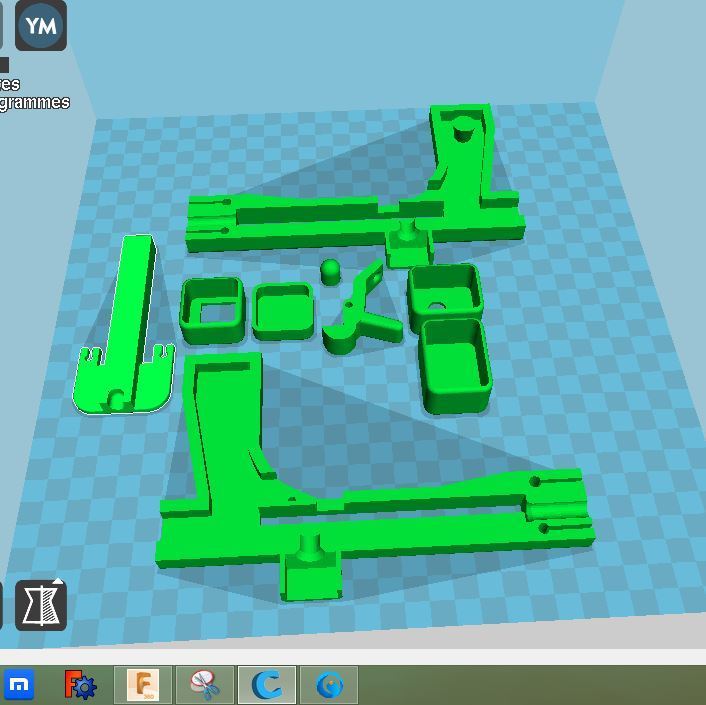

pisto-bille.JPG STL file Arrow gun・3D printable model to download, RFBAT

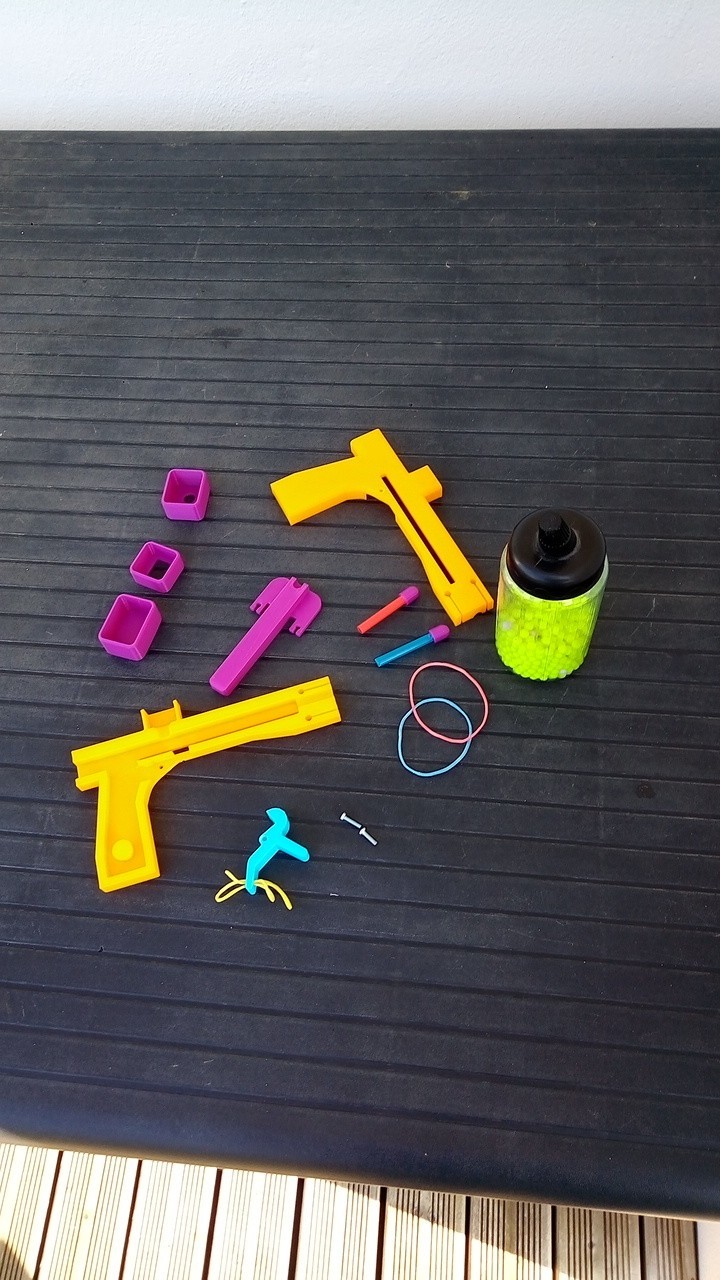

P_20190324_104017.jpg STL file Arrow gun・3D printable model to download, RFBAT
P_20190324_104125.jpg STL file Arrow gun・3D printable model to download, RFBAT

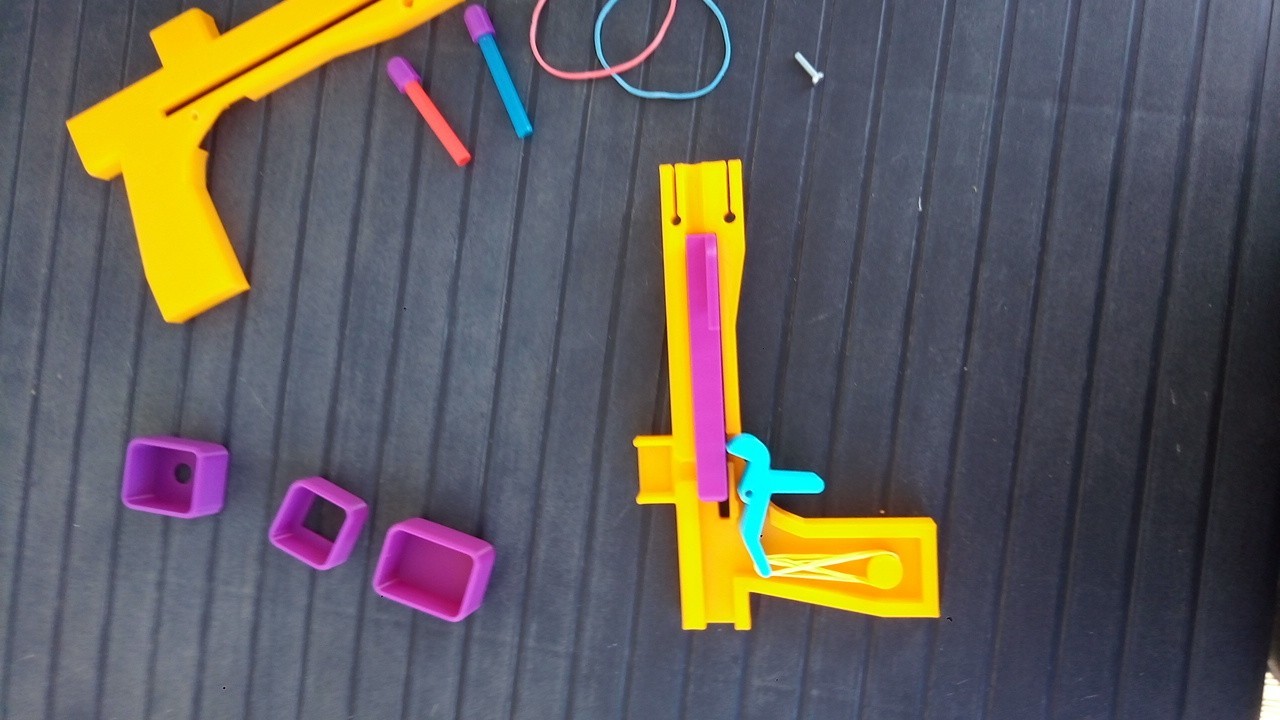

P_20190324_104141.jpg STL file Arrow gun・3D printable model to download, RFBAT

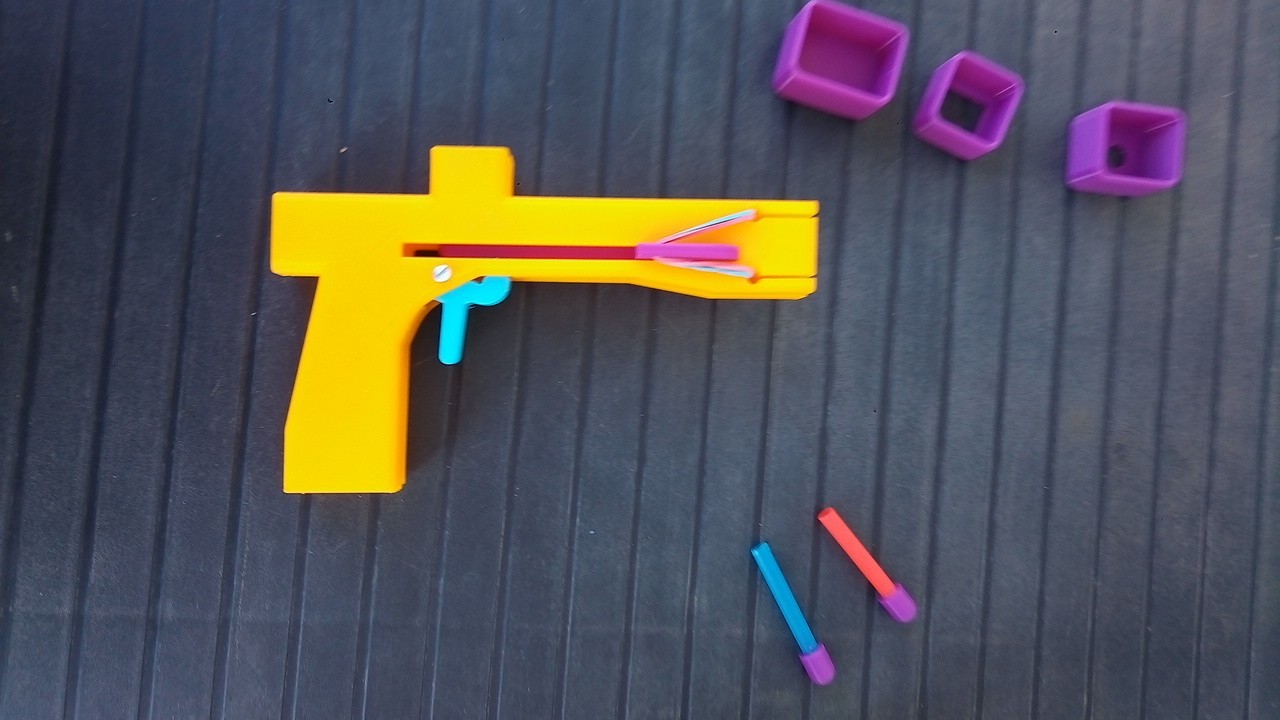

P_20190324_104259.jpg STL file Arrow gun・3D printable model to download, RFBAT

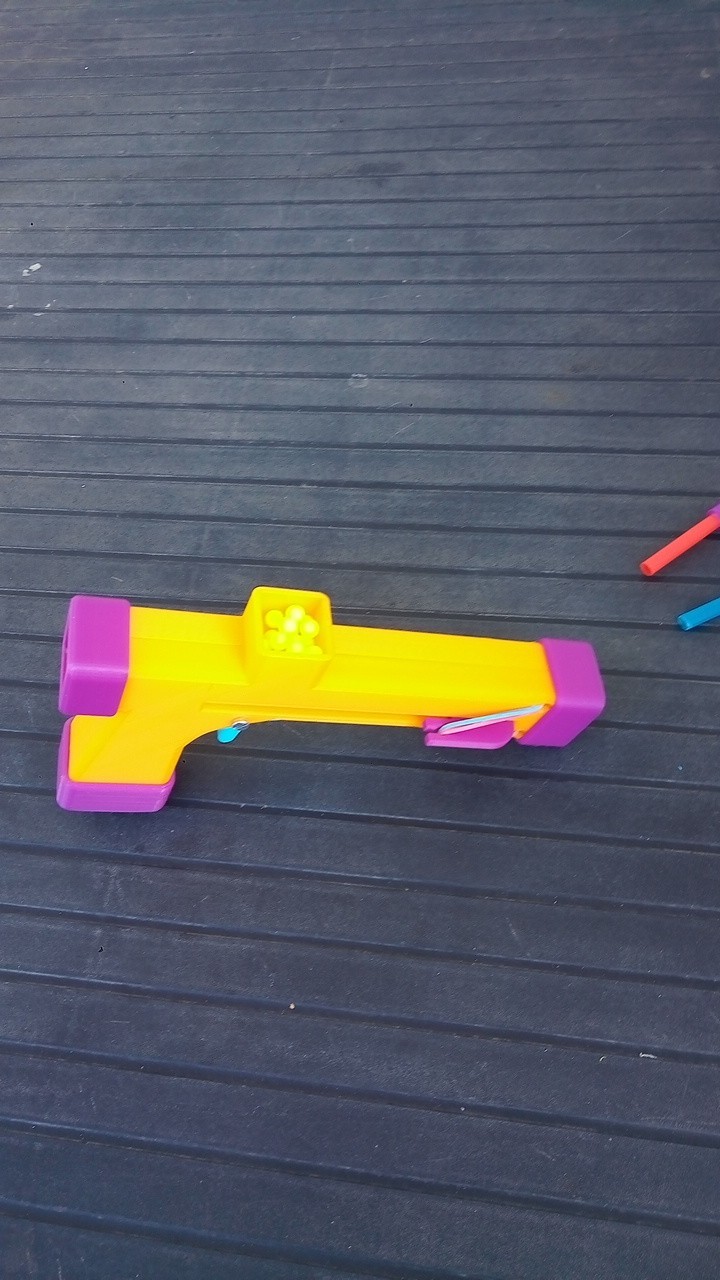

P_20190324_104329.jpg STL file Arrow gun・3D printable model to download, RFBAT
Body1.stl STL file Arrow gun・3D printable model to download, RFBAT
Body2.stl STL file Arrow gun・3D printable model to download, RFBAT
clip-bille.stl STL file Arrow gun・3D printable model to download, RFBAT
clip-canon.stl STL file Arrow gun・3D printable model to download, RFBAT
clip-cross.stl STL file Arrow gun・3D printable model to download, RFBAT
clip-culot.stl STL file Arrow gun・3D printable model to download, RFBAT
embout flèche.stl STL file Arrow gun・3D printable model to download, RFBAT
gachette.stl STL file Arrow gun・3D printable model to download, RFBAT
lanceur.stl STL file Arrow gun・3D printable model to download, RFBAT
Share
Add to
Make
?
Creation quality: 5.0/5 (3 votes)
Evaluation of members on the printability, utility, level of detail, etc.

3D model description

Hybrid pistol for shooting either standard bullets or arrows.

The arrows are made with a 6 cm piece of straw, the tip is glued on the straw.

You will need 1 screw of about 3mm x 25/30 or 2 screws of 3mmx10/12.

Put 2 rubber bands on the trigger and 2 on the launcher.

Thoroughly sand the launcher and the inside of the barrel for optimal operation.

You can add rubber bands for more power, I've tested up to 3 on the launcher.

If the trigger does not lock sufficiently under load, tension the rubber band(s) by winding it/them up or add a rubber band.

Although it is only a toy, do not leave it within reach of children unsupervised.

Count about 38 m of filament and 6 to 9 hours of printing depending on printer and parameters.

Depending on the accuracy of your printer, you may need to adjust the size of some parts by a few percent more or less.

3D printing settings

for body and covers height 0.2 to 0.3 mm, 1.2 thick and 30% filling.

For trigger and launcher height 0.2 mm ,1.2 mm thick and approx. 50 % filling

3D printer file information

  • 3D design format: STL Folder details Close
    • Body1.stl
    • Body2.stl
    • clip-bille.stl
    • clip-canon.stl
    • clip-cross.stl
    • clip-culot.stl
    • embout flèche.stl
    • gachette.stl
    • lanceur.stl

    Learn more about the formats

  • Last update: 2021-02-23 at 21:26
  • Publication date: 2019-03-24 at 11:25
