Phelps3D Transformers G1 Micromaster Base Ramp

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 535 views
  • 5 downloads

3D model description

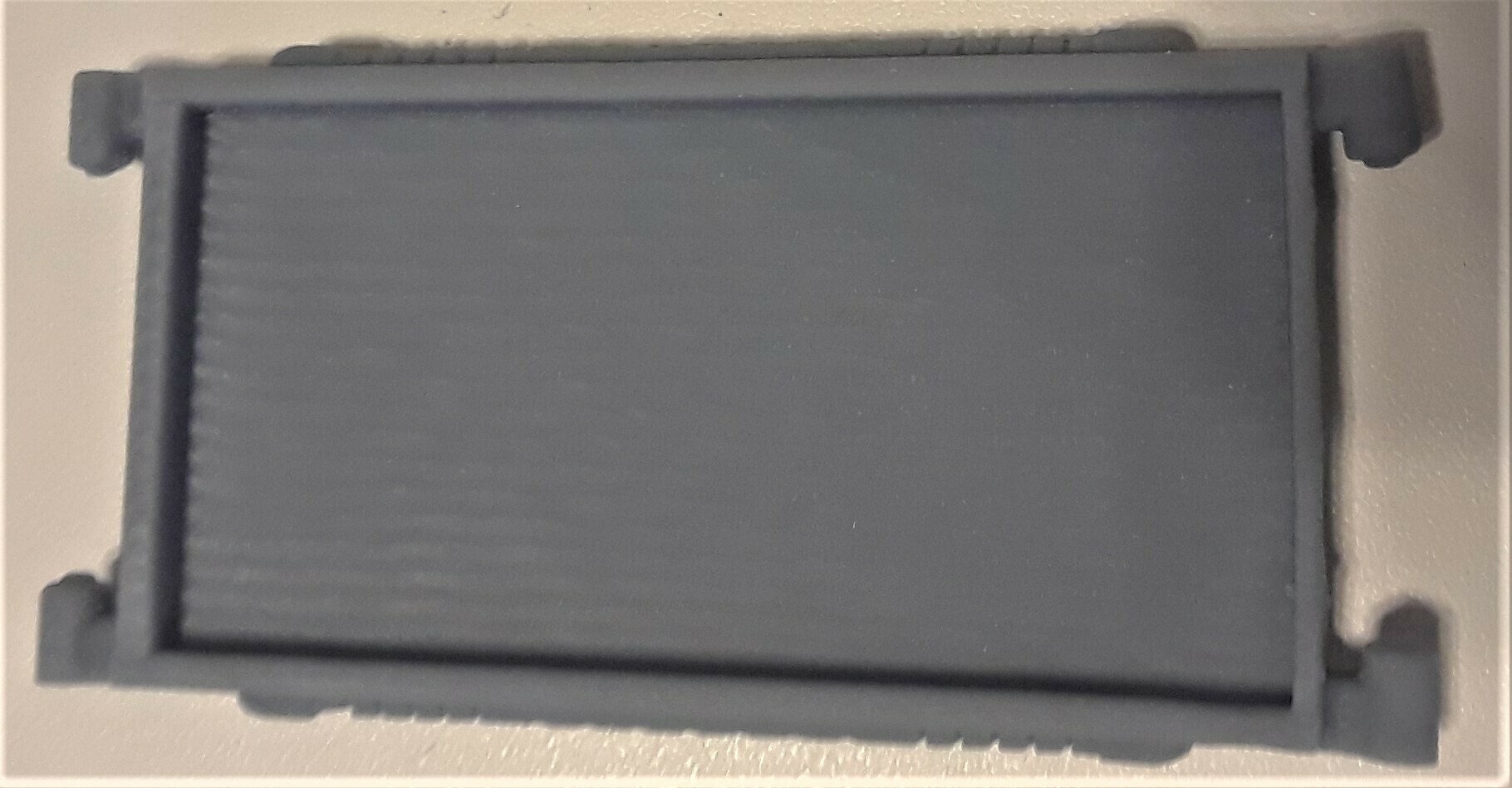

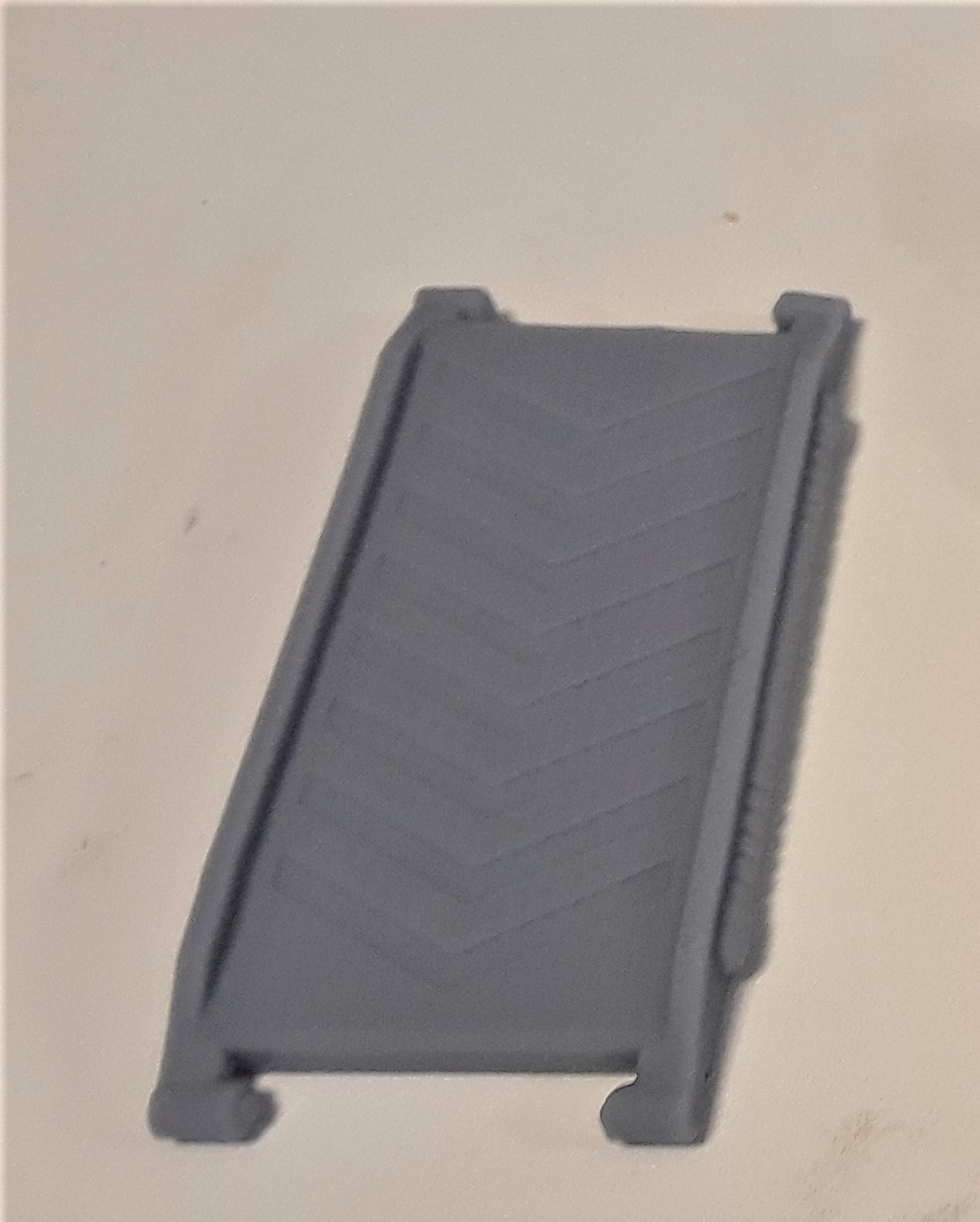

I can't believe how much it costs to buy one of these off eBay! So I decided to build my own. The standard resin is a bit brittle so be careful to support the connectors when you put them on and take them off.

I was using the Longer Orange 10 3D Printer and Longer Standard Resin.

Please note that while resin 3D printing is more accurate with details, they can still vary greatly from print to print.

This is mostly due to the “bleed” factor of the UV light exposure. What I did was to take the still slightly uncured parts and place them into their post holes to sort of “scrape” away excess prior to fully curing them under a UV lamp. (Note also that the white tends to change color after curing. Mine had a bit of a yellowish/red coloration. Sunlight UV curing may be a better option for white.)

Also, standard resins are quite brittle and do not have much flex to them. I made sure to run a 5 mm drill bit through the holes after curing to ensure their tolerance was correct. I did it after because there is always some shrinkage when the objects cure.


3D printing settings

0.05 mm layer height
10 seconds per layer exposure time

3D printer file information

  • 3D design format: STL Folder details Close
    • G1MicromasterBaseRamp (repaired).stl

    Learn more about the formats

  • 3D model size: X 40.6 × Y 7 × Z 80.5 mm
  • Publication date: 2021/01/18 at 23:03

Copyright

©

Tags

Creator

Designs 265
Downloads 780
Sales US$195
Followers 31

3D Printing Nerd, been using FreeCAD since 0.13. Work with both FDM and Resin 3D printers. Can do commissions, but mostly non-organic models.
