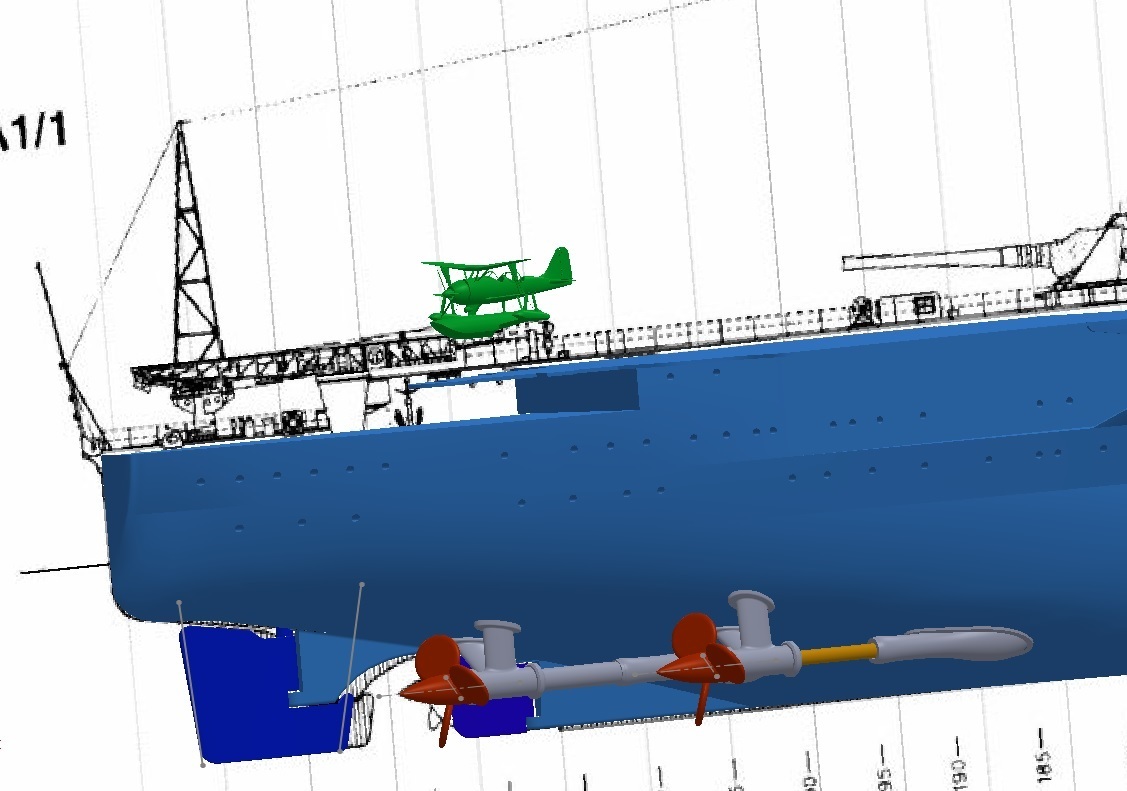

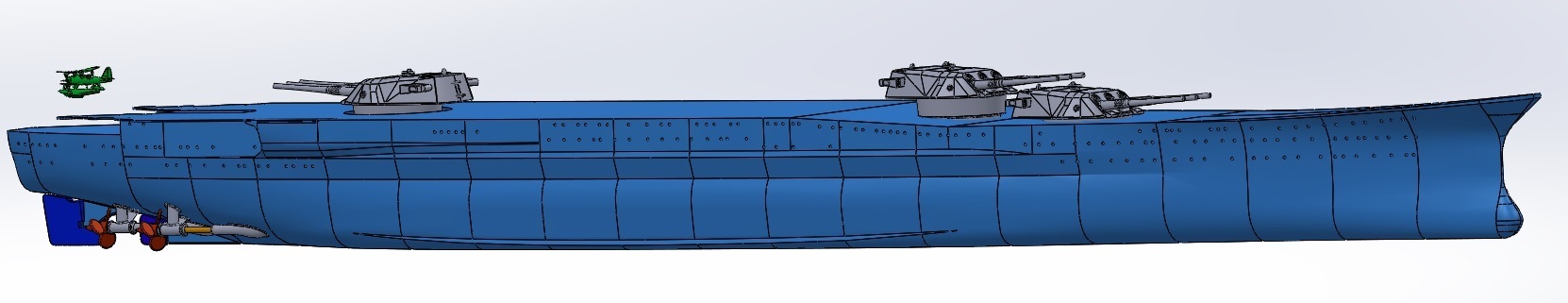

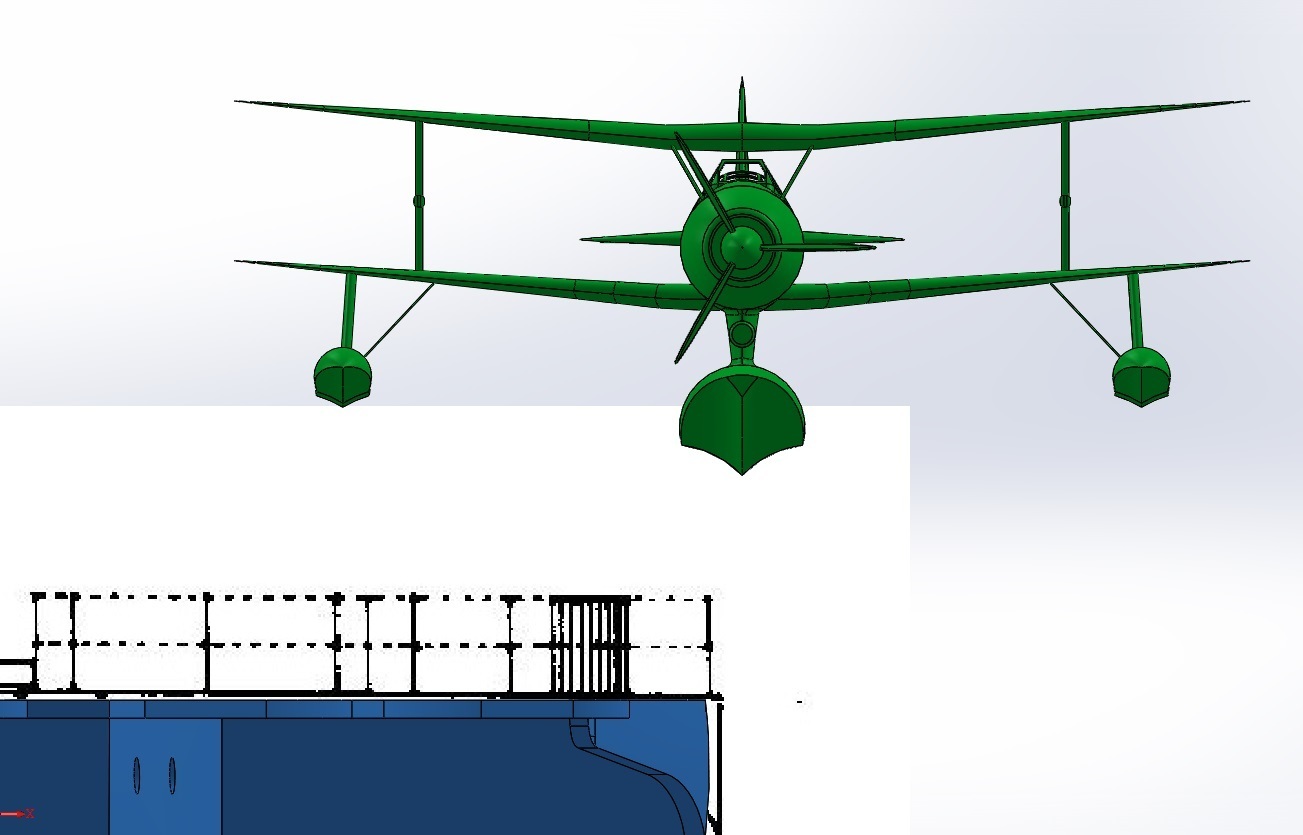

Observation Seaplane Model 11 Mitsubishi F1M2. Model copy for use in modeling - part of the project battleship "Yamata" 1/200. Can be increased to 1/100.

?
Creation's quality: 0.0/5 (0 votes)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 1.4k views
  • 1 like
  • 4 downloads

3D model description

Observation Seaplane Model 11
Mitsubishi F1M2. Model copy for use in modeling - part of the project battleship "Yamata" 1/200. Can be increased to 1/100.

I have already uploaded a model of the head caliber turret of the battleship Yamata, you can download it here:https://cults3d.com/en/3d-model/game/model-of-the-main-battery-turret-of-the-battleship-yamato-or-the-starship-yamato-scale-1-200-1-100
Since my project has already reached aviation, I am posting a model of the Ka-17 seaplane.
In 1935, Mitsubishi developed the Ka-17 float plane for
air surveillance, adapted for launch from a catapult. First climbed in
air in June 1936, this biplane powered by Nakajima Hikari's 611 kW (820
hp) insufficient flight performance. Four modified
prototypes F1M1, equipped with more powerful engines, and began their serial
production under the designation Marine Type 0 Observation Seaplane Model 11
Mitsubishi F1M2. Later, the Allies gave these aircraft the code designation Pit (Pit).

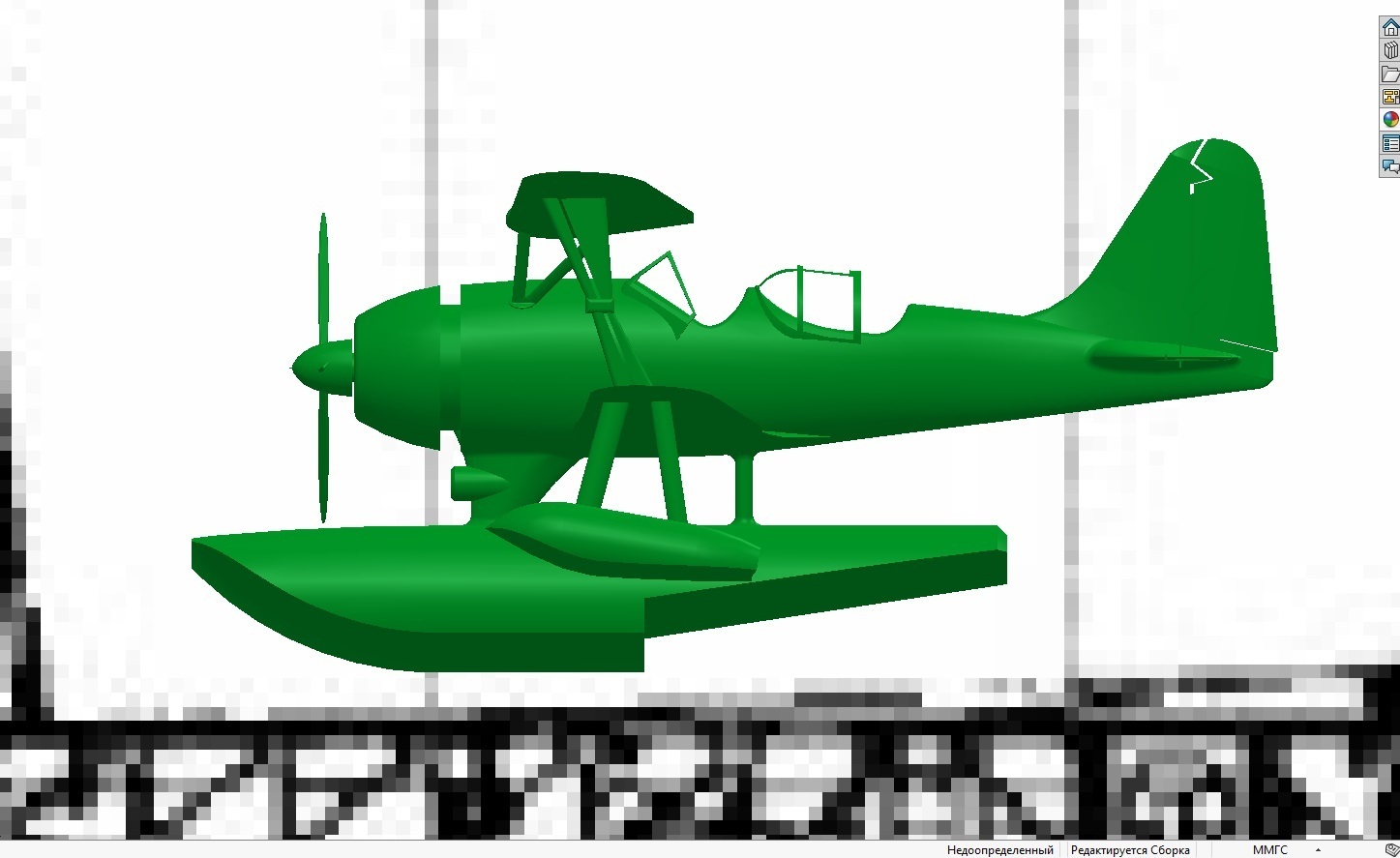

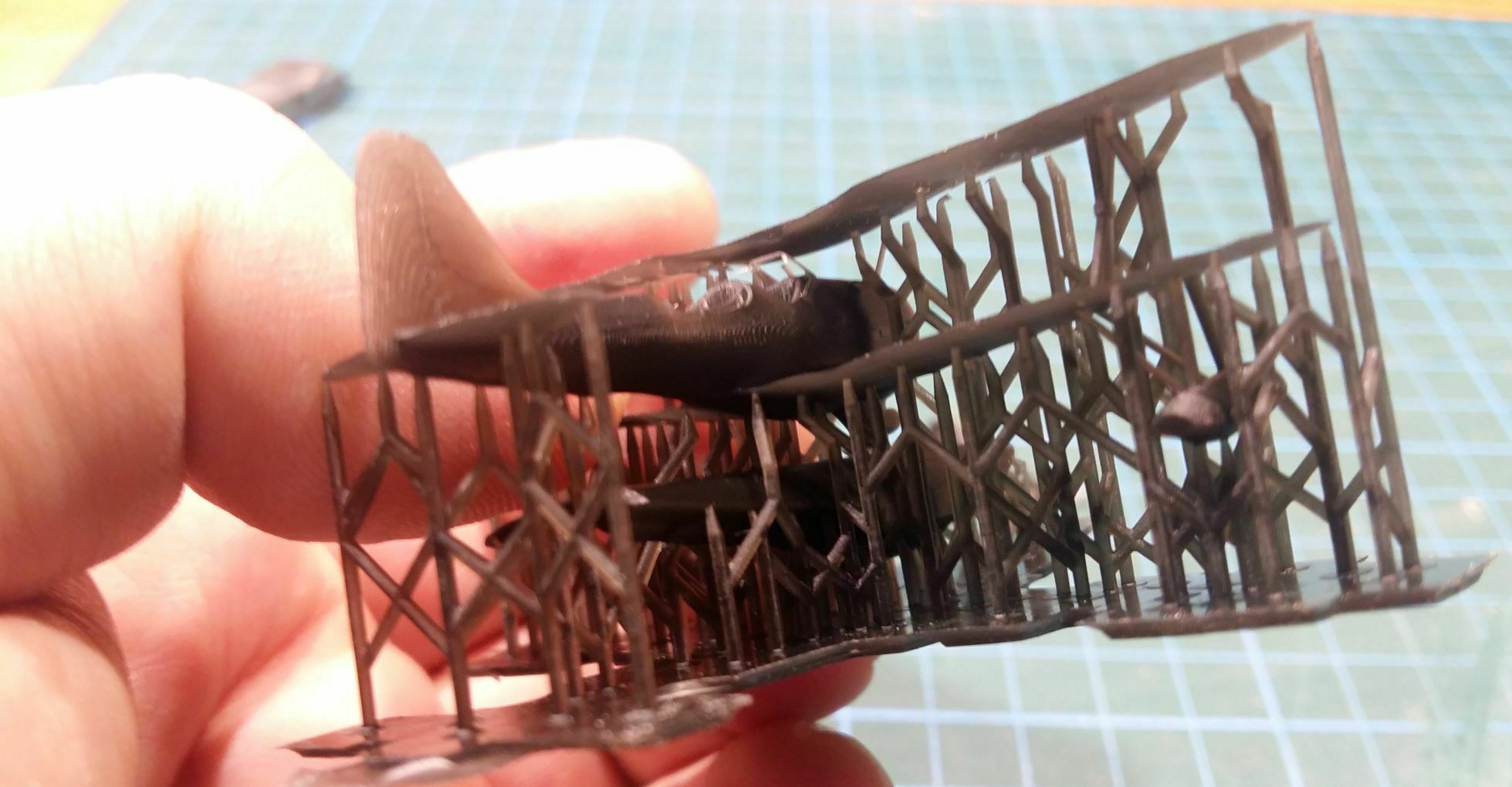

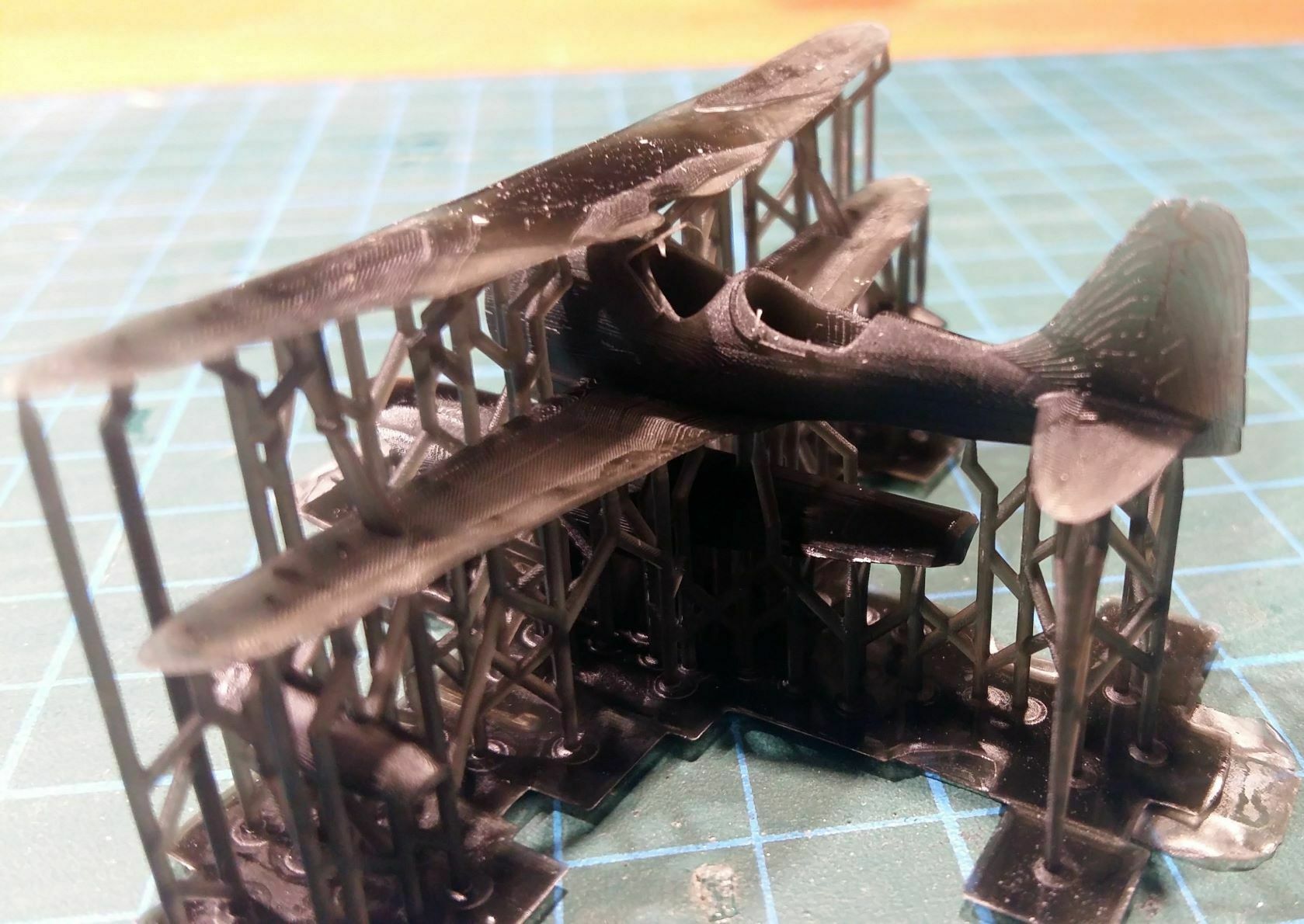

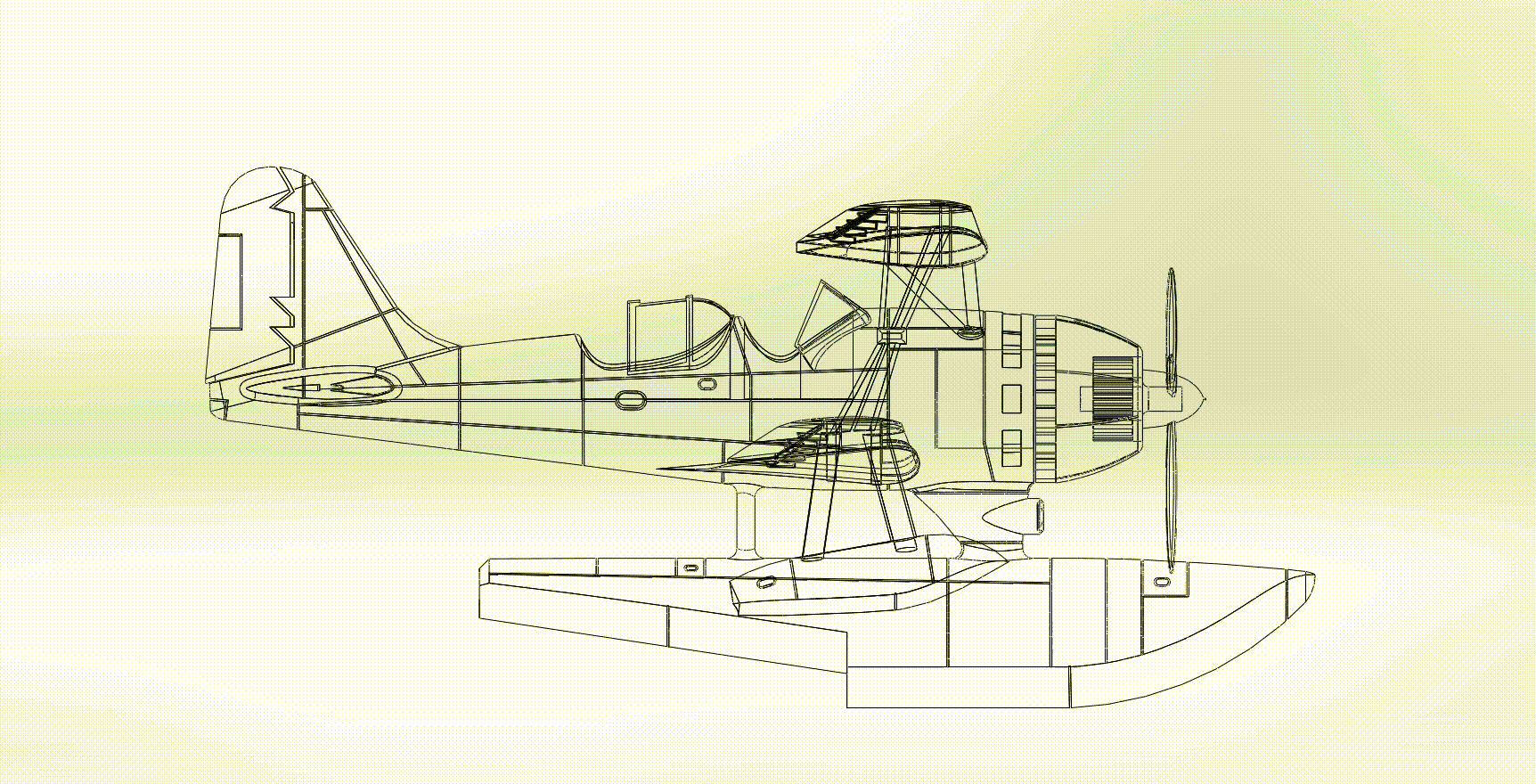

An album of drawings by Janos Skulsky was used to create the modli. I did not use the small scale to enlarge the size to the original. But this model will withstand a scale of 1/78, only a printer with a personal print volume and resolution is needed. In the photo, printing in a scale of 1/200, on a photo printer photon. The model consists of 3 parts, except for the skills of skills, the possession of a file for assembly is not required.
I


3D printing settings

recommend printing on a photopolymer printer with the modes set for the selected polymers.

3D printer file information

  • 3D design format: STL Folder details Close
    • Mitsubishi F1M2 Pete sol sb 2 - Mitsubishi F1M2 Pete sol 2-1.STL
    • Mitsubishi F1M2 Pete sol sb 2 - motornii otsek-2.STL
    • Mitsubishi F1M2 Pete sol sb 2 - vint-2.STL

    Learn more about the formats

  • Publication date: 2020/12/14 at 10:18
