3D model description

This is the re-release of the OpenRC Mariokart. The old version had to many issues. I completed the redesign of the problematic parts and now it works perfectly. :D

Consider supporting me on Patreon: https://www.patreon.com/Metalurgiasdesigns

If you like this please go to my Facebook page and drop a like :).
https://www.facebook.com/Metalurgiasdesigns/

Please respect the license under which this project is released. Thank you!

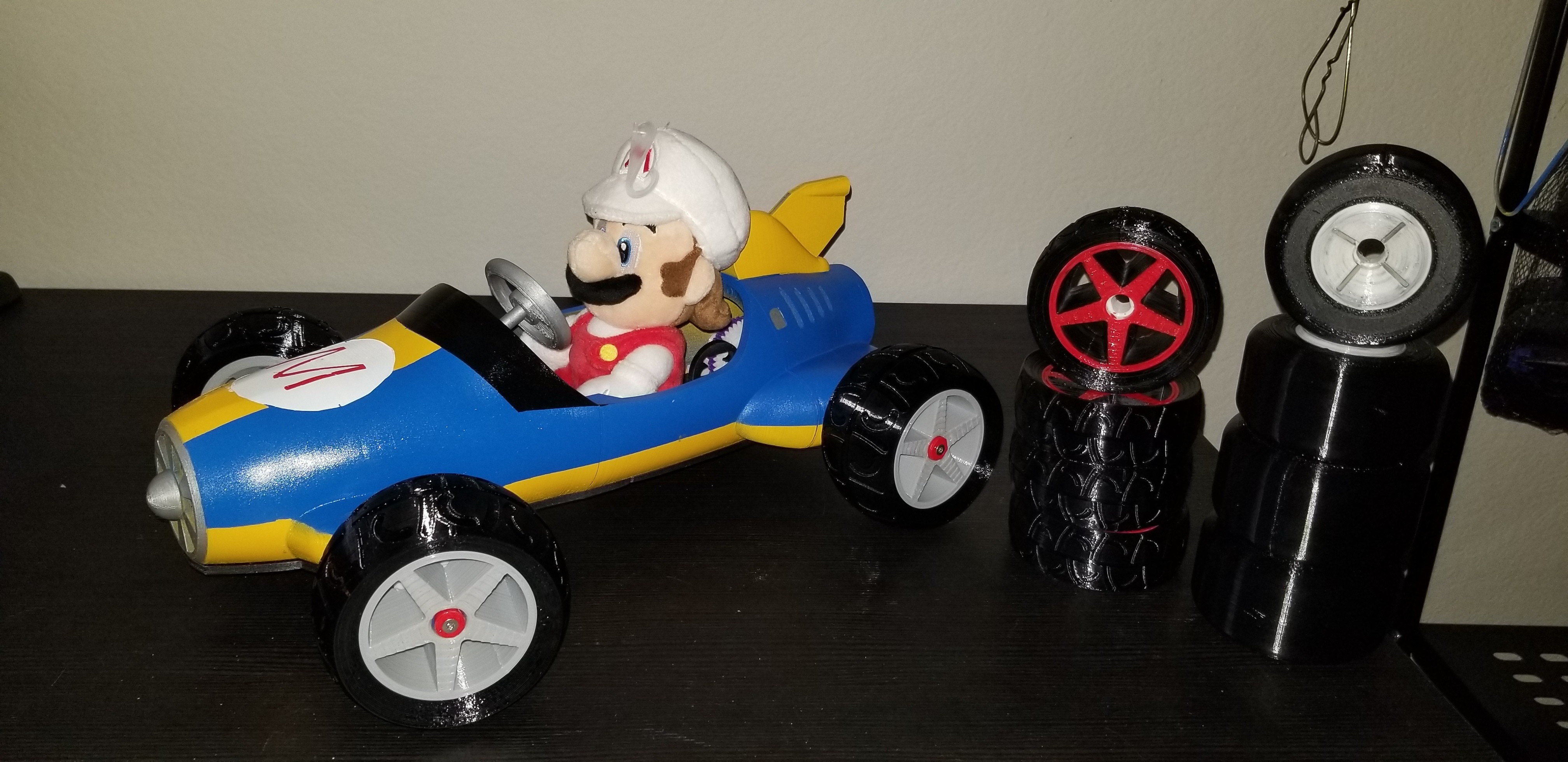

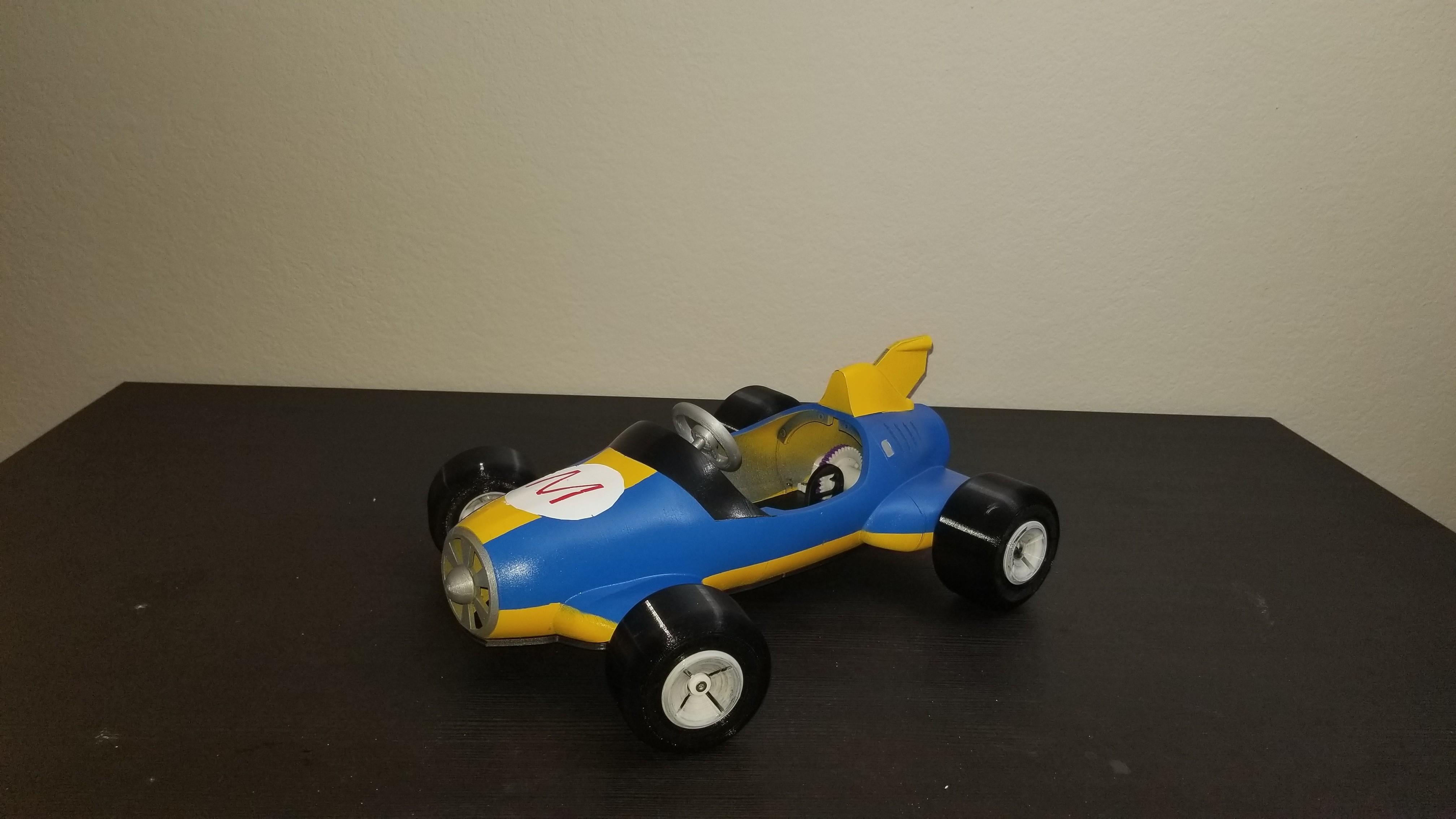

This is my version of the OpenRC car. This is my first mayor project. You can print everything in PLA except the tires which are done in TPU.

The car uses the same bearings as the ones in the F1 by Daniel Noree. I have to give him credit because his design was a big inspiration for me and this project.

You can print most of the parts without support except for:

Rear Body

Front Rim
Things to buy:

Filament duh...

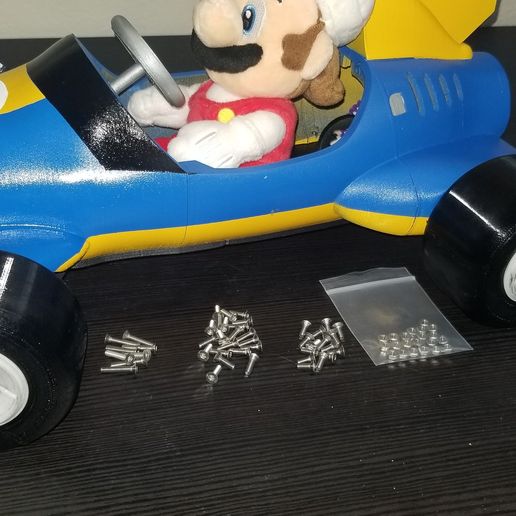

You also need M3 screws and nuts which you can get at your local hardware store or at the link posted above.
DIN 934 M3 Nuts (x21)
DIN 7991 M3X8 (x18)
DIN 7991 M3X10 (x22)
DIN 7991 M3X16 (x8)

The car uses the same bearings as the ones in the F1 by Daniel Noree.

You can buy the electronics you prefer, you need:
Motor
ESC
Baterry
Charger
Radio Control
Reciever
I will be releasing a video soon to feature the car and to show the assembly process.

If you like this please go to my Facebook page and drop a like :).
https://www.facebook.com/Metalurgiasdesigns/

Consider sponsoring me via my patreon page. This will help me a lot. :D
https://www.patreon.com/Metalurgiasdesigns

Thank you for your support enjoy.

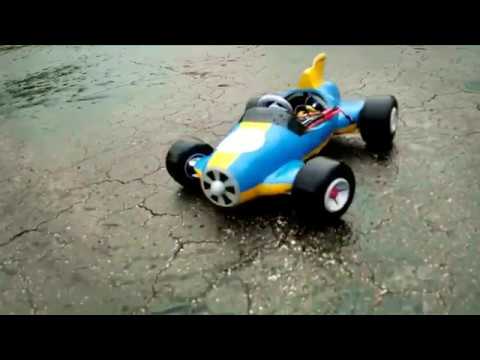

Video Here:
https://youtu.be/5wdK0egRymk


3D printing settings

Support for some of the parts. Printed with regular PLA. I used NylonX for the gears. TPU for the tires

3D printer file information

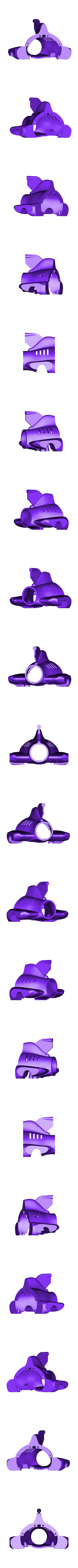

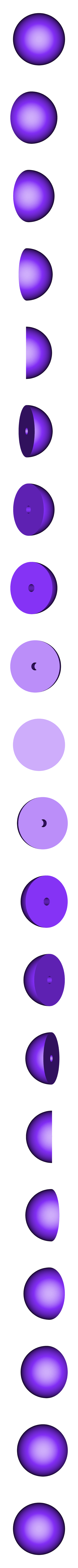

  • 3D design format: STL and ZIP Folder details Close
    • Body Front.stl
    • Body Middle.stl
    • Body Rear.stl
    • Chassis.zip
    • Front Body With M Logo.stl
    • Front Dome.stl
    • Mechanical.zip
    • Rear Body With M Logo.stl
    • Steering Wheel.stl

    Learn more about the formats

  • Last update: 2018/07/02 at 10:15
  • Publication date: 2018/07/01 at 02:17
