Nerf Vulcan EBF-25 Pegboard Mount

3D model description

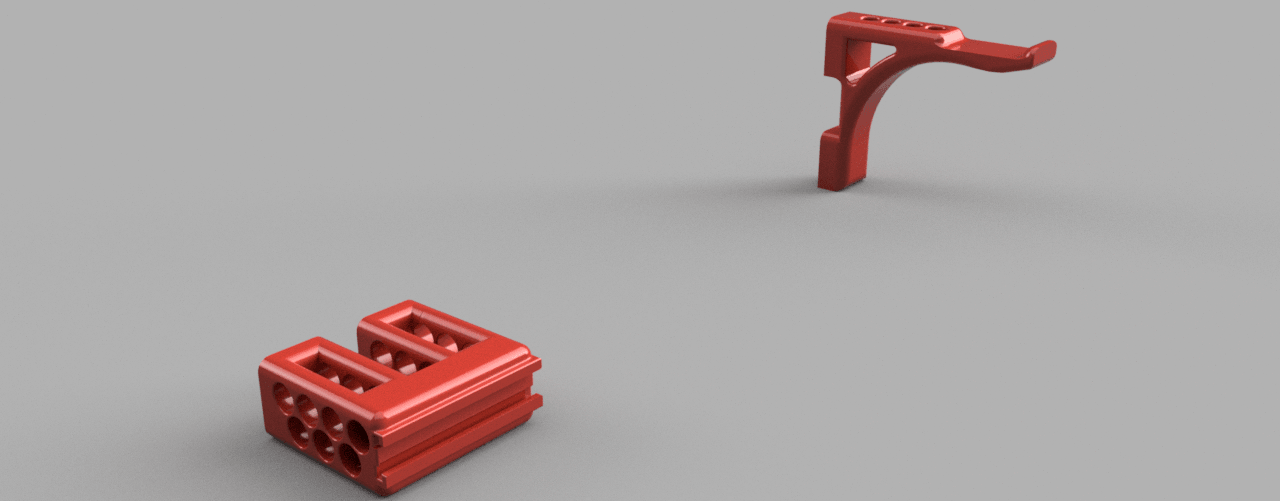

This is a 4pc Nerf Blaster mount. The pegs affix to secure the brackets to the wall, the mounts can be lifted off for ease of blaster installation or removal.

There has been a minor change in design from the pictures, removed a considerable amount of plastic from the design (center of posts on front mount, center of triangulated on rear). Doesn't effect strength, just reduces print time and weight from the original file.

Mounts hold 18 darts total, 4 rear mount, 14 front.

Recommend Printing in PETG for durability and long life.

*** TERMS:

Once the purchase is made, the resale or free transfer of such files to third parties will not be allowed.
Since this is a digital shipment, it is not possible to make refunds and refunds for downloaded files.

3D printing settings

Thickest Layers you can tollerate, I use 1.6mm wall, top and bottom in PETG for this print. You will need some minimal support.

  • 3D model format: ZIP

Tags

Creator

Alberta Based Nerf & 3D printing enthusiast.

Worked with MeakerVI on the first prototypes of the MK15 (now called Streaker) blaster. Current projects include the ABR-3M, Double barrel Hand cannon, and these Nerf Pegboard mounts.

My background is in an industrial specialty subtrade, nearly a decade of commercial project management, managing crew scheduling, logistics and resolving those pesky deficiencies on custom ordered/made/installed products.

I'm all about function over form, but am learning to try to bring some nicer aesthetics to my products.
