NCC-74959 Voyager - No Support Cut

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 👁 2.2k views
  • 11 likes
  • 193 downloads

3D model description

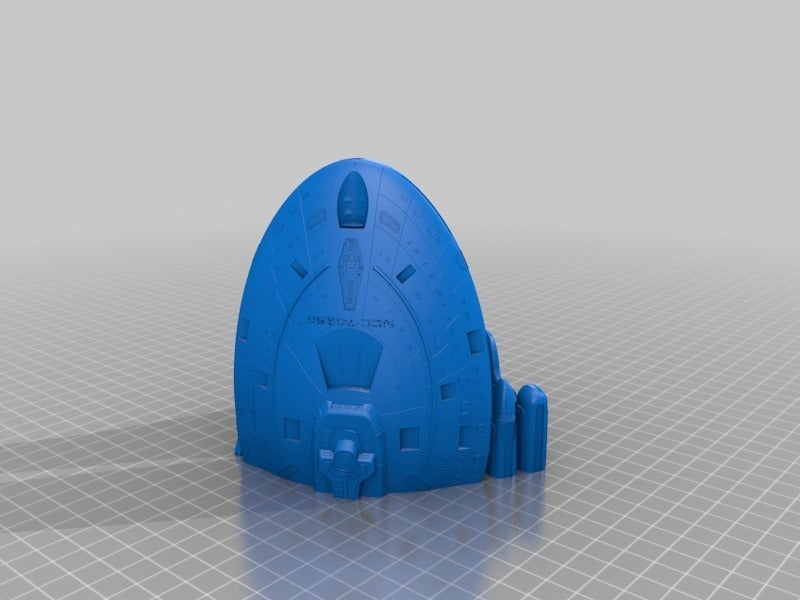

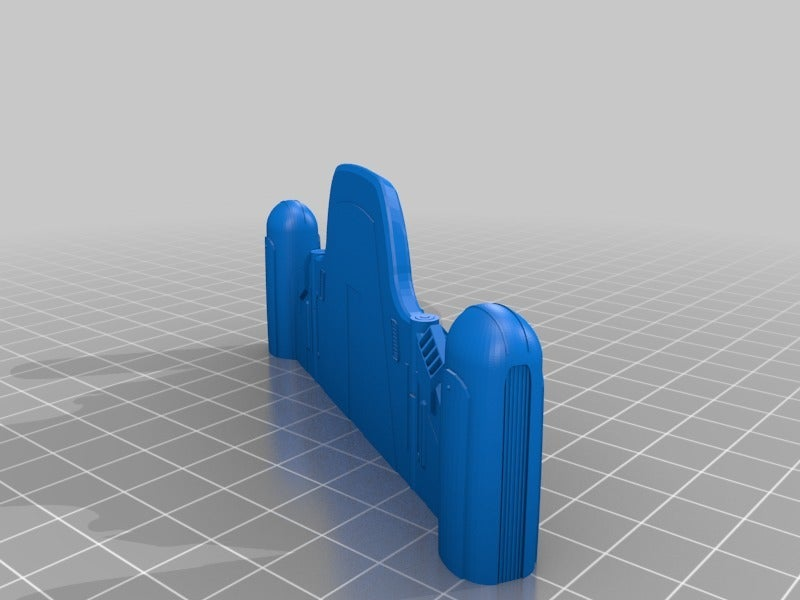

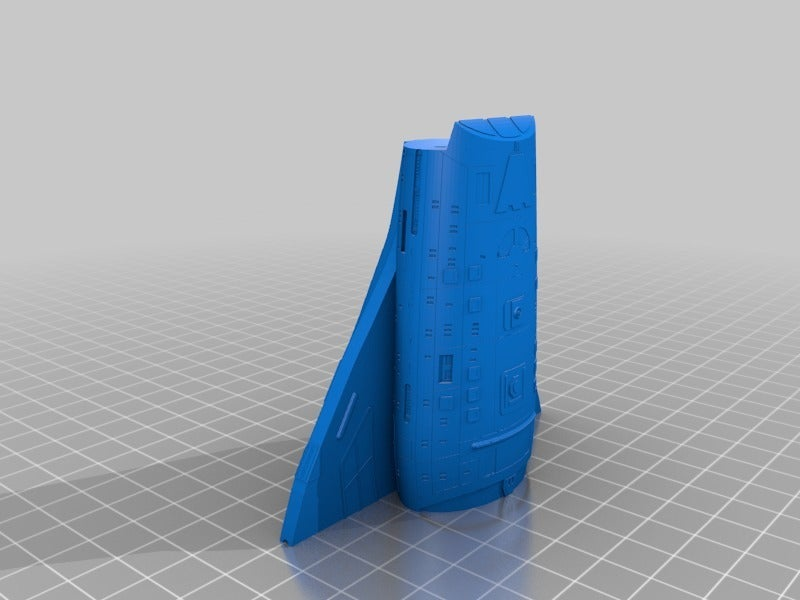

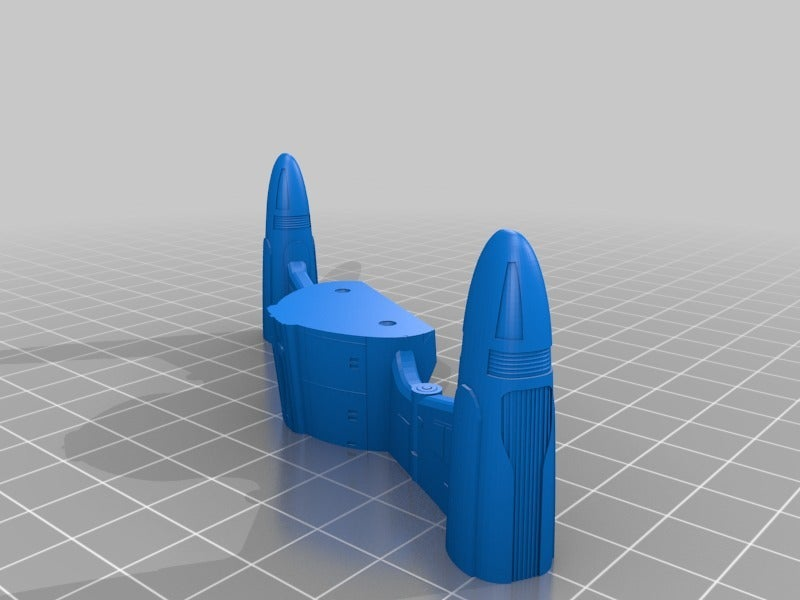

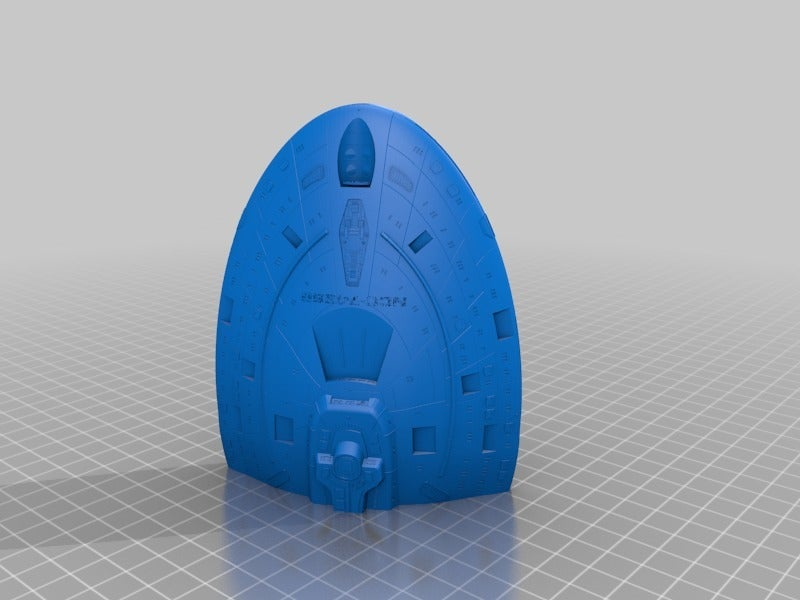

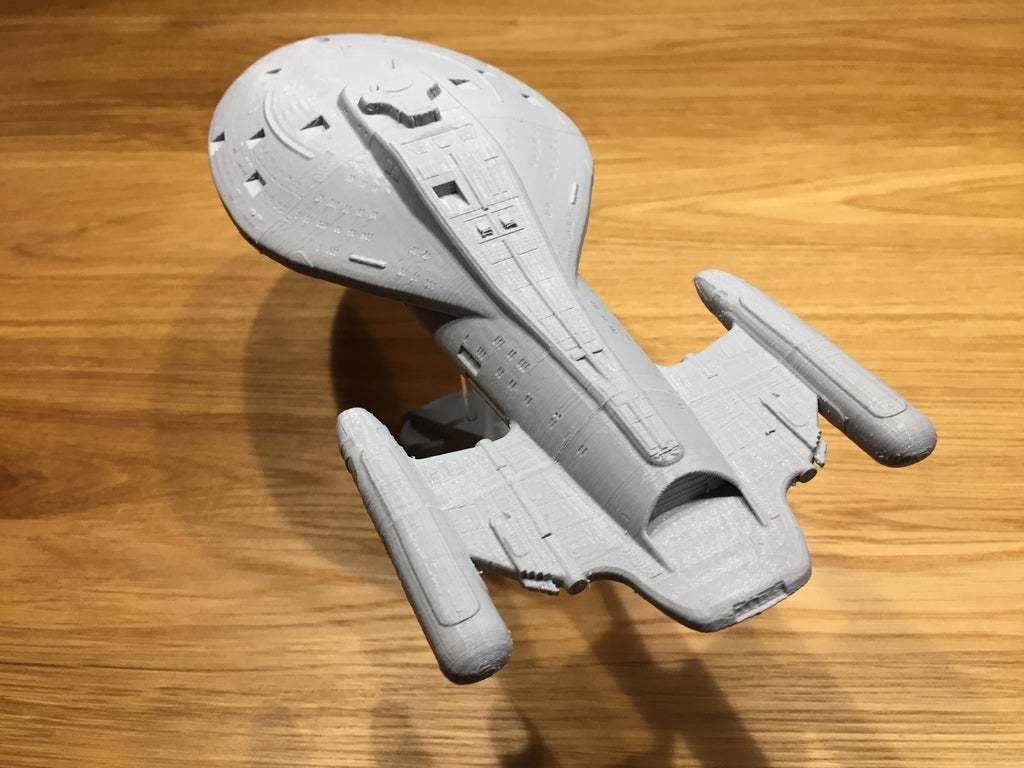

The model has been cut into several section to be able to print it without support.
It has been increased in size to a length of 250mm.

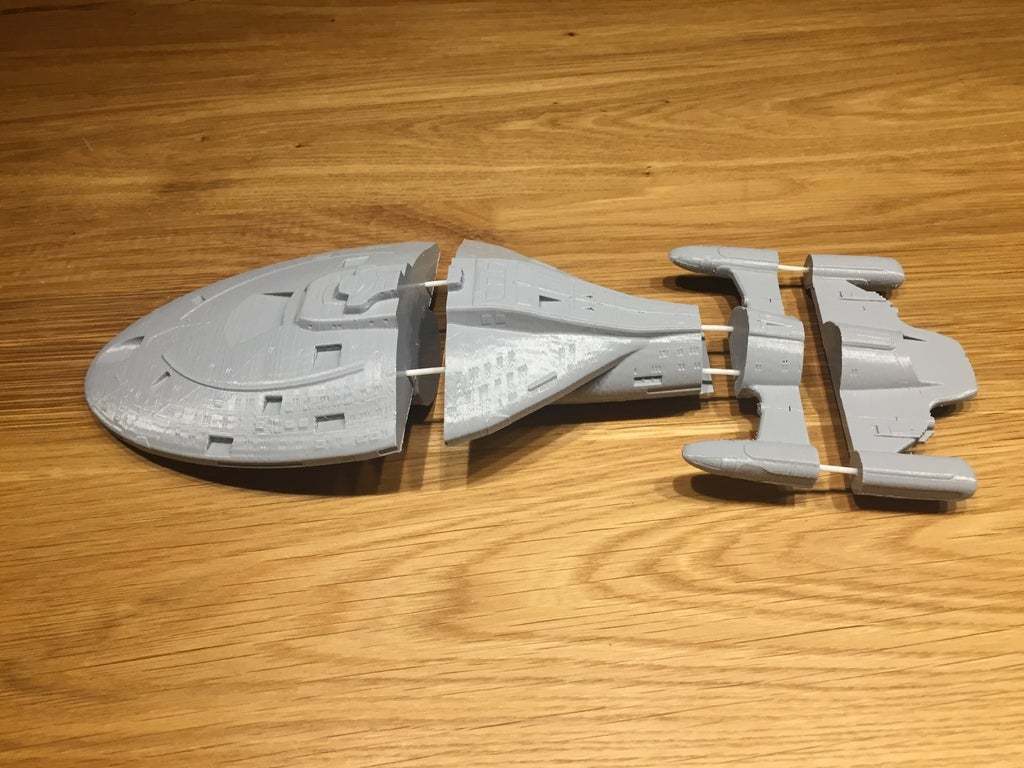

To make the lineup for the gluing easier FilaPins are added to each cut.
For that you will need 6 peaces of 1.75mm filament which are 9mm long.
Therefore i do not suggest to scale the model.

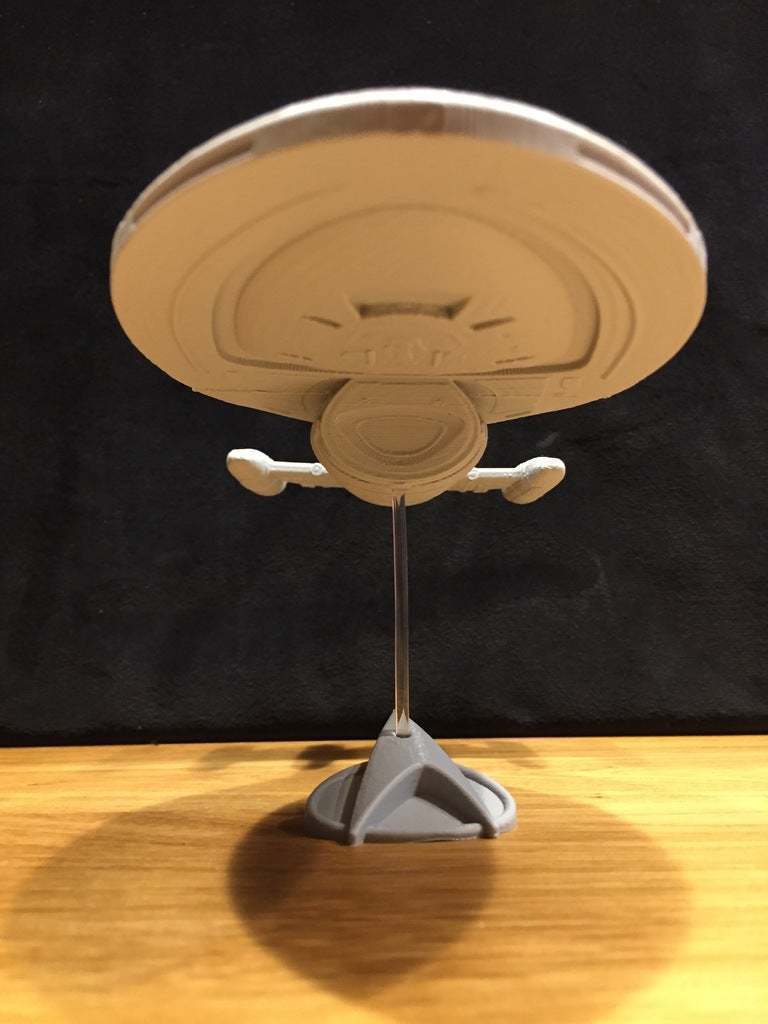

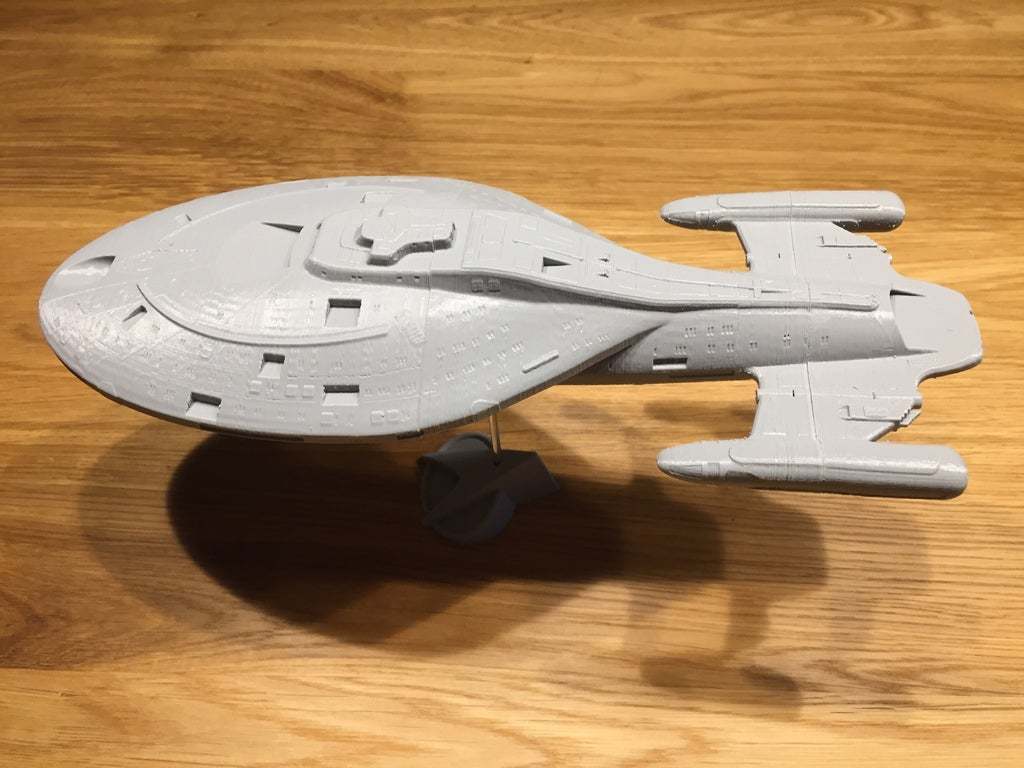

Also a 3mm hole as been added to part 5 to present the ship on the base.
As a support an peace of 3mm clear filament can be used.

Star Trek Ship Base design: https://www.thingiverse.com/thing:3361765

If you don't want the hole for the stand you can use the part 5 without hole.

Credits go to Nerys for the grate model of the Voyager:
https://www.thingiverse.com/thing:2499656/files


Edit 2019-01-27

Part 3 was incorrect. Has been fixed and replaced.

3D printer file information

  • 3D design format: STL Folder details Close
    • NCC-74959_All.stl
    • NCC-74959_All_no_hole.stl
    • NCC-74959_P1.stl
    • NCC-74959_P2.stl
    • NCC-74959_P2_no_hole.stl
    • NCC-74959_P3.stl
    • NCC-74959_P4.stl
    • Ship_Base_V1.0.stl

    Learn more about the formats

  • Publication date: 2020/08/04 at 00:42
