MN D90 Body on WPL RC Chassis Conversion Kit

?
Creation's quality: 5.0/5 (1 vote)
Evaluation of members on the printability, utility, level of detail, etc.
  • 3.7k views
  • 6 likes
  • 103 downloads

3D model description

So you just got the very beautiful MN D90 body, but you are lazy to build the chassis or spend the money to upgrade yet another chassis. Why not just mount the body on your existing modded WPL C Series chassis?

You can print the rear mount at 25% infill, but the axle truss at least 50%. Also, trim the surface where the link rod mount so they are able to rotate smoothly, or you risk breaking the axle truss.

make sure you have good bed adhision while printing the rear mount
first layer at least 50% speed or lower

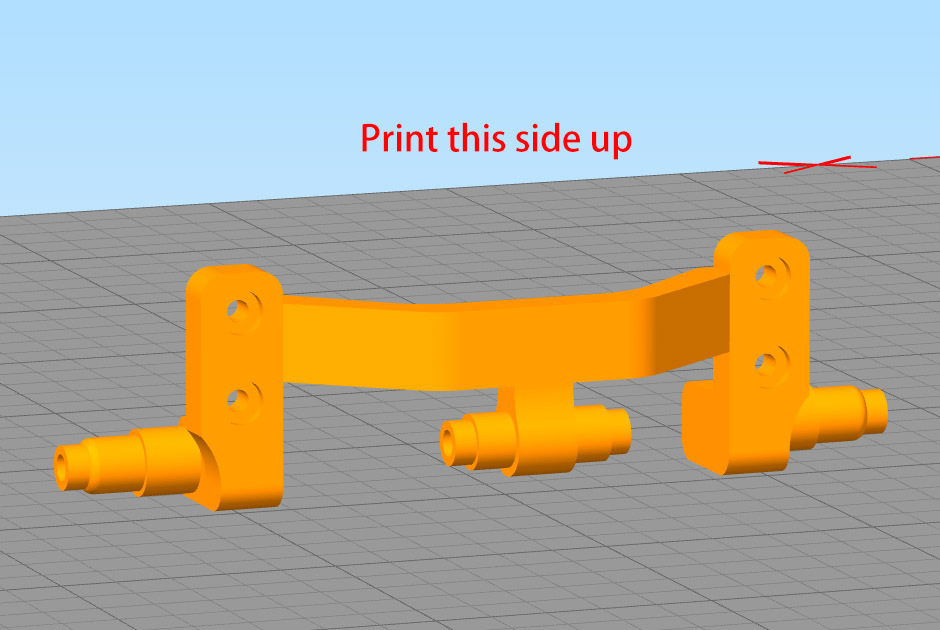

axle truss orientation, follow as pic attached

Additional parts needed is 2x 10mm M3 screw and 2x M3 lock nut.

Cheers

*版权所有,侵权必究!如要售卖此设计请先得批准!我是有上淘宝的玩家!

Get WPL C14 here
https://www.banggood.com/WPL-C14-2_4G-Four-Drive-Climber-RC-Car-KIT-With-Servo-Motor-p-1254503.html?p=DG23031123036201501P

Get MN D90 here
https://www.banggood.com/1-Set-MN-90-Kit-112-2_4G-4WD-Rc-Car-Crawler-Monster-Truck-Without-ESC-Transmitter-Receiver-Battery-p-1370557.html?p=DG23031123036201501P

Printer i used to print this
https://www.banggood.com/DIY-Creality-CR-10-3D-Printer-300300400mm-Printing-Size-1_75mm-0_4mm-Nozzle-p-1085645.html?p=DG23031123036201501P
