Update (last two pics): I made a version 2.5 after using the handle for some minis. I made the following changes:
The rubber bands were kinds too close so i made the gaps a bit wider (the new version needs "arm" printed 8 times, see also below for options).
I added a hole for the top washer (M5,5x15).
Moved the rotating arm a bit to the front (previously it was in the middle to help the priming handle stand upright). I added a groove at the bottom for another "rubber band arm" so that it can stand once more (you need to print "arm" nine times if you want this feature)
Still torn on the diameter of the screw hole, let me know what you prefer!

I created this miniature Basecoating/Priming handle in TinkerCAD.

I used a M5x40mm Screw, four Washers and three nuts to secure the handle to the rotating part (see assembly below). And some flat rubber bands inbetween the Arms (0,5cm thick and approx 6cm long when layed flat but that shouldnt matter too much)

The Arms snap in place quite well but i still used some superglue to secure them.

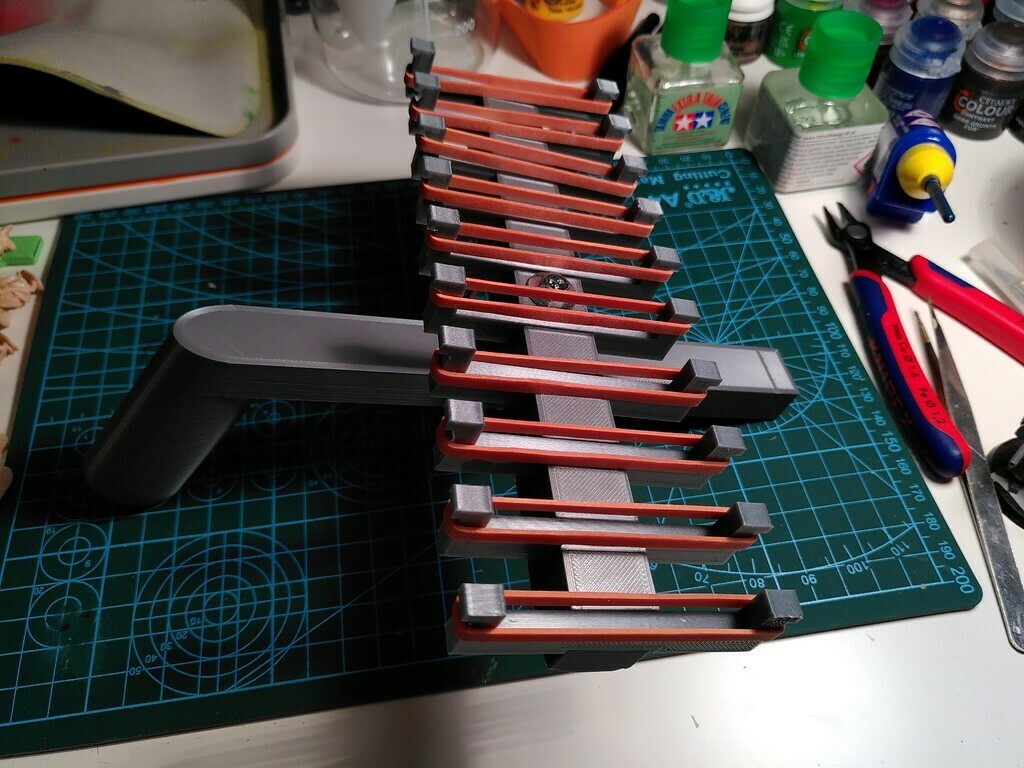

Also it can stand on its own, see photos.

Feel free to make suggestions to improve it, I'll gladly try to incorporate them

V2 has a 5,5mm hole, this might be too loose, let me know if you try it!

Assembly:
- put a washer over the screw
- put the screw through the rotating arm, add a washer, a nut (not too tight) and another washer
- put the whole thing on top of the handle, add a washer
- secure with two nuts by leaving a small gap between the handle and the first screw and then tightening the nuts against each other
The gab should allow the arm to spin
